U7 Pro XGS
10G, 8-stream WiFi 7 AP
🔒 100% Secure & Encrypted Payments
⚡ Instant Service Activation
🚚 Fast & Reliable Delivery
💬 24/7 Expert Technical Support
✅ Trusted by Businesses Worldwide
🔄 Easy Returns
- Overview
- Dimensions

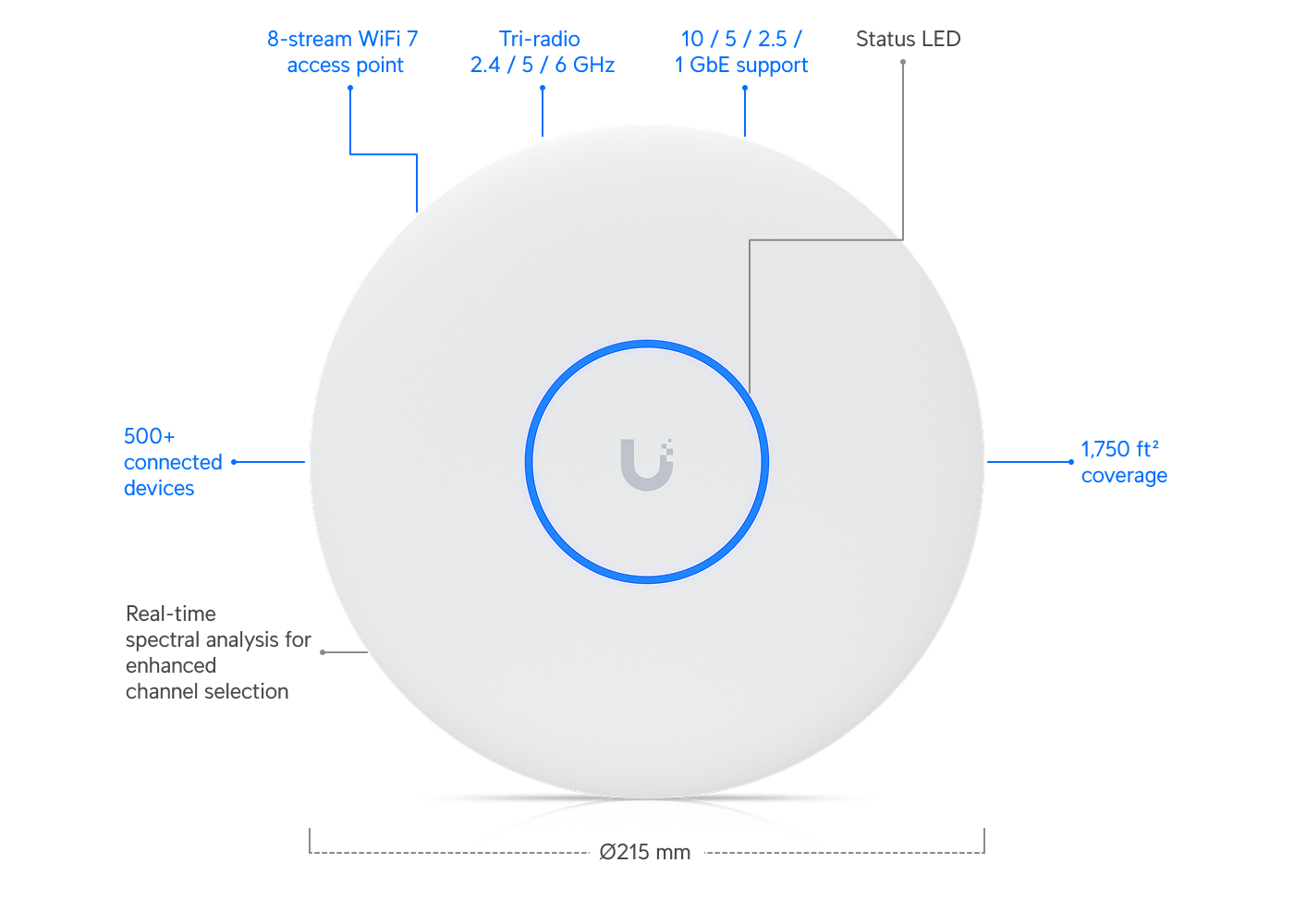

- Yes ?215 x 32.5 mm (?8.5 x 1.3")
- WiFi Standard: Yes WiFi 7
- Spatial Streams: Yes 8
- Coverage Area: Yes 160 m² (1,750 ft²)
- Max. Client Count: Yes 500+
- Uplink: Yes 10 GbE
- Mounting
- Yes Ceiling, Wall (Lite Mount Included)
- Power Method: Yes PoE++
- Performance
- MIMO
- Yes 6 GHz: 2 x 2 (DL/UL MU-MIMO)
- Yes 5 GHz: 4 x 4 (DL/UL MU-MIMO)
- Yes 2.4 GHz: 2 x 2 (DL/UL MU-MIMO)
- Max. Data Rate
- Yes 6 GHz: 5.8 Gbps (BW320)
- Yes 5 GHz: 8.6 Gbps (BW240)
- Yes 2.4 GHz: 688 Mbps (BW40)
- Antenna Gain
- Yes 6 GHz: 6 dBi
- Yes 5 GHz: 6 dBi
- Yes 2.4 GHz: 4 dBi
- Max. TX Power
- Yes 6 GHz: 24 dBm
- Yes 5 GHz: 29 dBm
- Yes 2.4 GHz: 23 dBm
- Max. BSSIDs: Yes 8 per Radio
- Supported Data Rates
- Yes 802.11be (WiFi 7)
- Yes 802.11ax (WiFi 6)
- Yes 802.11ac (WiFi 5)
- Yes 802.11n
- Features
- Yes Wireless Meshing
- Yes Band Steering
- Yes Fast Roaming
- Yes Radio Resource Management
- Yes BSS Transition
- Yes Zero-Wait DFS
- Yes Spectral Analysis
- Yes Captive Portal
- Yes Voucher Authentication
- Yes Payment Authentication
- Yes Guest Network Isolation
- Yes PPSK
- Yes Speed Limiting
- Yes Device Isolation
- Yes WiFi Scheduling
- Yes RADIUS over TLS
- Yes Dynamic VLAN
- Hardware
- Yes Max Power Consumption: 29W
- Yes Voltage Range: 42.5–57V DC
- Yes Networking: (1) 10 GbE RJ45 port
- Yes Weight: 800 g (1.8 lb)
- Yes Management: Ethernet
- Yes Material: Polycarbonate + Aluminum
- Yes Mount Material: Stainless Steel + Galvanized Steel
- Yes LED: White / Blue
- Channel Bandwidth: Yes Supported
- NDAA Compliant: Yes
- Certifications
- Operating Frequency
- Yes US/CA Bands Supported
- Yes Worldwide Supported
- Environment
- Yes Temperature: -30 to 40°C
- Yes Humidity: 5–95%
- Software
- Yes UniFi Network Supported
