U7 Pro XG

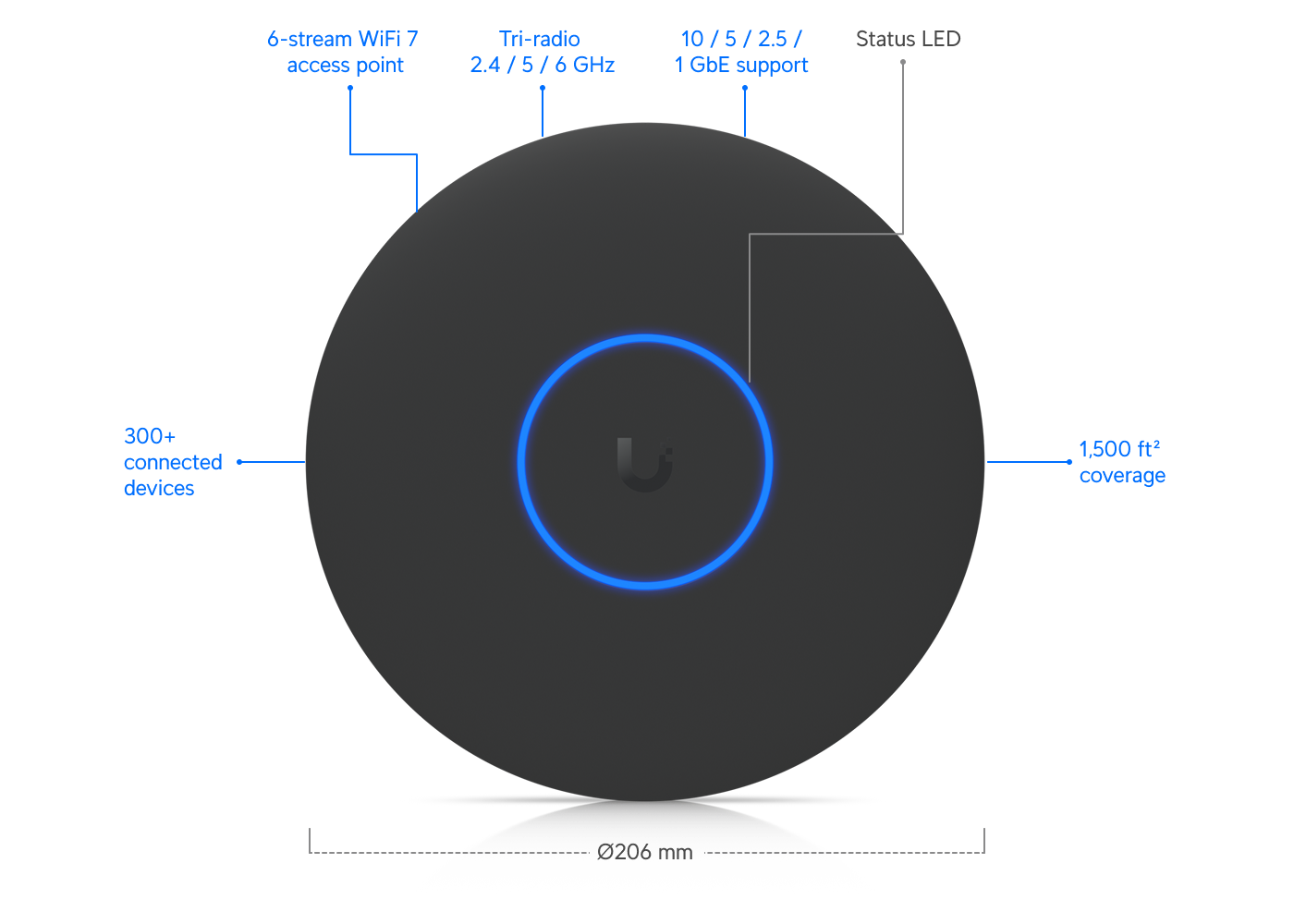

10G, 6-stream WiFi 7 AP
🔒 100% Secure & Encrypted Payments
⚡ Instant Service Activation
🚚 Fast & Reliable Delivery
💬 24/7 Expert Technical Support
✅ Trusted by Businesses Worldwide
🔄 Easy Returns
- Overview
- Dimensions

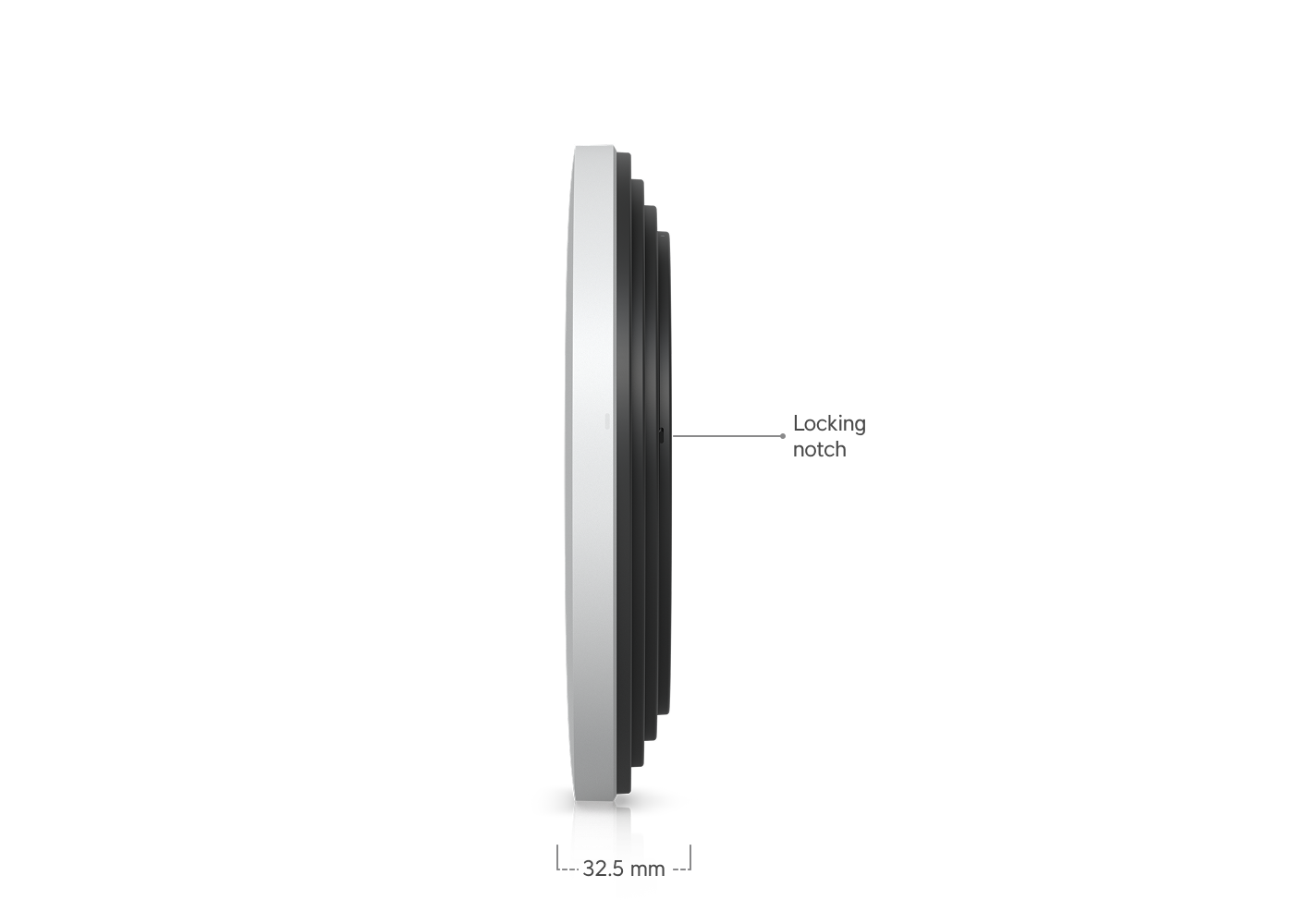

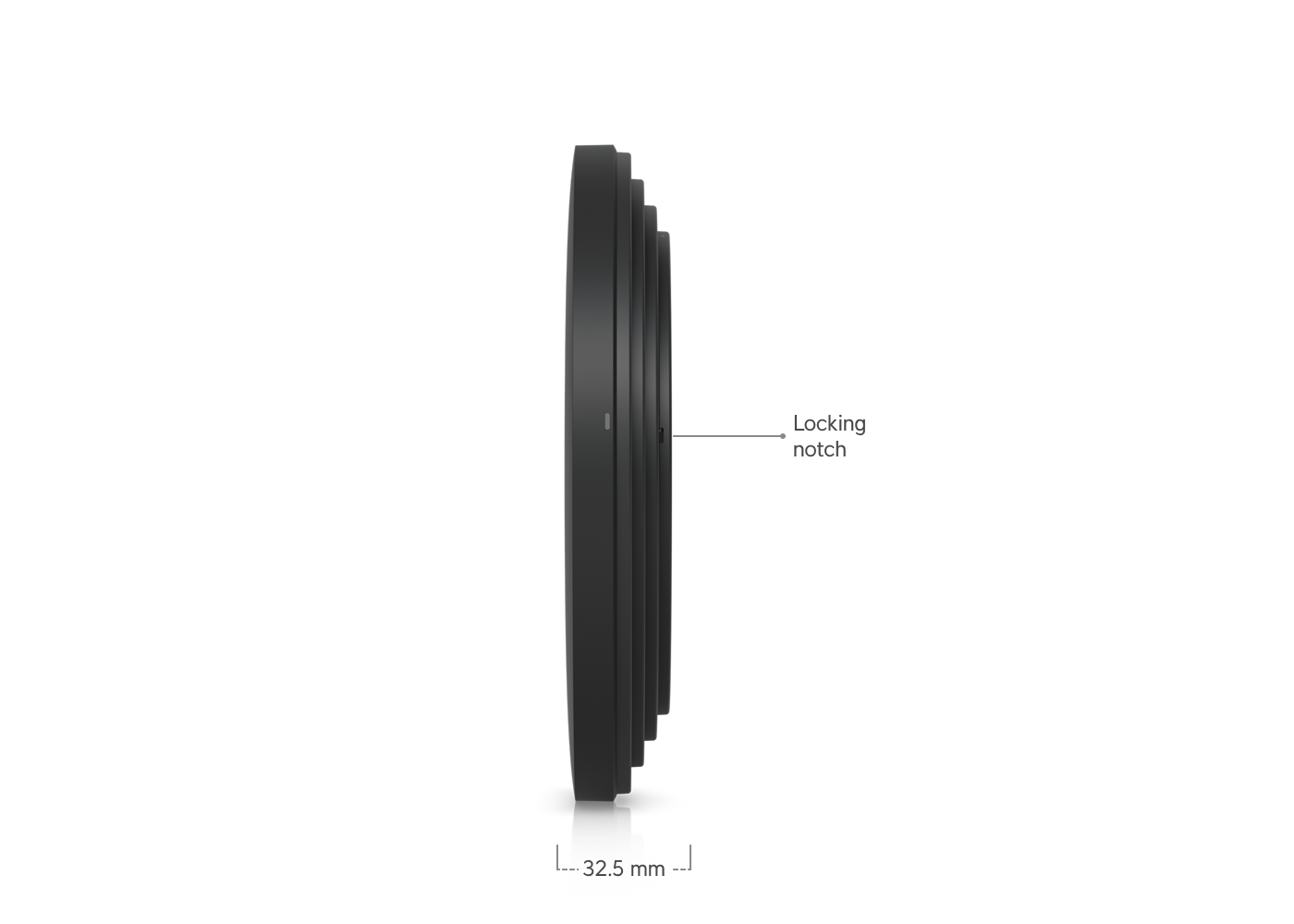

- ?206 x 32.5 mm (?8.1 x 1.3")
- WiFi Standard: WiFi 7
- Spatial Streams: 6
- Coverage Area: 140 m² (1,500 ft²)
- Max. Client Count: 300+
- Uplink: 10 GbE
- Mounting
- Ceiling, Wall (Lite Mount Included)
- Power Method: PoE+
- Performance
- MIMO
- 6 GHz: 2 x 2 (DL/UL MU-MIMO)
- 5 GHz: 2 x 2 (DL/UL MU-MIMO)
- 2.4 GHz: 2 x 2 (DL/UL MU-MIMO)
- Max. Data Rate
- 6 GHz: 5.8 Gbps (BW320)
- 5 GHz: 4.3 Gbps (BW240)
- 2.4 GHz: 688 Mbps (BW40)
- Antenna Gain
- 6 GHz: 6 dBi
- 5 GHz: 5 dBi
- 2.4 GHz: 4 dBi
- Max. TX Power
- 6 GHz: 24 dBm
- 5 GHz: 26 dBm
- 2.4 GHz: 23 dBm
- Max. BSSIDs: 8 per Radio
- Supported Data Rates
- 802.11be (WiFi 7)
- 802.11ax (WiFi 6)
- 802.11ac (WiFi 5)
- 802.11n
- Features
- Wireless Meshing: Yes
- Band Steering: Yes
- BSS Transition Management: Yes
- Fast Roaming (802.11r): Yes
- Radio Resource Management (802.11k): Yes
- Advanced Radio Management: Yes
- Passpoint (Hotspot 2.0): Yes
- Captive Portal: Yes
- Voucher Authentication: Yes
- Payment-Based Authentication: Yes
- External Portal Server Support: Yes
- Password Authentication: Yes
- Guest Network Isolation: Yes
- PPSK: Yes
- WiFi Speed Limiting: Yes
- Client Device Isolation: Yes
- WiFi Schedules: Yes
- RADIUS over TLS (RadSec): Yes
- Dynamic VLAN: Yes
- Hardware
- Max Power Consumption: 22W
- Voltage Range: 42.5–57V DC

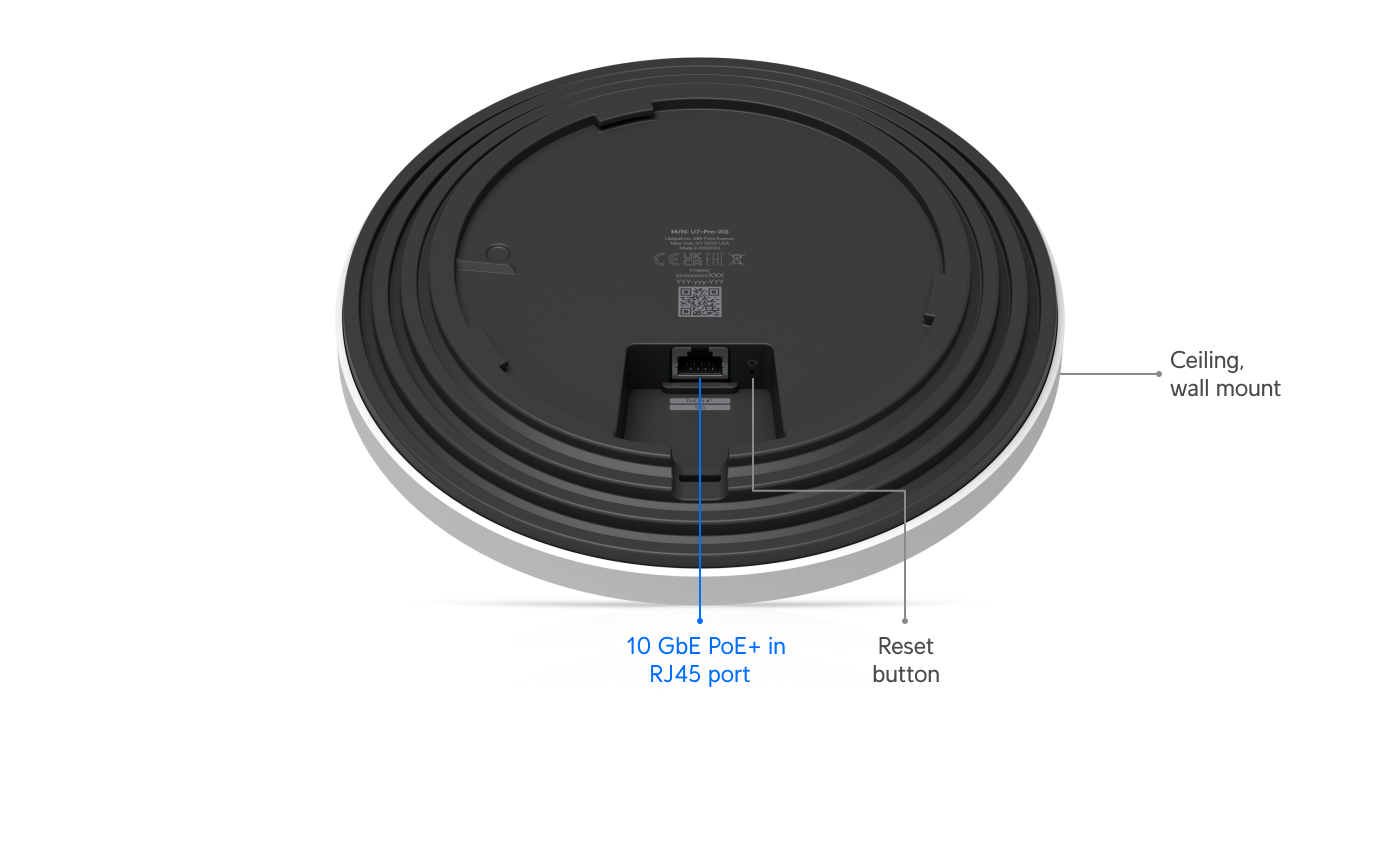

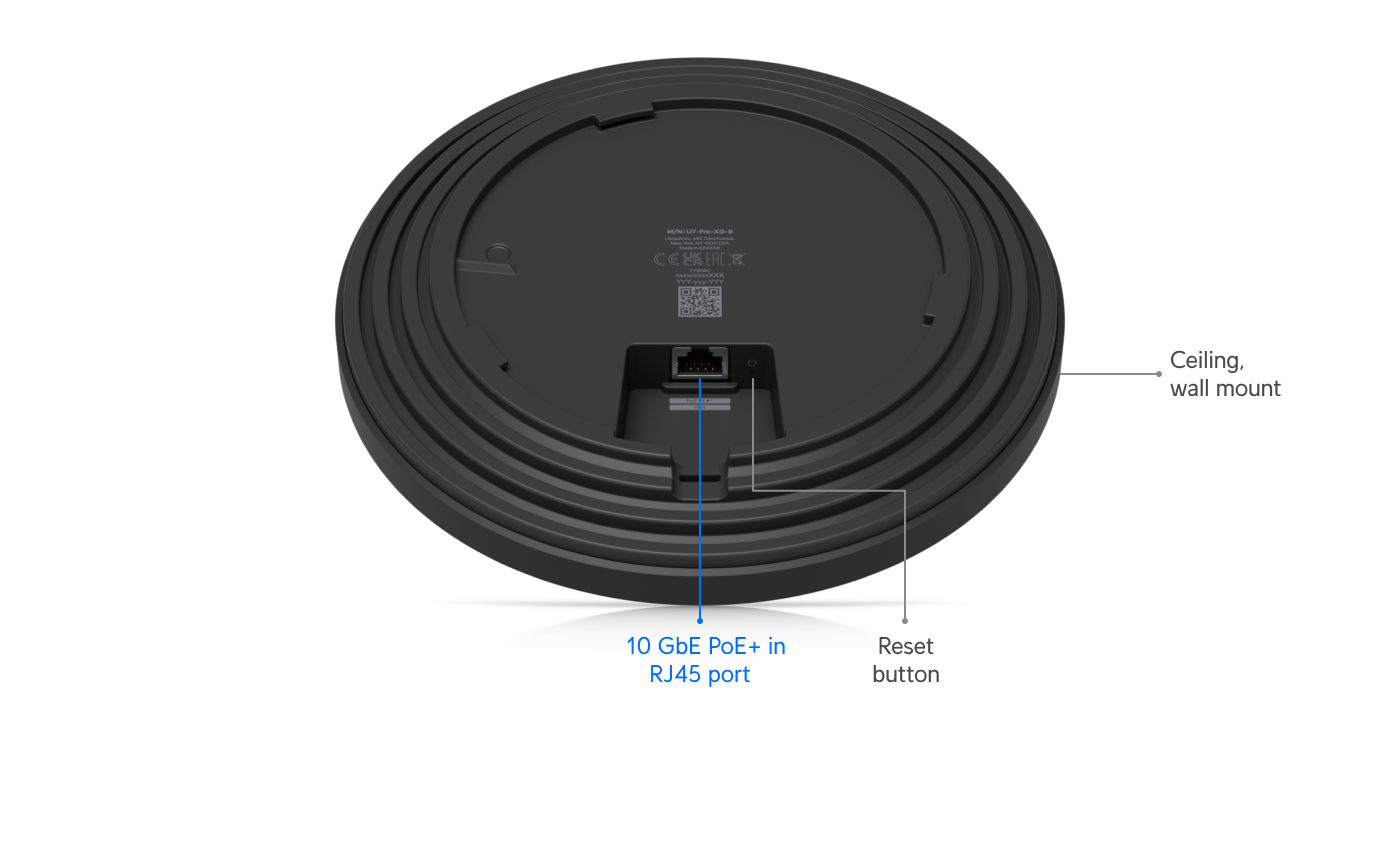

- Networking: (1) 10 GbE RJ45 port
- Weight: 750 g (1.7 lb)
- Management: Ethernet
- Material: Polycarbonate + Aluminum
- Mount Material: Stainless Steel (SUS304), Galvanized Steel (SGCC)
- LED: White / Blue
- Channel Bandwidth: Supported
- NDAA Compliant: Yes
- Certifications
- Operating Frequency
- US/CA: 2.4 GHz, 5 GHz, 6 GHz bands
- Worldwide: 2400 - 7125 MHz
- Environment
- Temperature: -30 to 40°C
- Humidity: 5–95% non-condensing
- Software
- UniFi Network Version 9.0.114+ (White)
- Version 9.1.120+ (Black)
