U7 Pro XG Wall

U7 Pro XG Wall
Thumbnail Thumbnail Thumbnail Thumbnail Thumbnail Thumbnail Thumbnail

U7 Pro XG Wall

6 GHz-ready WiFi 7 AP with 10 GbE support.

🔒 100% Secure & Encrypted Payments

⚡ Instant Service Activation

🚚 Fast & Reliable Delivery

💬 24/7 Expert Technical Support

✅ Trusted by Businesses Worldwide

🔄 Easy Returns

  • Overview

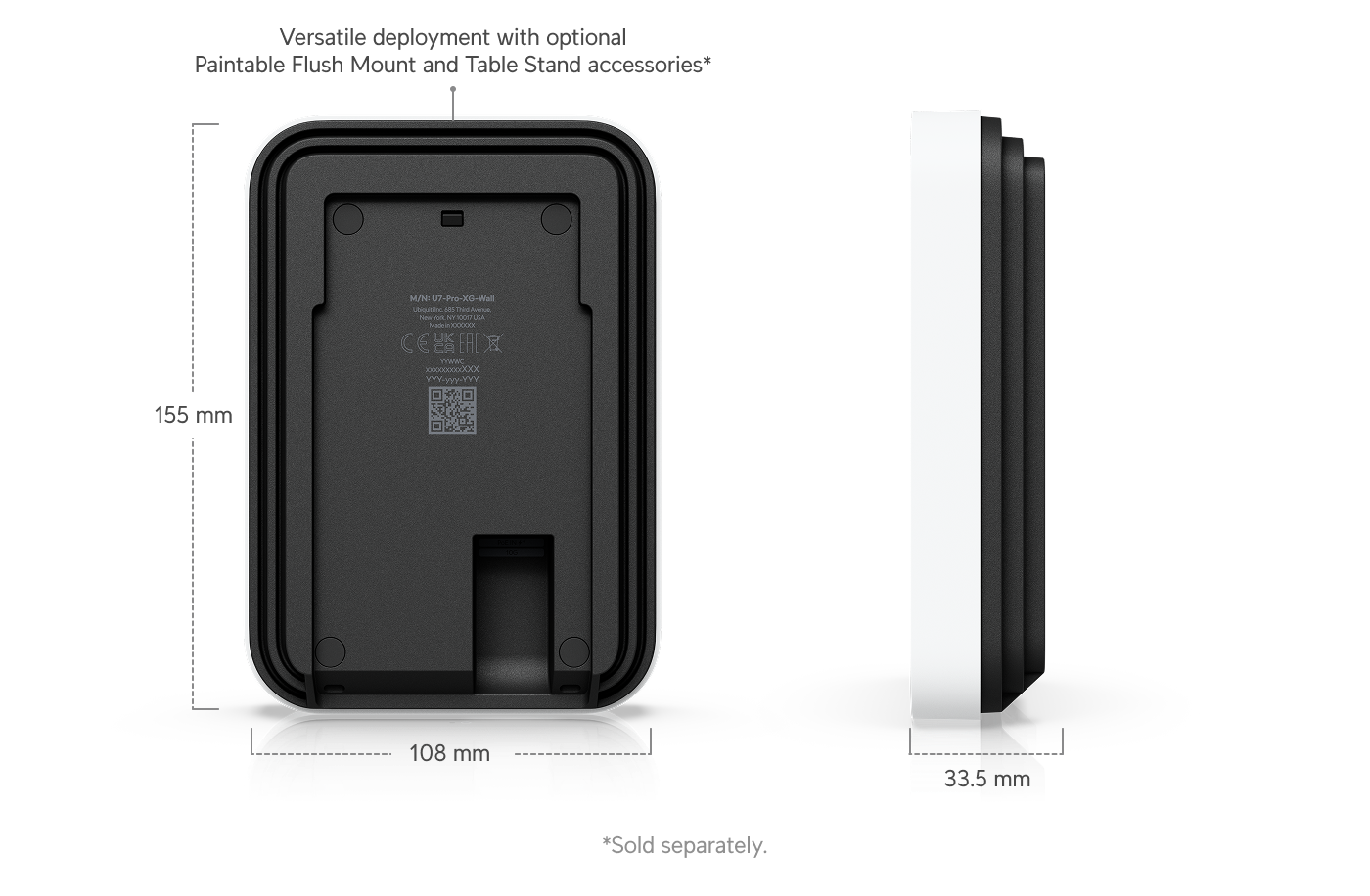

    • Dimensions: 155 x 108 x 33.5 mm (6.1 x 4.3 x 1.3'')
    • WiFi Standard: WiFi 7
    • Spatial Streams: 6
    • Coverage Area: 140 m² (1,500 ft²)
    • Max. Client Count: 300+
    • Uplink: 10 GbE
    • Mounting: Wall
    • Power Method: PoE+
  • Performance
    • MIMO
      • 6 GHz: 2 x 2 (DL/UL MU-MIMO)
      • 5 GHz: 2 x 2 (DL/UL MU-MIMO)
      • 2.4 GHz: 2 x 2 (DL/UL MU-MIMO)
    • Max. Data Rate
      • 6 GHz: 5.8 Gbps (BW320)
      • 5 GHz: 4.3 Gbps (BW240)
      • 2.4 GHz: 688 Mbps (BW40)
    • Antenna Gain
      • 6 GHz: 6 dBi
      • 5 GHz: 6 dBi
      • 2.4 GHz: 4 dBi
    • Max. TX Power
      • 6 GHz: 24 dBm
      • 5 GHz: 26 dBm
      • 2.4 GHz: 23 dBm
    • Max. BSSIDs: 8 per Radio
    • Supported Data Rates
      • 802.11be (WiFi 7): 6 GHz: 7.3 Mbps to 5.8 Gbps | 5 GHz: 7.3 Mbps to 4.3 Gbps
      • 802.11ax (WiFi 6): 7.3 Mbps to 2.4 Gbps
      • 802.11ac (WiFi 5): 6.5 Mbps to 1.7 Gbps
      • 802.11n: 6.5 Mbps to 300 Mbps
  • Features
    • Wireless Meshing: Yes
    • Band Steering: Yes
    • 802.11v BSS Transition Management: Yes
    • 802.11r Fast Roaming: Yes
    • 802.11k Radio Resource Management (RRM): Yes
    • Advanced Radio Management: Yes
    • Passpoint (Hotspot 2.0): Yes
    • Captive Hotspot Portal
      • Custom Branding Landing Page: Yes
      • Voucher Authentication: Yes
      • Payment-Based Authentication: Yes
      • External Portal Server Support: Yes
      • Password Authentication: Yes
    • Guest Network Isolation: Yes
    • Private Pre-Shared Key (PPSK): Yes
    • WiFi Speed Limiting: Yes
    • Client Device Isolation: Yes
    • WiFi Schedules: Yes
    • RADIUS over TLS (RadSec): Yes
    • Dynamic RADIUS-assigned VLAN: Yes
  • Hardware
    • Max. Power Consumption: 22W
    • Supported Voltage Range: 42.5–57V DC
    • Networking Interface: (1) 10 GbE RJ45 port
    • Weight: 505 g (1.1 lb)
    • Management: Ethernet
    • Enclosure Material: Polycarbonate, aluminum alloy
    • Mount Material: Aluminum alloy
    • LEDs: System (W/B)
    • Channel Bandwidth: HT/VHT/HE/EHT (20–320 MHz)
    • NDAA Compliant: Yes
    • Certifications: CE, FCC, IC
    • Ambient Operating Temperature: -30 to 40°C (-22 to 104°F)
    • Ambient Operating Humidity: 5 to 95% noncondensing
  • Software
    • Application Requirements: UniFi Network (Version 10.0 and later)
    • Mobile App: iOS™ 10.29.3+ and Android™ 10.31.1+
Q: Is setup instant?
A: Yes.
