U7 Pro Wall
U7 Pro Wall
WiFi 7 and 6 GHz, tailored for interiors.
🔒 100% Secure & Encrypted Payments
⚡ Instant Service Activation
🚚 Fast & Reliable Delivery
💬 24/7 Expert Technical Support
✅ Trusted by Businesses Worldwide
🔄 Easy Returns
- Overview

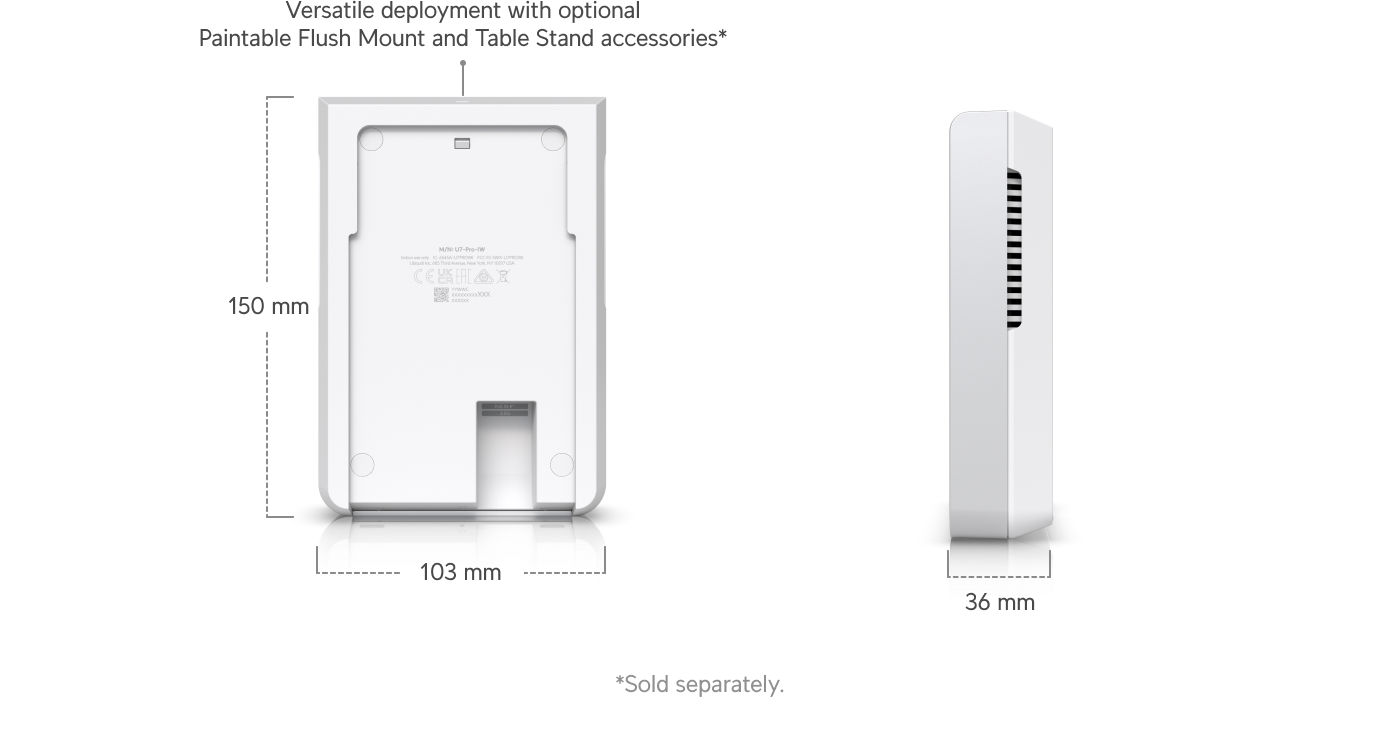

- Dimensions: 150 x 103 x 36 mm (5.9 x 4.1 x 1.4")
- WiFi Standard: WiFi 7
- Spatial Streams: 6
- Coverage Area: 140 m² (1,500 ft²)
- Max. Client Count: 300+
- Uplink: 2.5 GbE
- Mounting: Wall (Mount Included)
- Power Method: PoE+
- Performance
- MIMO
- 6 GHz: 2 x 2 (DL/UL MU-MIMO)
- 5 GHz: 2 x 2 (DL/UL MU-MIMO)
- 2.4 GHz: 2 x 2 (DL/UL MU-MIMO)
- Max. Data Rate
- 6 GHz: 5.8 Gbps (BW320)
- 5 GHz: 4.3 Gbps (BW240)
- 2.4 GHz: 688 Mbps (BW40)
- Antenna Gain
- 6 GHz: 6 dBi
- 5 GHz: 5 dBi
- 2.4 GHz: 4 dBi
- Max. TX Power
- 6 GHz: 23 dBm
- 5 GHz: 26 dBm
- 2.4 GHz: 22 dBm
- Max. BSSIDs: 8 per Radio
- Supported Data Rates
- 802.11be (WiFi 7): 7.3 Mbps to 5.8 Gbps
- 802.11ax (WiFi 6/6E): 7.3 Mbps to 2.4 Gbps
- 802.11ac (WiFi 5): 6.5 Mbps to 1.7 Gbps
- 802.11n: 6.5 Mbps to 300 Mbps
- Features
- Wireless Meshing: Yes
- Band Steering: Yes
- 802.11v BSS Transition Management: Yes
- 802.11r Fast Roaming: Yes
- 802.11k Radio Resource Management (RRM): Yes
- Advanced Radio Management: Yes
- Passpoint (Hotspot 2.0): Yes
- Captive Hotspot Portal
- Custom Branding Landing Page: Yes
- Voucher Authentication: Yes
- Payment-Based Authentication: Yes
- External Portal Server Support: Yes
- Password Authentication: Yes
- Guest Network Isolation: Yes
- Private Pre-Shared Key (PPSK): Yes
- WiFi Speed Limiting: Yes
- Client Device Isolation: Yes
- WiFi Schedules: Yes
- RADIUS over TLS (RadSec): Yes
- Dynamic RADIUS-assigned VLAN: Yes
- Hardware
- Max. Power Consumption: 22W
- Supported Voltage Range: 44–57V DC

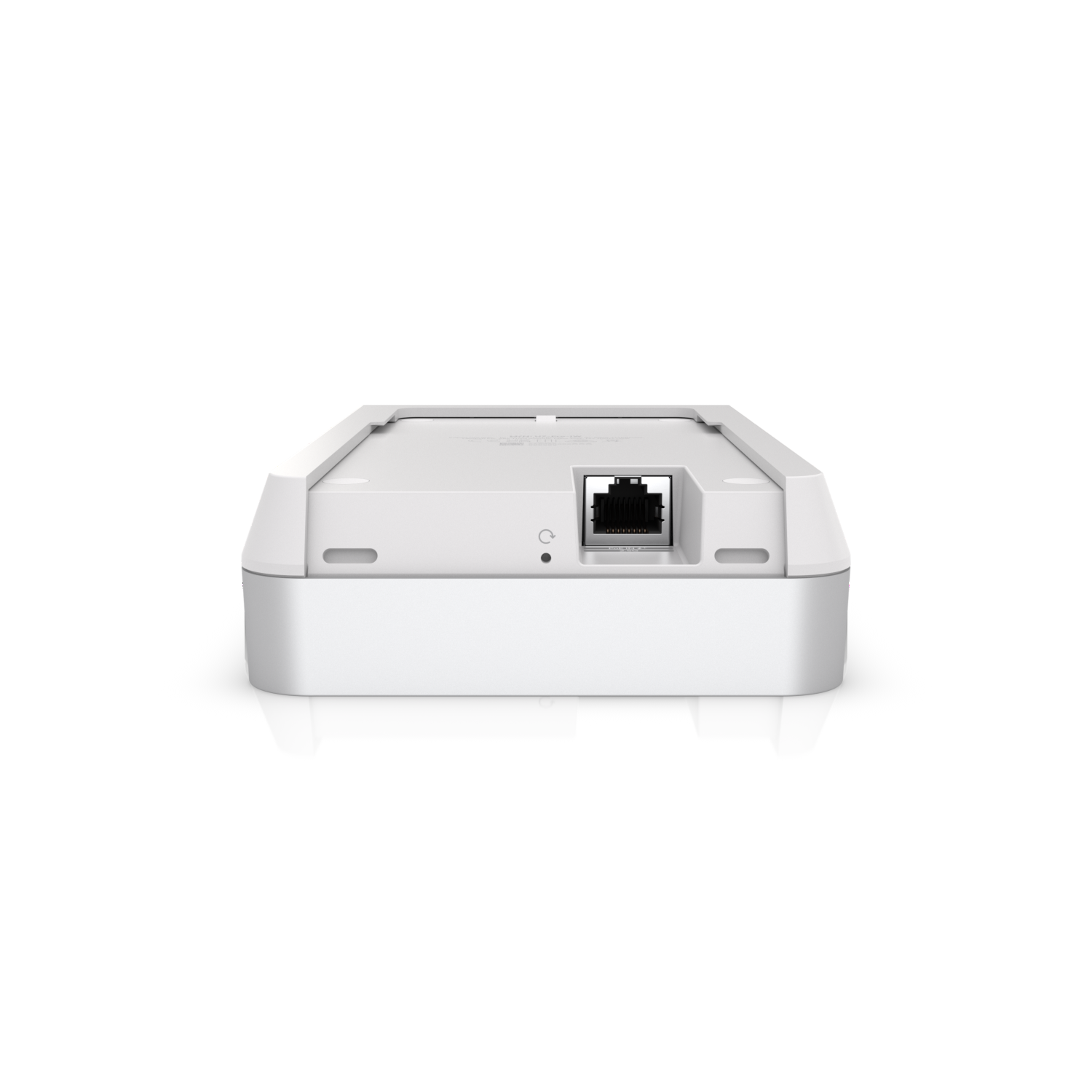

- Networking Interface: (1) 1/2.5 GbE RJ45 port
- Weight: 580 g (1.3 lb)
- Management: Ethernet
- Enclosure Material: Polycarbonate, aluminum
- Mount Material: Aluminum
- LEDs: System (White/Blue)
- Channel Bandwidth: HT/VHT/HE/EHT (20–320 MHz)
- NDAA Compliant: Yes
- Certifications: CE, FCC, IC, Anatel: 10022-24-08356
- Operating Frequency
- US/CA:
- 2400 - 2472 MHz
- 5150 - 5250 MHz
- 5250 - 5350 MHz
- 5470 - 5725 MHz
- 5725 - 5850 MHz
- 5925 - 7125 MHz
- Worldwide:
- 2400 - 2483.5 MHz
- 5150 - 5850 MHz
- 5925 - 7125 MHz
- Ambient Operating Temperature: -30 to 60°C (-22 to 140°F)
- Ambient Operating Humidity: 5 to 95% noncondensing
- Software
- Application Requirements: UniFi Network (Version 8.1.113 and later)
