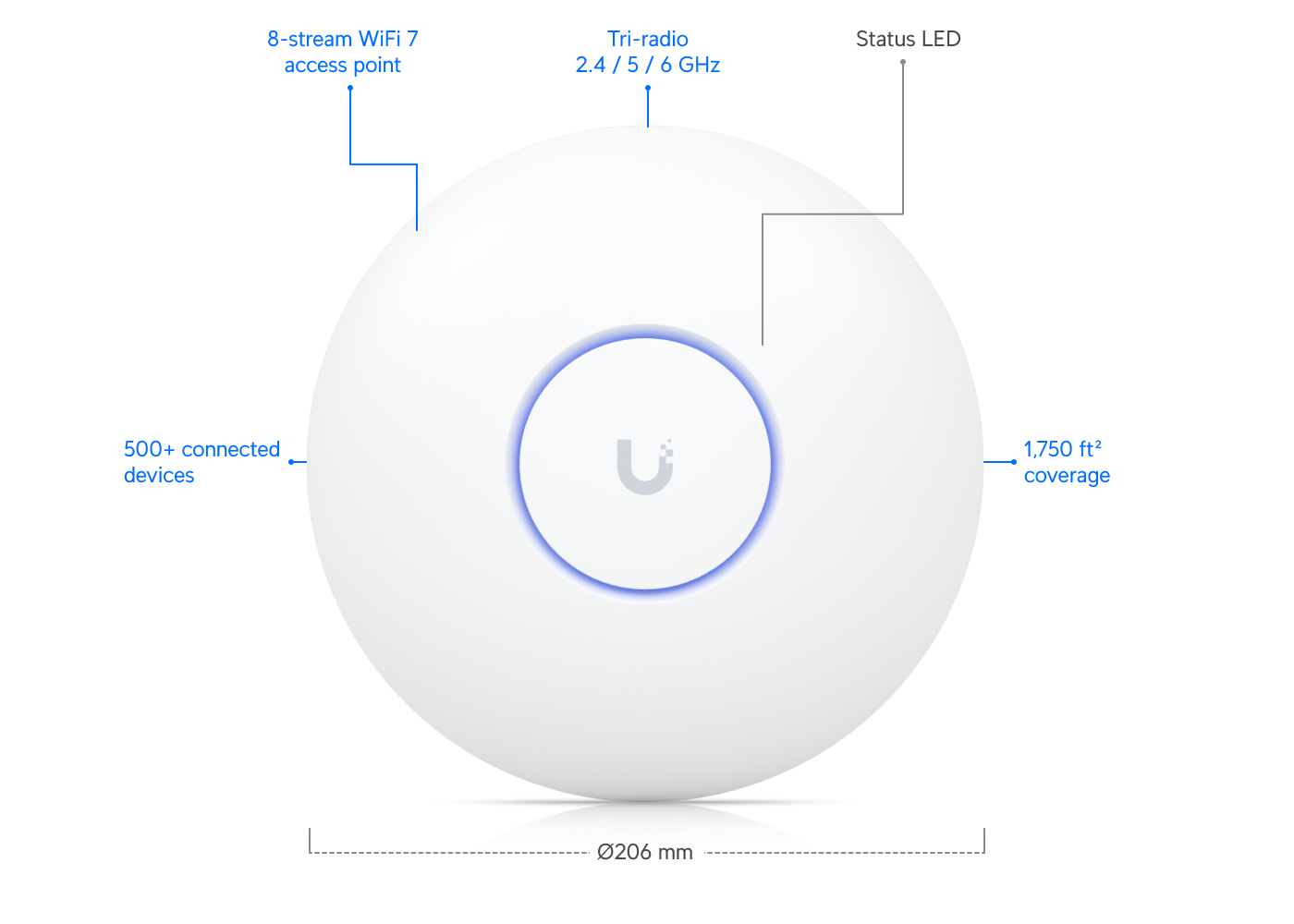

U7 Pro Max
High-density WiFi 7
🔒 100% Secure & Encrypted Payments
⚡ Instant Service Activation
🚚 Fast & Reliable Delivery
💬 24/7 Expert Technical Support
✅ Trusted by Businesses Worldwide
🔄 Easy Returns
- Overview

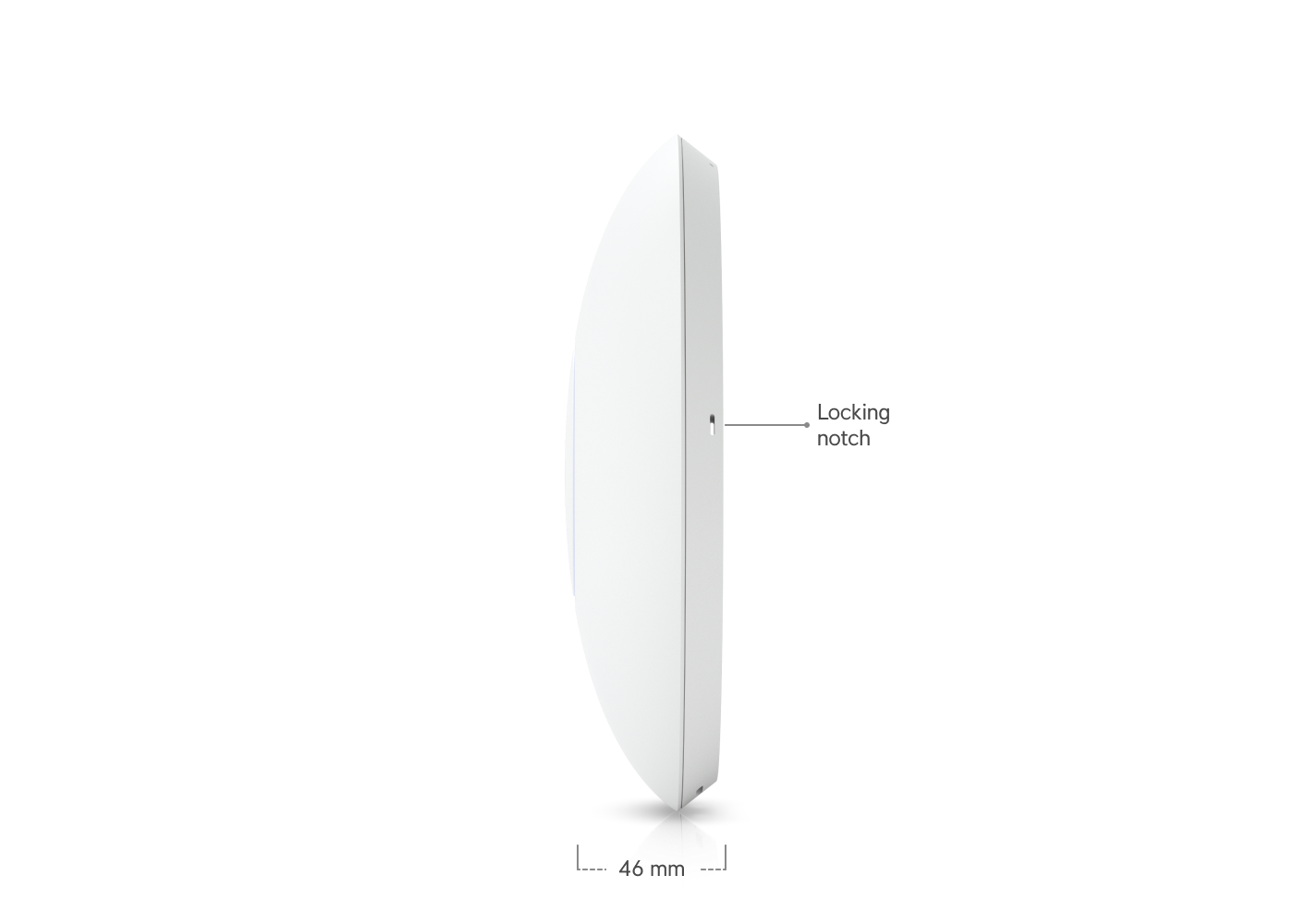

- Dimensions
- WiFi Standard: WiFi 7
- Spatial Streams: 8
- Coverage Area: 160 m² (1,750 ft²)
- Max. Client Count: 500+
- Uplink: 2.5 GbE

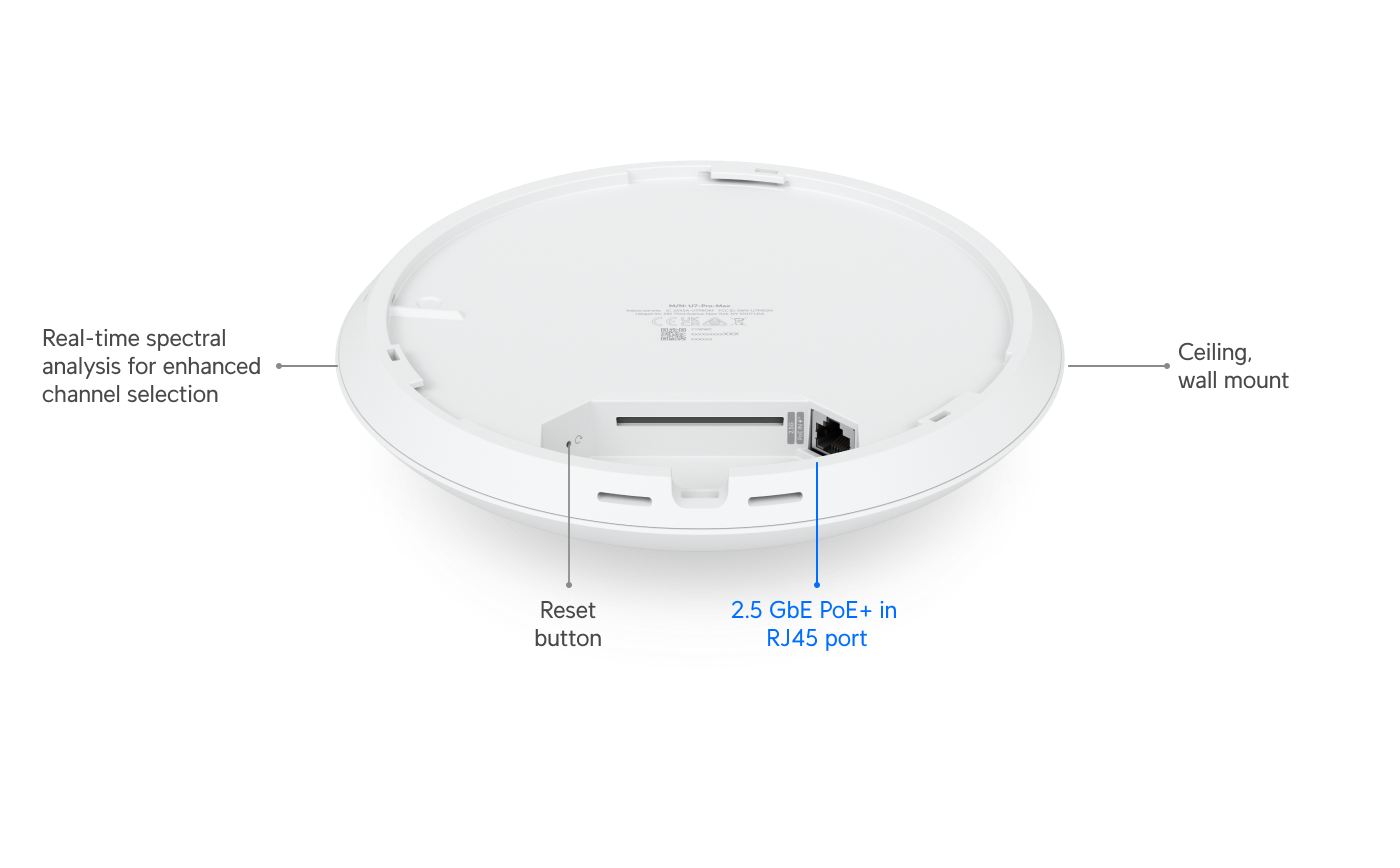

- Mounting
- Ceiling, Wall (Pro Mount Included)
- Power Method: PoE+
- Performance
- MIMO
- 6 GHz: 2 x 2 (DL/UL MU-MIMO)
- 5 GHz: 4 x 4 (DL/UL MU-MIMO)
- 2.4 GHz: 2 x 2 (DL/UL MU-MIMO)
- Max. Data Rate
- 6 GHz: 5.8 Gbps (BW320)
- 5 GHz: 8.6 Gbps (BW240)
- 2.4 GHz: 688 Mbps (BW40)
- Antenna Gain
- 6 GHz: 5.9 dBi
- 5 GHz: 6 dBi
- 2.4 GHz: 4 dBi
- Max. TX Power
- 6 GHz: 23 dBm
- 5 GHz: 29 dBm
- 2.4 GHz: 23 dBm
- Max. BSSIDs: 8 per Radio
- Supported Data Rates
- 802.11be (WiFi 7)
- 6 GHz: 7.3 Mbps to 5.8 Gbps
- 5 GHz: 7.3 Mbps to 8.6 Gbps
- 802.11ax (WiFi 6/6E)
- 7.3 Mbps to 4.8 Gbps
- 802.11ac (WiFi 5)
- 6.5 Mbps to 3.4 Gbps
- 802.11n
- 6.5 Mbps to 600 Mbps
- Features
- Yes Wireless Meshing
- Yes Band Steering
- Yes 802.11v BSS Transition Management
- Yes 802.11r Fast Roaming
- Yes 802.11k Radio Resource Management (RRM)
- Yes Advanced Radio Management
- Yes Real-Time Spectral Analysis
- Yes Passpoint (Hotspot 2.0)
- Yes Captive Hotspot Portal
- Yes Custom Branding Landing Page
- Yes Voucher Authentication
- Yes Payment-Based Authentication
- Yes External Portal Server Support
- Yes Password Authentication
- Yes Guest Network Isolation
- Yes Private Pre-Shared Key (PPSK)
- Yes WiFi Speed Limiting
- Yes Client Device Isolation
- Yes WiFi Schedules
- Yes RADIUS over TLS (RadSec)
- Yes Dynamic RADIUS-assigned VLAN
- Hardware
- Max Power Consumption: 25W
- Supported Voltage Range: 44–57V DC
- Networking Interface: (1) 1/2.5 GbE RJ45 port
- Weight: 680 g (1.5 lb)
- Management: Ethernet
- Enclosure Material: Polycarbonate, aluminum
- Mount Material: Stainless steel (SUS304), galvanized steel (SGCC)
- LEDs: White / Blue
- Channel Bandwidth: HT/VHT/HE/EHT Supported
- NDAA Compliant: Yes
- Certifications
- CE, FCC, IC, Anatel: 08959-24-08356
- Operating Frequency
- US/CA: 2400 - 7125 MHz
- Worldwide: 2400 - 7125 MHz
- Environment
- Temperature: -30 to 50°C (-22 to 122°F)
- Humidity: 5 to 95% non-condensing
- Software
- Application: UniFi Network
- Version: 8.2.93 and later
