U7 Long-Range
U7 Long-Range
WiFi 7 AP with 5 streams and extended signal range
🔒 100% Secure & Encrypted Payments
⚡ Instant Service Activation
🚚 Fast & Reliable Delivery
💬 24/7 Expert Technical Support
✅ Trusted by Businesses Worldwide
🔄 Easy Returns
- Overview
- Dimensions

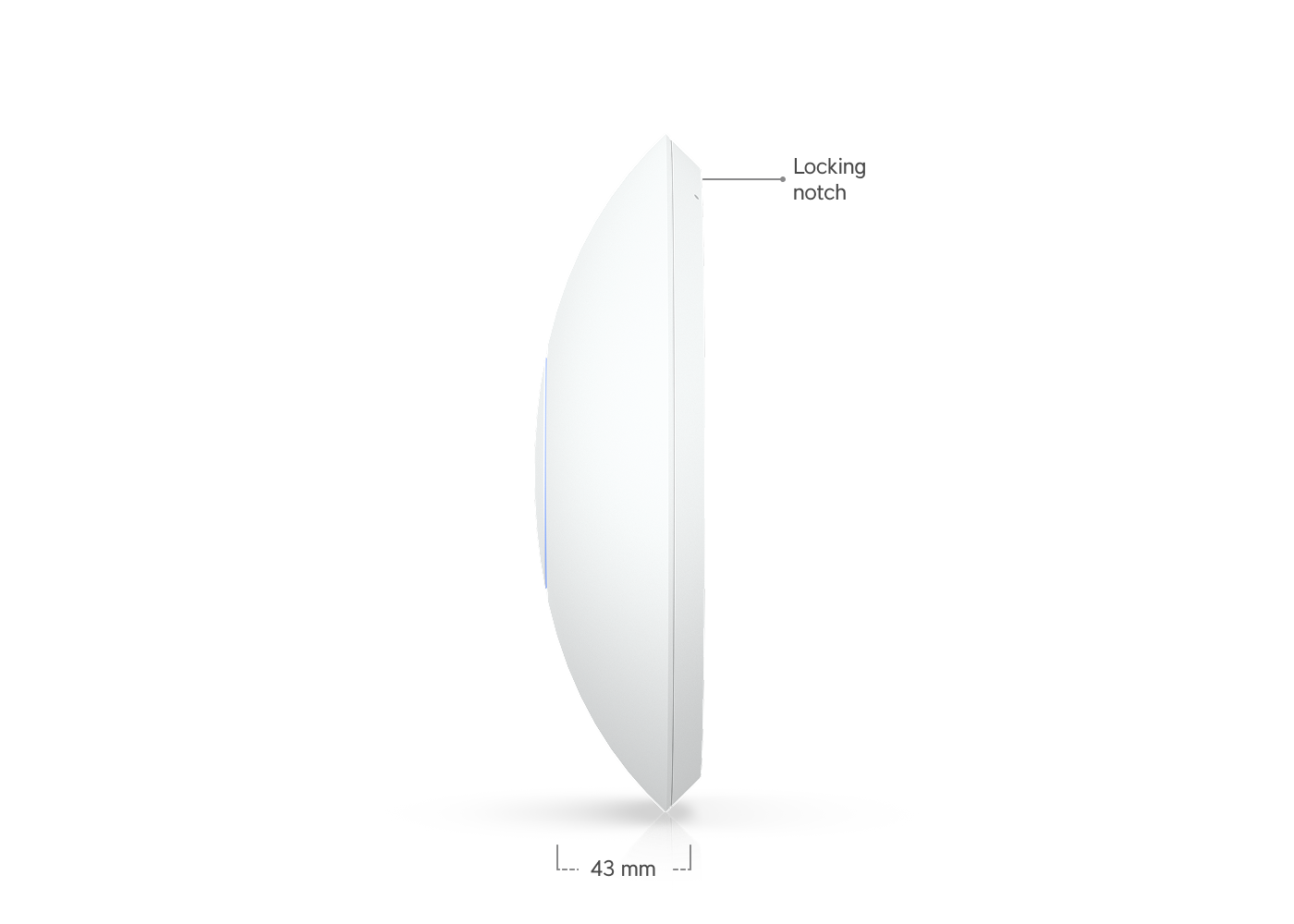

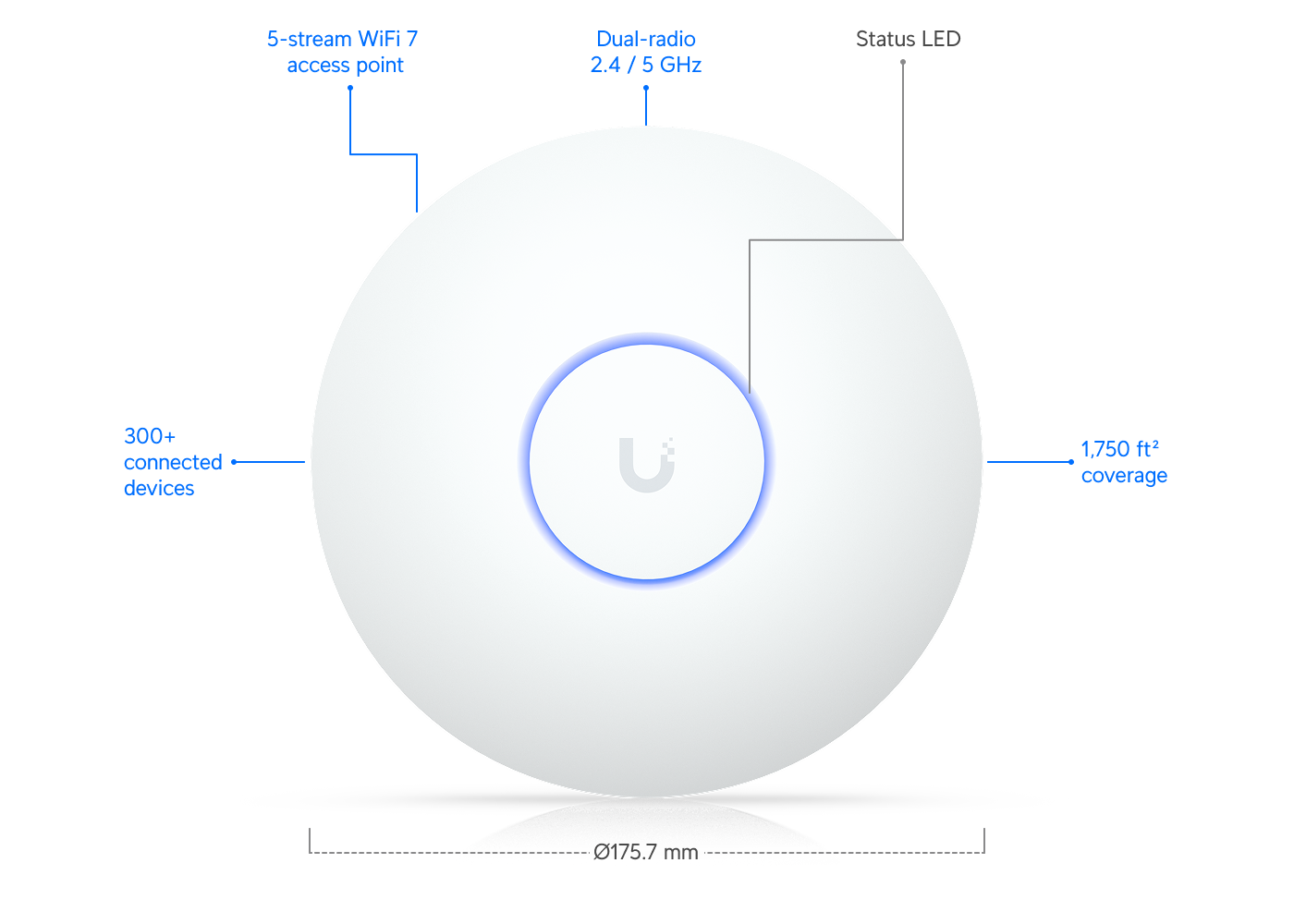

- 175.7 x 43 mm (6.9 x 1.7")
- WiFi Standard: WiFi 7
- Spatial Streams: 5
- Coverage Area: 160 m² (1,750 ft²)
- Max. Client Count: 300+
- Uplink: 2.5 GbE
- Mounting

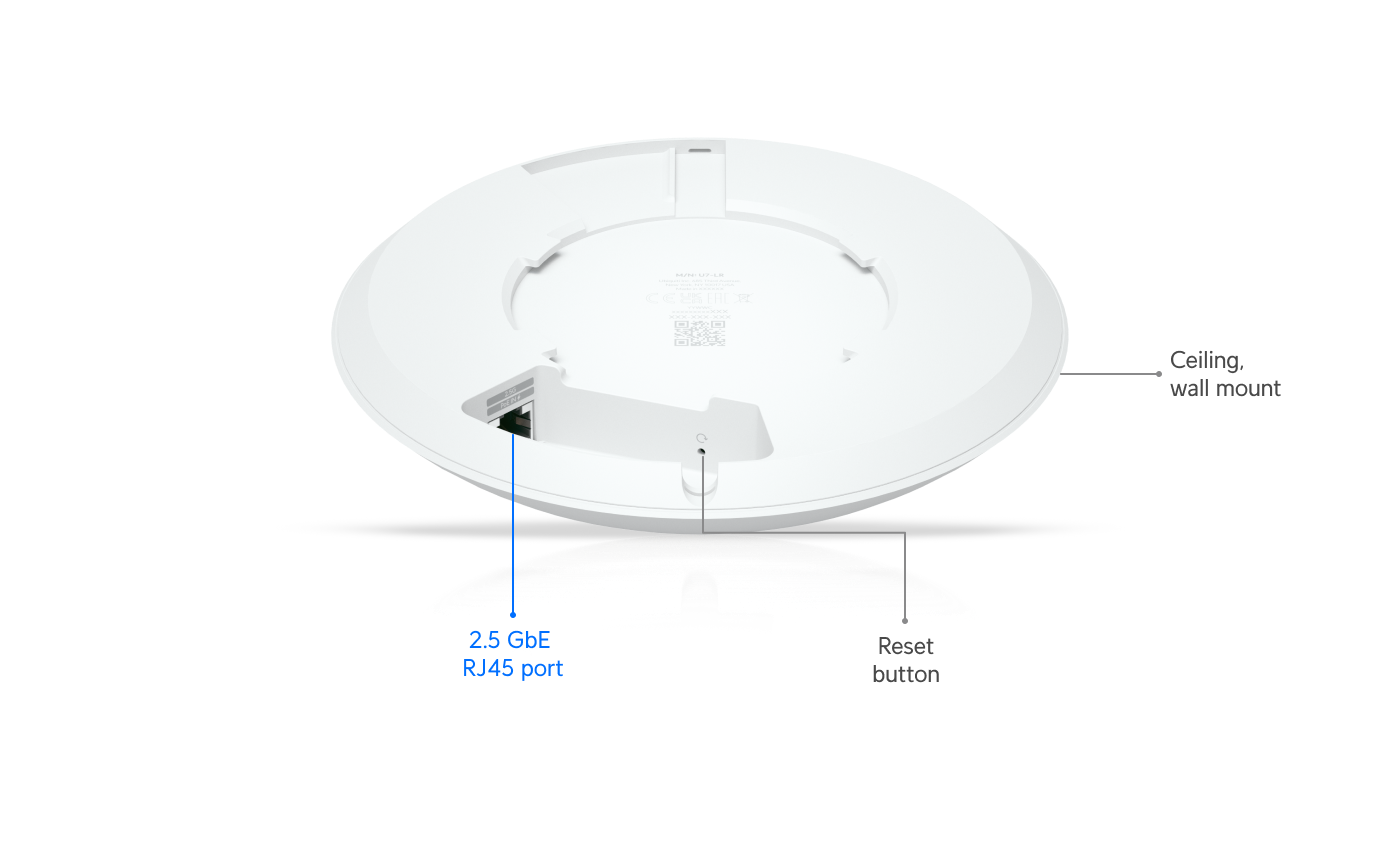

- Ceiling, Wall (Plastic Mounting Plate included)
- Power Method: PoE
- Performance
- MIMO
- 5 GHz: 3 x 3 (DL/UL MU-MIMO)
- 2.4 GHz: 2 x 2 (DL/UL MU-MIMO)
- Max. Data Rate
- 5 GHz: 4.3 Gbps (BW160)
- 2.4 GHz: 688 Mbps (BW40)
- Antenna Gain
- 5 GHz: 6 dBi
- 2.4 GHz: 4 dBi
- Max. TX Power
- 5 GHz: 27 dBm
- 2.4 GHz: 26 dBm
- Supported Data Rates
- 802.11be (WiFi 7)
- 7.3 Mbps to 4.3 Gbps
- 802.11ax (WiFi 6)
- 7.3 Mbps to 3.6 Gbps
- 802.11ac (WiFi 5)
- 6.5 Mbps to 2.6 Gbps
- 802.11n
- 6.5 Mbps to 450 Mbps
- Features
- Yes Wireless Meshing
- Yes Band Steering
- Yes 802.11v BSS Transition Management
- Yes 802.11r Fast Roaming
- Yes 802.11k Radio Resource Management (RRM)
- Yes Advanced Radio Management
- Yes Passpoint (Hotspot 2.0)
- Yes Captive Hotspot Portal
- Yes Custom Branding Landing Page
- Yes Voucher Authentication
- Yes Payment-Based Authentication
- Yes External Portal Server Support
- Yes Password Authentication
- Yes Guest Network Isolation
- Yes Private Pre-Shared Key (PPSK)
- Yes WiFi Speed Limiting
- Yes Client Device Isolation
- Yes WiFi Schedules
- Yes RADIUS over TLS (RadSec)
- Yes Dynamic RADIUS-assigned VLAN
- Hardware
- Max Power Consumption: 14W
- Supported Voltage Range: 42.5–57V DC
- Networking Interface: (1) 2.5 GbE RJ45 port
- Weight: 448 g (15.8 oz)
- Management: Ethernet
- Enclosure Material: Polycarbonate, aluminum alloy
- Mount Material: Polycarbonate, galvanized steel (SGCC)
- LEDs: White / Blue
- Channel Bandwidth: HT/VHT/HE/EHT Supported
- NDAA Compliant: Yes
- Certifications
- CE, FCC, IC, SRRC, Anatel: 04071-25-08356
- Environment
- Temperature: -30 to 50°C (-22 to 122°F)
- Humidity: 5 to 95% non-condensing
- Software
- Application: UniFi Network
- Version: 9.1.120 and later
- Mobile App:
- iOS version 10.20.2 and later
- Android version 10.21.7 and later
