U6 Enterprise
U6 Enterprise
Incredible WiFi 6E
🔒 100% Secure & Encrypted Payments
⚡ Instant Service Activation
🚚 Fast & Reliable Delivery
💬 24/7 Expert Technical Support
✅ Trusted by Businesses Worldwide
🔄 Easy Returns
- Overview

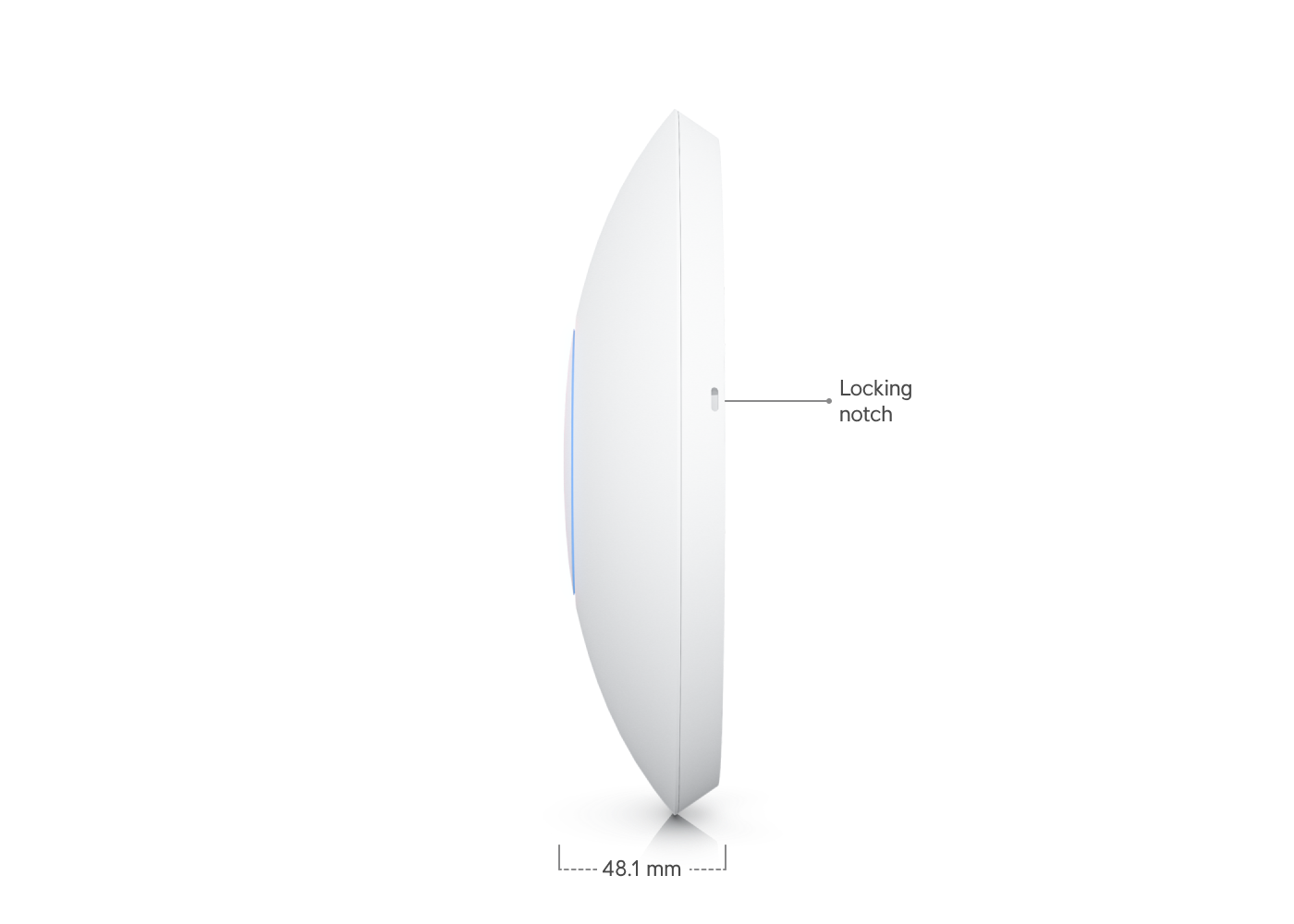

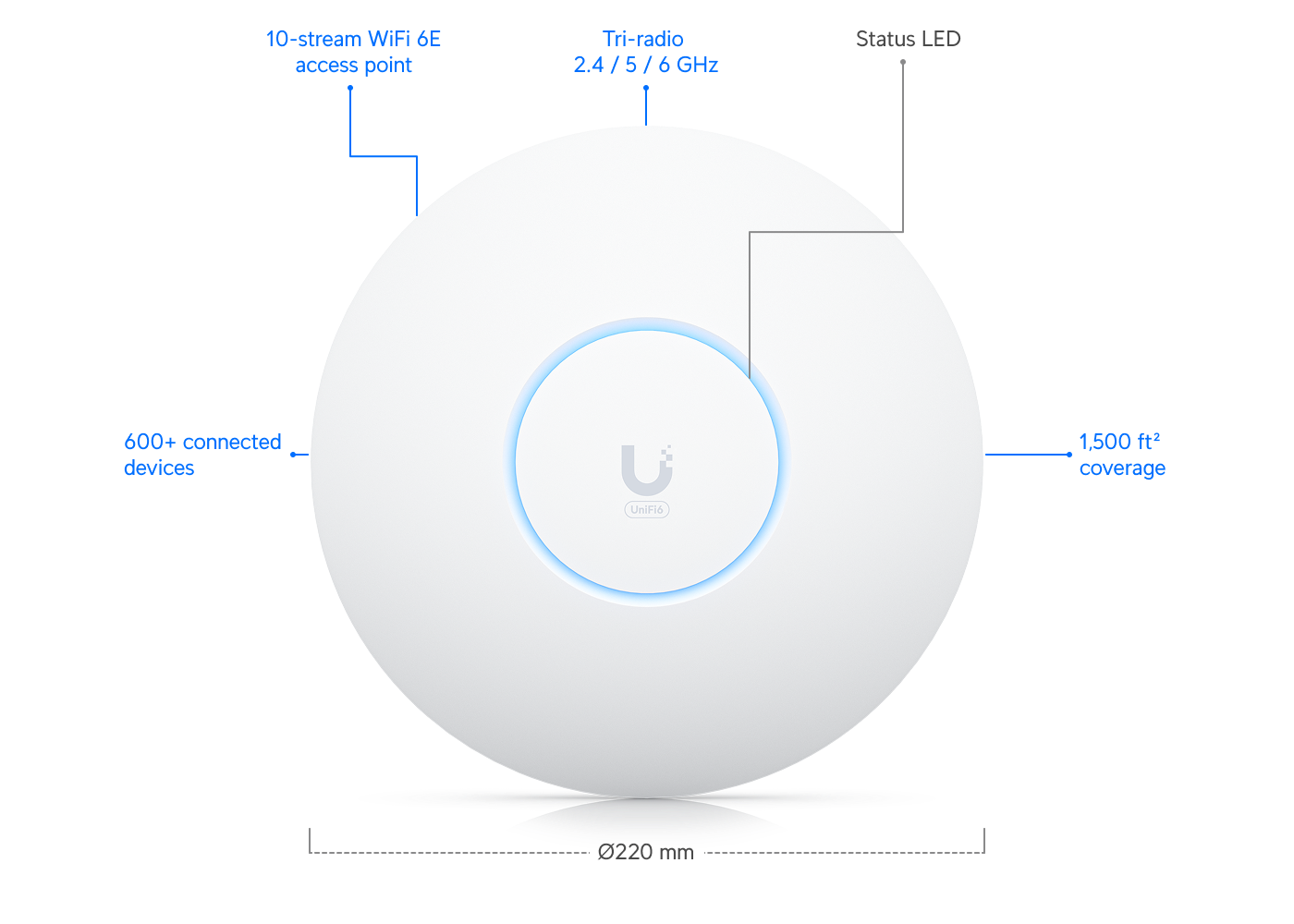

- Dimensions: 220 x 48 mm (8.7 x 1.9")
- WiFi Standard: WiFi 6E
- Spatial Streams: 10
- Coverage Area: 140 m² (1,500 ft²)
- Max. Client Count: 600+
- Uplink: 2.5 GbE
- Mounting: Ceiling, Wall (Pro Mount Included)
- Power Method: PoE+
- Performance
- MIMO
- 6 GHz: 4 x 4 (DL/UL MU-MIMO)
- 5 GHz: 4 x 4 (DL/UL MU-MIMO)
- 2.4 GHz: 2 x 2 (DL/UL MU-MIMO)
- Max. Data Rate
- 6 GHz: 4.8 Gbps (BW160)
- 5 GHz: 4.8 Gbps (BW160)
- 2.4 GHz: 573.5 Mbps (BW40)
- Antenna Gain
- 6 GHz: 6 dBi
- 5 GHz: 5.3 dBi
- 2.4 GHz: 3.2 dBi
- Max. TX Power
- 6 GHz: 26 dBm
- 5 GHz: 26 dBm
- 2.4 GHz: 22 dBm
- Max. BSSIDs: 8 per Radio
- Supported Data Rates
- 802.11ax (WiFi 6/6E): 7.3 Mbps to 4.8 Gbps
- 802.11ac (WiFi 5): 6.5 Mbps to 3.4 Gbps
- 802.11n: 6.5 Mbps to 600 Mbps
- Features
- Wireless Meshing: Yes
- Band Steering: Yes
- 802.11v BSS Transition Management: Yes
- 802.11r Fast Roaming: Yes
- 802.11k Radio Resource Management (RRM): Yes
- Advanced Radio Management: Yes
- Passpoint (Hotspot 2.0): Yes
- Captive Hotspot Portal
- Custom Branding Landing Page: Yes
- Voucher Authentication: Yes
- Payment-Based Authentication: Yes
- External Portal Server Support: Yes
- Password Authentication: Yes
- Guest Network Isolation: Yes
- Private Pre-Shared Key (PPSK): Yes
- WiFi Speed Limiting: Yes
- Client Device Isolation: Yes
- WiFi Schedules: Yes
- RADIUS over TLS (RadSec): Yes
- Dynamic RADIUS-assigned VLAN: Yes
- Hardware
- Max. Power Consumption: 22W
- Supported Voltage Range: 44–57V DC

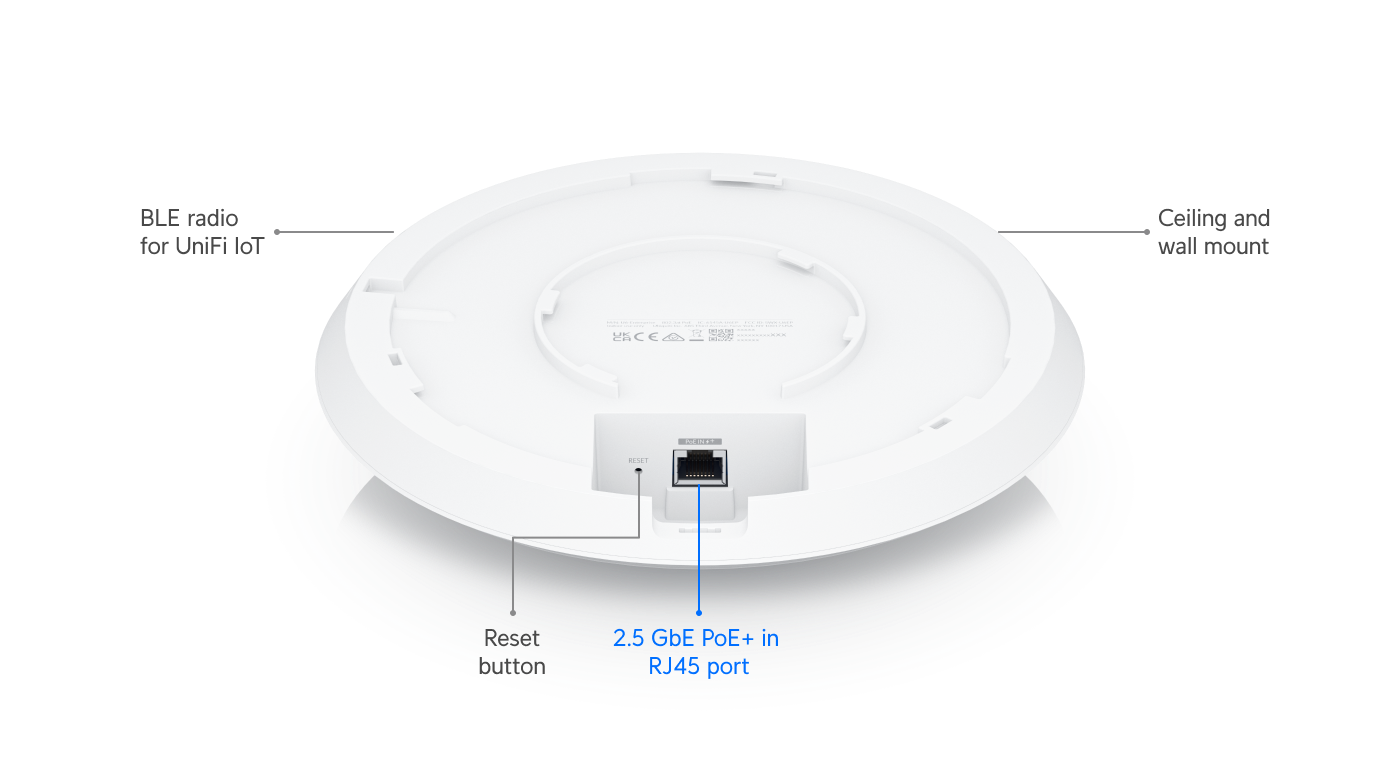

- Networking Interface: (1) 1/2.5 GbE RJ45 port
- Weight
- Device: 960 g (2.1 lb)
- With mount: 1.1 kg (2.4 lb)
- Management: Ethernet, Bluetooth
- Enclosure Material: Polycarbonate, aluminum
- Mount Material: Stainless steel (SUS304)
- LEDs
- Channel Bandwidth: HT/VHT/HE 20/40/80/160 MHz
- NDAA Compliant: Yes
- Certifications: CE, FCC, IC, Anatel
- Operating Frequency
- US/CA: 2400 - 7125 MHz
- Worldwide: 2400 - 7125 MHz (region dependent)
- Ambient Temperature: -30 to 60°C
- Humidity: 5 to 95% non-condensing
- Software
- Application Requirements: UniFi Network (Version 6.0.45 and later)
Q: Is setup instant?
A: Yes.
