E7 Campus
Outdoor rugged IP67 design and PRISM™ active RF filtering technology - perfect for campuses
🔒 100% Secure & Encrypted Payments
⚡ Instant Service Activation
🚚 Fast & Reliable Delivery
💬 24/7 Expert Technical Support
✅ Trusted by Businesses Worldwide
🔄 Easy Returns
- Overview

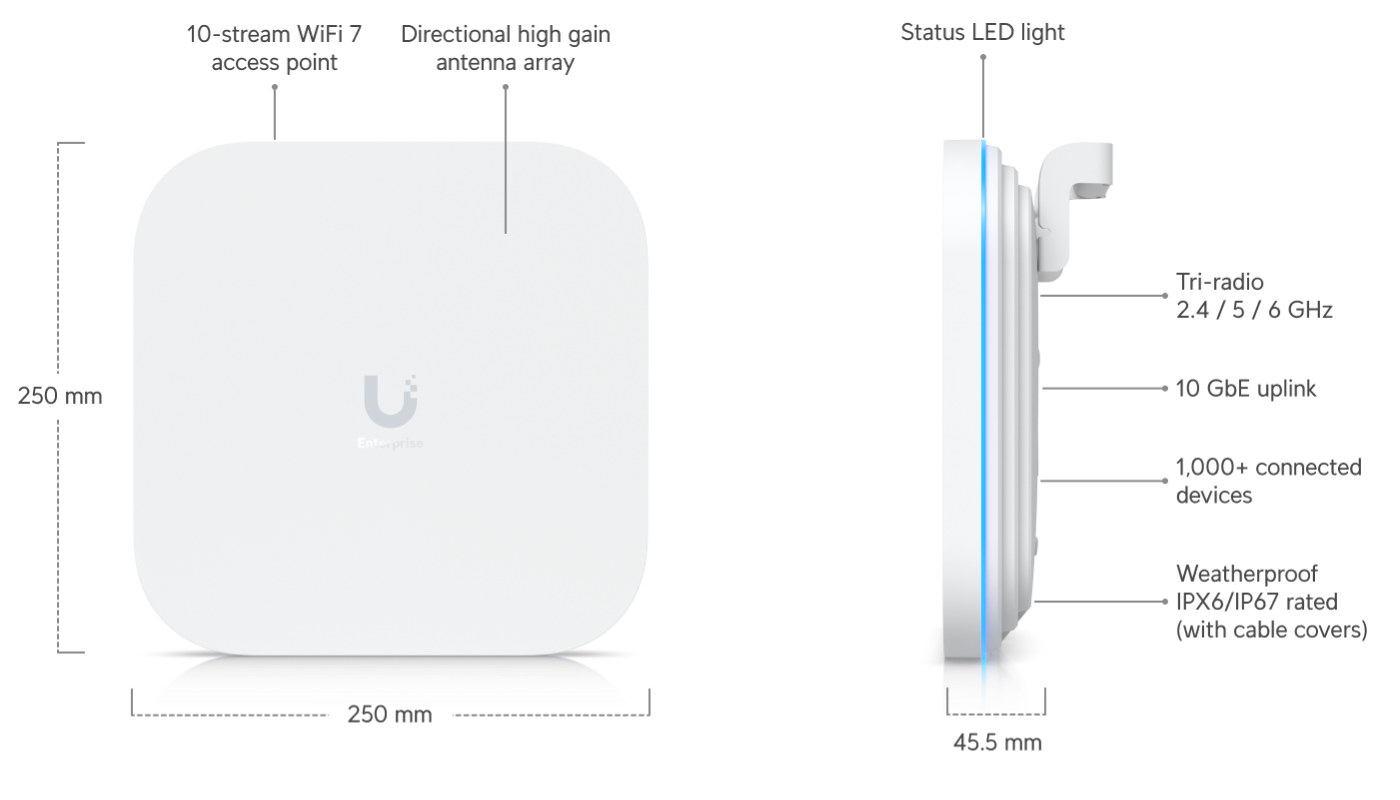

- Dimensions:
- Device: 250 x 250 x 45.5 mm (9.8 x 9.8 x 1.8")
- Articulating mount: ?104 x 149.4 (?4.1 x 5.9")
- WiFi Standard: WiFi 7
- Spatial Streams: 10
- Coverage Area: 465 m² (5,000 ft²)
- Max. Client Count: 1000+
- Uplink: 10 GbE, 1 GbE

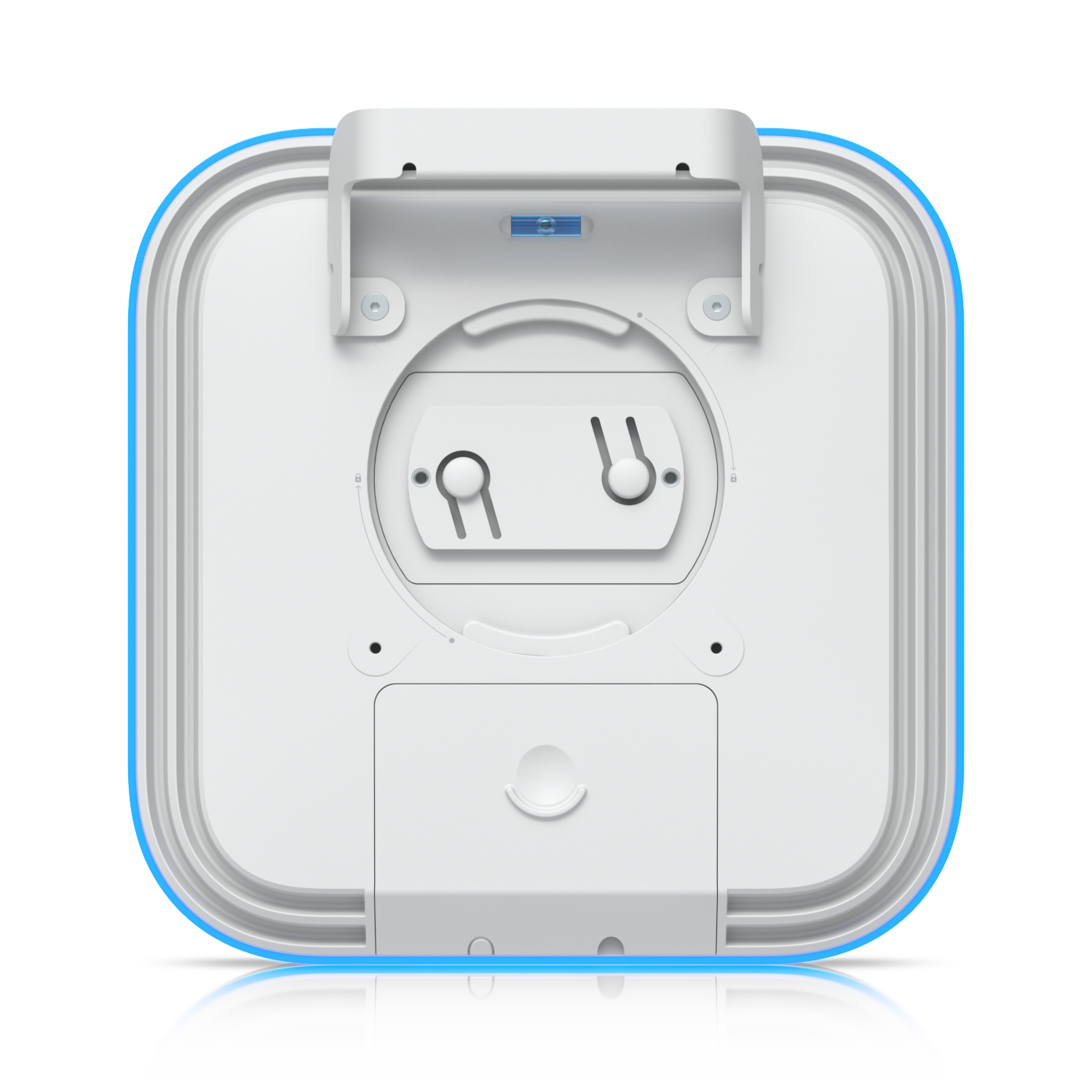

- Mounting: Wall, Pole (Mounts Included), VESA (Optional)
- Weatherproofing: IPX6, IP67 with Waterproof Door Kit (Included)
- Power Method: PoE++
- Performance
- MIMO
- 6 GHz: 4 x 4 (DL/UL MU-MIMO)
- 5 GHz: 4 x 4 (DL/UL MU-MIMO)
- 2.4 GHz: 2 x 2 (DL/UL MU-MIMO)
- Max. Data Rate
- 6 GHz: 11.5 Gbps (BW320)
- 5 GHz: 8.6 Gbps (BW240)
- 2.4 GHz: 688 Mbps (BW40)
- Antenna Gain
- 6 GHz: Directional internal: 12 dBi, 90° x 50°
- 5 GHz: Directional internal: 12 dBi, 100° x 55°
- 2.4 GHz: Directional internal: 9 dBi, 90° x 80°
- Max. TX Power
- 6 GHz: 30 dBm (36 dBm EIRP)
- 5 GHz: 30 dBm
- 2.4 GHz: 23 dBm
- Max. BSSIDs: 8 per Radio
- Supported Data Rates
- 802.11be (WiFi 7): 7.3 Mbps to 11.4 Gbps
- 802.11ax (WiFi 6): 7.3 Mbps to 4.8 Gbps
- 802.11ac (WiFi 5): 6.5 Mbps to 3.4 Gbps
- 802.11n: 6.5 Mbps to 600 Mbps
- Features
- Wireless Meshing Yes
- Band Steering Yes
- 802.11v BSS Transition Management Yes
- 802.11r Fast Roaming Yes
- 802.11k Radio Resource Management (RRM) Yes
- Zero-Wait DFS Yes
- Advanced Radio Management Yes
- Real-Time Spectral Analysis Yes
- Passpoint (Hotspot 2.0) Yes
- Captive Hotspot Portal
- Custom Branding Landing Page Yes
- Voucher Authentication Yes
- Payment-Based Authentication Yes
- External Portal Server Support Yes
- Password Authentication Yes
- Guest Network Isolation Yes
- Private Pre-Shared Key (PPSK) Yes
- WiFi Speed Limiting Yes
- Client Device Isolation Yes
- WiFi Schedules Yes
- RADIUS over TLS (RadSec) Yes
- Dynamic RADIUS-assigned VLAN Yes
- Hardware
- Max. Power Consumption: 44W
- Supported Voltage Range: 42.5–57V DC
- Networking Interface:
- (1) 10 GbE RJ45 port
- (1) GbE RJ45 port

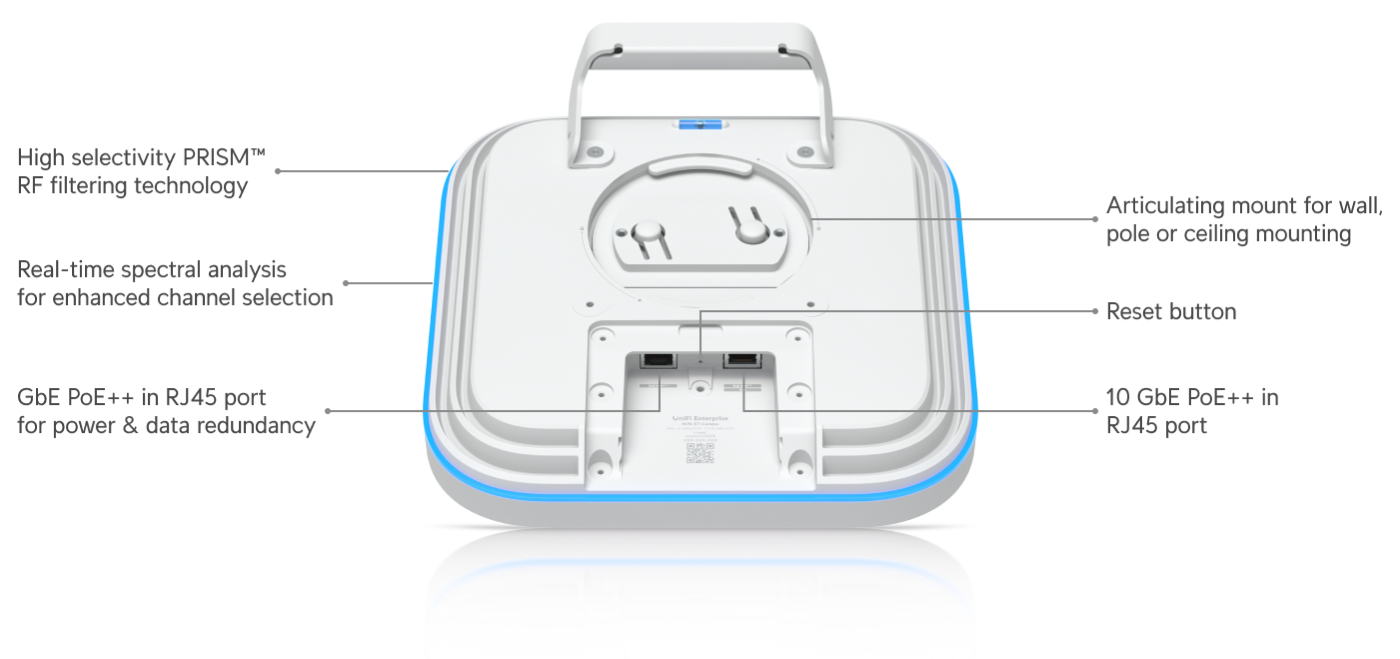

- PRISM™ RF Filtering: Yes
- Weight:
- Device: 2.2 kg (4.9 lb)
- With articulating mount: 3.1 kg (6.8 lb)
- Wind Loading: 164.75 N at 200 km/h
- Pole Mount Diameter: 1–2.5" (25–63.5 mm)
- Antennas: Internal with directional patterns
- Antenna beamwidth
- 6 GHz: 90° x 50°
- 5 GHz: 100° x 55°
- 2.4 GHz: 90° x 80°
- Management: Ethernet
- Enclosure Material: UV-stabilized polycarbonate, aluminum alloy
- Mount Material: Stainless steel, aluminum alloy
- LEDs: System (R/G/B)
- NDAA Compliant: Yes
- Certifications: FCC, IC
- Operating Frequency
- US/CA: 2400 - 2472 MHz
- U-NII Bands: 5150 - 6875 MHz
- Worldwide: 2400 - 2483.5 MHz, 5150 - 5850 MHz, 5925 - 7125 MHz
- Ambient Operating Temperature: -30 to 60°C
- Ambient Operating Humidity: 5 to 95% noncondensing
- Software
- Application Requirements: UniFi Network (Version 9.0.114 and later)
- Mobile App:
- iOS version 10.20.0 and later
- Android version 10.21.3 and later
