Standard 48 PoE

48-port (32 PoE+) L2 PoE switch with fanless cooling

Download Datasheet

🔒 100% Secure & Encrypted Payments

⚡ Instant Service Activation

🚚 Fast & Reliable Delivery

💬 24/7 Expert Technical Support

✅ Trusted by Businesses Worldwide

🔄 Easy Returns

Overview

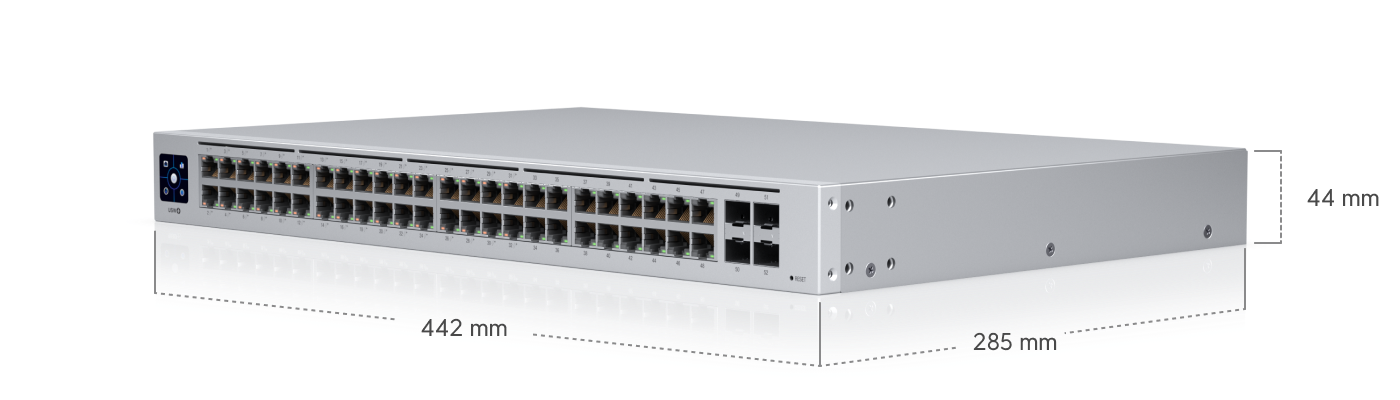

- Dimensions: 442 x 285 x 44 mm (17.4 x 11.2 x 1.7")

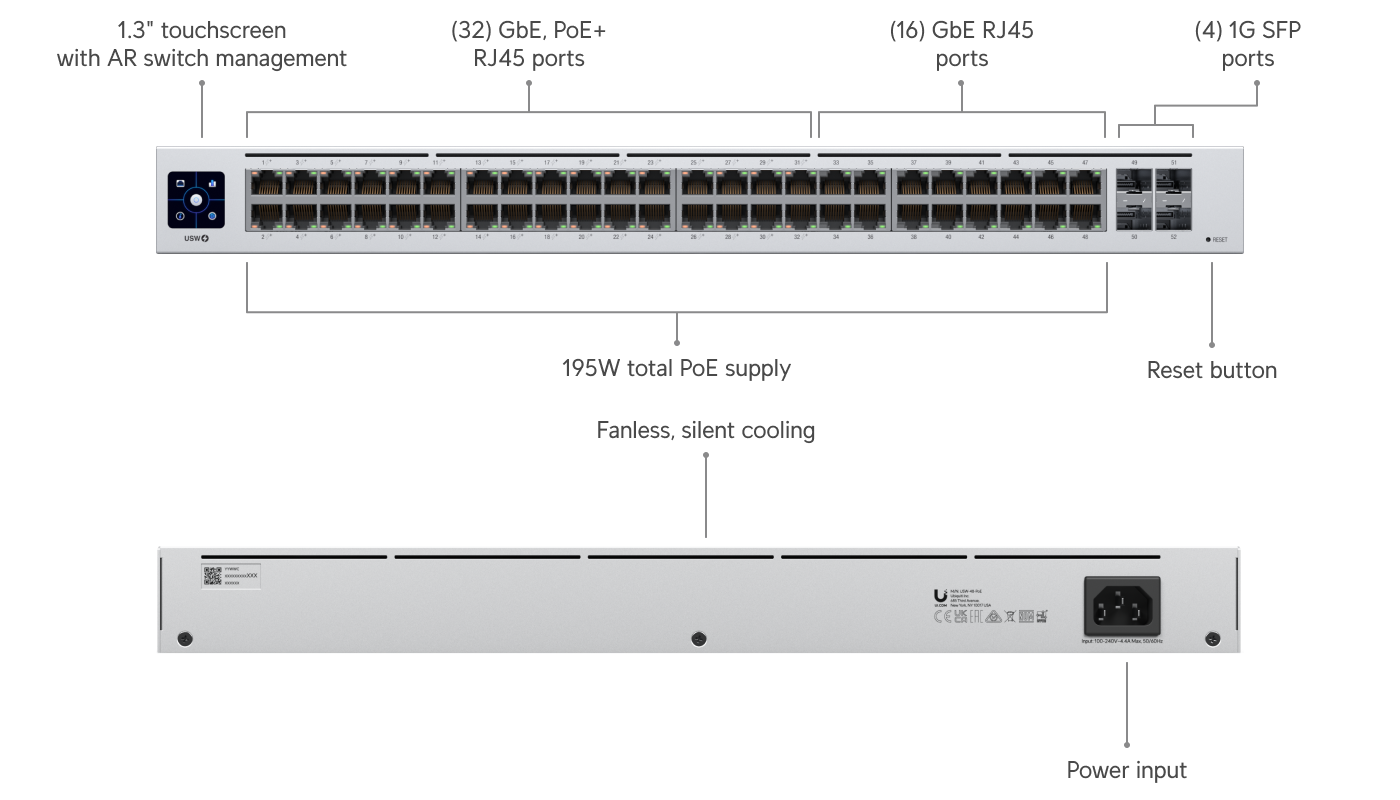

- Port Layout:
  - 1 GbE RJ45: 48 (32 PoE+) (1G/100M/10M)
  - 1G SFP: 4 (1G)
- Max. PoE Output: Up to PoE+
- Total PoE Availability: 195W
- Form Factor: Rack mount (1U)
Performance
- Switching Capacity: 104 Gbps
- Total Non-Blocking Throughput: 52 Gbps
- Forwarding Rate: 77 Mpps
- Supported VLANs: 1,000
- MAC Address Table Size: 16,000
- Packet Buffer Size: 1.5 MB
- Access Lists:
  - IPv4: 128
  - MAC: 128
Layer 2 Features
- LACP Port Aggregation: Yes
- STP & RSTP: Yes
- Advanced IGMP Configuration: Yes
- IGMP Snooping: Yes
- 802.1X Control: Yes
- MAC-Based ACLs & Device Isolation: Yes
- DHCP Snooping & Guarding: Yes
- Egress Rate Limit: Yes
- Flow Control: Yes
- Storm Control: Yes
- Multicast & Broadcast Rate Limiting: Yes
- MAC Address Blocking: Yes
- IP-Based ACLs & Network Isolation: Yes
- MAC-Based Port Restriction: Yes
- Port Isolation: Yes
- Port Mirroring: Yes
- Jumbo Frames: Yes
- LLDP-MED: Yes
- Voice VLAN: Yes
- Loop Protection: Yes
- Virtual Network Override: Yes
Hardware
- PoE Ports:
  - PoE+: 32
- Max. PoE Wattage per Port by PSE:
  - PoE: 15.4W
  - PoE+: 32W
- Max. Power Consumption:
  - 45W (Excluding PoE Output)
  - 240W (Including PoE Output)
- Power Method: Universal input, 100–240V AC, 50/60 Hz
- Power Input Method: AC input
- Power Supply: AC/DC, internal, 240W
- Supported Voltage Range: 100–240V AC
- Management: Ethernet
- Heat Dissipation: 153.5 BTU/hr (Excluding PoE Output)
- Weight:
  - Without mounting brackets: 4.5 kg (10 lb)
  - With mounting brackets: 4.6 kg (10.2 lb)
- Enclosure Material: SGCC steel
- Mount Material: SGCC steel
- Supported Rack Depth: 400~1200 mm (15.7–47.2")
- LCM Display: 1.3" touchscreen
- ESD Protection: Air: ±16kV, contact: ±12kV
- Ambient Operating Temperature: -5 to 40°C (23 to 104°F)
- Ambient Operating Humidity: 10 to 90% noncondensing
- NDAA Compliant: Yes
- Certifications: CE, FCC, IC, Anatel: 00593-21-08356
Software
- Application Requirements: UniFi Network (Version 7.2.94 and later)

Q: Is setup instant?
A: Yes.
