Standard 16 PoE

Standard 16 PoE
Thumbnail Thumbnail Thumbnail Thumbnail Thumbnail Thumbnail

Standard 16 PoE

16-port (8 PoE+) L2 PoE switch with fanless cooling

Download Datasheet

πŸ”’ 100% Secure & Encrypted Payments

⚑ Instant Service Activation

🚚 Fast & Reliable Delivery

πŸ’¬ 24/7 Expert Technical Support

βœ… Trusted by Businesses Worldwide

πŸ”„ Easy Returns

  • Overview

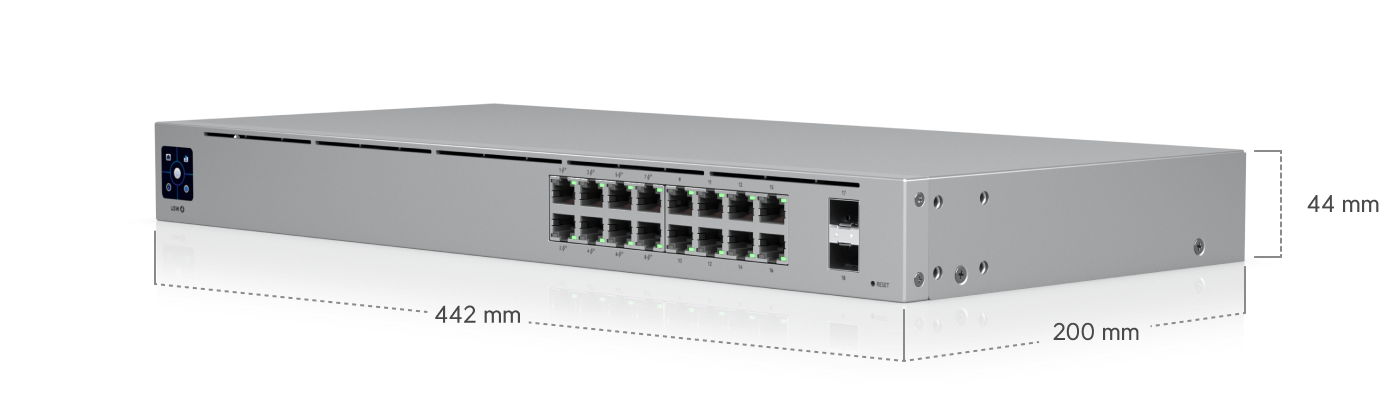

    • Dimensions: 442 x 200 x 44 mm (17.4 x 7.9 x 1.7")

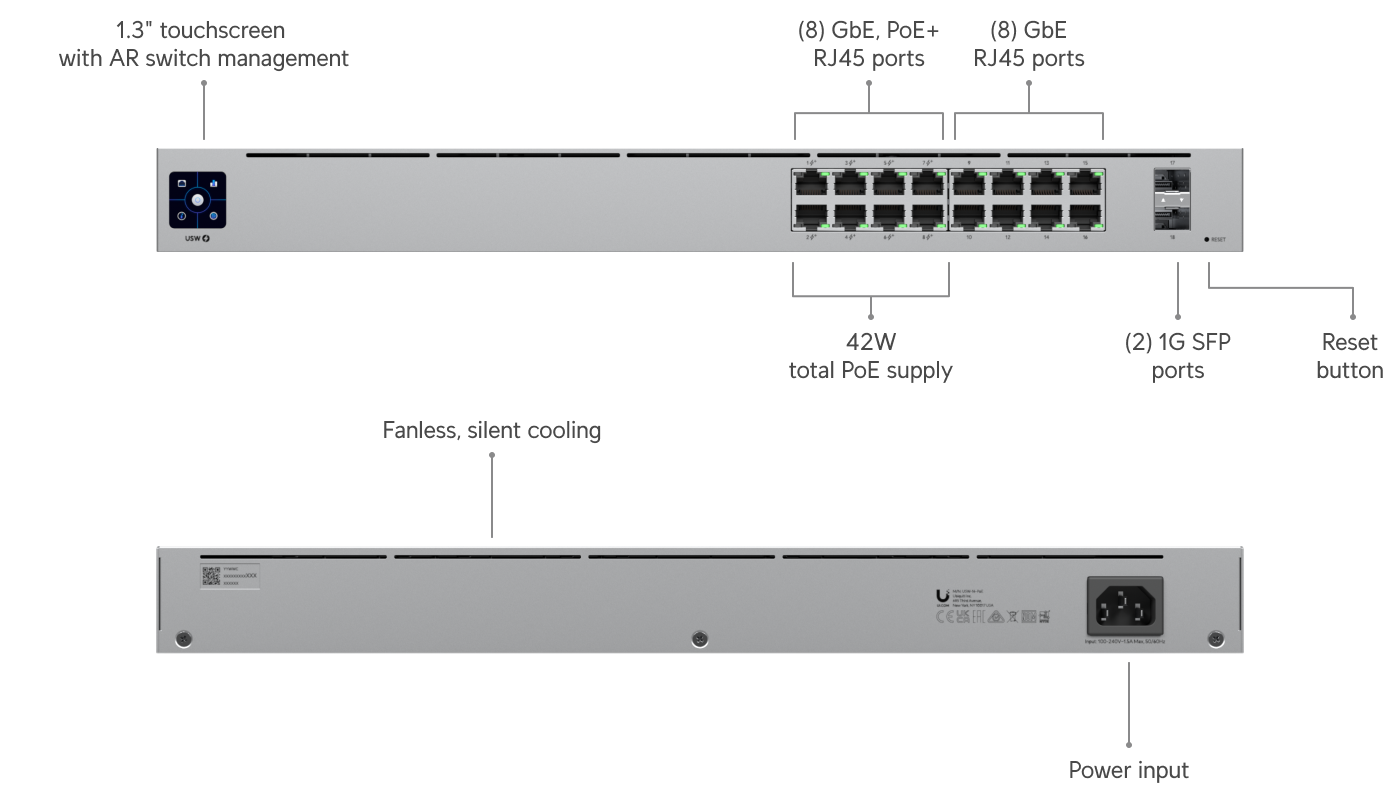

    • Port Layout:
      • 1 GbE RJ45: 16 (8 PoE+) (1G/100M/10M)
      • 1G SFP: 2 (1G)
    • Max. PoE Output: Up to PoE+
    • Total PoE Availability: 42W
    • Form Factor: Rack mount (1U)
  • Performance
    • Switching Capacity: 36 Gbps
    • Total Non-Blocking Throughput: 18 Gbps
    • Forwarding Rate: 27 Mpps
    • Supported VLANs: 1,000
    • MAC Address Table Size: 8,000
    • Packet Buffer Size: 0.5 MB
    • Access Lists:
      • IPv4: 128
      • MAC: 128
  • Layer 2 Features
    • LACP Port Aggregation: Yes
    • STP & RSTP: Yes
    • Advanced IGMP Configuration: Yes
    • IGMP Snooping: Yes
    • 802.1X Control: Yes
    • MAC-Based ACLs & Device Isolation: Yes
    • DHCP Snooping & Guarding: Yes
    • Egress Rate Limit: Yes
    • Flow Control: Yes
    • Storm Control: Yes
    • Multicast & Broadcast Rate Limiting: Yes
    • MAC Address Blocking: Yes
    • IP-Based ACLs & Network Isolation: Yes
    • MAC-Based Port Restriction: Yes
    • Port Isolation: Yes
    • Port Mirroring: Yes
    • Jumbo Frames: Yes
    • LLDP-MED: Yes
    • Voice VLAN: Yes
    • Loop Protection: Yes
    • Virtual Network Override: Yes
  • Hardware
    • PoE Ports: PoE+ (8)
    • Max. PoE Wattage per Port:
      • PoE: 15.4W
      • PoE+: 32W
    • Max. Power Consumption: 18W (Excluding PoE), 60W (Including PoE)
    • Power Method: 100–240V AC, 50/60 Hz
    • Power Input Method: AC input
    • Power Supply: Internal 60W
    • Supported Voltage Range: 100–240V AC
    • Management: Ethernet
    • Heat Dissipation: 61.4 BTU/hr
    • Weight: 2.8 kg (without), 2.9 kg (with brackets)
    • Enclosure Material: SGCC steel
    • Mount Material: SGCC steel
    • Supported Rack Depth: 400~1200 mm (15.7–47.2")
    • LCM Display: 1.3" touchscreen
    • ESD Protection: Yes
    • Ambient Operating Temperature: -5 to 40Β°C
    • Ambient Operating Humidity: 10–90%
    • NDAA Compliant: Yes
    • Certifications: CE, FCC, IC, Anatel
  • Software
    • Application Requirements: UniFi Network (v7.2.94+)
