Pro XG Aggregation
Pro XG Aggregation
Etherlighting™ switch with high-capacity 25G SFP28 connections
🔒 100% Secure & Encrypted Payments
⚡ Instant Service Activation
🚚 Fast & Reliable Delivery
💬 24/7 Expert Technical Support
✅ Trusted by Businesses Worldwide
🔄 Easy Returns

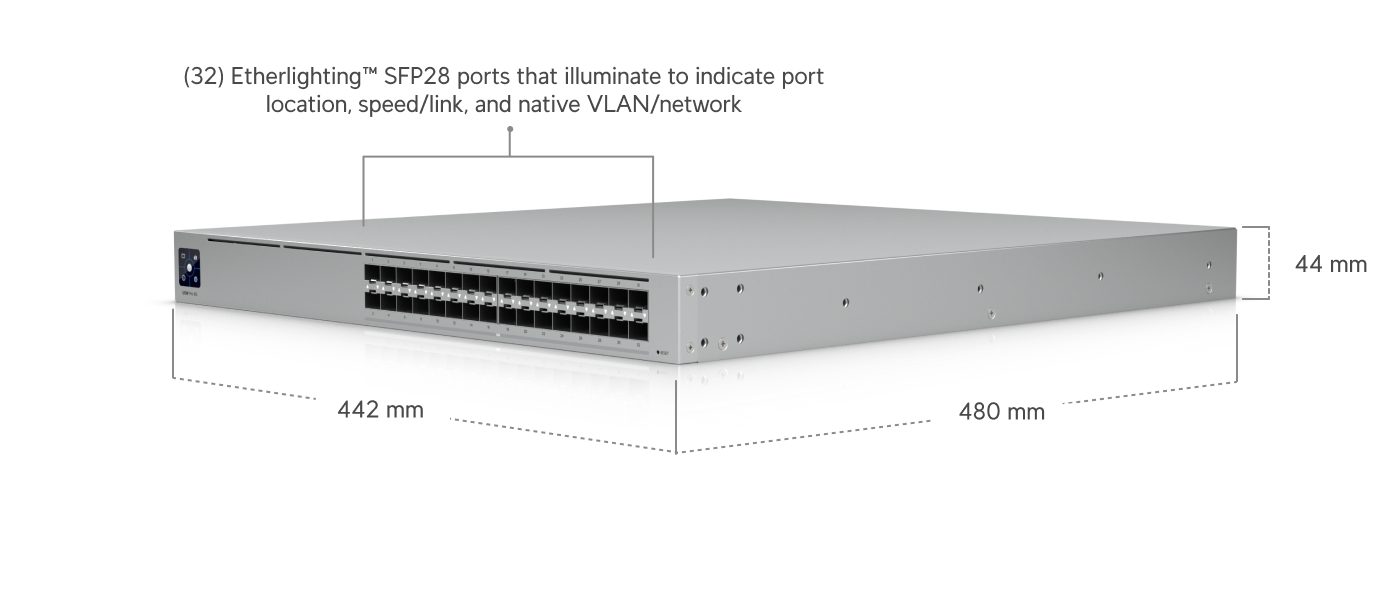

- Overview - Dimensions: 442.4 x 43.7 x 480 mm (17.4 x 1.7 x 18.9")
- Port Layout: 32× 25G SFP28 (25G/10G/1G)
- Redundancy: DC Power Backup
- Layer 3 Support: Yes
- Form Factor: Rack Mount (1U)
- Etherlighting™: Supported
- Switching Capacity: 1.6 Tbps
- Total Throughput: 800 Gbps (Non-Blocking)
- Forwarding Rate: 1.2 Bpps
- Supported VLANs: 1,000
- MAC Address Table: 32,000
- L3 Table Size: ARP 128,000 | IPv4 Routes 256,000 | Static Routes 512
- Packet Buffer: 8 MB
- Access Lists: IPv4: 256 | MAC: 256
- Layer 3 Features: DHCP Server, DHCP Relay, Inter-VLAN Routing, Static Routing
- Layer 2 Features: LACP, STP/RSTP, IGMP Snooping, 802.1X, ACLs, Port Mirroring, Jumbo Frames, LLDP-MED, Voice VLAN, Loop Protection, Storm Control, Multicast/Broadcast Rate Limit
- Max Power Consumption: 200W
- Power Method: AC Input (100–240V, 50/60 Hz) + USP RPS DC Backup
- Power Supply: Internal AC/DC 200W
- Heat Dissipation: 457 BTU/hr
- Weight: 7.1 kg (without bracket), 7.2 kg (with bracket)
- Build Material: SGCC Steel
- Rack Support: 19" Rack, Depth 600–1066 mm
- Display: 1.3" Touchscreen
- ESD Protection: Air ±12kV, Contact ±8kV
- Operating Temperature: -5°C to 40°C
- Operating Humidity: 10–90% Non-Condensing
- Etherlighting Ports: SFP28 Supported
- LED Indicators: RPS
- NDAA Compliance: Yes
- Certifications: CE, FCC, IC, Anatel
Q: Is setup instant?
A: Yes.
