Pro XG 48 PoE
Pro XG 48 PoE
48-port L3 switch with 2.5GbE and PoE++
🔒 100% Secure & Encrypted Payments
⚡ Instant Service Activation
🚚 Fast & Reliable Delivery
💬 24/7 Expert Technical Support
✅ Trusted by Businesses Worldwide
🔄 Easy Returns
- Image Options: Download Image | Zoom In

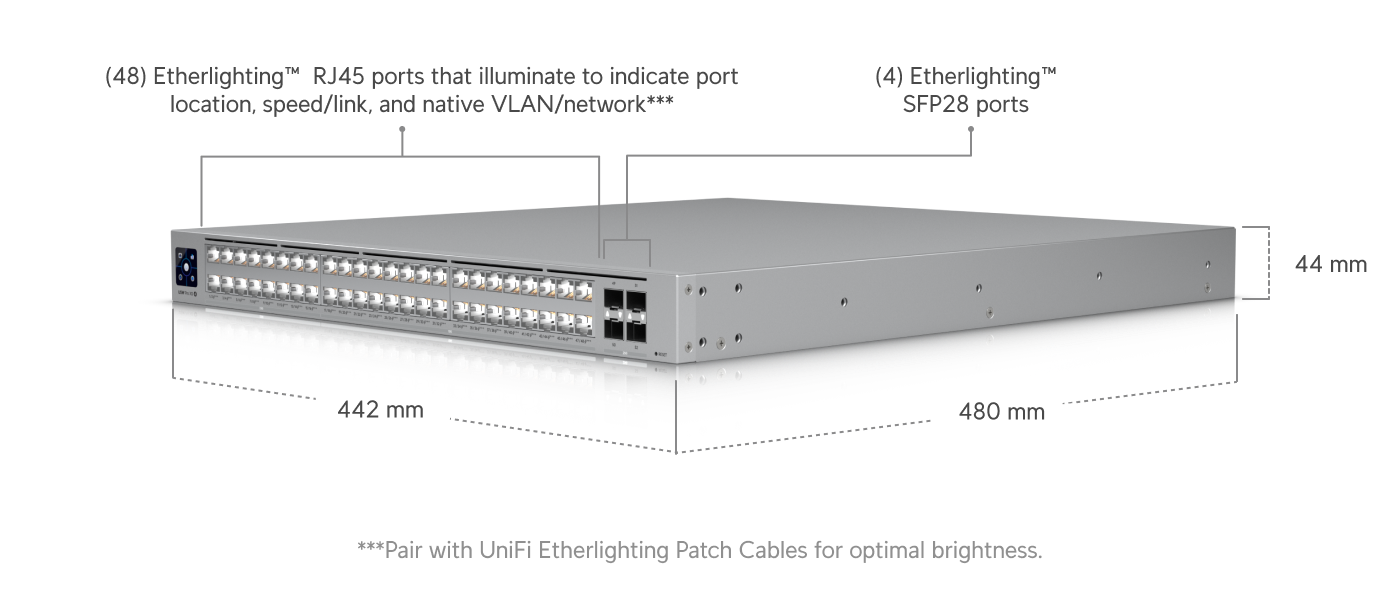

- Overview - Dimensions: 442 x 480 x 44 mm (17.4 x 18.9 x 1.7")
- Port Layout: 16× 2.5GbE RJ45 (PoE+++), 32× 10GbE RJ45 (PoE+++), 4× 25G SFP28
- Port Speeds: 2.5G/1G/100M/10M & 10G/5G/2.5G/1G/100M/10M & 25G/10G/1G
- Max PoE Output: Up to PoE+++ (90W per port)
- Total PoE Availability: 1080W (200–240V AC), 972W (100–120V AC)
- Redundancy: DC Power Backup
- Layer 3 Support: Yes
- Form Factor: Rack Mount (1U)
- Etherlighting™: Supported
- Switching Capacity: 920 Gbps
- Total Throughput: 460 Gbps (Non-Blocking)
- Forwarding Rate: 684 Mpps
- Supported VLANs: 1,000
- MAC Address Table: 128,000
- L3 Table Size: ARP 128,000 | IPv4 Routes 256,000 | Static Routes 512
- Packet Buffer: 8 MB
- Access Lists: IPv4: 256 | MAC: 256
- Layer 3 Features: DHCP Server, DHCP Relay, Inter-VLAN Routing, Static Routing
- Layer 2 Features: LACP, STP/RSTP, QoS (DSCP), IGMP Snooping, 802.1X, ACLs, Port Mirroring, Jumbo Frames, LLDP-MED, Voice VLAN, Loop Protection, Storm Control, Multicast/Broadcast Rate Limiting
- Pro AV Support: Play, Dante, Q-SYS, NDI, SDVoE, Shure, AES67, Crestron
- PoE Ports: 48× PoE+++
- PoE Wattage: PoE 15.4W | PoE+ 30W | PoE++ 60W | PoE+++ 90W
- Max Power Consumption: 200W (Without PoE), 1280W (200–240V) / 1172W (100–120V with PoE)
- Power Method: AC Input (100–240V, 50/60 Hz) + USP RPS DC Backup
- Power Supply: Internal AC/DC 1350W
- Weight: 8.7 kg (without brackets), 8.8 kg (with brackets)
- Build Material: SGCC Steel
- Rack Support: 19" Rack, Depth 600–1066 mm
- Display: 1.3" Touchscreen
- ESD Protection: Air ±30kV, Contact ±20kV
- Operating Temperature: -5°C to 40°C
- Operating Humidity: 10–90% Non-Condensing
- Etherlighting Ports: Ethernet & SFP28 Supported
- LED Indicators: RPS
- NDAA Compliance: Yes
- Certifications: CE, FCC, IC, Anatel
- Software Requirement: UniFi Network (v9.1.120 or later)
