Overview

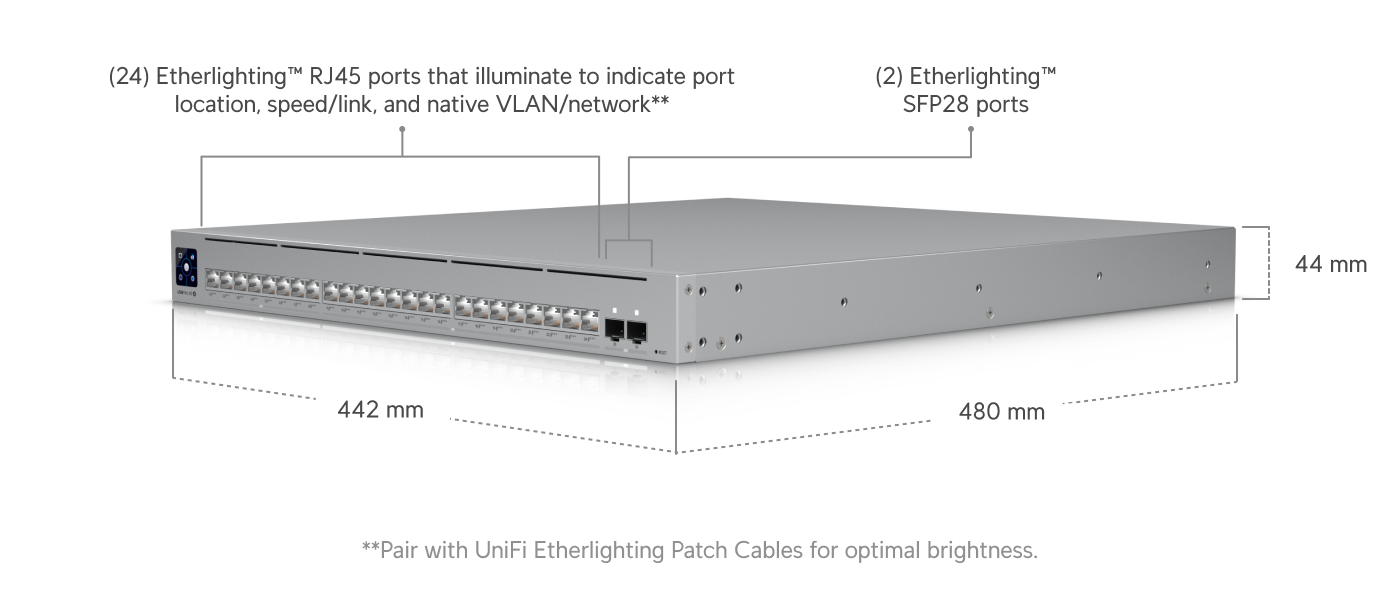

• Dimensions: 442 x 480 x 44 mm (17.4 x 18.9 x 1.7")
• Form Factor: Rack mount (1U)
• Layer 3 Support: ?
• Redundancy: DC Power Backup
• Etherlighting™: ?

Port Layout

• 2.5 GbE RJ45: 8 Ports (All PoE+++) – Supports 2.5G/1G/100M/10M
• 10 GbE RJ45: 16 Ports (All PoE+++) – Supports 10G/5G/2.5G/1G/100M/10M
• 25G SFP28: 2 Ports – Supports 25G/10G/1G
• Max. PoE Output: Up to PoE+++
• Total PoE Availability: 720W

Performance

• Switching Capacity: 460 Gbps
• Non-Blocking Throughput: 230 Gbps
• Forwarding Rate: 342 Mpps
• Supported VLANs: 1,000
• MAC Address Table: 128,000
• Packet Buffer: 8 MB

Layer 3 Table

• ARP Entries: 128,000
• IPv4 Routes: 256,000
• Static Routes: 512

Access Lists

• IPv4 ACL: 256
• MAC ACL: 256

Layer 3 Features

• DHCP Server (Local Networks)
• DHCP Relay
• Inter-VLAN Routing
• Static Routing

Layer 2 Features

• LACP Port Aggregation
• STP & RSTP
• QoS (DSCP)
• IGMP Snooping & Advanced IGMP Configuration
• 802.1X Authentication
• MAC-Based ACLs & Device Isolation
• DHCP Snooping & Guarding
• Storm Control & Flow Control
• Port Mirroring & Isolation
• Jumbo Frames Support
• Voice VLAN & LLDP-MED
• Loop Protection
• Virtual Network Override
• Pro AV Profiles: Dante, Q-SYS, NDI, SDVoE, Shure, AES67, Crestron

Hardware

• PoE Ports: 24 (PoE+++)
• Max Watt per Port:
  • PoE: 15.4W
  • PoE+: 30W
  • PoE++: 60W
  • PoE+++: 90W
• Max Power Consumption: 150W (Excl. PoE), 870W (Incl. PoE)
• Power Supply: Internal AC/DC (870W)
• Voltage Range: 100–240V AC

Physical & Build

• Weight: 7.9 kg (without brackets), 8 kg (with brackets)
• Material: SGCC Steel
• Rack Support: 19" racks (Depth: 600–1066 mm)
• Display: 1.3" Touchscreen

Environment

• Operating Temperature: -5°C to 40°C
• Humidity: 10–90% (Non-condensing)
• ESD Protection: Air ±30kV, Contact ±20kV

Additional Features

• Etherlighting™ (Ethernet & SFP28)
• RPS LED Indicator
• NDAA Compliant
• Certifications: CE, FCC, IC, Anatel

Software

• Management Platform: UniFi Network
• Required Version: 9.1.120 or later
