Pro Max 24
24-port, Layer 3 Etherlighting™ switch with 2.5 GbE
🔒 100% Secure & Encrypted Payments
⚡ Instant Service Activation
🚚 Fast & Reliable Delivery
💬 24/7 Expert Technical Support
✅ Trusted by Businesses Worldwide
🔄 Easy Returns
- Overview

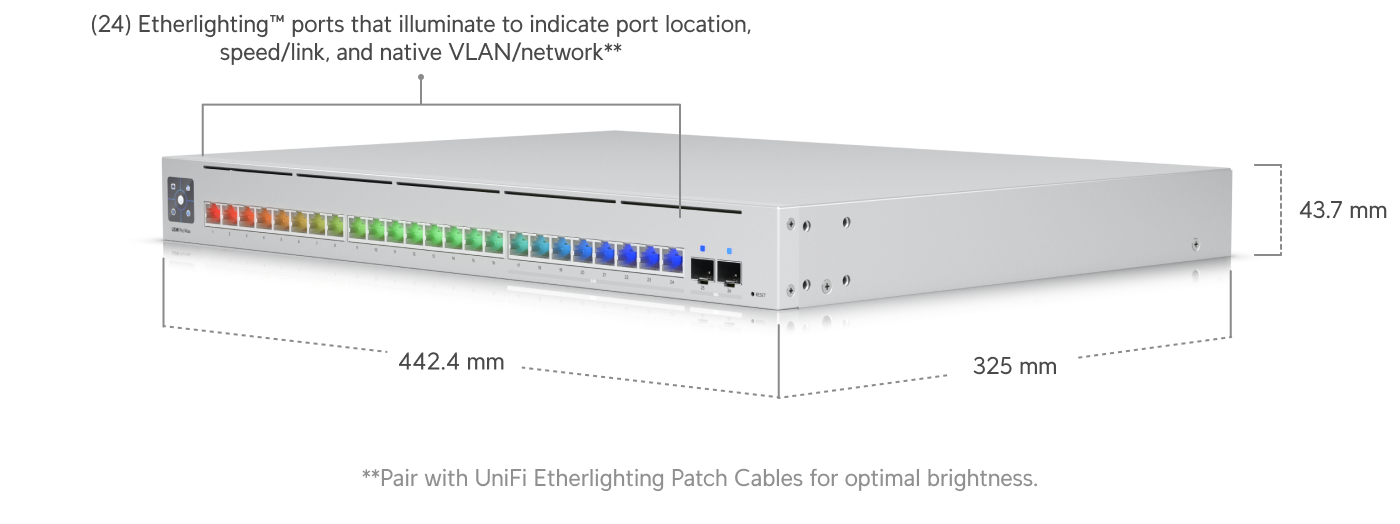

- Dimensions: 442 × 325 × 44 mm (17.4 × 12.8 × 1.7")

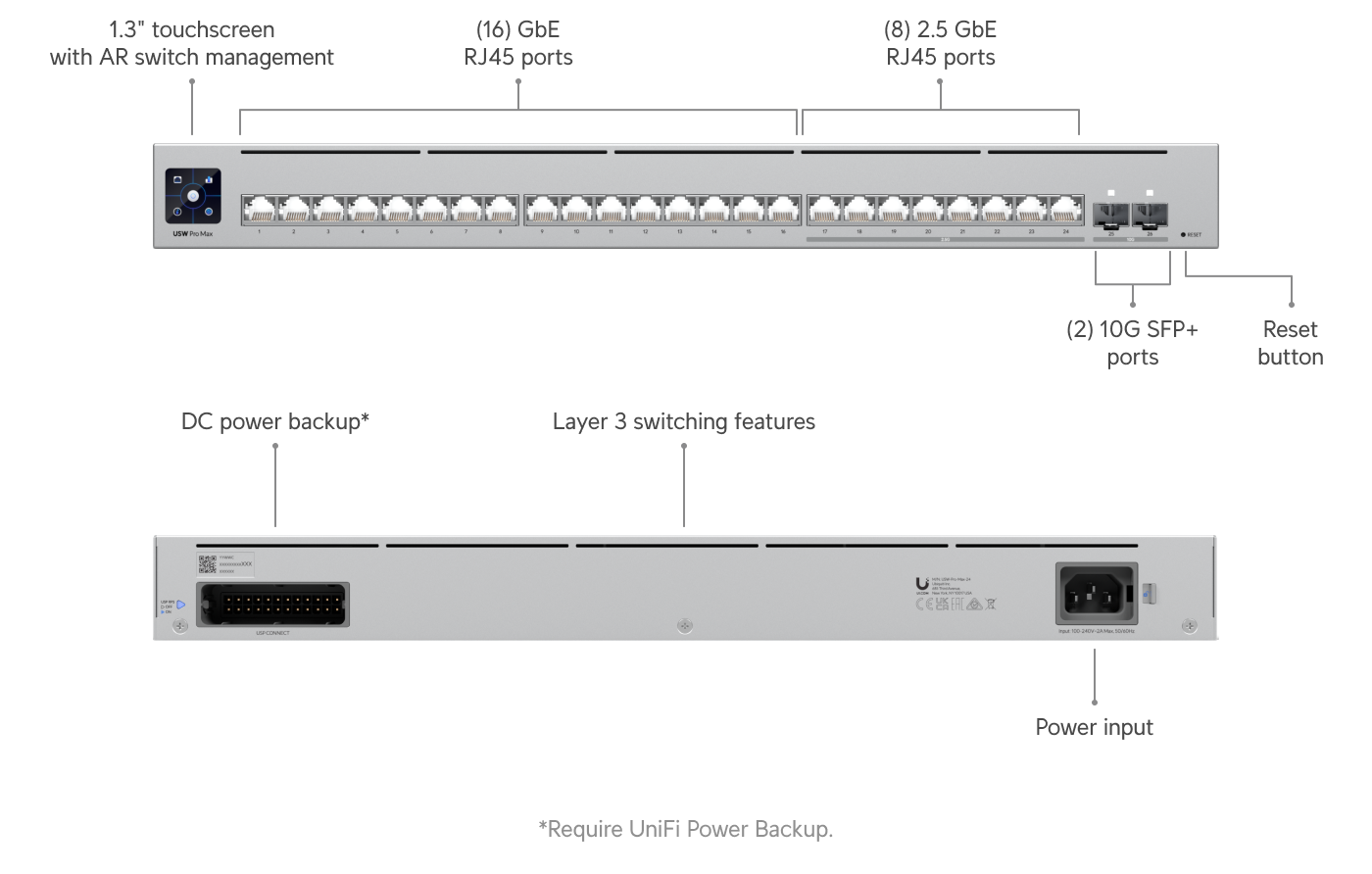

- Port Layout:
- 1 GbE RJ45: 16 ports – (1G / 100M / 10M)
- 2.5 GbE RJ45: 8 ports – (2.5G / 1G / 100M / 10M)
- 10G SFP+: 2 ports (10G / 1G)
- Redundancy: DC Power Backup
- Layer 3 Support: Yes
- Form Factor: Rack Mount (1U)
- Etherlighting™: Yes
- Performance
- Switching Capacity: 112 Gbps
- Total Non-Blocking Throughput: 56 Gbps
- Forwarding Rate: 83 Mpps
- Supported VLANs: 1,000
- MAC Address Table Size: 16,000
- L3 Table Size:
- ARP Entries: 6,000
- IPv4 Static Routes: 256
- Access Lists:
- IPv4: 128
- MAC: 128
- Layer 3 Features
- DHCP Server (Local Networks): Yes
- DHCP Relay: Yes
- Inter-VLAN Routing: Yes
- Static Routing: Yes
- Layer 2 Features
- LACP Port Aggregation: Yes
- STP & RSTP: Yes
- QoS (DSCP): Yes
- Pro AV Profiles: Yes
- Advanced IGMP Configuration: Yes
- IGMP Snooping: Yes
- 802.1X Control: Yes
- MAC-Based ACLs & Device Isolation: Yes
- DHCP Snooping & Guarding: Yes
- Egress Rate Limit: Yes
- Flow Control: Yes
- Storm Control: Yes
- Multicast & Broadcast Rate Limiting: Yes
- MAC Address Blocking: Yes
- IP-Based ACLs & Network Isolation: Yes
- MAC-Based Port Restriction: Yes
- Port Isolation: Yes
- Port Mirroring: Yes
- Jumbo Frames: Yes
- LLDP-MED: Yes
- Voice VLAN: Yes
- Loop Protection: Yes
- Virtual Network Override: Yes
- Hardware
- Max. Power Consumption: 50W
- Power Method:
- 100–240V AC, 50/60 Hz
- USP RPS DC Input
- Power Input Method: AC Input
- Power Supply: Internal AC/DC, 60W
- Supported Voltage: 100–240V AC
- Management: Ethernet
- Heat Dissipation: 170.6 BTU/hr
- Weight:
- Without Brackets: 4.2 kg
- With Brackets: 4.3 kg
- Material: SGCC Steel
- Rack Depth: 400–1200 mm
- LCM Display: 1.3" Touchscreen
- ESD Protection:
- Air: ±16kV
- Contact: ±12kV
- Operating Temp: -5 to 40°C
- Humidity: 10–90%
- Etherlighting™:
- Ethernet: Yes
- SFP+: Yes
- NDAA Compliant: Yes
- Certifications: CE, FCC, IC
- Software
- UniFi Network (v8.0.24+)
