Pro Max 16
16-port, Layer 3 Etherlighting™ switch with 2.5 GbE
🔒 100% Secure & Encrypted Payments
⚡ Instant Service Activation
🚚 Fast & Reliable Delivery
💬 24/7 Expert Technical Support
✅ Trusted by Businesses Worldwide
🔄 Easy Returns
- Overview

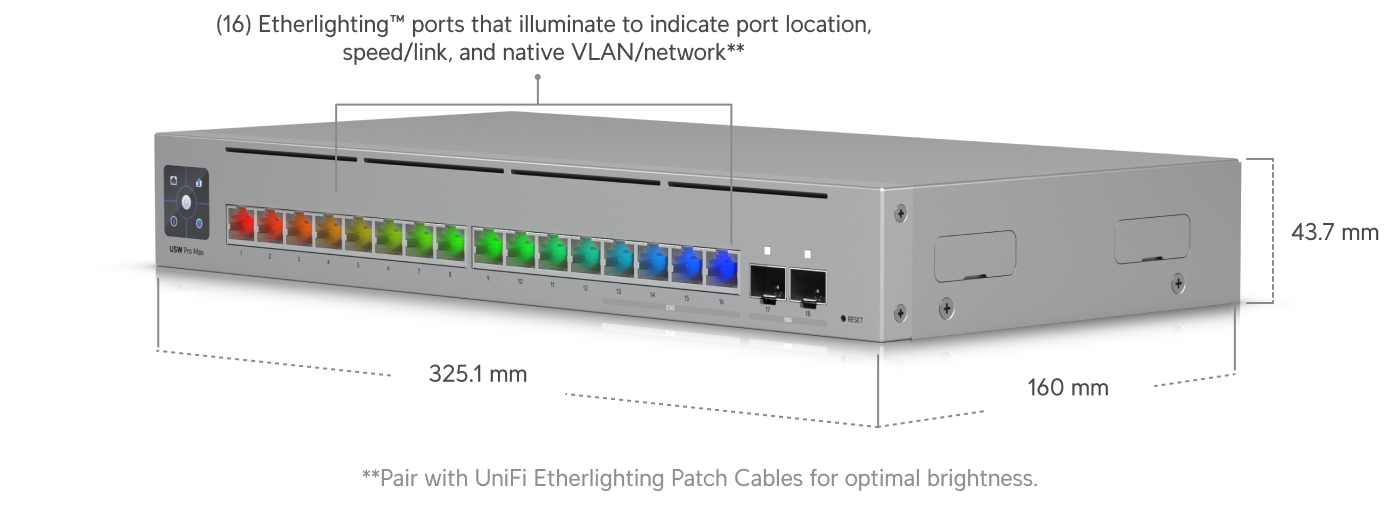

- Dimensions: 325.1 x 160 x 43.7 mm (12.8 x 6.3 x 1.7")

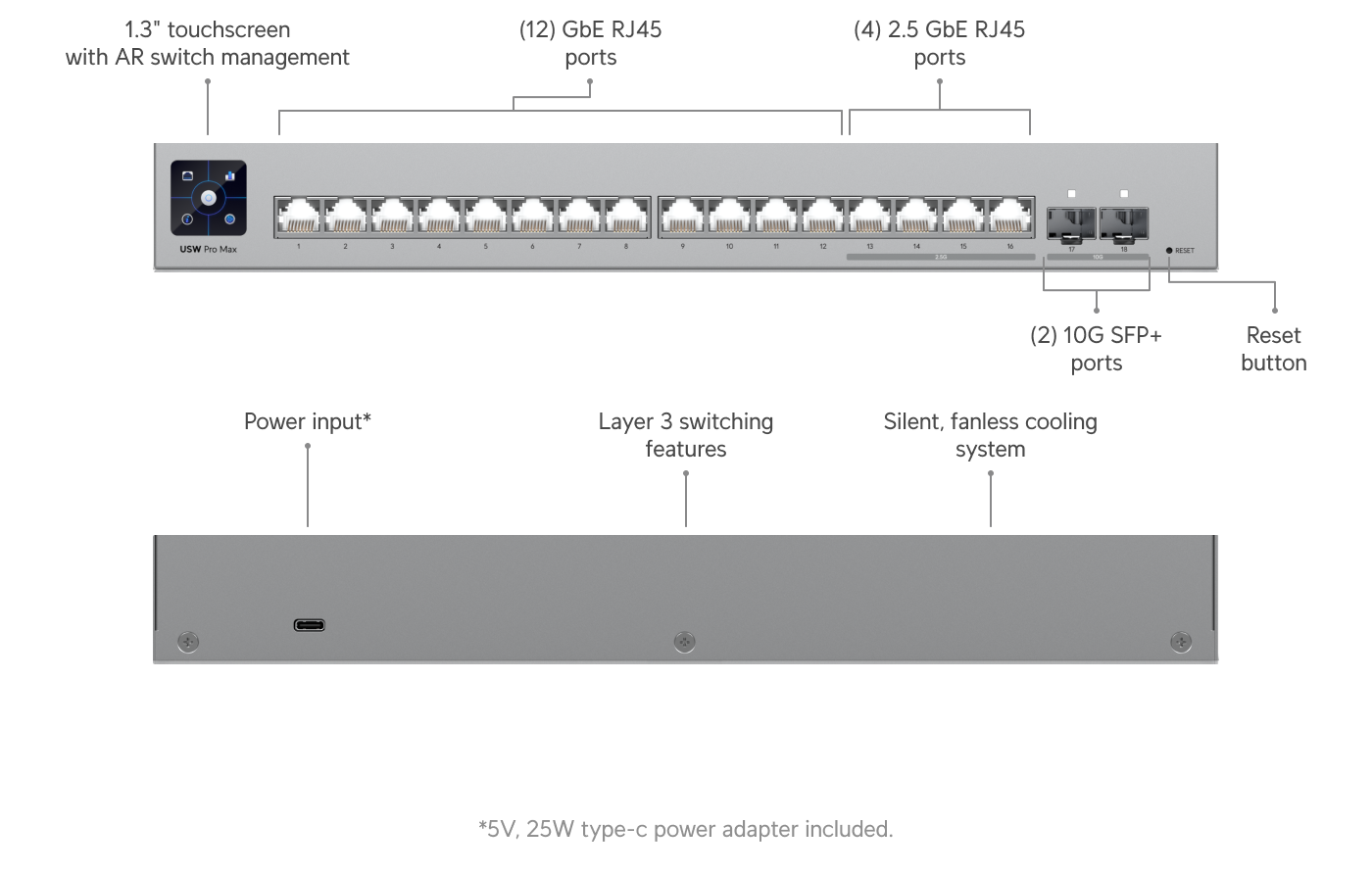

- Port Layout
- 1 GbE RJ45: 12 (1G/100M/10M)
- 2.5 GbE RJ45: 4 (2.5G/1G/100M/10M)
- 10G SFP+: 2 (10G/1G)
- Layer 3: Yes
- Form Factor: Rack mount (1U), desktop, wall
- Etherlighting™: Yes
- Performance
- Switching Capacity: 84 Gbps
- Total Non-Blocking Throughput: 42 Gbps
- Forwarding Rate: 62 Mpps
- Supported VLANs: 1,000
- MAC Address Table Size: 16,000
- L3 Table Size
- ARP Entries: 6,000
- IPv4 Routes: 512
- IPv4 Static Routes: 256
- Packet Buffer Size: 1.5 MB
- Access Lists
- IPv4: 128
- MAC: 128
- Layer 3 Features
- DHCP Server (Local Networks): Yes
- DHCP Relay: Yes
- Inter-VLAN Routing (Local Networks): Yes
- Static Routing (Local Networks): Yes
- Layer 2 Features
- LACP Port Aggregation: Yes
- STP & RSTP: Yes
- QoS (DSCP): Yes
- Pro AV Profiles: Yes
- Advanced IGMP Configuration: Yes
- IGMP Snooping: Yes
- 802.1X Control: Yes
- MAC-Based ACLs & Device Isolation: Yes
- DHCP Snooping & Guarding: Yes
- Egress Rate Limit: Yes
- Flow Control: Yes
- Storm Control: Yes
- Multicast & Broadcast Rate Limiting: Yes
- MAC Address Blocking: Yes
- IP-Based ACLs & Network Isolation: Yes
- MAC-Based Port Restriction: Yes
- Port Isolation: Yes
- Port Mirroring: Yes
- Jumbo Frames: Yes
- LLDP-MED: Yes
- Voice VLAN: Yes
- Loop Protection: Yes
- Virtual Network Override: Yes
- Hardware
- Max. Power Consumption: 25W
- Power Method: AC/DC Adapter (included)
- Power Input Method: USB Type-C, 5V DC, 5A
- Power Supply: AC/DC, external, 25W
- Supported Voltage Range: 4.8—5.2V DC/USB
- Management: Ethernet
- Heat Dissipation: 85.3 BTU/hr
- Weight: 1.95 kg (4.3 lb)
- Enclosure Material: SGCC steel
- Mount Material: SGCC steel
- Supported Rack Depth: 400~1200 mm (15.7-47.2")
- LCM Display: 1.3" touchscreen
- Ambient Operating Temperature: -5 to 40°C (23 to 104°F)
- Ambient Operating Humidity: 10 to 90% noncondensing
- Etherlighting™ (Ethernet): Yes
- Etherlighting™ (SFP+): Yes
- NDAA Compliant: Yes
- Certifications: CE, FCC, IC, Anatel: 08953-24-08356
- Software
- Application Requirements: UniFi Network (Version 8.1.127 and later)
