Overview

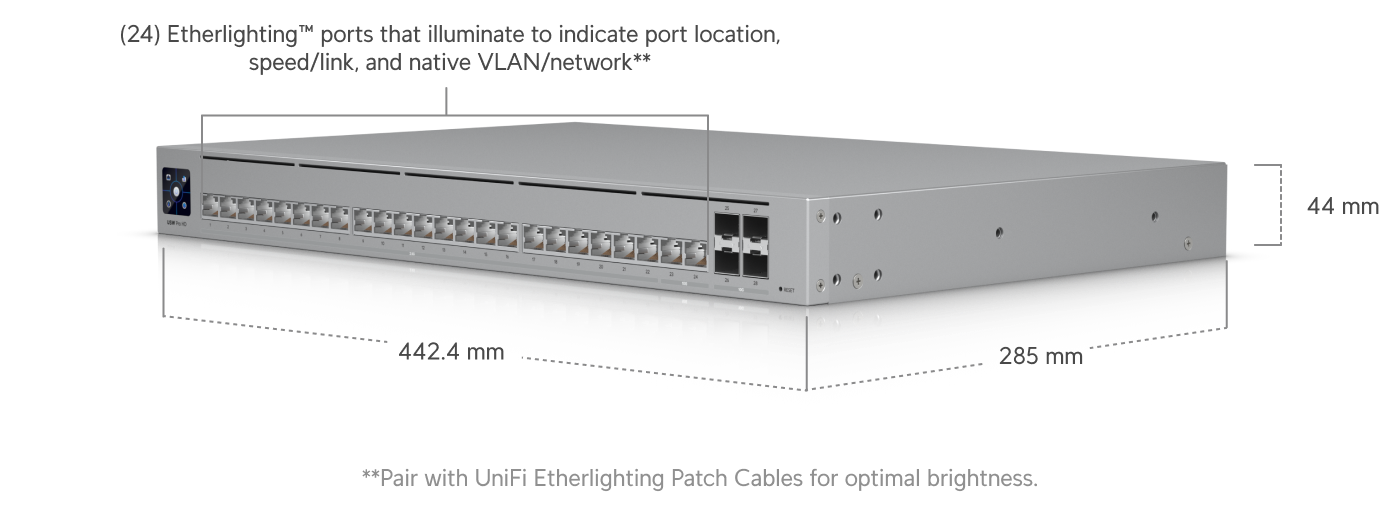

• Dimensions - 442 x 400 x 44 mm (17.4 x 15.7 x 1.7")

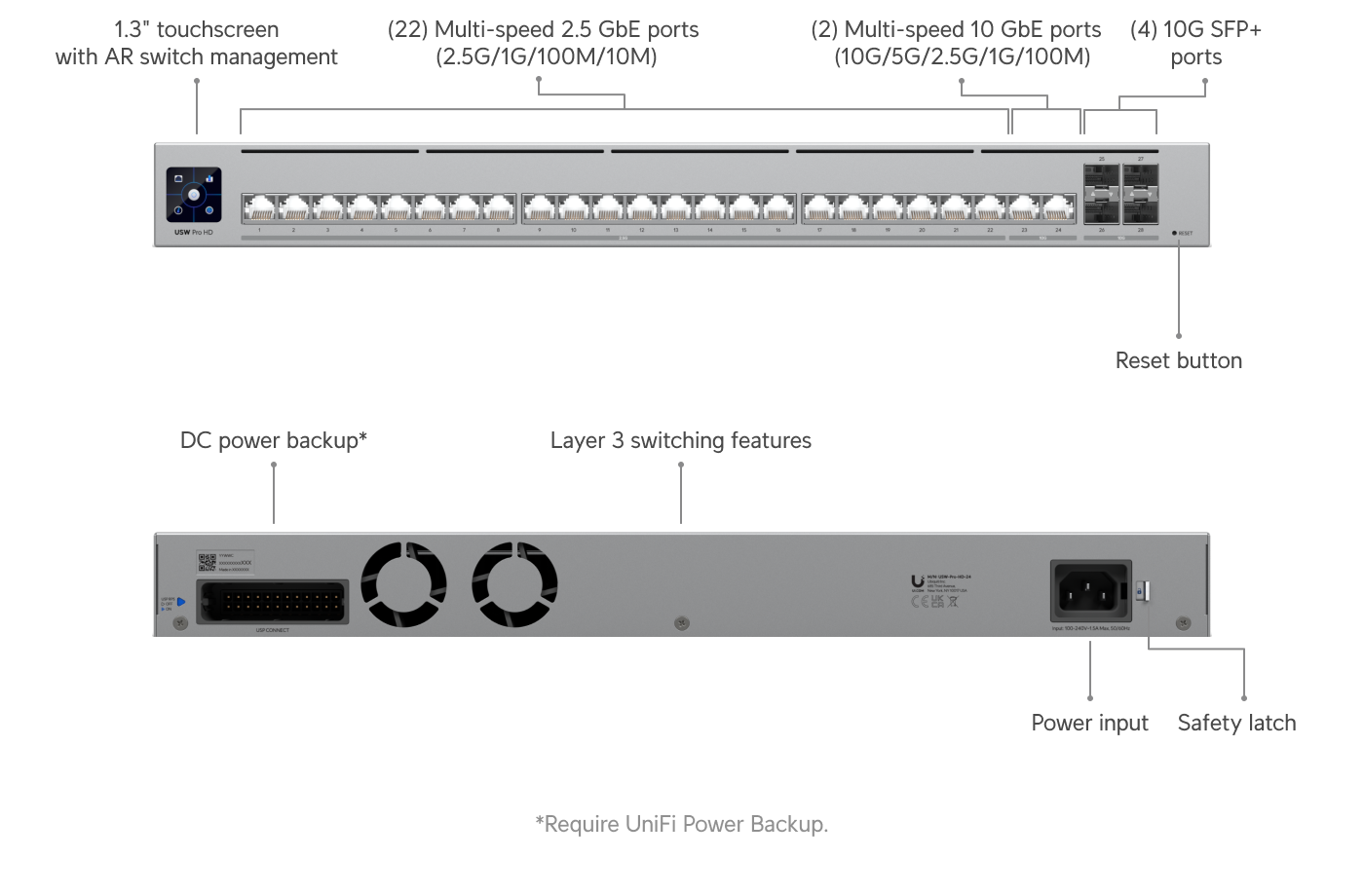

• Port Layout
  • 2.5 GbE RJ45 - 22 (All PoE++)
  • 10 GbE RJ45 - 2 (All PoE++)
  • 10G SFP+ - 4
• Max. PoE Output - Up to PoE++
• Total PoE Availability - 600W
• Redundancy - DC Power Backup
• Layer 3 - Yes
• Form Factor - Rack mount (1U)
• Etherlighting™ - Yes

Performance

• Switching Capacity - 230 Gbps
• Total Non-Blocking Throughput - 115 Gbps
• Forwarding Rate - 171 Mpps
• Supported VLANs - 1,000
• MAC Address Table Size - 32,000
• L3 Table Size
  • ARP Entries - 12,000
  • IPv4 Routes - 12,000
  • IPv4 Static Routes - 256
• Packet Buffer Size - 2 MB
• Access Lists
  • IPv4 - 128
  • MAC - 128

Layer 3 Features

• DHCP Server (Local Networks) - Yes
• DHCP Relay - Yes
• Inter-VLAN Routing (Local Networks) - Yes
• Static Routing (Local Networks) - Yes

Layer 2 Features

• LACP Port Aggregation - Yes
• STP & RSTP - Yes
• QoS (DSCP) - Yes
• Pro AV Profiles - Yes
• Advanced IGMP Configuration - Yes
• IGMP Snooping - Yes
• 802.1X Control - Yes
• MAC-Based ACLs & Device Isolation - Yes
• DHCP Snooping & Guarding - Yes
• Egress Rate Limit - Yes
• Flow Control - Yes
• Storm Control - Yes
• Multicast & Broadcast Rate Limiting - Yes
• MAC Address Blocking - Yes
• IP-Based ACLs & Network Isolation - Yes
• MAC-Based Port Restriction - Yes
• Port Isolation - Yes
• Port Mirroring - Yes
• Jumbo Frames - Yes
• LLDP-MED - Yes
• Voice VLAN - Yes
• Loop Protection - Yes
• Virtual Network Override - Yes

Hardware

• PoE Ports - PoE++ (24)
• Max. PoE Wattage per Port
  • PoE - 15.4W
  • PoE+ - 30W
  • PoE++ - 64W
• Max. Power Consumption
  • 60W (Excluding PoE Output)
  • 660W (Including PoE Output)

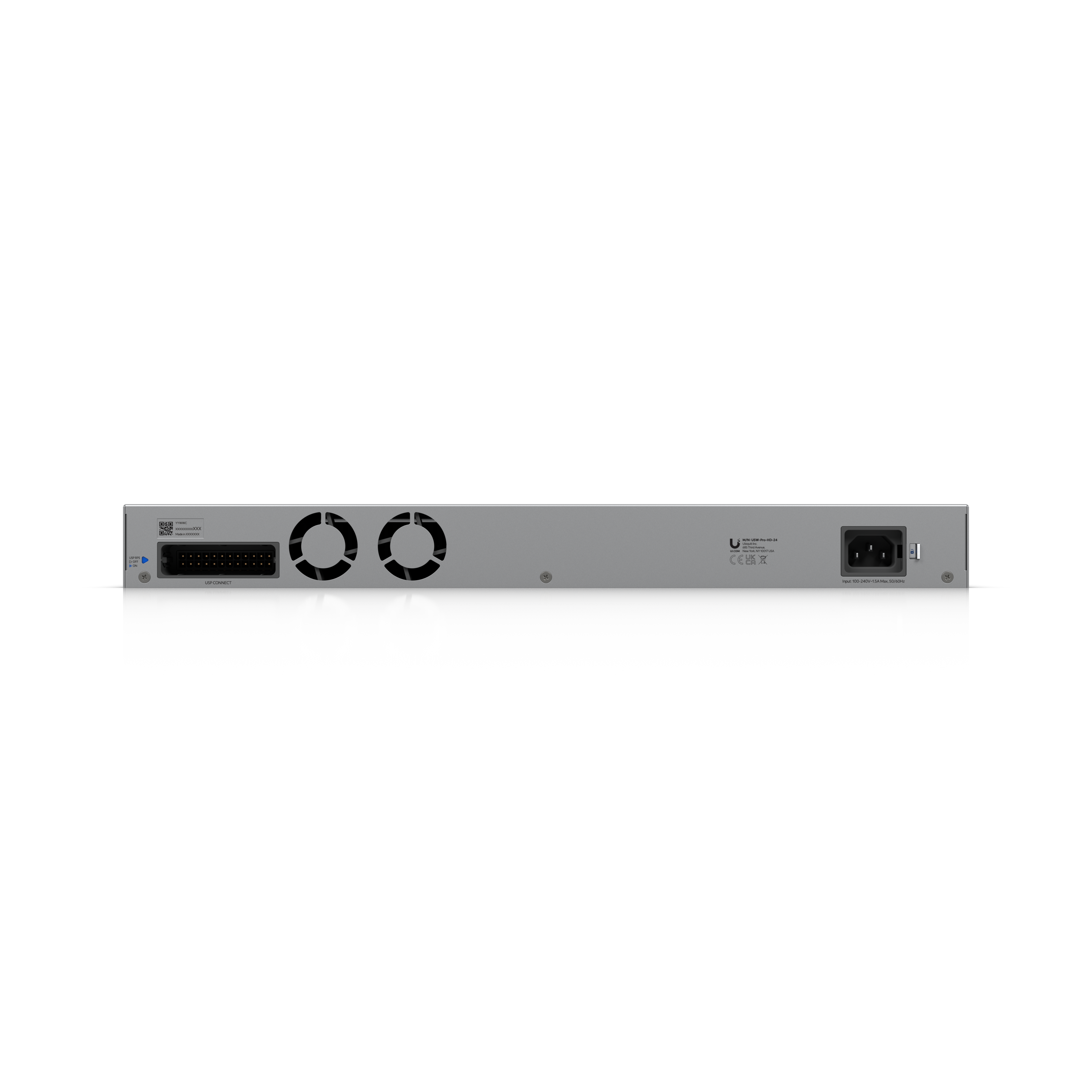

• Power Method
  • (1) Universal input, 100–240V AC
  • (1) USP RPS DC input
• Power Supply - AC/DC, internal, 660W
• Supported Voltage Range - 100–240V AC
• Weight
  • Without mounting brackets - 6.2 kg
  • With mounting brackets - 6.3 kg
• Enclosure Material - SGCC steel
• Mount Material - SGCC steel
• Supported Rack Depth - 600 - 1,200 mm
• LCM Display - 1.3" touchscreen
• Ambient Operating Temperature - -5 to 40°C
• Ambient Operating Humidity - 10 to 90%
• Etherlighting™ Ethernet - Yes
• Etherlighting™ SFP+ - Yes
• NDAA Compliant - Yes
• Certifications - CE, FCC, IC

Software

• Application Requirements - UniFi Network
• Version - 9.0.114 and later
