Pro 48
Layer 3 switch with 10G SFP+ and fanless cooling.
🔒 100% Secure & Encrypted Payments
⚡ Instant Service Activation
🚚 Fast & Reliable Delivery
💬 24/7 Expert Technical Support
✅ Trusted by Businesses Worldwide
🔄 Easy Returns
- Overview

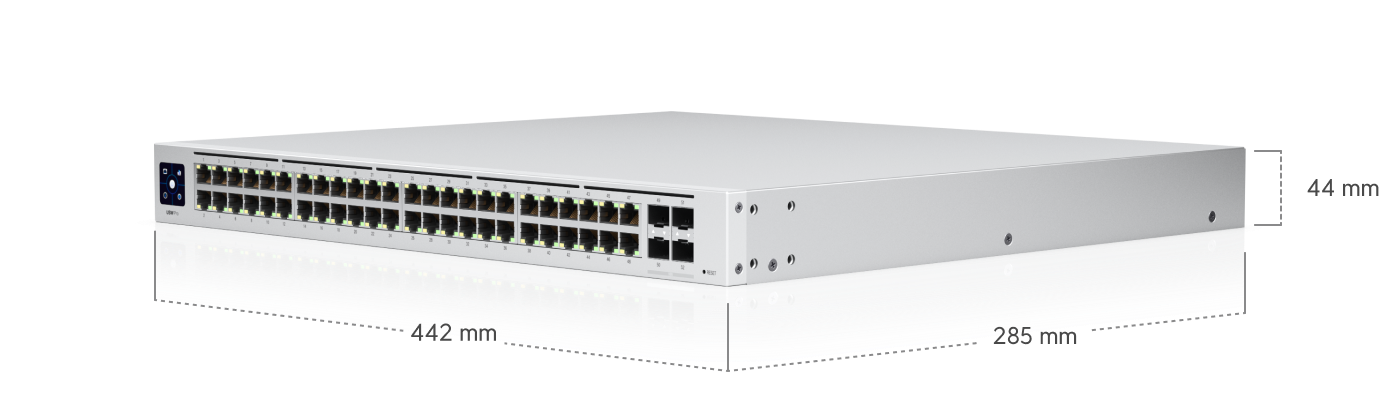

- Dimensions: 442 x 285 x 44 mm (17.4 x 11.2 x 1.7")

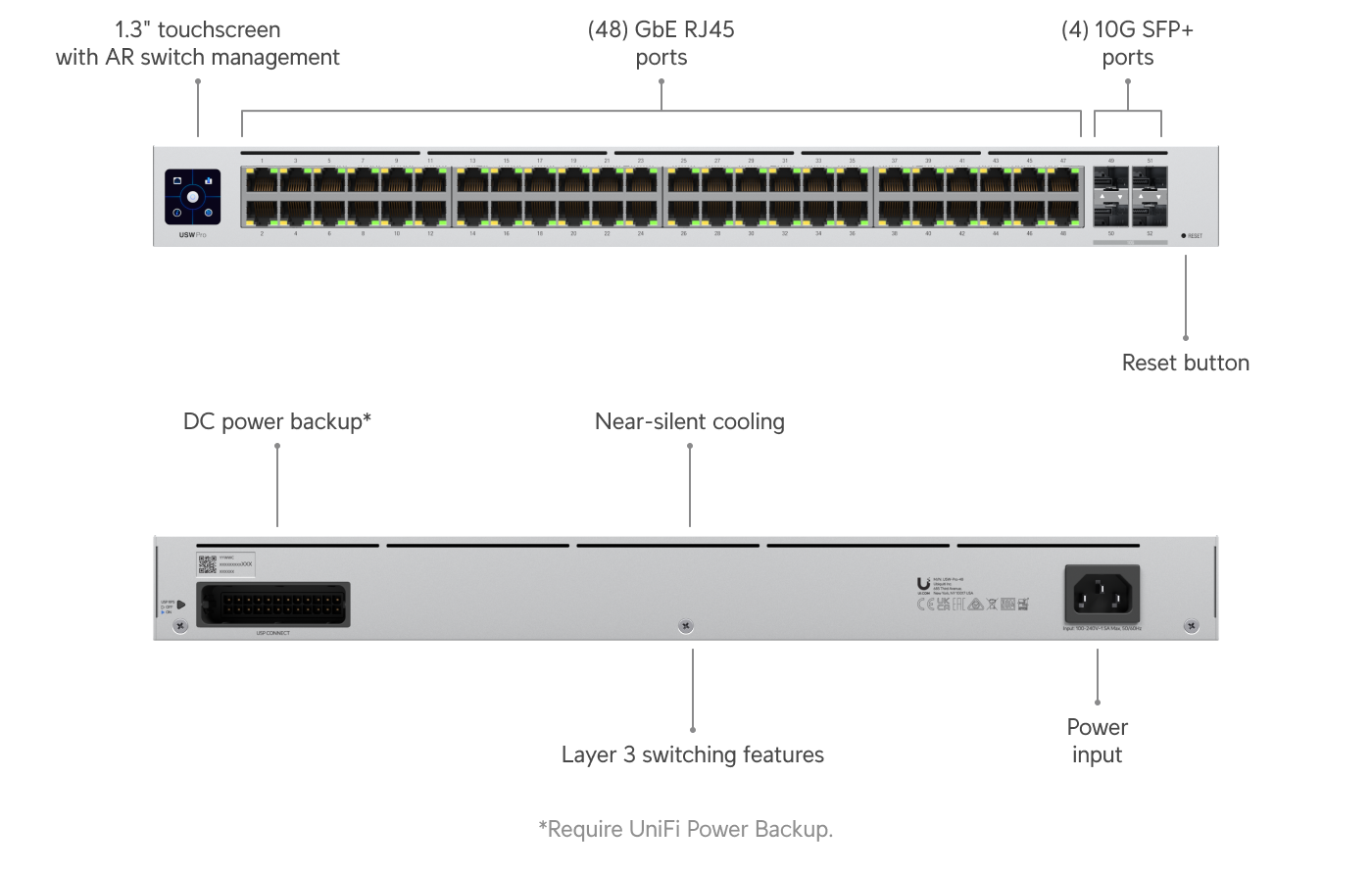

- Port Layout
- 1 GbE RJ45: 48 (1G/100M/10M)
- 10G SFP+: 4 (10G/1G)
- Redundancy: DC Power Backup
- Layer 3: Yes
- Form Factor: Rack mount (1U)
- Performance
- Switching Capacity: 176 Gbps
- Total Non-Blocking Throughput: 88 Gbps
- Forwarding Rate: 131 Mpps
- Supported VLANs: 1,000
- MAC Address Table Size: 16,000
- L3 Table Size
- ARP Entries: 4,000
- IPv4 Routes: 1,000
- IPv4 Static Routes: 256
- Packet Buffer Size: 4 MB
- Access Lists
- IPv4: 128
- MAC: 128
- Layer 3 Features
- DHCP Server (Local Networks): Yes
- DHCP Relay: Yes
- Inter-VLAN Routing (Local Networks): Yes
- Static Routing (Local Networks): Yes
- Layer 2 Features
- LACP Port Aggregation: Yes
- STP & RSTP: Yes
- QoS (DSCP): Yes
- Pro AV Profiles: Yes
- Advanced IGMP Configuration: Yes
- IGMP Snooping: Yes
- 802.1X Control: Yes
- MAC-Based ACLs & Device Isolation: Yes
- DHCP Snooping & Guarding: Yes
- Egress Rate Limit: Yes
- Flow Control: Yes
- Storm Control: Yes
- Multicast & Broadcast Rate Limiting: Yes
- MAC Address Blocking: Yes
- IP-Based ACLs & Network Isolation: Yes
- MAC-Based Port Restriction: Yes
- Port Isolation: Yes
- Port Mirroring: Yes
- Jumbo Frames: Yes
- LLDP-MED: Yes
- Voice VLAN: Yes
- Loop Protection: Yes
- Virtual Network Override: Yes
- Hardware
- Max. Power Consumption: 60W
- Power Method: (1) Universal input, 100–240V AC, 50/60 Hz; (1) USP RPS DC input
- Power Input Method: AC input
- Power Supply: AC/DC, internal, 60W
- Supported Voltage Range: 100–240V AC
- Management: Ethernet
- Heat Dissipation: 204.7 BTU/hr
- Weight:
- Without mounting brackets: 4 kg (8.8 lb)
- With mounting brackets: 4.1 kg (9 lb)
- Enclosure Material: SGCC steel
- Mount Material: SGCC steel
- Supported Rack Depth: 400~1200 mm (15.7–47.2")
- LCM Display: 1.3" touchscreen
- ESD Protection: Air: ±16kV, Contact: ±12kV
- Ambient Operating Temperature: -5 to 40°C (23 to 104°F)
- Ambient Operating Humidity: 10 to 90% noncondensing
- NDAA Compliant: Yes
- Certifications: CE, FCC, IC, Anatel: 00469-21-08356
- Software
- Application Requirements: UniFi Network (Version 5.12.11 and later)
