Pro 24

Pro 24
Thumbnail Thumbnail Thumbnail Thumbnail Thumbnail

Pro 24

Layer 3 switch with 10G SFP+ and fanless cooling.

Download Datasheet

🔒 100% Secure & Encrypted Payments

⚡ Instant Service Activation

🚚 Fast & Reliable Delivery

💬 24/7 Expert Technical Support

✅ Trusted by Businesses Worldwide

🔄 Easy Returns

  • Overview

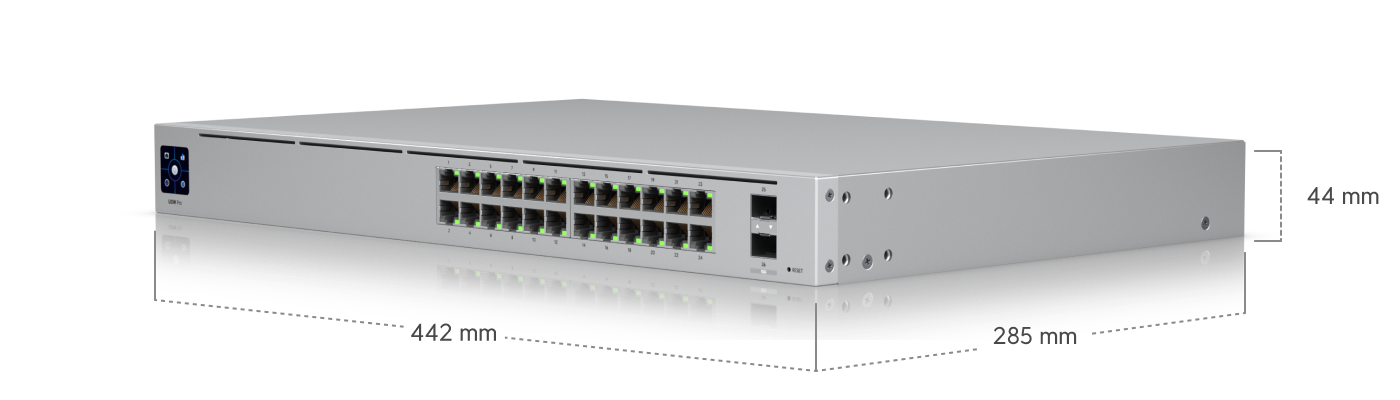

    • Dimensions: 442 x 285 x 44 mm (17.4 x 11.2 x 1.7")
    • Port Layout:
      • 1 GbE RJ45: 24 (1G/100M/10M)
      • 10G SFP+: 2 (10G/1G)
    • Redundancy: DC Power Backup
    • Layer 3: Yes
    • Form Factor: Rack mount (1U)
  • Performance
    • Switching Capacity: 88 Gbps
    • Total Non-Blocking Throughput: 44 Gbps
    • Forwarding Rate: 65 Mpps
    • Supported VLANs: 1,000
    • MAC Address Table Size: 16,000
    • L3 Table Size:
      • ARP Entries: 768
      • IPv4 Routes: 64
      • IPv4 Static Routes: 2
    • Packet Buffer Size: 2 MB
    • Access Lists:
      • IPv4: 128
      • MAC: 128
  • Layer 3 Features
    • DHCP Server (Local Networks): Yes
    • DHCP Relay: Yes
    • Inter-VLAN Routing (Local Networks): Yes
    • Static Routing (Local Networks): Yes
  • Layer 2 Features
    • LACP Port Aggregation: Yes
    • STP & RSTP: Yes
    • QoS (DSCP): Yes
    • Pro AV Profiles: Yes
    • Advanced IGMP Configuration: Yes
    • IGMP Snooping: Yes
    • 802.1X Control: Yes
    • MAC-Based ACLs & Device Isolation: Yes
    • DHCP Snooping & Guarding: Yes
    • Egress Rate Limit: Yes
    • Flow Control: Yes
    • Storm Control: Yes
    • Multicast & Broadcast Rate Limiting: Yes
    • MAC Address Blocking: Yes
    • IP-Based ACLs & Network Isolation: Yes
    • MAC-Based Port Restriction: Yes
    • Port Isolation: Yes
    • Port Mirroring: Yes
    • Jumbo Frames: Yes
    • LLDP-MED: Yes
    • Voice VLAN: Yes
    • Loop Protection: Yes
    • Virtual Network Override: Yes
  • Hardware
    • Max. Power Consumption: 30W
    • Power Method:
      • (1) Universal input, 100–240V AC, 50/60 Hz
      • (1) USP RPS DC input
    • Power Input Method: AC input
    • Power Supply: AC/DC, internal, 36W
    • Supported Voltage Range: 100–240V AC
    • Management: Ethernet
    • Heat Dissipation: 102.4 BTU/hr
    • Weight:
      • Without mounting brackets: 3.5 kg (7.7 lb)
      • With mounting brackets: 3.6 kg (7.9 lb)
    • Enclosure Material: SGCC steel
    • Mount Material: SGCC steel
    • Supported Rack Depth: 400~1200 mm (15.7-47.2")
    • LCM Display: 1.3" touchscreen
    • ESD Protection: Air: ±16kV, contact: ±12kV
    • Ambient Operating Temperature: -5 to 45°C (23 to 113°F)
    • Ambient Operating Humidity: 10 to 90% noncondensing
    • NDAA Compliant: Yes
    • Certifications: CE, FCC, IC, Anatel: 00469-21-08356
  • Software
    • Application Requirements: UniFi Network (Version 5.12.11 and later)
Q: Is setup instant?
A: Yes.
