Mission Critical

Mission Critical
Thumbnail Thumbnail Thumbnail Thumbnail Thumbnail Thumbnail

Mission Critical

Integrated battery for uninterruptible PoE

🔒 100% Secure & Encrypted Payments

⚡ Instant Service Activation

🚚 Fast & Reliable Delivery

💬 24/7 Expert Technical Support

✅ Trusted by Businesses Worldwide

🔄 Easy Returns

  • Overview

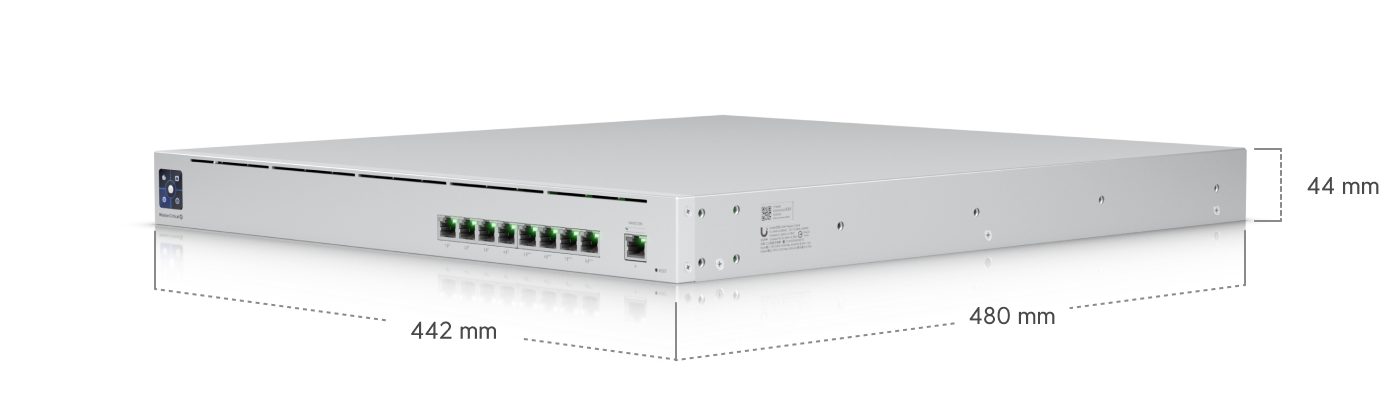

    • Dimensions: 442 x 480 x 44 mm (17.4 x 18.9 x 1.7")

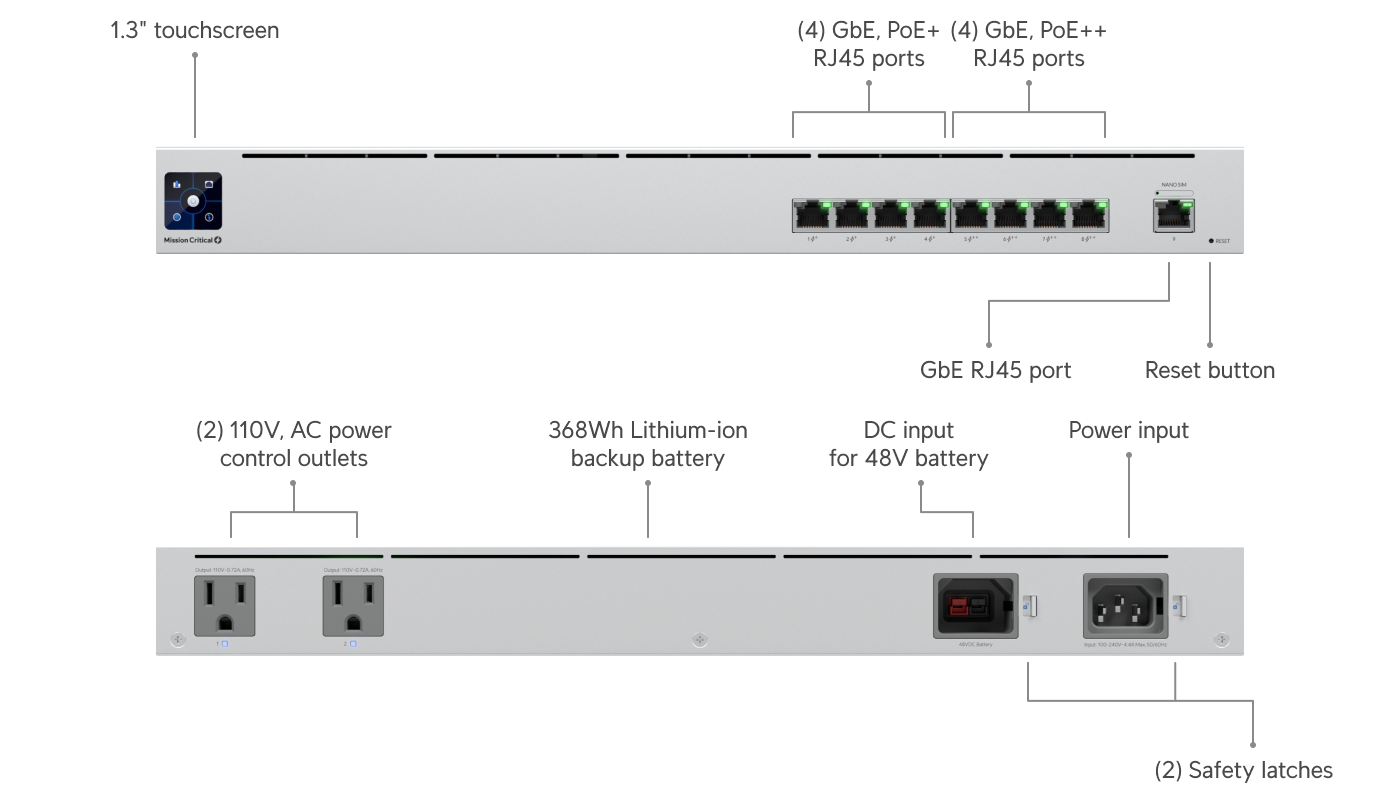

    • Port Layout:
      • 1 GbE RJ45: 9 (4 PoE+; 4 PoE++) (1G/100M/10M)
    • Max. PoE Output: Up to PoE++
    • Total PoE Availability: 120W
    • Redundancy: Battery Power Backup
    • Layer 3: Yes
    • Form Factor: Rack mount (1U)
  • Performance
    • Switching Capacity: 18 Gbps
    • Total Non-Blocking Throughput: 9 Gbps
    • Forwarding Rate: 13 Mpps
    • Supported VLANs: 1,000
    • MAC Address Table Size: 8,000
    • Packet Buffer Size: 0.5 MB
    • Access Lists:
      • IPv4: 128
      • MAC: 128
  • Layer 2 Features
    • LACP Port Aggregation: Yes
    • STP & RSTP: Yes
    • Advanced IGMP Configuration: Yes
    • IGMP Snooping: Yes
    • 802.1X Control: Yes
    • MAC-Based ACLs & Device Isolation: Yes
    • DHCP Snooping & Guarding: Yes
    • Egress Rate Limit: Yes
    • Flow Control: Yes
    • Storm Control: Yes
    • Multicast & Broadcast Rate Limiting: Yes
    • MAC Address Blocking: Yes
    • IP-Based ACLs & Network Isolation: Yes
    • MAC-Based Port Restriction: Yes
    • Port Isolation: Yes
    • Port Mirroring: Yes
    • Jumbo Frames: Yes
    • LLDP-MED: Yes
    • Voice VLAN: Yes
    • Loop Protection: Yes
    • Virtual Network Override: Yes
  • Hardware
    • PoE Ports:
      • PoE+: 4
      • PoE++: 4
    • Max. PoE Wattage per Port by PSE:
      • PoE+: 32W
      • PoE++: 64W
    • Max. Power Consumption:
      • 50W (Excluding PoE Output)
      • 240W (Including PoE Output and AC Output)
    • Power Method:
      • Universal input, 100–240V AC, 50/60 Hz
      • External battery input, 48V DC
    • Power Input Method:
      • AC input
      • DC input (Backup)
    • Power Supply: AC/DC, internal, 240W
    • Supported Voltage Range: 100–240V AC
    • Management: Ethernet
    • Heat Dissipation: 170.6 BTU/hr (Excluding PoE Output)
    • Weight:
      • Without mount: 9 kg (19.9 lb)
      • With mount: 9.2 kg (20.3 lb)
    • Enclosure Material: SGCC steel
    • Mount Material: SGCC steel
    • Supported Rack Depth:
      • 482.6 mm (19") four-post racks
      • Posts depths ranging from 700 to 1,000 mm (27.6–39.4”)
    • LCM Display: 1.3" touchscreen
    • ESD Protection: Air/contact: ±24kV
    • Ambient Operating Temperature: -5 to 40°C (23 to 104°F)
    • Ambient Operating Humidity: 5 to 95% noncondensing
    • NDAA Compliant: Yes
    • Certifications: CE, FCC, IC, Anatel: 06679-25-08356
  • Software
    • Application Requirements: UniFi Network (Version 6.2.26 and later)
Q: Is setup instant?
A: Yes.
