Overview

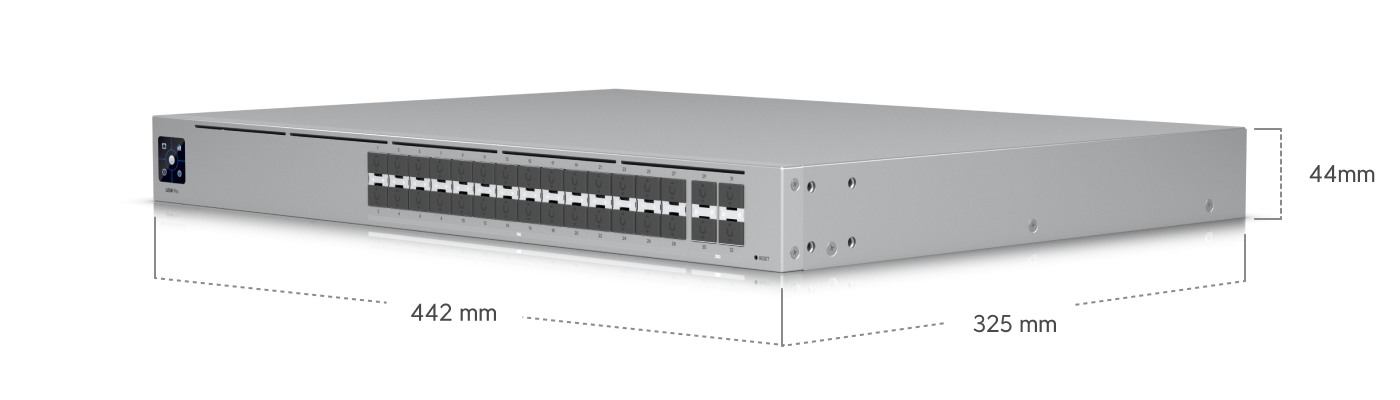

• Dimensions - 442 x 325 x 44 mm (17.4 x 12.8 x 1.7")

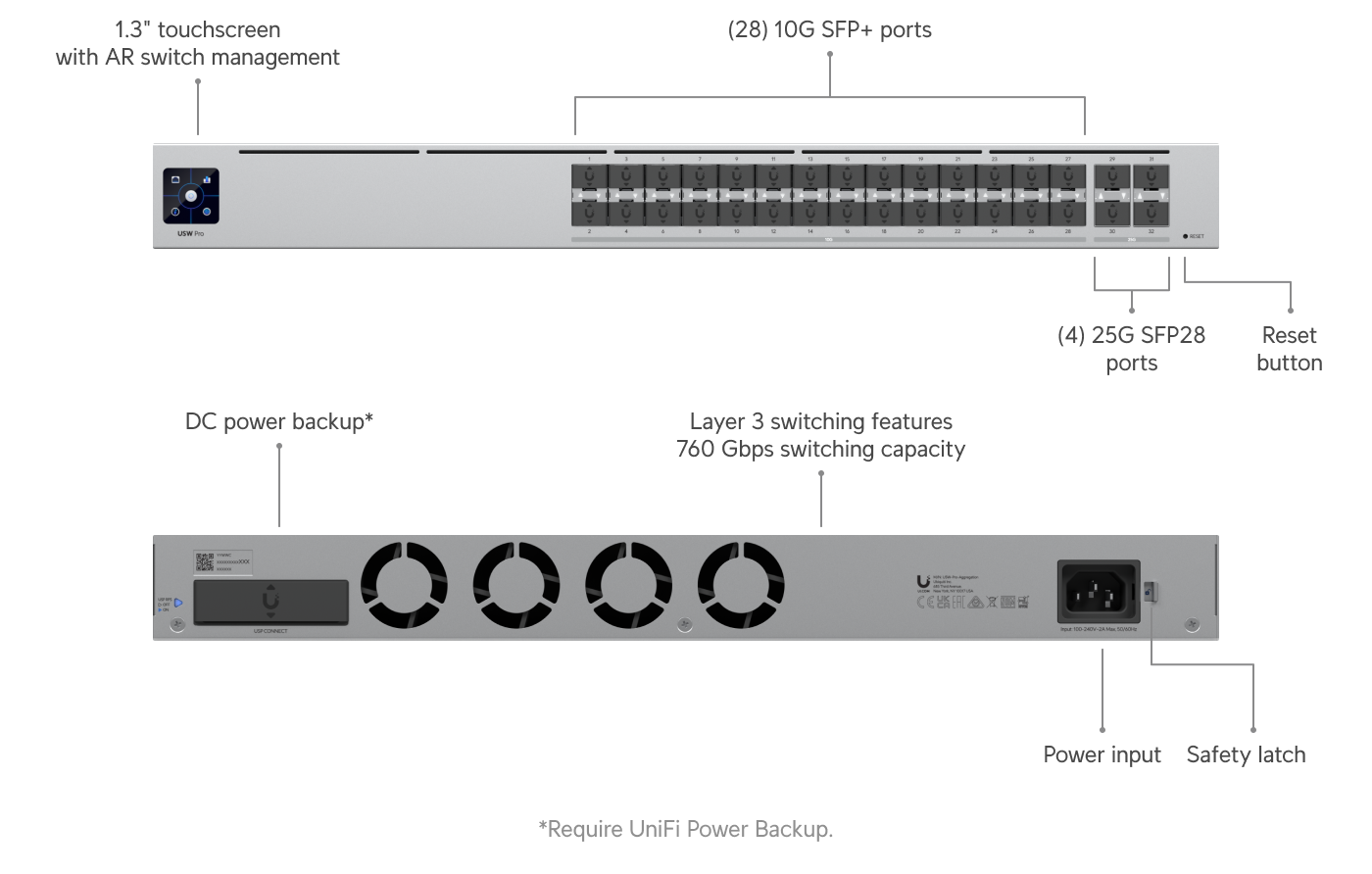

• Port Layout
  • 10G SFP+ - 28 (10G/1G)
  • 25G SFP28 - 4 (25G/10G/1G)
• Redundancy - DC Power Backup
• Layer 3 - Yes
• Form Factor - Rack mount (1U)

Performance

• Switching Capacity - 760 Gbps
• Total Non-Blocking Throughput - 380 Gbps
• Forwarding Rate - 565 Mpps
• Supported VLANs - 1,000
• MAC Address Table Size - 32,000
• L3 Table Size
  • ARP Entries - 16,000
  • IPv4 Routes - 16,000
  • IPv4 Static Routes - 256
• Packet Buffer Size - 4 MB
• Access Lists
  • IPv4 - 128
  • MAC - 128

Layer 3 Features

• DHCP Server (Local Networks) - Yes
• DHCP Relay - Yes
• Inter-VLAN Routing (Local Networks) - Yes
• Static Routing (Local Networks) - Yes

Layer 2 Features

• LACP Port Aggregation - Yes
• STP & RSTP - Yes
• QoS (DSCP) - Yes
• Pro AV Profiles (Play, Dante, Q-SYS, NDI, SDVoE, Shure, AES67, Crestron) - Yes
• Advanced IGMP Configuration (Querier, Fast Leave, Router Port) - Yes
• IGMP Snooping - Yes
• 802.1X Control - Yes
• MAC-Based ACLs & Device Isolation - Yes
• DHCP Snooping & Guarding - Yes
• Egress Rate Limit - Yes
• Flow Control - Yes
• Storm Control - Yes
• Multicast & Broadcast Rate Limiting - Yes
• MAC Address Blocking - Yes
• IP-Based ACLs & Network Isolation - Yes
• MAC-Based Port Restriction - Yes
• Port Isolation - Yes
• Port Mirroring - Yes
• Jumbo Frames - Yes
• LLDP-MED - Yes
• Voice VLAN - Yes
• Loop Protection - Yes
• Virtual Network Override - Yes

Hardware

• Max. Power Consumption - 100W

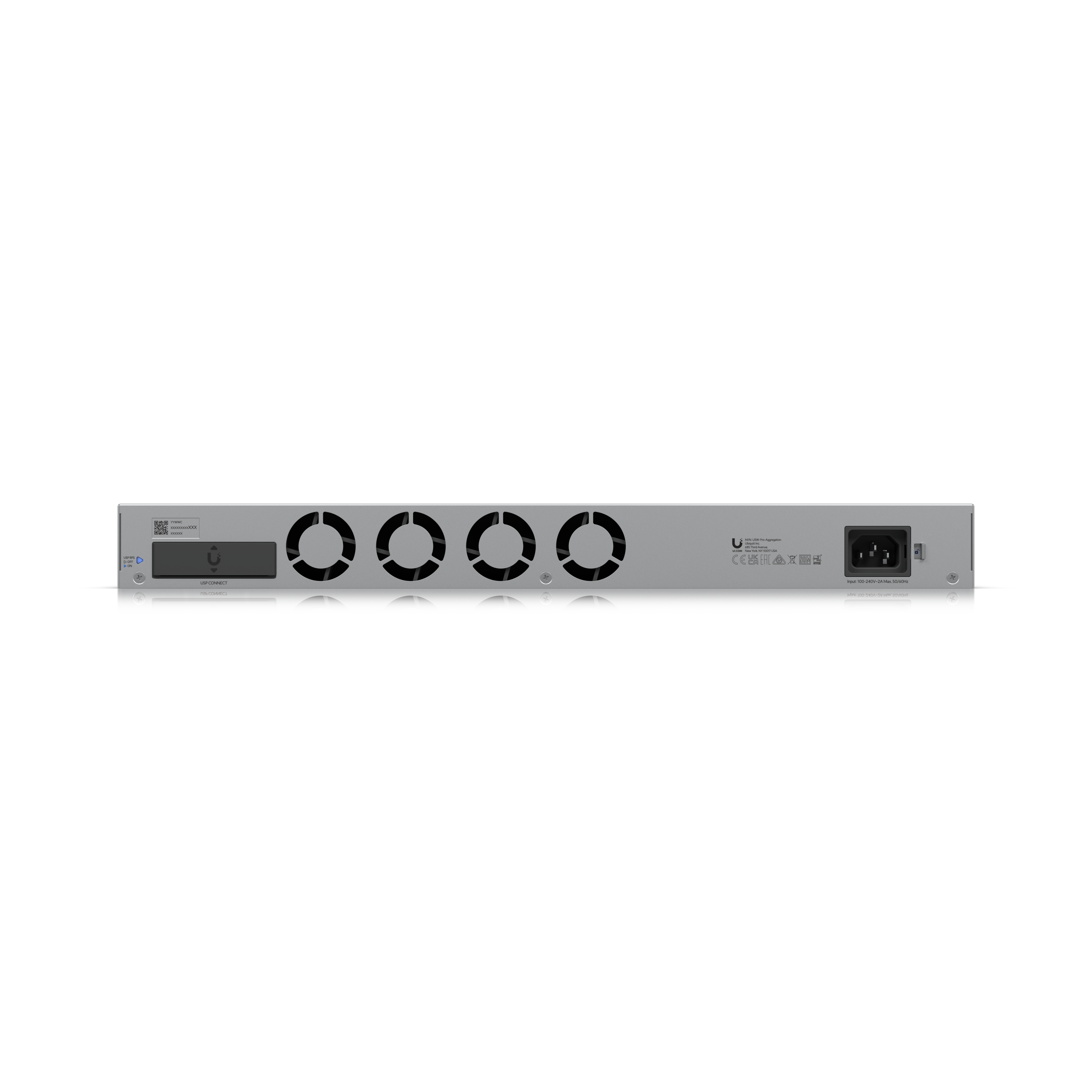

• Power Method
  • (1) Universal input, 100–240V AC, 50/60 Hz
  • (1) USP RPS DC input
• Power Input Method - AC input
• Power Supply - AC/DC, internal, 100W
• Supported Voltage Range - 100–240V AC
• Management - Ethernet (AR)
• Heat Dissipation - 341 BTU/hr
• Weight
  • Without mounting brackets - 4.6 kg (10.1 lb)
  • With mounting brackets - 4.7 kg (10.4 lb)
• Enclosure Material - SGCC steel
• Mount Material - SGCC steel
• Supported Rack Depth - 400~1200 mm (15.7-47.2")
• LCM Display - 1.3" touchscreen
• ESD Protection - Air: ±16kV, Contact: ±12kV
• Ambient Operating Temperature - -5 to 40°C
• Ambient Operating Humidity - 10 to 90%
• NDAA Compliant - Yes
• Certifications - CE, FCC, IC, Anatel: 20756-22-08356

Software

• Application Requirements - UniFi Network
• Version - 6.1.25 and later
