Enterprise Campus Aggregation
Enterprise Campus Aggregation
High-density 100G QSFP28 / 25G SFP28 aggregation switch
🔒 100% Secure & Encrypted Payments
⚡ Instant Service Activation
🚚 Fast & Reliable Delivery
💬 24/7 Expert Technical Support
✅ Trusted by Businesses Worldwide
🔄 Easy Returns

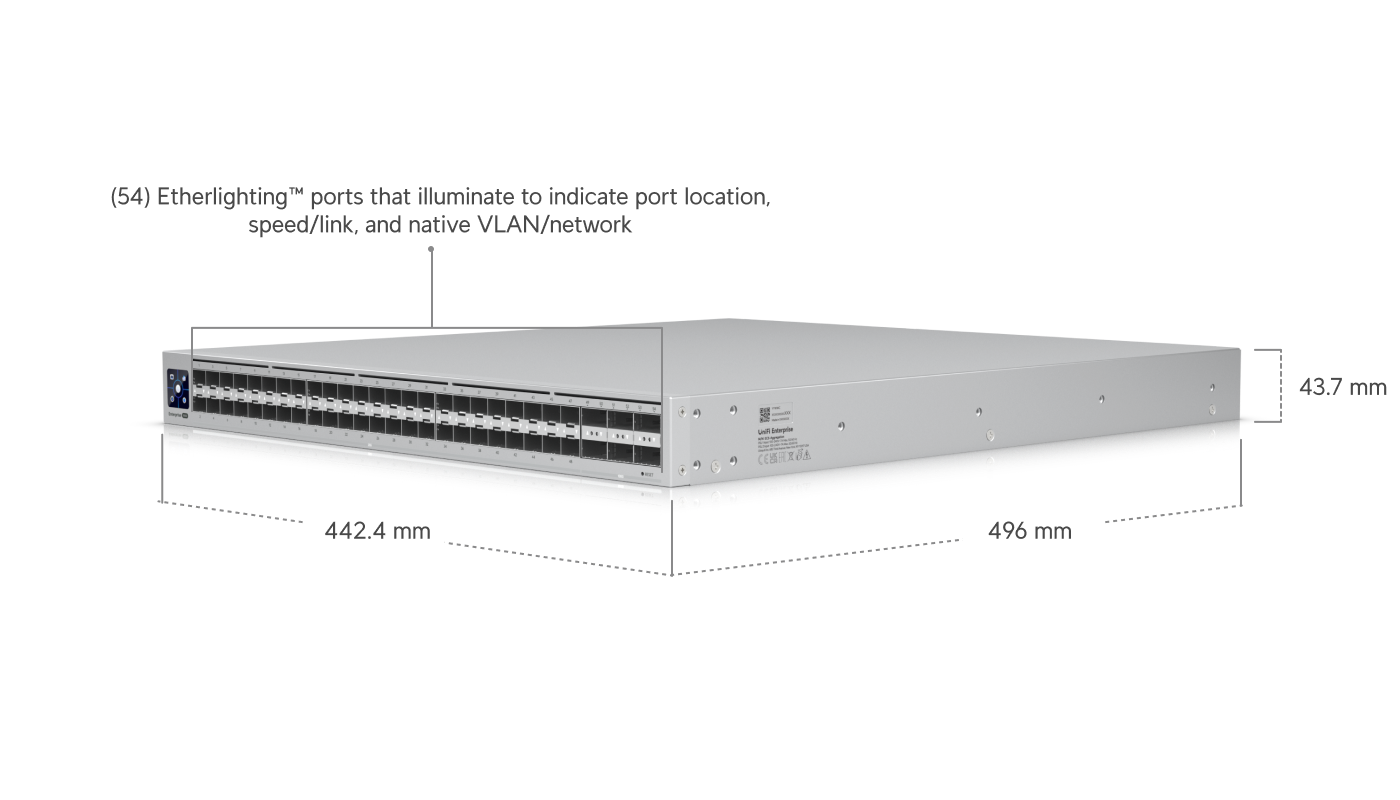

- Overview - Dimensions: 442.4 x 43.7 x 496 mm (17.4 x 1.7 x 19.5")

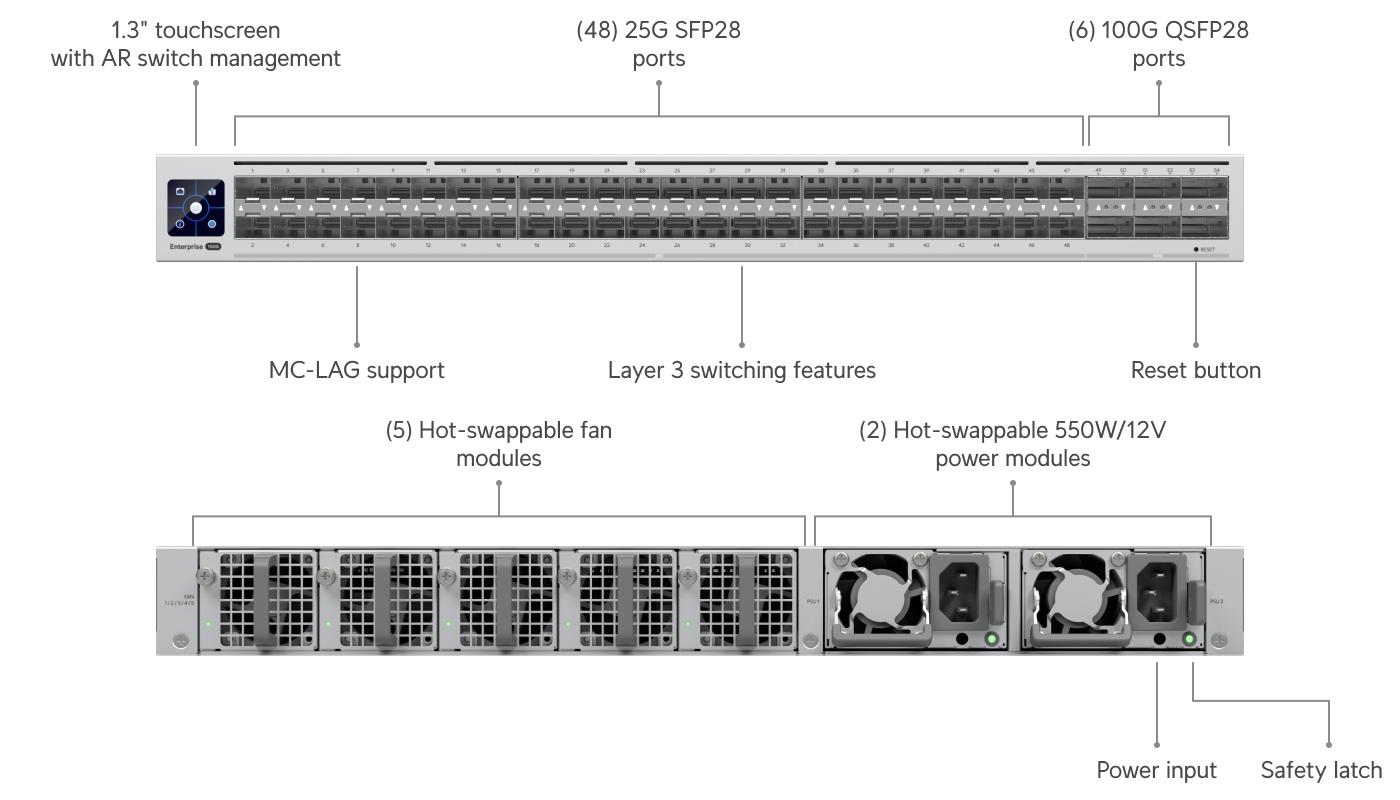

- Port Layout: 48× 25G SFP28 (25G/10G), 6× 100G QSFP28 (100G/40G)

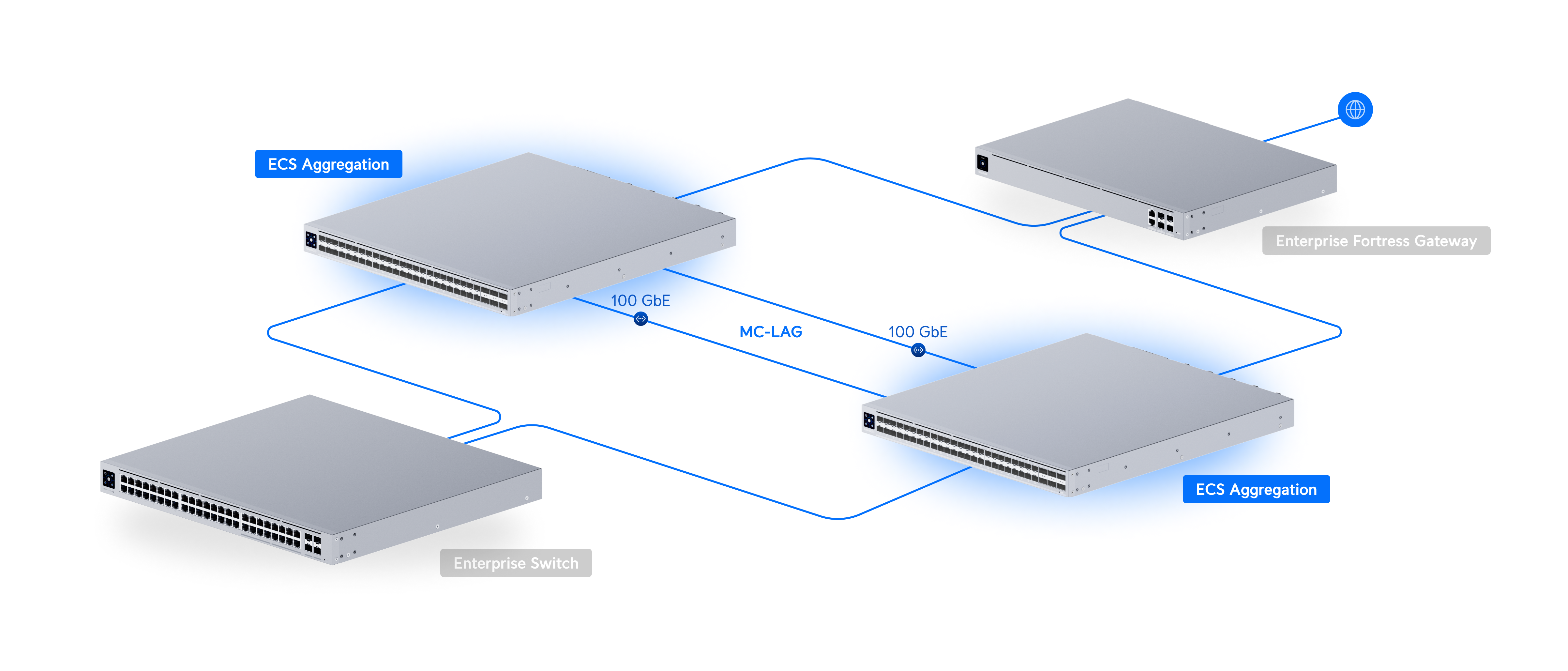

- Redundancy: MC-LAG, (2) Hot-Swappable PSUs, (5) Hot-Swappable Fans
- Layer 3 Support: Yes
- Form Factor: Rack Mount (1U, Full-Depth)
- Etherlighting™: Supported
- Switching Capacity: 3.6 Tbps
- Total Throughput: 1.8 Tbps (Non-Blocking)
- Forwarding Rate: 2.4 Bpps
- Supported VLANs: 1,000
- MAC Address Table: 128,000
- L3 Table Size: ARP 96,000 | IPv4 Routes 288,000 | Static Routes 256
- Packet Buffer: 24 MB
- Access Lists: IPv4: 512 | MAC: 512
- Layer 3 Features: DHCP Server, DHCP Relay, Inter-VLAN Routing, Static Routing
- Layer 2 Features: LACP, MC-LAG, STP/RSTP, IGMP Snooping, VLAN, ACLs, Port Mirroring, Jumbo Frames, LLDP-MED, Voice VLAN, Loop Protection
- Max Power Consumption: 340W
- Power Method: Dual Input 100–240V AC, 50/60 Hz
- Power Supply: (2) Hot-Swappable 550W Modules
- Heat Dissipation: 1160 BTU/hr
- Weight: 9.9 kg (without brackets), 10 kg (with brackets)
- Build Material: SGCC Steel

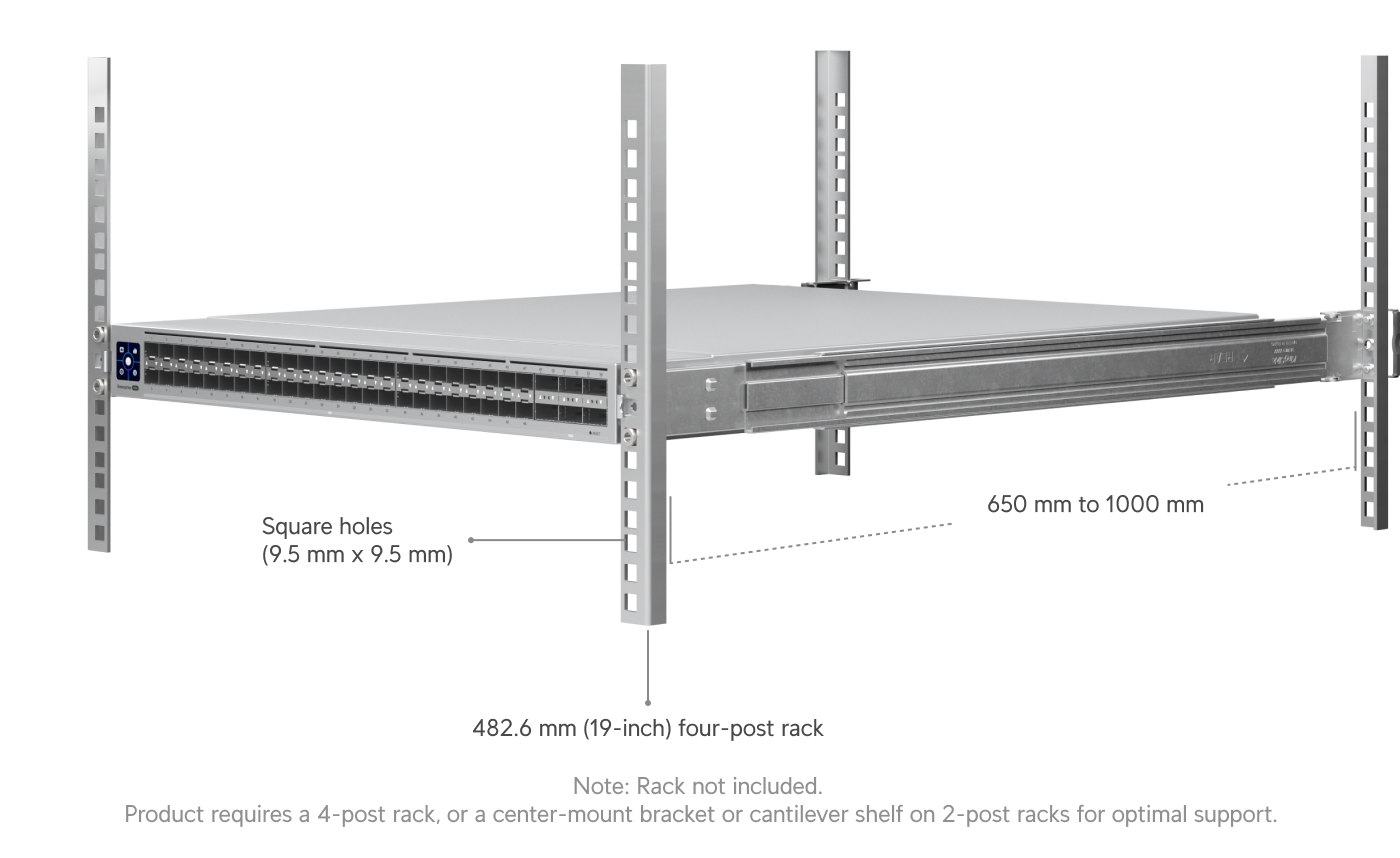

- Rack Support: 19" Rack, Depth 650–1000 mm
- Display: 1.3" Touchscreen
- ESD Protection: Air ±12kV, Contact ±8kV
- Operating Temperature: -5°C to 40°C
- Operating Humidity: 10–95% Non-Condensing
- Etherlighting Ports: SFP28 & QSFP28 Supported
- NDAA Compliance: Yes
- Certifications: CE, FCC, IC, Anatel
- Software Requirement: UniFi Network (v8.5.6 or later)
