Enterprise Audio/Video Fiber
Enterprise Audio/Video Fiber
Deterministic media synchronization with 10G SFP+ and 100G QSFP28 uplinks.
🔒 100% Secure & Encrypted Payments
⚡ Instant Service Activation
🚚 Fast & Reliable Delivery
💬 24/7 Expert Technical Support
✅ Trusted by Businesses Worldwide
🔄 Easy Returns
- Overview

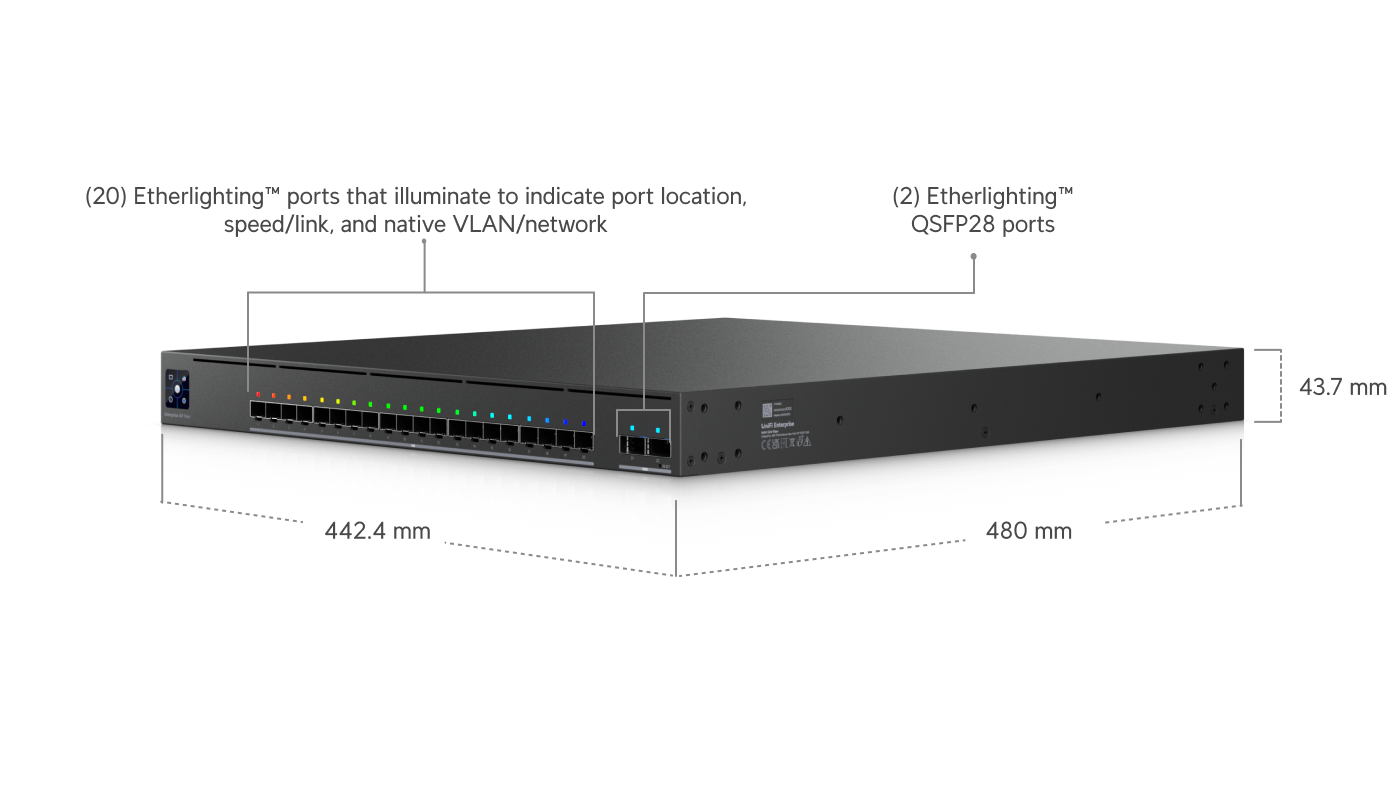

- Dimensions: 442.4 × 480 × 43.7 mm (17.4 × 18.9 × 1.7")
- Port Layout:
- 1 × GbE RJ45 (1G / 100M / 10M)
- 20 × 10G SFP+ (10G / 1G)
- 2 × 100G QSFP28 (100G / 40G)
- 1 × Console Port
- 1 × SMA
- Redundancy: (2) Hot-Swappable PSUs, (4) Hot-Swappable Fans
- Layer 3: ✔
- Form Factor: Rack Mount (1U, Full-Depth)
- Etherlighting™: ✔
- Performance
- Switching Capacity: 800 Gbps
- Total Non-Blocking Throughput: 400 Gbps
- Forwarding Rate: 595 Mpps
- Supported VLANs: 1,000
- MAC Address Table Size: 32,000
- IPv4 Static Routes: 512
- Packet Buffer Size: 8 MB
- Access Lists:
- Layer 3 Features
- ✔ DHCP Server (Local Networks)
- ✔ DHCP Relay
- ✔ Inter-VLAN Routing (Local Networks)
- ✔ Static Routing (Local Networks)
- Layer 2 Features
- ✔ LACP Port Aggregation
- ✔ STP & RSTP
- ✔ QoS (DSCP)
- ✔ PTPv2
- ✔ Pro AV Profiles (Play, Dante, Q-SYS, NDI, SDVoE, Shure, AES67, Crestron)
- ✔ Advanced IGMP Configuration (Querier, Fast Leave, Router Port)
- ✔ IGMP Snooping
- ✔ 802.1X Control
- ✔ MAC-Based ACLs & Device Isolation
- ✔ DHCP Snooping & Guarding
- ✔ Egress Rate Limit
- ✔ Flow Control
- ✔ Storm Control
- ✔ Multicast & Broadcast Rate Limiting
- ✔ MAC Address Blocking
- ✔ IP-Based ACLs & Network Isolation
- ✔ MAC-Based Port Restriction
- ✔ Port Isolation
- ✔ Port Mirroring
- ✔ Jumbo Frames
- ✔ LLDP-MED
- ✔ Voice VLAN
- ✔ Loop Protection
- ✔ Virtual Network Override
- Hardware
- Max. Power Consumption: 150W
- Power Method: (2) Universal Input, 100–240V AC, 50/60 Hz
- Power Input Method: (2) AC Input, Hot-swappable Power Modules
- Power Supply: (2) Hot-swappable AC/DC 150W Power Modules
- Supported Voltage Range: 100–240V AC
- Management: Ethernet, AR, Serial Console
- Heat Dissipation: 512 BTU/hr
- Weight:
- Without Mounting Brackets: 8.95 kg (19.7 lb)
- With Mounting Brackets: 9.05 kg (20 lb)
- Enclosure Material: SGCC Steel
- Mount Material: SGCC Steel

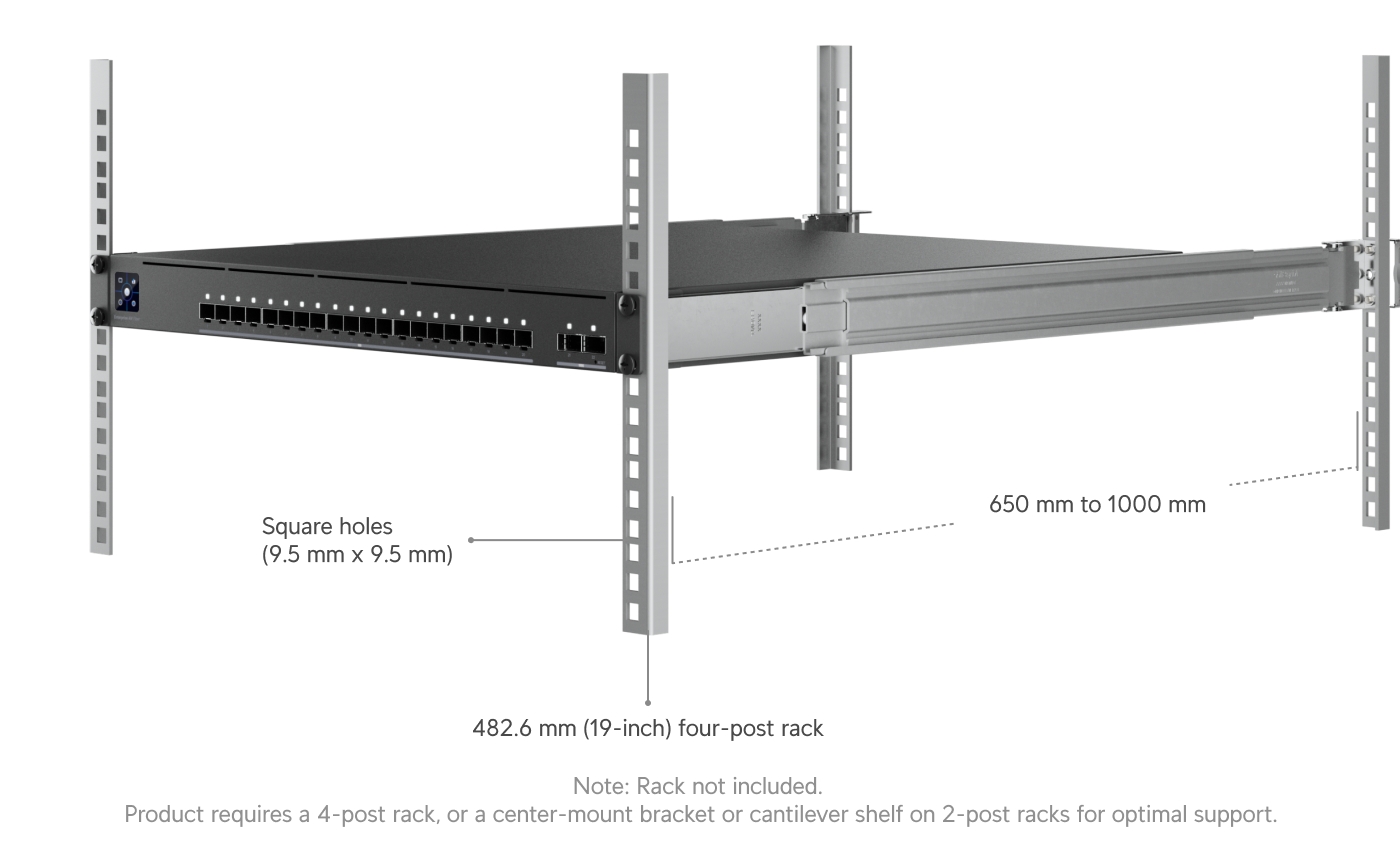

- Supported Rack Depth: 482.6 mm (19") four-post racks (650–1,000 mm / 25.6–39.4")
- LCM Display: 1.3" Touchscreen
- Fan Method: (4) Hot-swappable Fan Modules
- ESD Protection: Air ±12KV, Contact ±8KV
- Ambient Operating Temperature: -5°C to 40°C (23°F to 104°F)
- Ambient Operating Humidity: 10–90% Noncondensing
- Etherlighting™
- LED Indicators
- Compliance & Certifications
- NDAA Compliant: ✔
- Certifications: CE, FCC, IC
