Aggregation
Designed for 10G SFP+ connections
🔒 100% Secure & Encrypted Payments
⚡ Instant Service Activation
🚚 Fast & Reliable Delivery
💬 24/7 Expert Technical Support
✅ Trusted by Businesses Worldwide
🔄 Easy Returns
- Overview

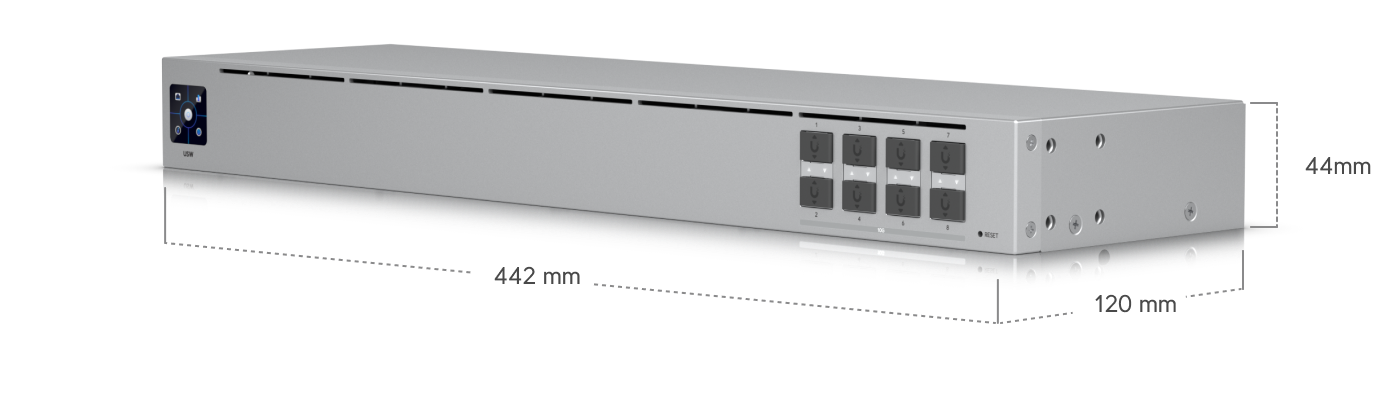

- Dimensions: 442 x 120 x 43.7 mm (17.4 x 4.7 x 1.7")

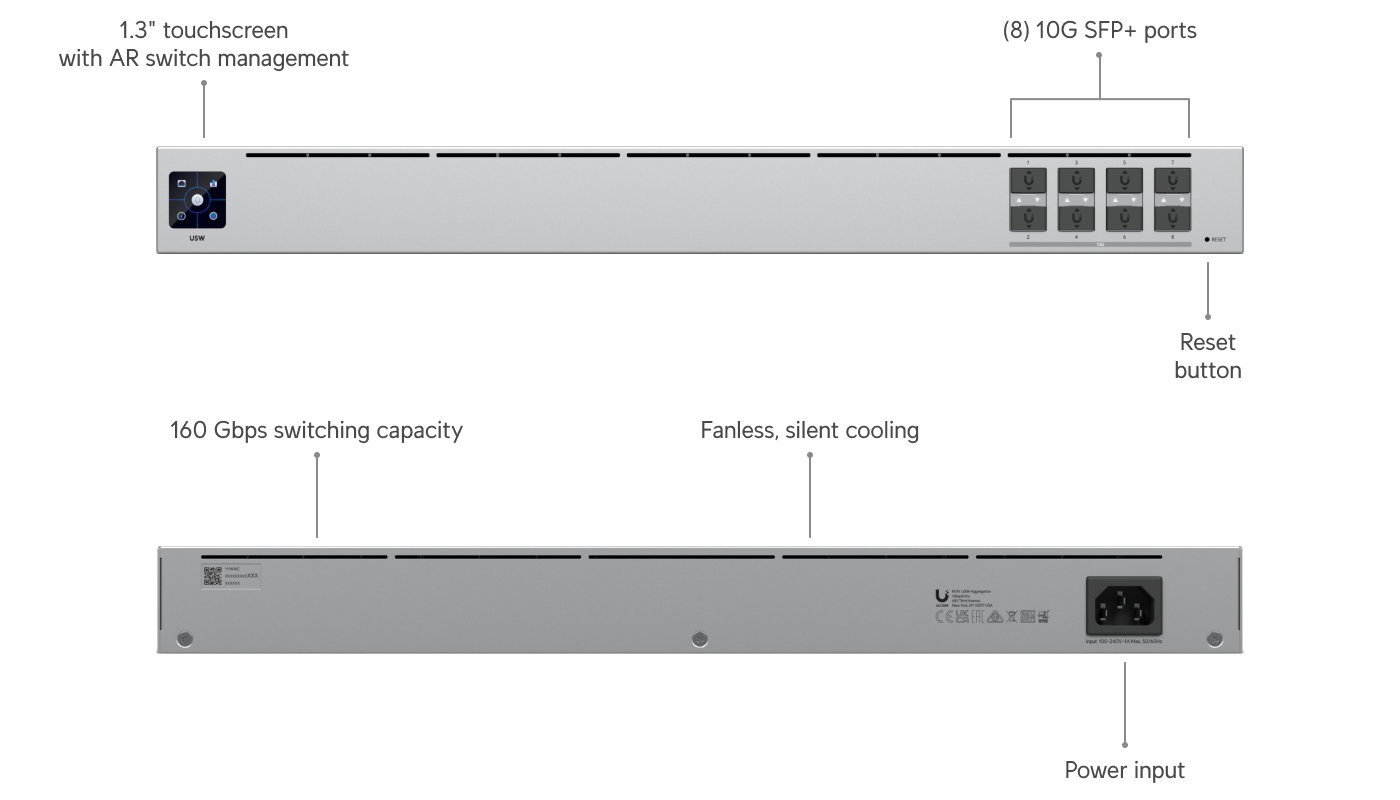

- Port Layout:
- Form Factor: Rack mount (1U)
- Performance
- Switching Capacity: 160 Gbps
- Total Non-Blocking Throughput: 80 Gbps
- Forwarding Rate: 119 Mpps
- Supported VLANs: 1,000
- MAC Address Table Size: 16,000
- Packet Buffer Size: 1.5 MB
- Access Lists:
- Layer 2 Features
- LACP Port Aggregation: Yes
- STP & RSTP: Yes
- Advanced IGMP Configuration: Yes
- IGMP Snooping: Yes
- 802.1X Control: Yes
- MAC-Based ACLs & Device Isolation: Yes
- DHCP Snooping & Guarding: Yes
- Egress Rate Limit: Yes
- Flow Control: Yes
- Storm Control: Yes
- Multicast & Broadcast Rate Limiting: Yes
- MAC Address Blocking: Yes
- IP-Based ACLs & Network Isolation: Yes
- MAC-Based Port Restriction: Yes
- Port Isolation: Yes
- Port Mirroring: Yes
- Jumbo Frames: Yes
- LLDP-MED: Yes
- Voice VLAN: Yes
- Loop Protection: Yes
- Virtual Network Override: Yes
- Hardware
- Max. Power Consumption: 36W (Including SFP modules)
- Power Method: Universal input, 100–240V AC, 50/60 Hz
- Power Input Method: AC input
- Power Supply: AC/DC, internal, 36W
- Supported Voltage Range: 100–240V AC
- Management: Ethernet
- Heat Dissipation: 102 BTU/hr
- Weight:
- Without mounting brackets: 2.6 kg (5.8 lb)
- With mounting brackets: 2.7 kg (6 lb)
- Enclosure Material: SGCC steel
- Mount Material: SGCC steel
- Supported Rack Depth: 400~1200 mm (15.7–47.2")
- LCM Display: 1.3" touchscreen
- ESD Protection: Air: ±16kV, contact: ±12kV
- Ambient Operating Temperature: -5 to 40°C (23 to 104°F)
- Ambient Operating Humidity: 10 to 90% noncondensing
- NDAA Compliant: Yes
- Certifications: CE, FCC, IC, Anatel: 04456-21-08356
- Software
- Application Requirements: UniFi Network (Version 5.14.12 and later)
