Enterprise NAS

Enterprise NAS
Thumbnail Thumbnail Thumbnail

Enterprise NAS

25G networking, 16 drive bays, and enterprise reliability

🔒 100% Secure & Encrypted Payments

⚡ Instant Service Activation

🚚 Fast & Reliable Delivery

💬 24/7 Expert Technical Support

✅ Trusted by Businesses Worldwide

🔄 Easy Returns

  • Overview

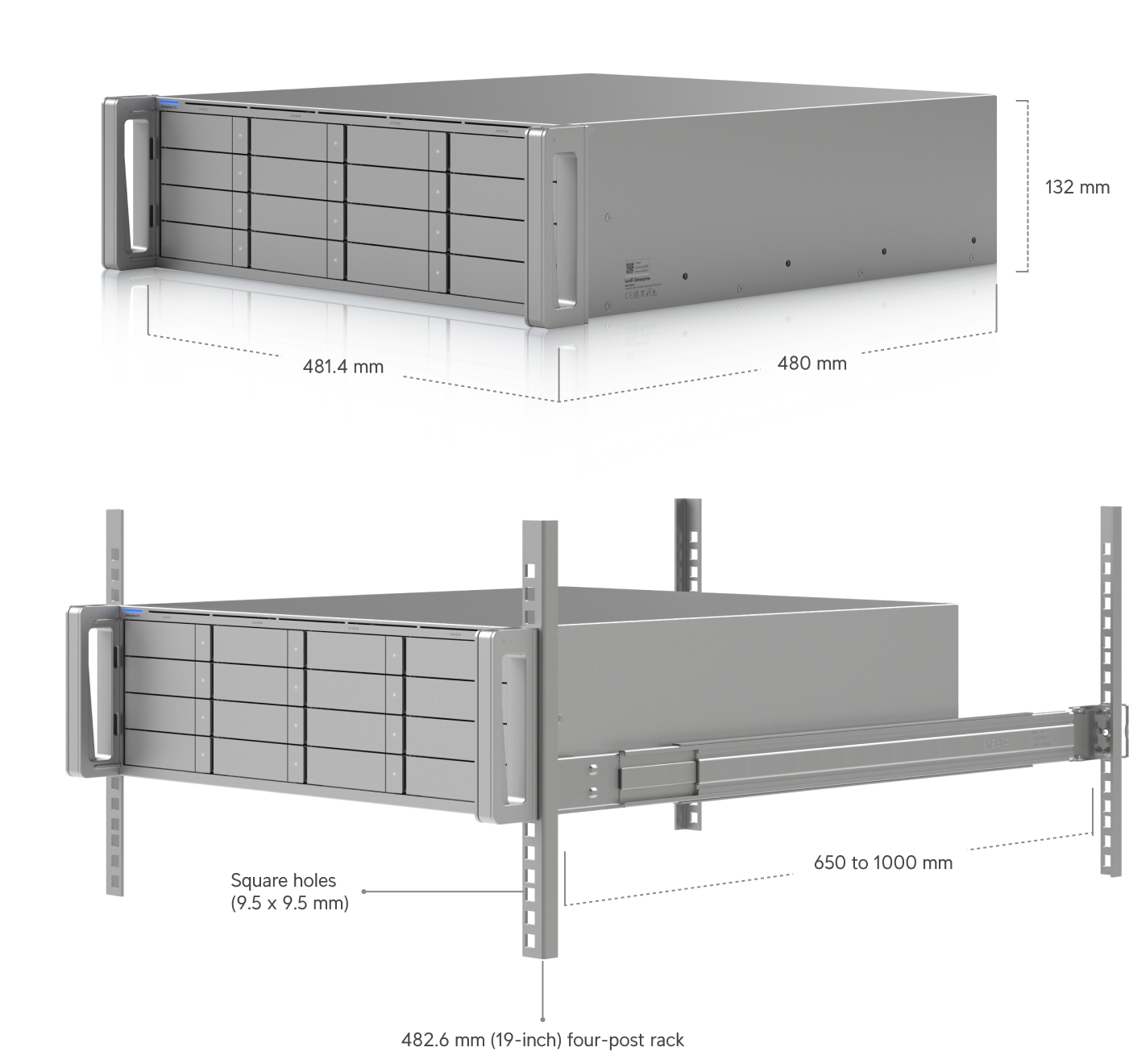

    • Dimensions: 481.4 × 480 × 132 mm (19 × 18.9 × 5.2")
    • Storage Capacity:
      • (16) 2.5"/3.5" Drive Bays
      • (2) M.2 NVMe Bays
    • Networking Interface:
      • (2) 25G SFP28 (25G / 10G / 1G)
      • (1) 10 GbE RJ45 (10G / 5G / 2.5G / 1G / 100M)
    • Expansion Port:
      • (2) SFF-8644 (24G)
    • Power Redundancy: ✔
    • Form Factor: Rack Mount (3U)
  • Hardware
    • Hard Drive Capacity:
      • (16) 2.5"/3.5" HDD / SSD Support
      • (2) M.2 NVMe SSD Support
      • (2) Expansion Ports Support
    • Max. Power Budget for Drives: 450W
    • Max. Power Consumption: 550W
    • Power Method: (2) AC Input, Hot-swappable Power Modules
    • Power Supply: (2) Hot-swappable AC/DC 550W Power Modules
    • Processor: Eight-Core ARM N2 @ 2.4 GHz
    • Memory: 64 GB
    • Management: Ethernet
    • RF Interface: Bluetooth 4.1
    • Weight: 16.1 kg (35.5 lb)
    • Enclosure Material: SGCC Steel
    • Mount Material: SGCC Steel
    • Supported Rack Depth:
      • Supports 600 mm (23.6") Four-Post Racks with Square Holes (9.5 × 9.5 mm)
      • Rack Depth: 600–1066 mm (23.6–42")
    • Faceplate: 3U Bezel, 3U Bezel Lite (Optional)
    • Ambient Operating Temperature: -5°C to 40°C (23°F to 104°F)
    • Ambient Operating Humidity: 5–95% Noncondensing
  • LED Indicators
    • ✔ Ethernet
    • ✔ SFP28
    • ✔ HDD
    • ✔ System
    • ✔ CRPS
    • ✔ Expansion Port
  • Compliance & Certifications
    • NDAA Compliant: ✔
    • Certifications: FCC, CE, IC
  • Software
    • Supported File Protocols:
      • ✔ NFS
      • ✔ SMB
    • Supported Block Protocols:
      • ✔ iSCSI
    • Supported Features on UniFi:
      • RAID Type:
        • Mirror
        • RAID-Z1
        • RAID-Z2
        • RAID-Z3
      • RAID Group: Multiple
      • ✔ Hot Spare Support
      • ✔ Personal Drive & Shared Drive
      • ✔ SSD Cache
      • Max. NVMe SSD Capacity Supported: 8 TiB
      • ✔ File Encryption
      • ✔ Backup to Remote UNAS
      • ✔ Backup to CIFS/SMB Server
      • ✔ Backup to Cloud Services (Google Drive, OneDrive, Dropbox, Amazon S3, Backblaze B2, Wasabi)
      • ✔ Snapshots
      • ✔ Share Links
      • ✔ Time Machine Backup
      • ✔ Client App Support
      • ✔ User Groups
Q: Is setup instant?
A: Yes.
