Overview

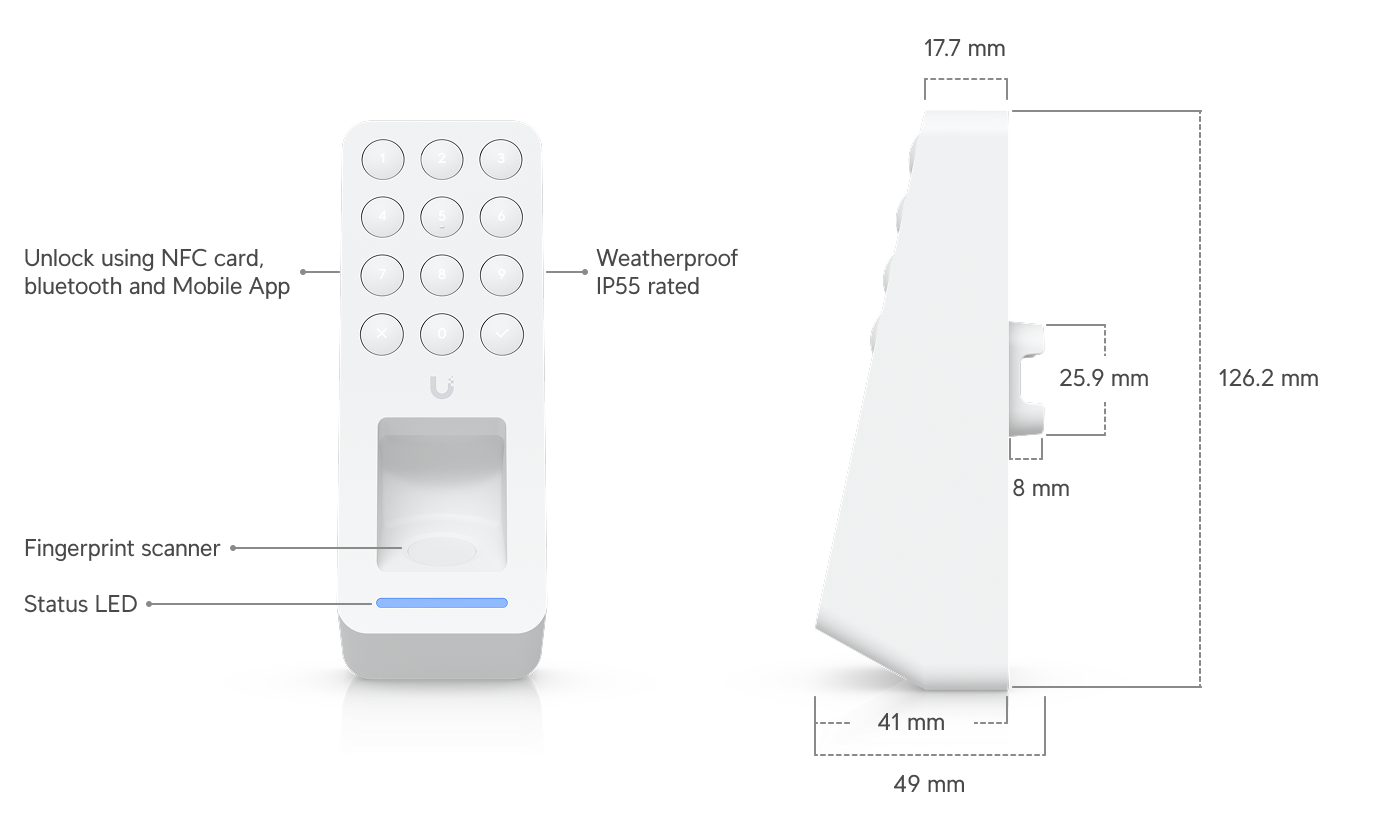

• Dimensions 126.2 x 45 x 49 mm (5 x 1.8 x 1.9")
• UniFi Application Suite Access
• NFC Card & Keyfob Access ✔
• PIN Access ✔
• Apple/Google Wallet ✔
• Mobile Unlock ✔
• Fingerprint Unlock ✔
• Fingerprint Capacity 300
• Weatherproofing IP55
• NDAA Compliant ✔

Mechanical

• Weight 142 g (5 oz)
• Enclosure Material Polycarbonate, aluminum alloy
• Mount Material Steel

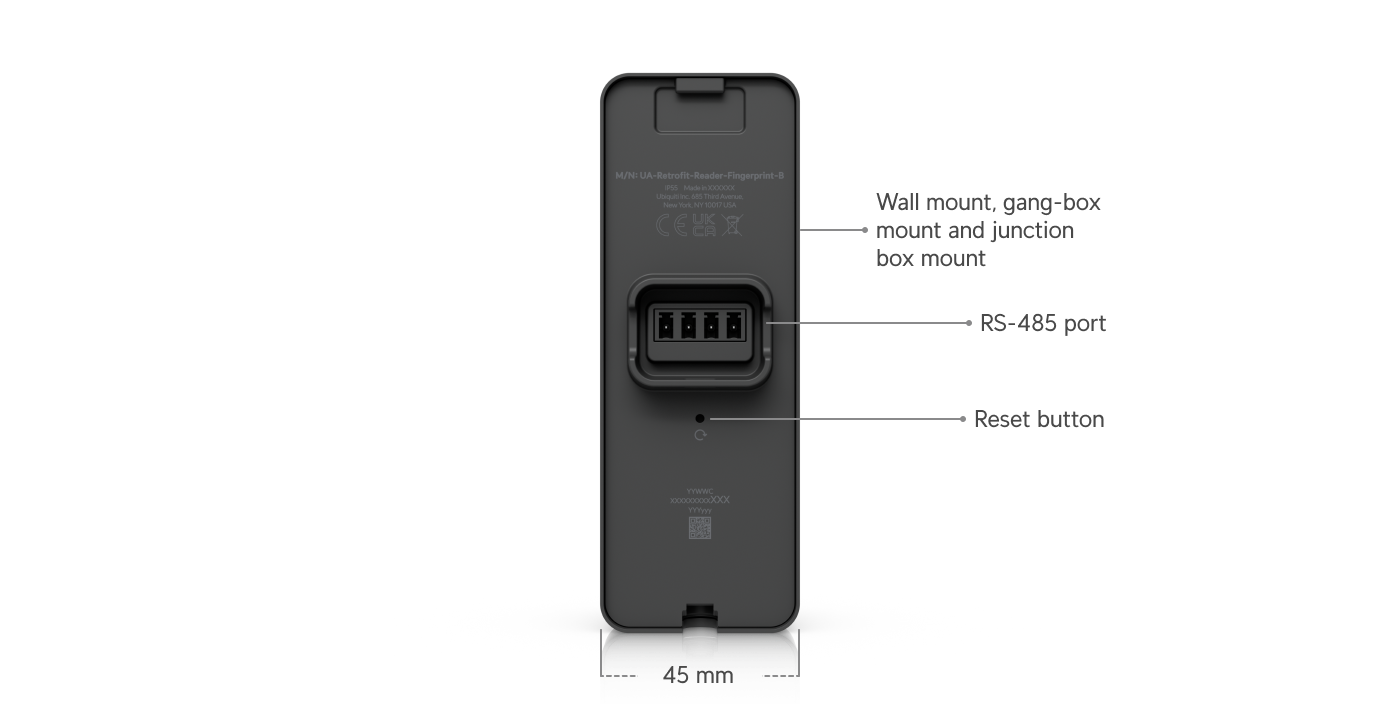

• Mounting Wall, gang-box mount (Included)
  Junction box (Optional)

Hardware

• Indoor and Outdoor Use Yes
• Connectivity RS-485
  BLE 4.2
  NFC
• Security OSDP v2
• Power Method 12V DC
• Max. Power Consumption 3.5W
• Supported Voltage Range 12V DC
• ESD/EMP Protection Air: ± 8kV, Contact: ± 4kV
• Sensors Capacitive Fingerprint
• Speaker ✔
• LEDs R/G/B/W
• Button (1) Factory reset

NFC

• NFC Frequency 13.56 MHz
• NFC Read Range < 30 mm (1.18")
• NFC Technology ISO 14443A, 14443B, 15693
  NFC Tag 1, 2, 3, 4, 5
  MIFARE Classic
  MIFARE Plus
  MIFARE Ultralight
  MIFARE DESFire

Environmental

• Certifications CE, FCC, IC
• Ambient Operating Temperature -30 to 50° C (-22 to 122° F)
• Ambient Operating Humidity 5 to 90% noncondensing

Software

• Management Application Access
• Software Information The software version can be checked at https://unifi.ui.com
