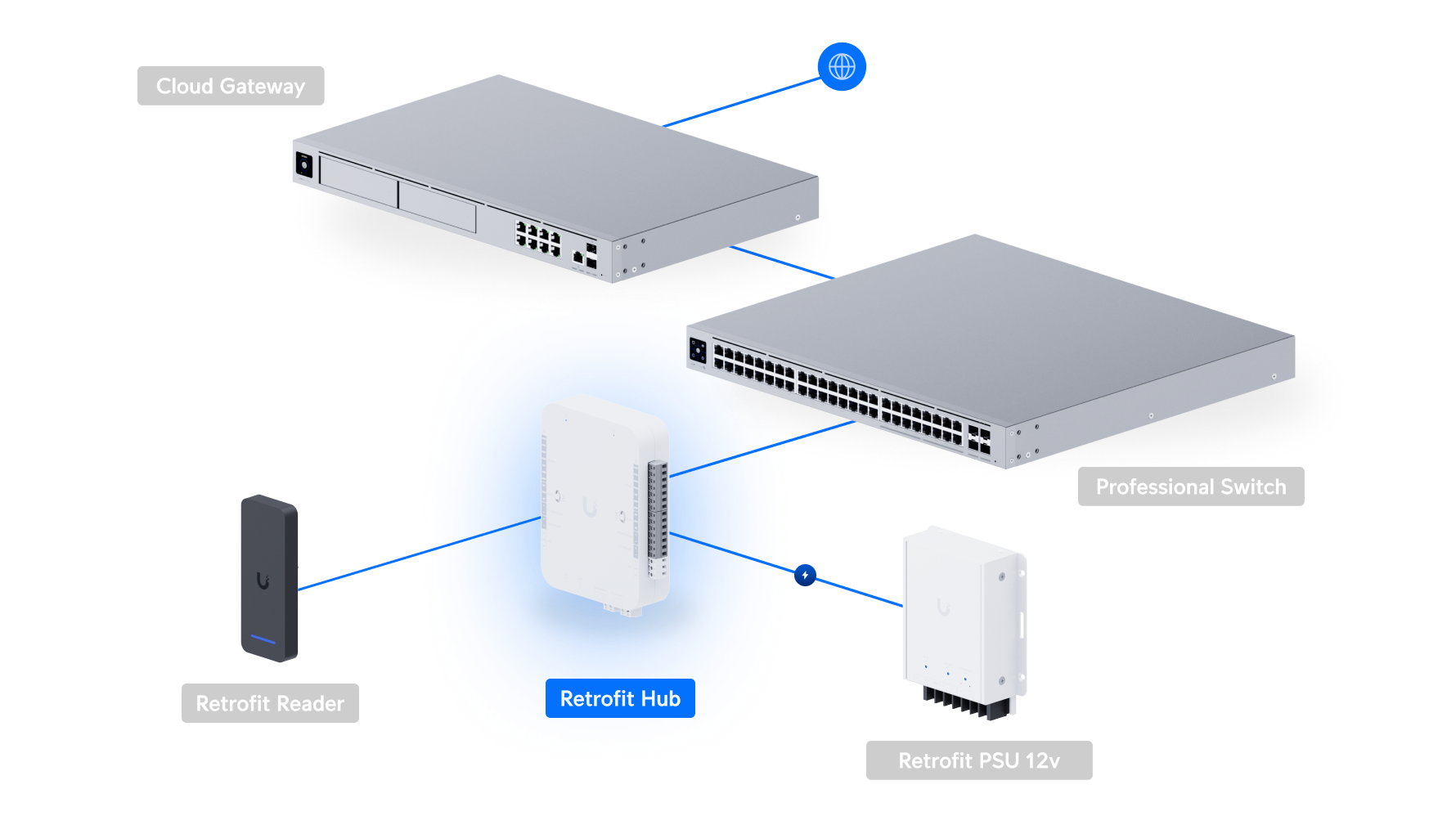

Overview

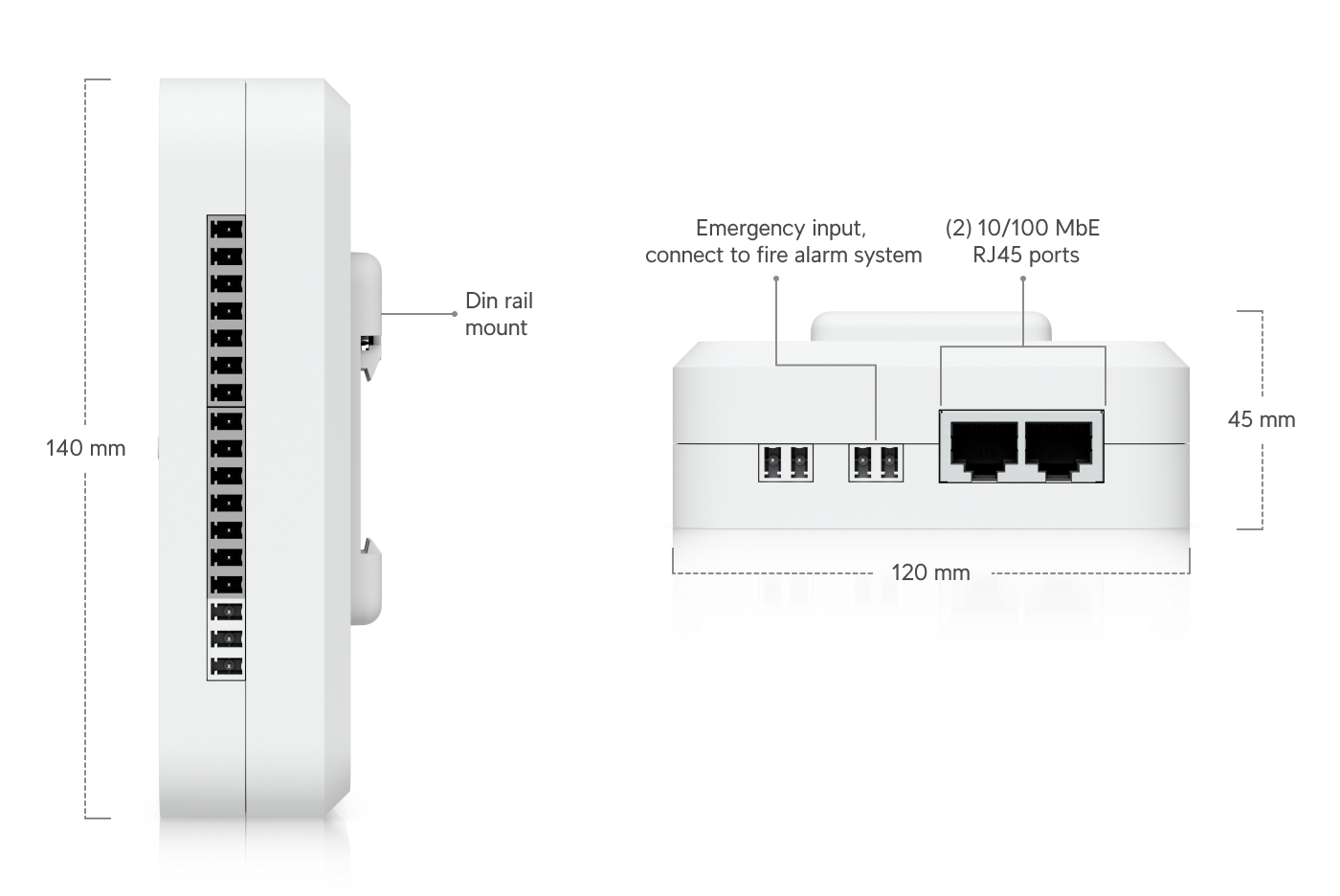

• Dimensions: 140 x 120 x 45 mm (5.5 x 4.7 x 1.8")
• Supported Doors: 2
• Maximum User Count: 10,000
• Input Terminals:
  • Third-party Wiegand Reader / UniFi Retrofit Reader (2)
  • Door Exit Request (2)
  • Door Position (2)
  • Emergency (1)
• Power Method: 12/24V DC
• NDAA Compliant: ?

Mechanical

• Weight: 420 g (14.8 oz)
• Enclosure Material: Polycarbonate
• Mount Material: SGCC Steel
• Mounting: DIN-rail (Included)

Hardware

• Digital Input:
  • Third-party Wiegand Reader / UniFi Retrofit Reader (2)
  • Door Exit Request (2)
  • Door Position (2)
  • Emergency (1)
• Dry Output Relay:
  • Lock: Rated 30V DC, up to 1A
  • Aux: Rated 30V DC, up to 1A
• Powered Output Relay:
  • 12V Lock: 12V DC, up to 1A
  • 24V Lock: 24V DC, up to 0.5A
• Indoor and Outdoor Use: Indoor only
• Ambient Operating Temperature: -10 to 40°C (14 to 104°F)
• Ambient Operating Humidity: 5 to 90% noncondensing
• Networking Interface: (2) 10/100 MbE RJ45 ports
• Power Supply: DC 12/24V
• Maximum Power Consumption: 50W
• LEDs: White / Blue
• Buttons:
  • Factory Reset (1)
  • 12V / Dry / 24V Switch (2)

Recommended Maximum Cable Length

• UA-Retrofit-Reader (250mA):
  • 18 AWG UACC-Cable-DoorLockRelay: 152.4 m (500 ft)
• UA-Lock-Electric (400mA):
  • 24 AWG: 25 m (82 ft)
  • 22 AWG: 42 m (138 ft)
  • 20 AWG: 66 m (217 ft)
  • 18 AWG UACC-Cable-DoorLockRelay: 100 m (328 ft)
• UA-Lock-Magnetic-540kg (500mA):
  • 24 AWG: 20 m (66 ft)
  • 22 AWG: 32 m (105 ft)
  • 20 AWG: 51 m (167 ft)
  • 18 AWG UACC-Cable-DoorLockRelay: 80 m (262 ft)
• UA-Lock-Magnetic-270kg (800mA):
  • 24 AWG: 12 m (39 ft)
  • 22 AWG: 20 m (66 ft)
  • 20 AWG: 30 m (98 ft)
  • 18 AWG UACC-Cable-DoorLockRelay: 46 m (151 ft)
• Other Locks (1A):
  • 24 AWG: 9 m (30 ft)
  • 22 AWG: 15 m (49 ft)
  • 20 AWG: 24 m (79 ft)
  • 18 AWG UACC-Cable-DoorLockRelay: 36 m (118 ft)

Certifications

• ? CE
• ? FCC
• ? IC

Software

• Management Application: Access
• Software Information: The software version can be checked at https://unifi.ui.com
