Overview

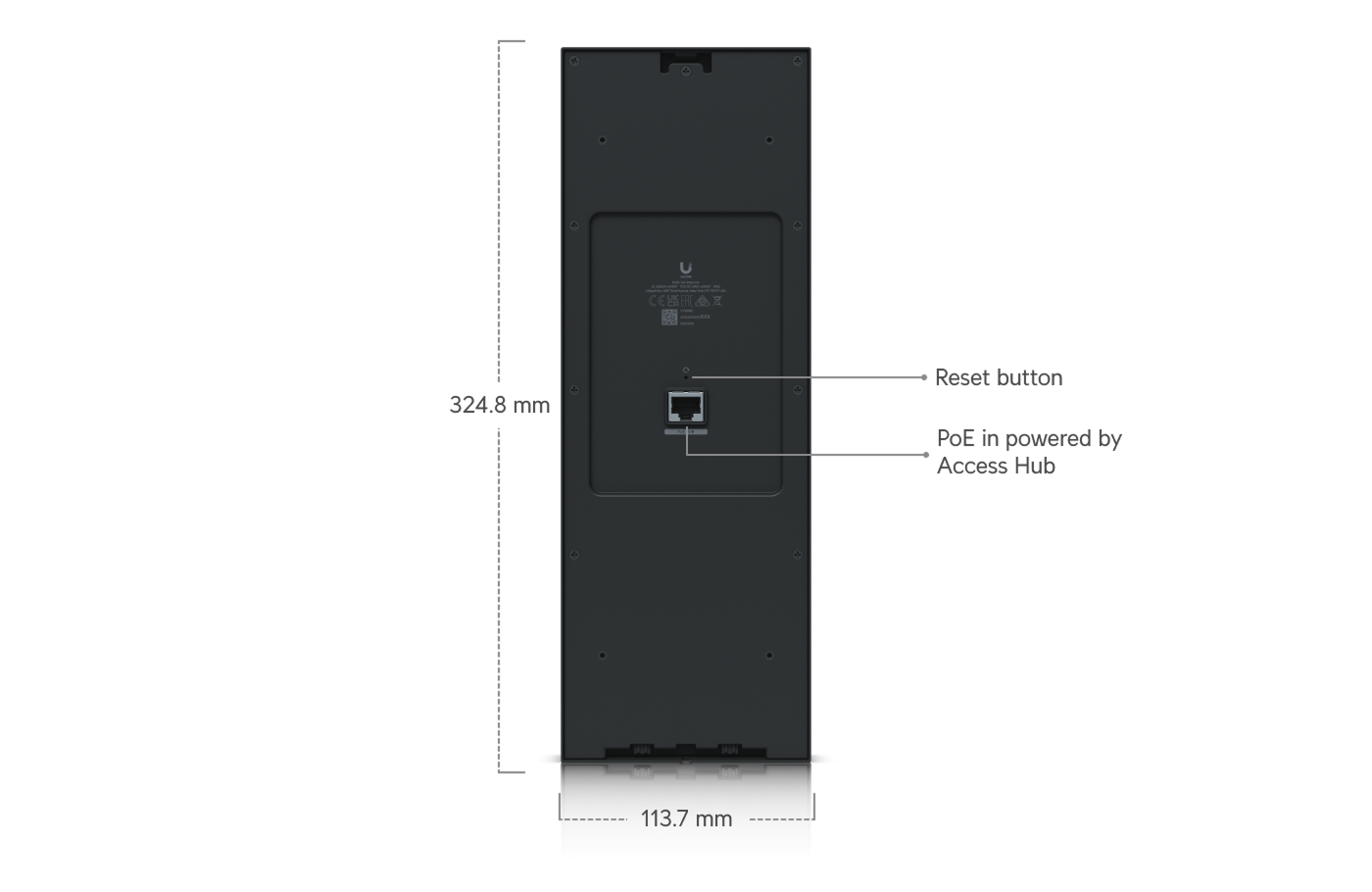

• Dimensions 324.8 x 113.7 x 28.3 mm (12.8 x 4.5 x 1.1")
• Integrated Camera ✔
• NFC Card & Keyfob Access ✔
• PIN Access ✔
• Mobile Unlock ✔
• Face Unlock ✔
• UniFi Application Suite Access
• Two-Way Intercom & Doorbell Access ✔
• NDAA Compliant ✔
• UL 294 Level Destructive attack: Level I
  Line security: Level I
  Endurance: Level I
  Standby power: Level I
• Weatherproofing IP65

Mechanical

• Weight Device: 965 g (2.1 lb)
  Bracket: 445 g (1 lb)
• Enclosure Material Aluminum alloy, UV-stabilized polycarbonate, glass
• Mount Material Powder-coated stainless steel
• Mounting Wall mount, adapter to the gooseneck pedestal (Included)
  Surface angle, flush mount, sunshield kit (Optional)

Hardware

• Indoor and Outdoor Use Yes
• Networking Interface (1) GbE RJ45 port
• Connectivity BLE 4.2
  NFC
• Power Method PoE
  UL 294 Power-limited Class 2 PSU
  UL 60950-1/62368-1 LPS/PS2 PSU
• Max. Power Consumption 13W
• Supported Voltage Range 48V DC

Video

• Max. Frame Rate 30 FPS
• Resolution 2MP 1200 × 1600 (3:4)

Optics

• Resolution 8 MP (2448 × 3264)
• Field of View H: 79.4°, V: 97.5°, D: 118.2°

Sensors

• Sensors Proximity sensor
  ALS sensor

Display

• Size 177 mm (7") diagonal
• Screen Technology Capacitive multi-touch
• Luminance Max. 1000 nits (Typical)
• Screen Orientation Portrait
• Resolution 1024 × 600 px
• Microphone ✔
• Speaker ✔

NFC

• NFC Frequency 13.56 MHz
• NFC Read Range < 30 mm (1.18")
• NFC Technology ISO/IEC 14443A / 14443B / 15693 / 18092 (Ecma 340)
  MIFARE Classic / MIFARE DESFire
  Sony FeliCa™ (ID only)
  NFC Forum tags T1T, T2T, T3T, T4T and T5T

LEDs & Buttons

• LEDs Amber
• Buttons (1) Factory reset

PoE Cabling Requirements

Cat 5e cabling is the minimum performance category recommended. The performance category utilized should match the transmission speed required at the installation site.

The minimal conductor gauge permitted to connect between the PSE or power injector and the PD shall be 26 AWG (0.13 mm²) for patch cords; 24 AWG (0.21 mm²) for horizontal or riser cable.

UL 294 Statement

Compliance with IEEE 802.3 specifications was not verified as part of UL 294. The equipment is intended to comply with the National Electrical Code, ANSI/NFPA 70, Article 725.121, Power Sources for Class 2 and Class 3 Circuits.

Certifications

• CAN/ULC-60839-11-1 Grade Grade assignment: I
• Certifications CE, FCC, IC, UL 294, CAN/ULC-60839-11-1
• Document Number / Revision UA-Intercom, V01
• Ambient Operating Temperature Device: -30 to 60° C (-22 to 140° F)
  Display: -25 to 60° C (-13 to 140° F)
• Ambient Operating Humidity 5 to 90% noncondensing

Software

• Management Application Access
• Software Information The software version can be checked at https://unifi.ui.com
