Overview

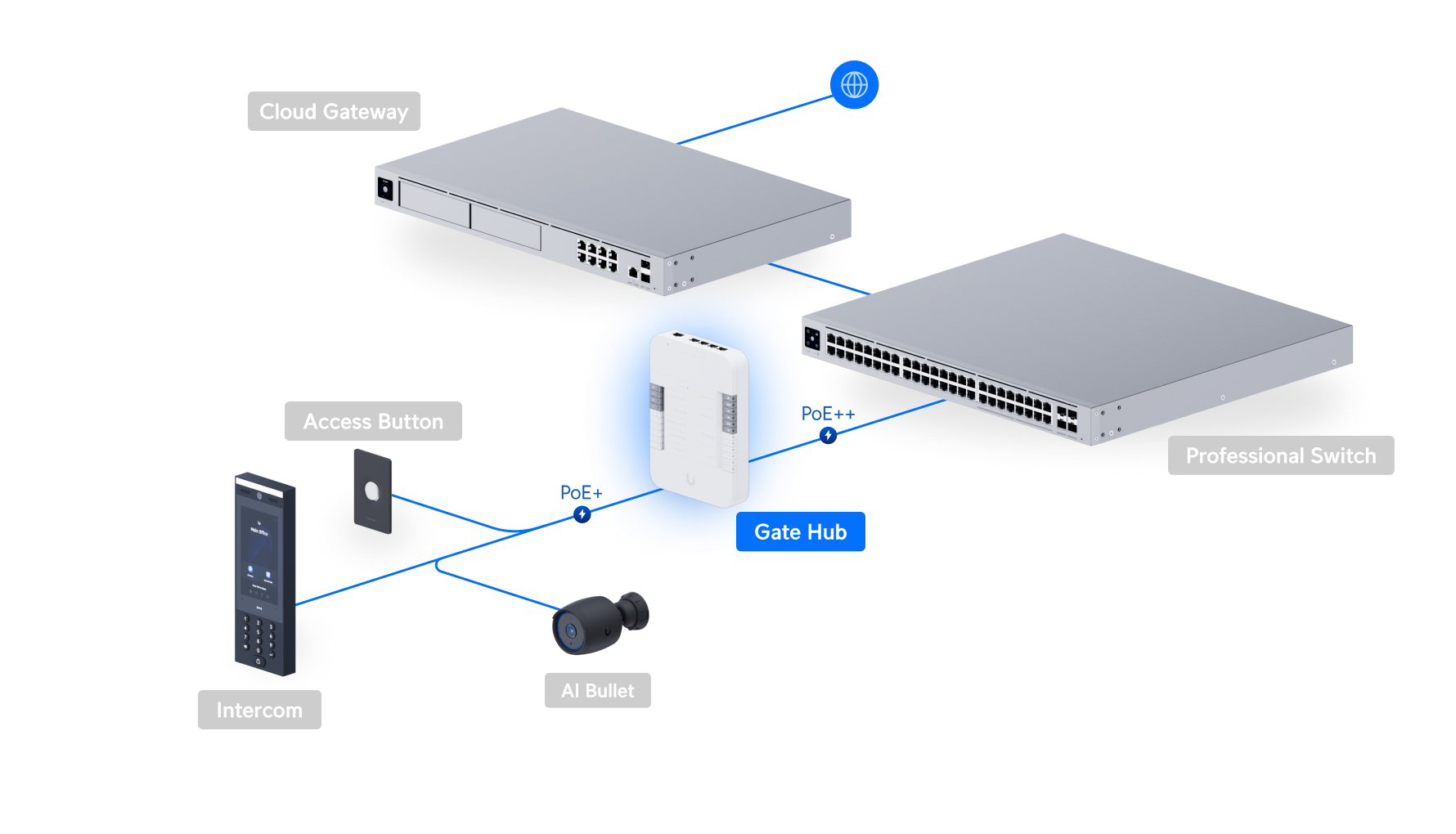

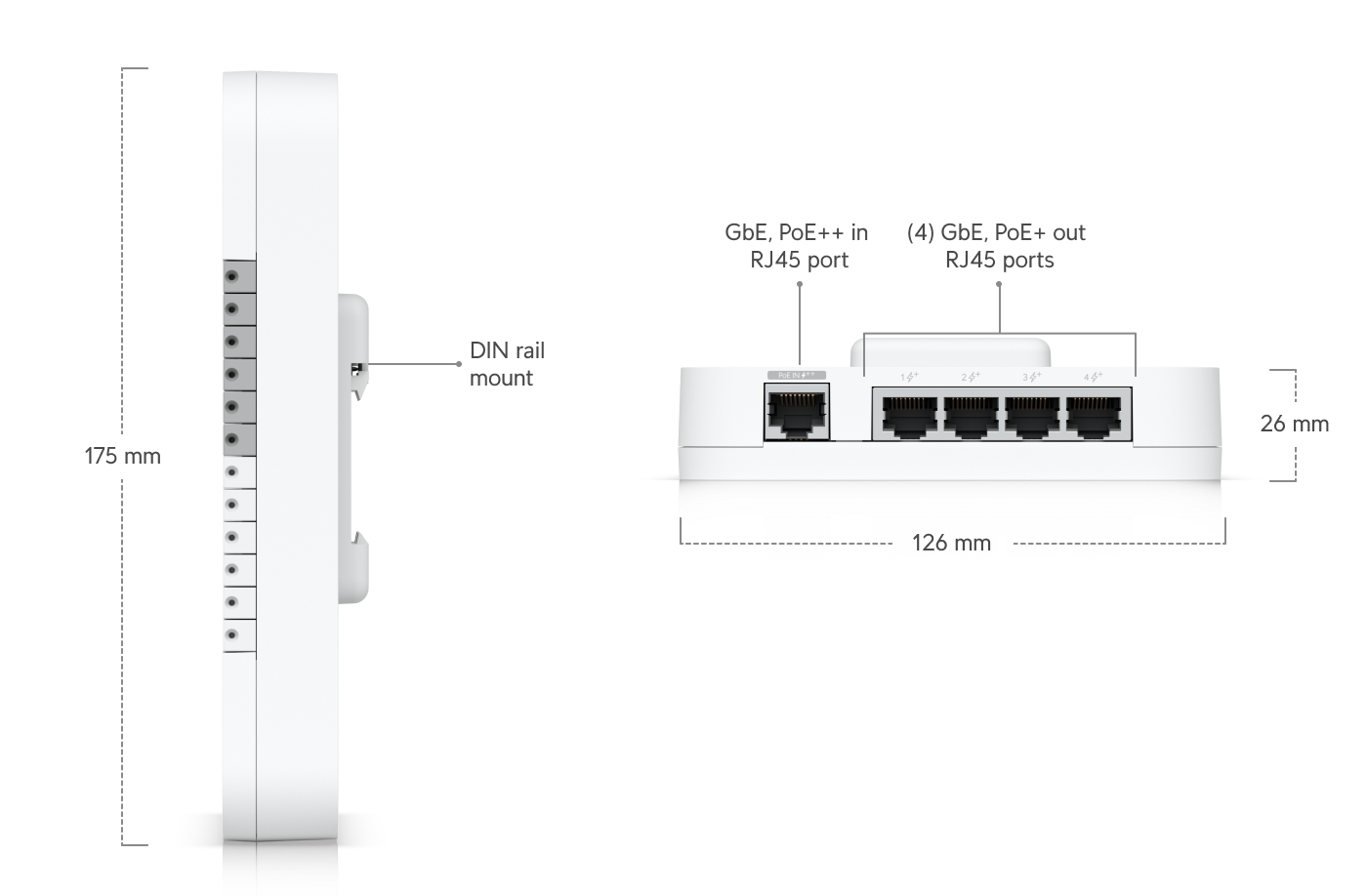

• Dimensions: 175 x 126 x 26 mm (6.9 x 5 x 1")
• Supported Doors: 1 gate, 1 side door
• Maximum User Count: 6,000
• Input Terminals:
  • Gate exit request (1)
  • Gate position (1)
  • Side door exit request (1)
  • Side door position (1)
  • Emergency (1)
• Power Method:
  • PoE++
  • UL 294 Power-limited Class 2 PSU
  • UL 60950-1/62368-1 LPS/PS2 PSU
• NDAA Compliant: ✔
• UL 294 Level:
  • Destructive attack: Level I
  • Line security: Level I
  • Endurance: Level I
  • Standby power: Level I

Mechanical

• Weight: 460 g (1 lb)
• Enclosure Material: Polycarbonate
• Mounting: DIN-rail (Included)

Hardware

• Digital Input:
  • Gate exit request
  • Gate position
  • Side door exit request
  • Side door position
  • Emergency
• Dry Output Relay:
  • (2) Operator: Rated 30V DC, up to 1A
  • (1) Aux: Rated 30V DC, up to 1A
• Powered Output Relay: Side door lock: 12V DC, up to 1A
• Indoor and Outdoor Use:
  • Indoor only: Device itself
  • Outdoor: With waterproof junction box
• Ambient Operating Temperature: -30 to 60° C (-22 to 140° F)
• Ambient Operating Humidity: 5 to 90% noncondensing
• Networking Interface: (5) 10/100/1000 Base-T
• PoE Interface:
  • (1) PoE++ input, 50V DC, 1A
  • (4) PoE+ outputs, 50V DC, 30W per port
  • Maximum 55W aggregated
• Max. Power Consumption:
  • 22W (Without PoE output)
  • 60W (With PoE output)
• LEDs: W/B
• Buttons:
  • Factory Reset (1)

Recommended Maximum Cable Length

• UA-Lock-Electric (400mA)
  • 24 AWG: 25 m (82 ft)
  • 22 AWG: 42 m (138 ft)
  • 20 AWG: 66 m (217 ft)
  • 18 AWG UACC-Cable-DoorLockRelay: 100 m (328 ft)
• UA-Lock-Magnetic-540kg (500mA)
  • 24 AWG: 20 m (66 ft)
  • 22 AWG: 32 m (105 ft)
  • 20 AWG: 51 m (167 ft)
  • 18 AWG UACC-Cable-DoorLockRelay: 80 m (262 ft)
• UA-Lock-Magnetic-270kg (800mA)
  • 24 AWG: 12 m (39 ft)
  • 22 AWG: 20 m (66 ft)
  • 20 AWG: 30 m (98 ft)
  • 18 AWG UACC-Cable-DoorLockRelay: 46 m (151 ft)
• Other Locks (1A)
  • 24 AWG: 9 m (30 ft)
  • 22 AWG: 15 m (49 ft)
  • 20 AWG: 24 m (79 ft)
  • 18 AWG UACC-Cable-DoorLockRelay: 36 m (118 ft)

PoE Cabling Requirements

• Cat 5e cabling is the minimum recommended performance category.
• The selected cable category should match the transmission speed required at the installation site.
• Minimum conductor gauge:
  • 26 AWG (0.13 mm²) for patch cords
  • 24 AWG (0.21 mm²) for horizontal or riser cable

UL 294 Statement

• Compliance with IEEE 802.3 specifications was not verified as part of UL 294.
• The equipment is intended to comply with ANSI/NFPA 70, Article 725.121, Power Sources for Class 2 and Class 3 Circuits.

CAN/ULC-60839-11-1 Grade

• Grade Assignment: I

Certifications

• CE
• FCC
• IC
• UL 294
• CAN/ULC-60839-11-1

Document Information

• Document Number / Revision: UA-Hub-Gate, V01

Software

• Management Application: Access
• Software Information: The software version can be checked at https://unifi.ui.com
