Streamlined design with full Protect and Access integration.
🔒 100% Secure & Encrypted Payments
⚡ Instant Service Activation
🚚 Fast & Reliable Delivery
💬 24/7 Expert Technical Support
✅ Trusted by Businesses Worldwide
🔄 Easy Returns

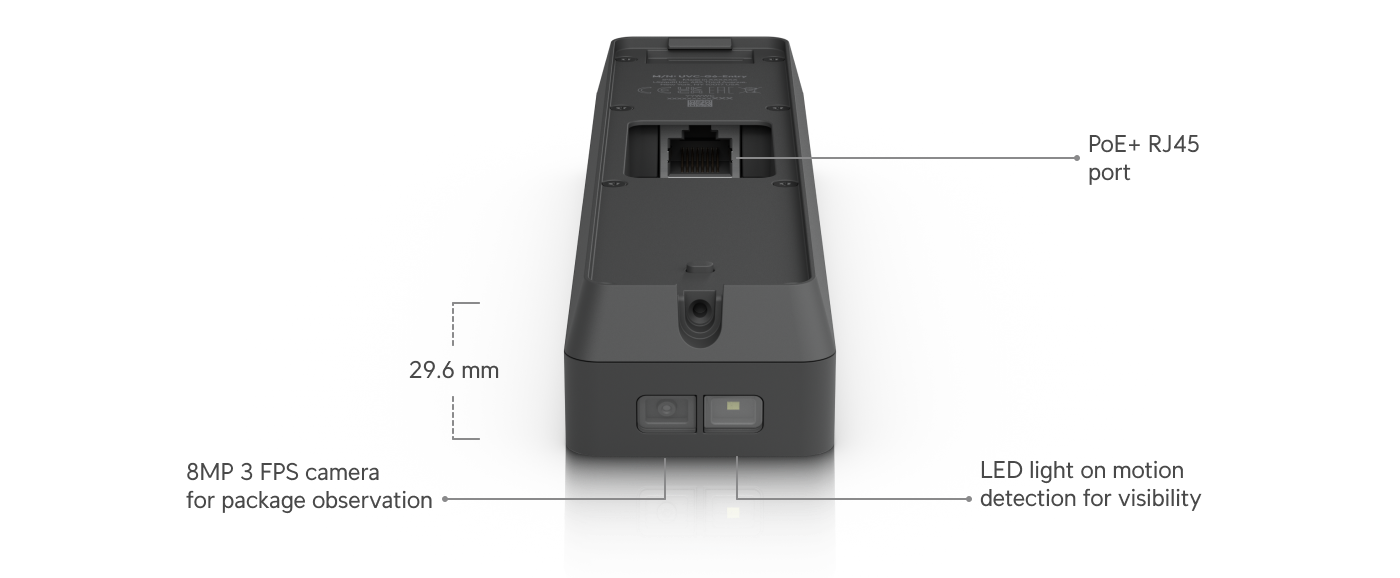

| Dimensions | 176 × 45 × 29.6 mm (6.9 × 1.8 × 1.2") |
|---|---|
| Integrated Camera | ✔ |
| IR Night Vision | 5 m (16 ft) |
| Resolution |
Main Camera: 5MP Package Camera: 8MP |

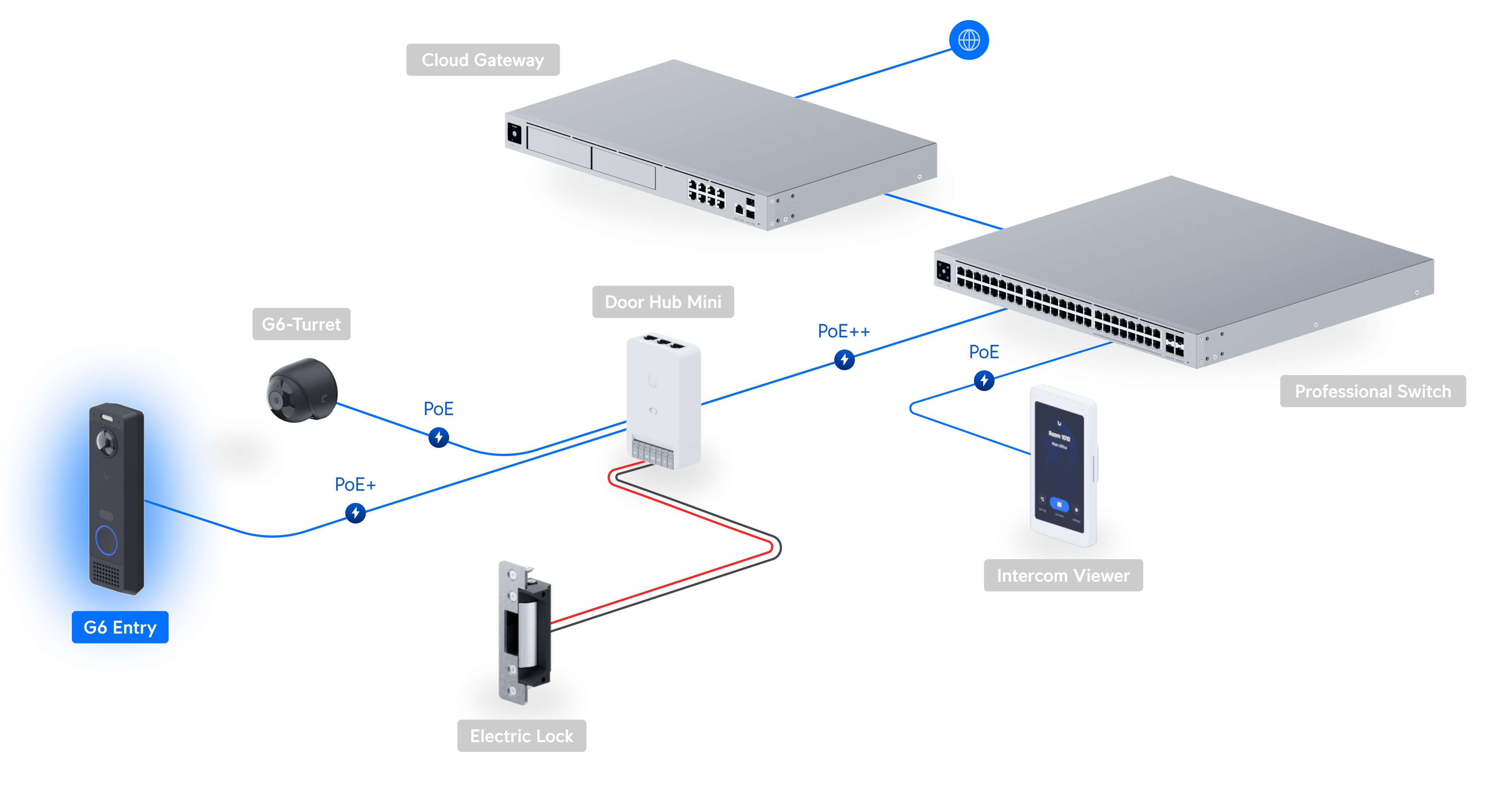

| UniFi Application Suite | Protect Access |
| Face Recognition | ✔ |
| NFC Card & Keyfob Access | ✔ |
| Apple / Google Wallet | ✔ |
| Mobile Unlock | ✔ |
| Face Unlock | ✔ |
| Two-Way Intercom & Doorbell Access | ✔ |
| Weatherproofing | IP55 |
| Smart Detections (People, Vehicles, Animals) | ✔ |
| Tamper Resistance | IK07 |
| Audio | Two-way Audio |
| NDAA Compliant | ✔ |
| Weight | 275 g (9.7 oz) |
|---|---|
| Enclosure Material | Aluminum |
| Mount Material |
Wall Mount: Stainless Steel Gangbox Mount Plate: SGCC Steel Gangbox Mount Cover: Polycarbonate Wedge Mount: Aluminum |
| Mounting |
Wall Mount Gangbox Mount Plate 20° Wedge Mount (Included) Junction Box (Optional) |
| Indoor and Outdoor Use | Yes |
|---|---|
| Networking Interface | GbE RJ45 Port |
| Connectivity | BLE 4.1 NFC |
| Power Method | PoE+ |
| Max. Power Consumption | 16W |
| Supported Voltage Range | 42–57V DC |
| Image Settings | Color, Brightness, Sharpness, Contrast, White Balance, Exposure Control, 2DNR, 3DNR, NR by Motion, Masking, Text Overlay, HDR |
|---|---|
| Max. Frame Rate |
Main Camera: 30 FPS Package Camera: 3 FPS |
| Resolution |
Main Camera: 5MP, 1920 × 2560 (3:4) Package Camera: 8MP, 3264 × 2448 (4:3) |
| Resolution |
Main Camera: 5MP CMOS Package Camera: 8MP CMOS |
|---|---|
| Field of View |
Main Camera H: 100°, V: 135°, D: 180° Package Camera H: 66°, V: 51.7°, D: 78° |
| Sensor |
Main Camera: 5MP CMOS Package Camera: 8MP CMOS |
| Lens | Fixed Focal Length |
| Night Mode | Built-in IR LED Illumination and IR Cut Filter |
| LEDs | R / G / B / W |
|---|---|
| Button |
(1) Ring Button (1) Factory Reset (1) Tamper Switch |
| Processor | Quad-core Arm® Cortex®-A53 Based Chip |
| Certifications | CE, FCC, IC |
| Ambient Operating Temperature | -30°C to 50°C (-22°F to 122°F) |
| Ambient Operating Humidity | 5% to 90% Non-condensing |
