Overview

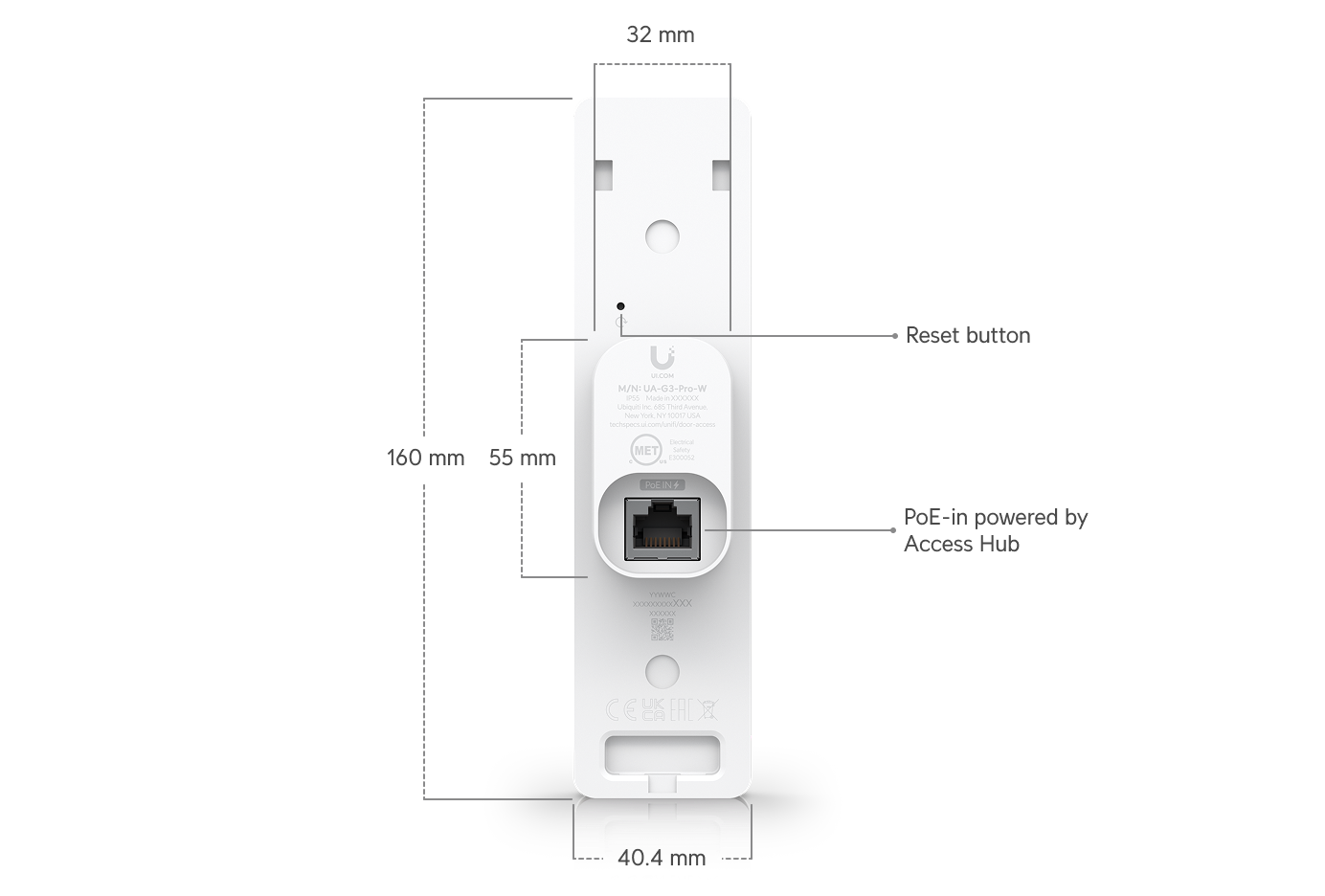

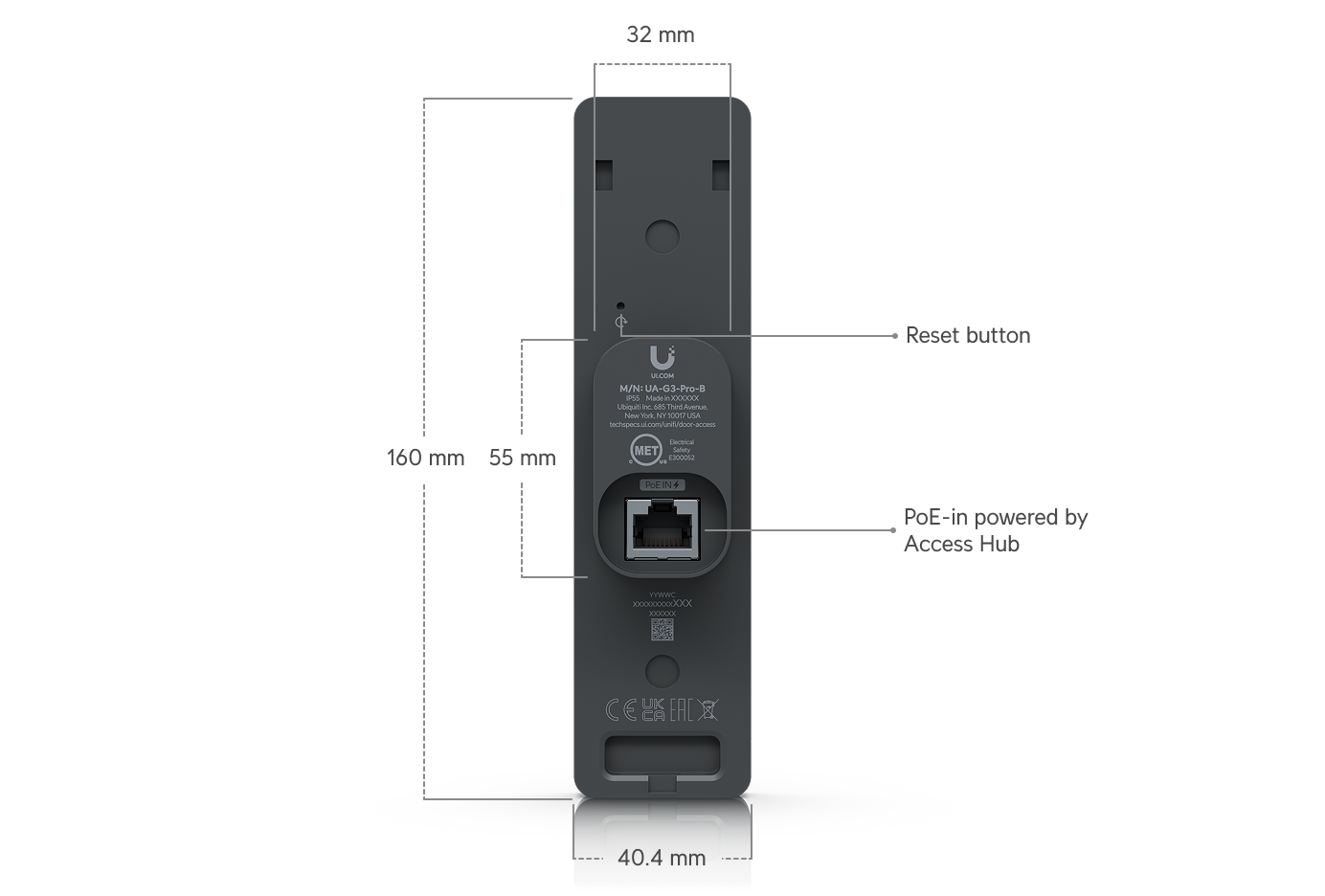

• Dimensions: 160 x 40.4 x 40.55 mm (6.3 x 1.59 x 1.6")
• Integrated Camera: ✔
• UniFi Application Suite:
  • Protect
  • Access
• NFC Card & Keyfob Access: ✔
• PIN Access: ✔
• QR Code Unlock: ✔
• Apple/Google Wallet: ✔
• Mobile Unlock: ✔
• Face Unlock: ✔
• Two-Way Intercom & Doorbell Access: ✔
• Weatherproofing: IP55
• Audio: Two-way Audio
• UL 294 Level:
  • Destructive Attack: Level I
  • Line Security: Level I
  • Endurance: Level I
  • Standby Power: Level I
• NDAA Compliant: ✔

Mechanical

• Weight: 136 g (4.8 oz)
• Enclosure Material: Polycarbonate, Glass
• Mount Material: Aluminum Alloy
• Mounting:
  • Wall Mount
  • Gang-box Mount (Included)
  • Angle Mount (Optional)
  • Junction Box (Optional)

Hardware

• Indoor and Outdoor Use: Yes
• Networking Interface: (1) GbE RJ45 Port
• Connectivity:
  • BLE 4.2
  • NFC
• Power Method:
  • PoE
  • UL 294 Power-limited Class 2 PSU
  • UL 60950-1/62368-1 LPS/PS2 PSU
• Maximum Power Consumption: 6W
• Supported Voltage Range: 48V DC
• ESD/EMP Protection: Air: ±15kV, Contact: ±8kV

Video

• Maximum Frame Rate: 30 FPS
• Resolution: 2MP (1200 × 1600, 3:4)

Optics

• Camera Resolution: 12 MP (3072 × 4096)
• Field of View: H: 98.6°, V: 125.7°, D: 157.8°
• Sensors: Proximity Sensor

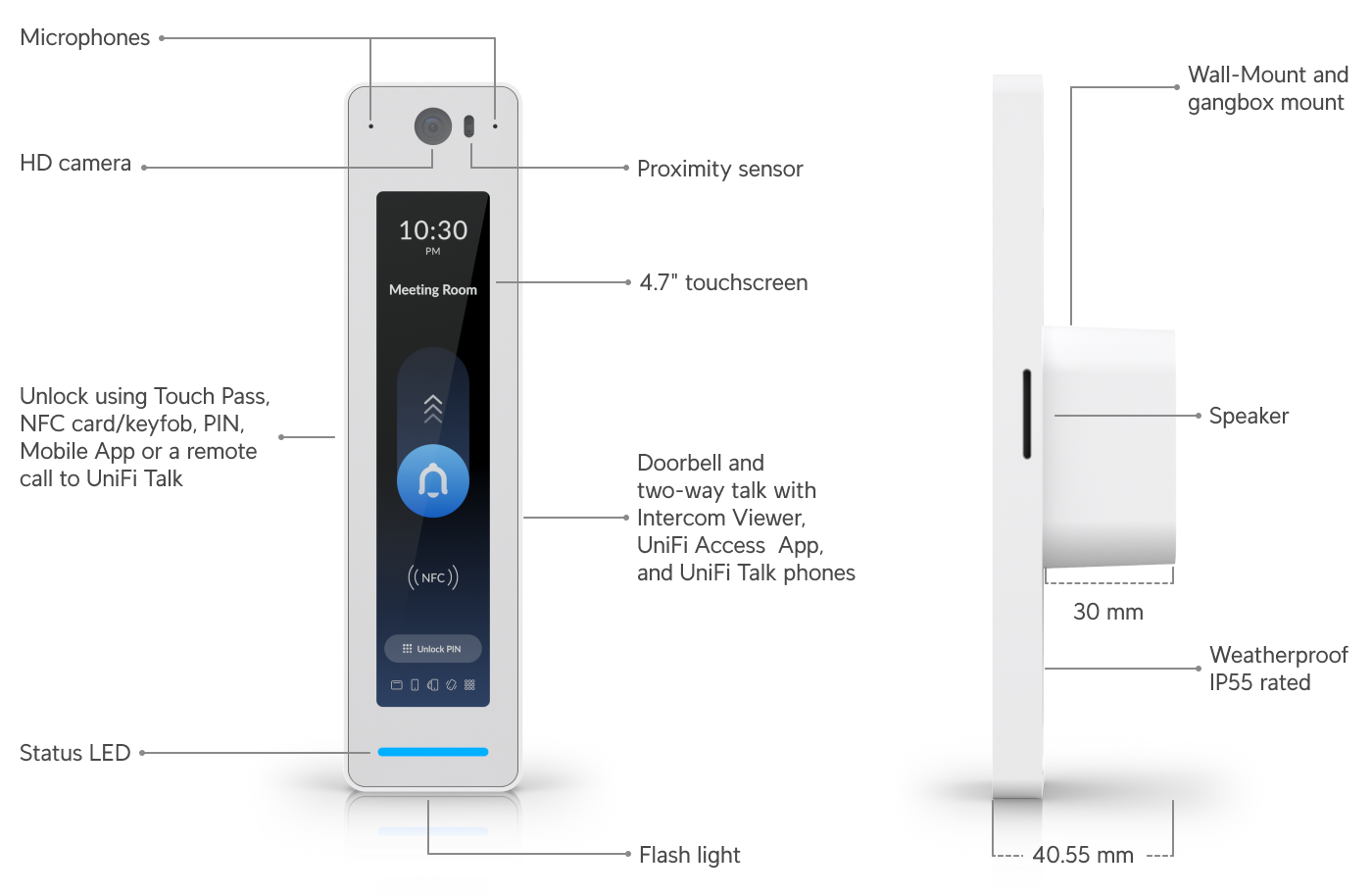

Display

• Size: 120 mm (4.7") Diagonal
• Screen Technology: Capacitive Touch
• Luminance: 480 nits (Typical)
• Screen Orientation: Portrait
• Resolution: 1280 × 286 px

Audio & Controls

• Microphone: ✔
• Speaker: ✔
• LEDs: R / G / B / W / Amber
• Button:
  • (1) Factory Reset

NFC

• Frequency: 13.56 MHz
• Read Range: < 30 mm (1.18")
• Supported Technologies:
  • ISO/IEC 14443A / 14443B / 15693 / 18092 (Ecma 340)
  • MIFARE Classic
  • MIFARE DESFire
  • Sony FeliCa™ (ID Only)
  • NFC Forum Tags T1T, T2T, T3T, T4T, T5T
  • ECP 2.0

PoE Cabling Requirements

• Cat 5e cabling is the minimum recommended performance category.
• Use a cable category that matches the required transmission speed.
• Minimum conductor gauge:
  • 26 AWG (0.13 mm²) for patch cords
  • 24 AWG (0.21 mm²) for horizontal or riser cable

UL 294 Statement

• Compliance with IEEE 802.3 specifications was not verified as part of UL 294.
• Equipment complies with ANSI/NFPA 70, Article 725.121 for Class 2 and Class 3 power sources.

CAN/ULC-60839-11-1

• Grade Assignment: I

Certifications

• CE
• FCC
• IC
• SRRC
• UL 294
• CAN/ULC-60839-11-1
• Document: UA-G3-Pro-W / UA-G3-Pro-B, V01

Environmental

• Ambient Operating Temperature:
  • Device: -30°C to 45°C (-22°F to 113°F)
  • Display: -10°C to 45°C (14°F to 113°F)
• Ambient Operating Humidity: 5% to 90% Non-condensing

Software

• Management Application: Access
• Software Information: The software version can be checked at https://unifi.ui.com
