Overview

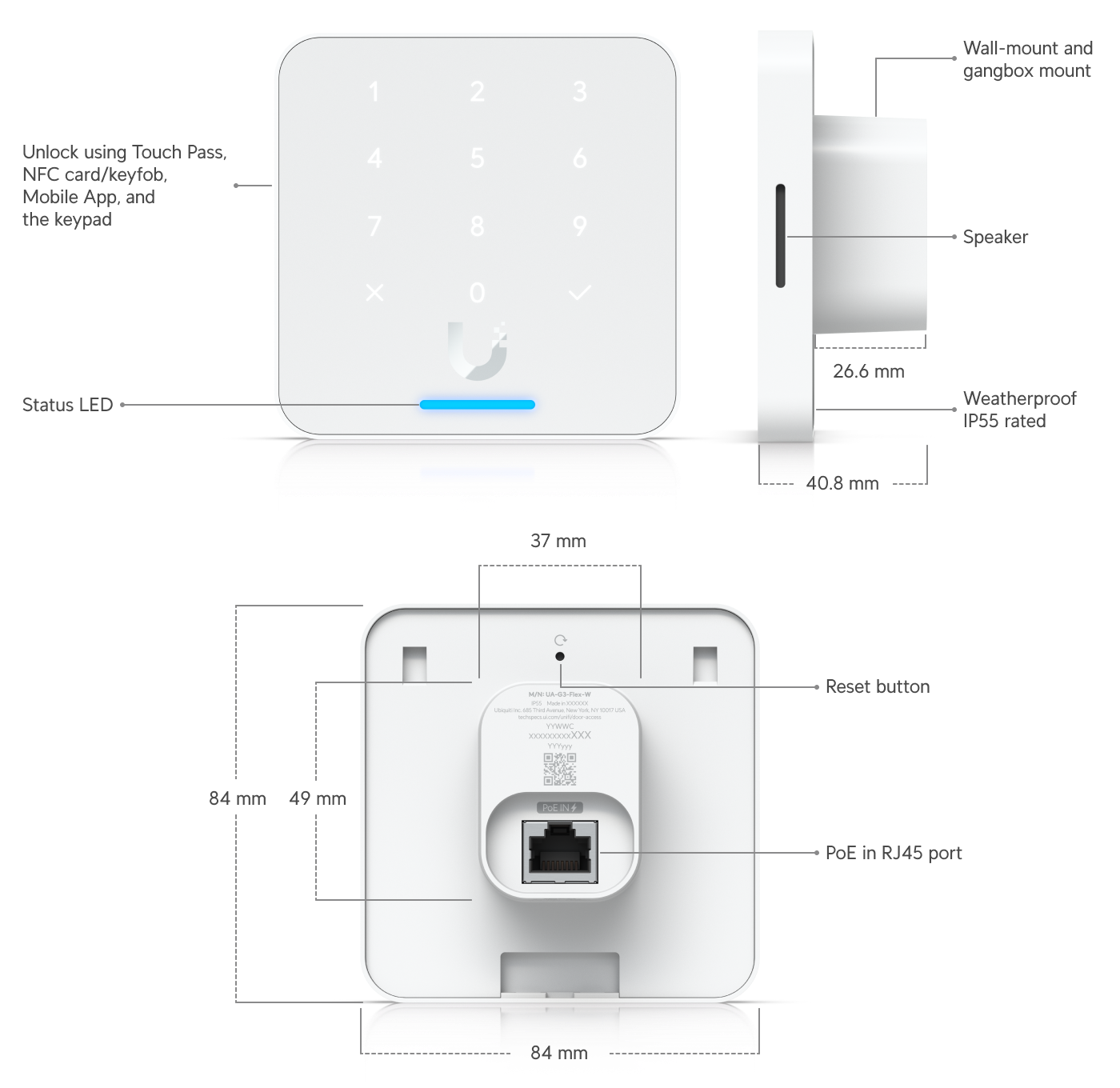

• Dimensions: 84 x 84 x 40.8 mm (3.3 x 3.3 x 1.6")
• UniFi Application Suite: Access
• NFC Card & Keyfob Access: ✔
• PIN Access: ✔
• Apple/Google Wallet: ✔
• Mobile Unlock: ✔
• Weatherproofing: IP55
• UL 294 Level:
  • Destructive attack: Level I
  • Line security: Level I
  • Endurance: Level I
  • Standby power: Level I
• NDAA Compliant: ✔

Mechanical

• Weight: 165 g (5.8 oz)
• Enclosure Material: Polycarbonate, Glass, Aluminum Alloy
• Mount Material: Polycarbonate, Aluminum Alloy
• Mounting:
  • Wall (Included)
  • Gang-box (Optional)
  • Junction Box (Optional)

Hardware

• Indoor and Outdoor Use: Yes
• Networking Interface: (1) 10/100 MbE RJ45 Port
• Connectivity:
  • BLE 4.1
  • NFC
• Power Method:
  • PoE
  • UL 294 Power-limited Class 2 PSU
  • UL 60950-1/62368-1 LPS/PS2 PSU
• Max. Power Consumption: 5W
• Supported Voltage Range: 44–57V DC
• ESD/EMP Protection: Air: ±15kV, Contact: ±8kV
• Sensors: (12) Capacitive Buttons
• Speaker: ✔
• LEDs: R / G / B / W
• Button: (1) Factory Reset
• NFC Frequency: 13.56 MHz
• NFC Read Range: < 30 mm (1.18")
• NFC Technology:
  • ISO/IEC 14443A / 14443B / 15693 / 18092 (Ecma 340)
  • MIFARE Classic / MIFARE DESFire
  • Sony FeliCa™ (ID Only)
  • NFC Forum Tags T1T, T2T, T3T, T4T and T5T
  • ECP 2.0
• PoE Cabling Requirements:
  • Cat 5e cabling is the minimum recommended category.
  • The cable category should match the required transmission speed.
  • Minimum conductor gauge:
    • 26 AWG (0.13 mm²) for patch cords
    • 24 AWG (0.21 mm²) for horizontal or riser cable
• UL 294 Statement:
  • Compliance with IEEE 802.3 specifications was not verified as part of UL 294.
  • Complies with ANSI/NFPA 70, Article 725.121 for Class 2 and Class 3 Circuits.
• CAN/ULC-60839-11-1 Grade: Grade I
• Certifications: CE, FCC, IC, UL 294, CAN/ULC-60839-11-1
• Document Number / Revision: UA-G3-Flex V01
• Ambient Operating Temperature: -30 to 60° C (-22 to 140° F)
• Ambient Operating Humidity: 5 to 90% Noncondensing

Software

• Management Application: Access
• Software Information: The software version can be checked at https://unifi.ui.com
