Overview

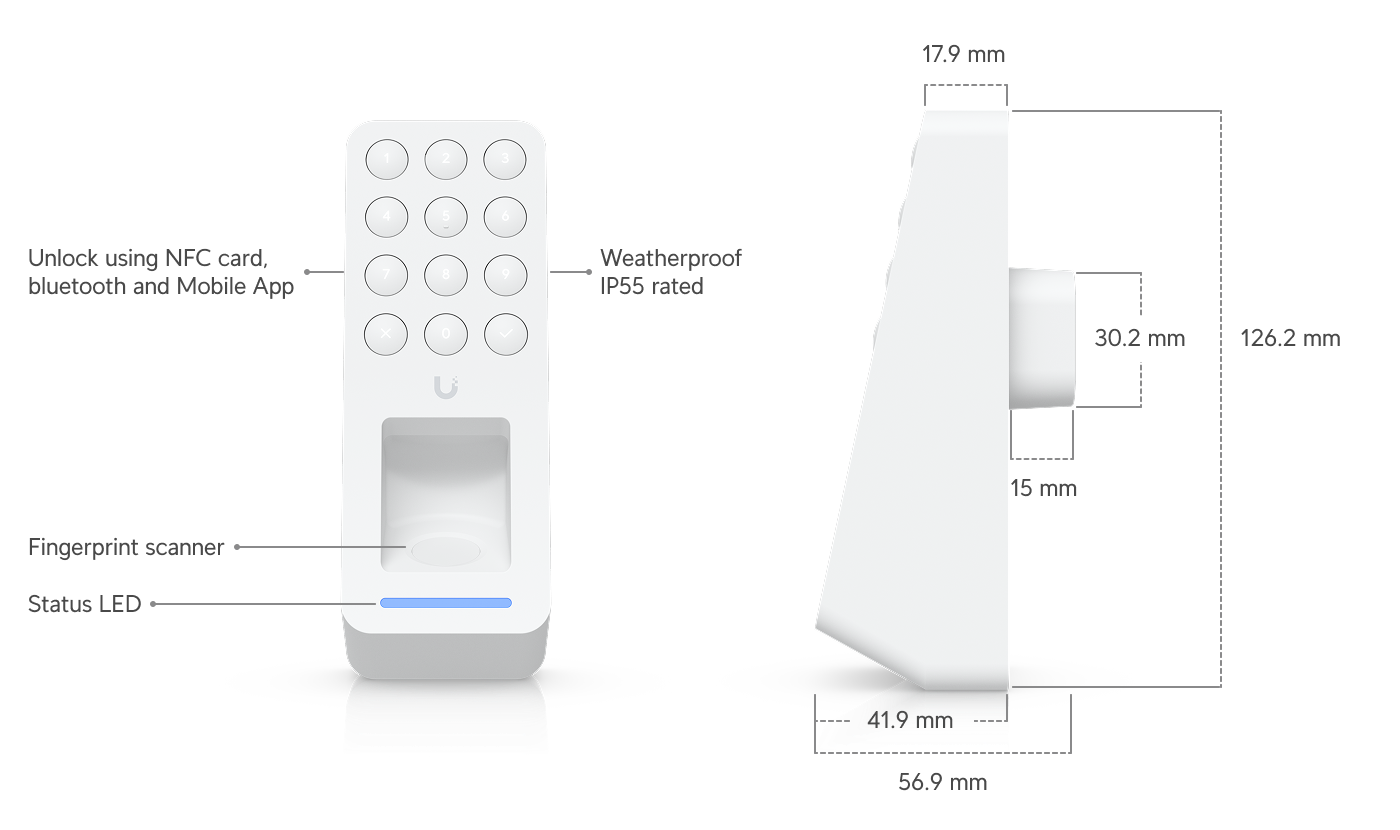

• Dimensions: 126.2 x 45 x 56.9 mm (5 x 1.8 x 2.2")
• UniFi Application Suite: Access
• NFC Card & Keyfob Access: ✔
• PIN Access: ✔
• Apple/Google Wallet: ✔
• Mobile Unlock: ✔
• Fingerprint Unlock: ✔
• Fingerprint Capacity: 300
• Weatherproofing: IP55
• NDAA Compliant: ✔

Mechanical

• Weight: 164 g (5.8 oz)
• Enclosure Material: Polycarbonate, aluminum alloy
• Mount Material: Steel

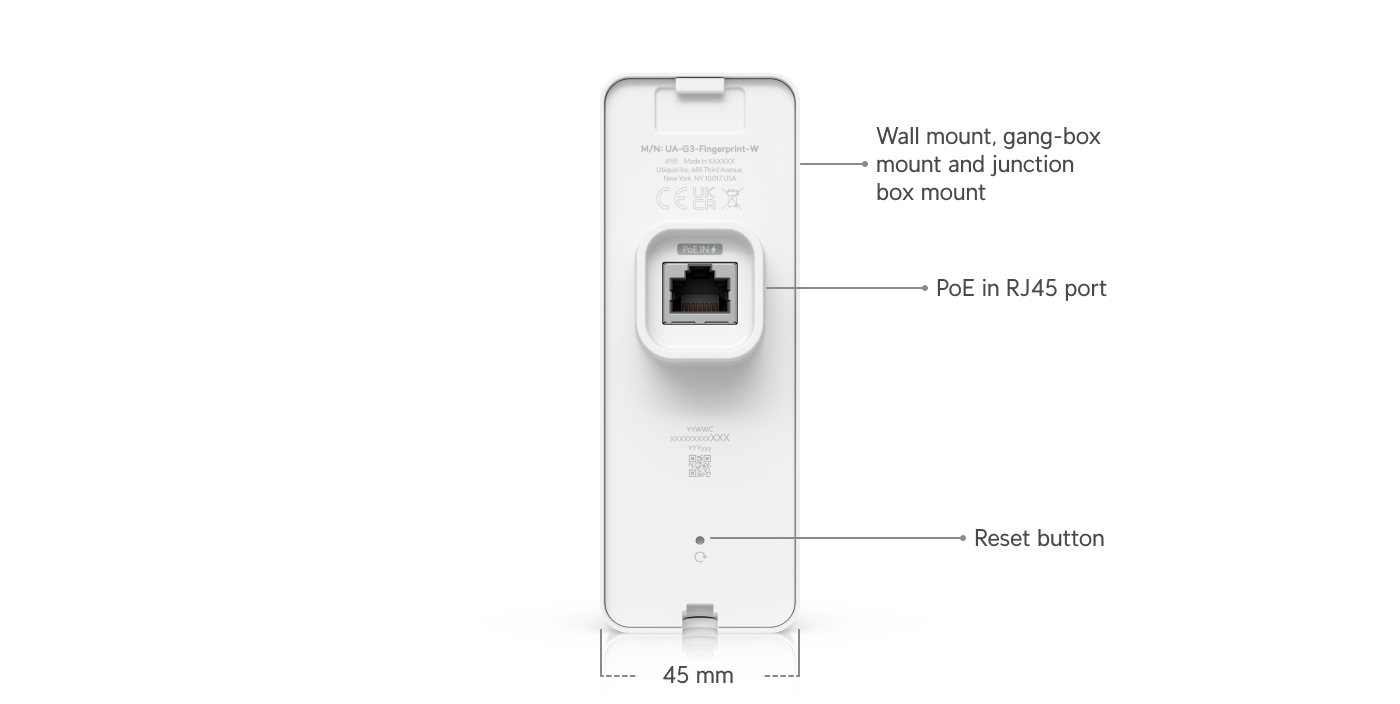

• Mounting:
  • Wall mount (Included)
  • Gang-box mount (Included)
  • Junction box (Optional)

Hardware

• Indoor and Outdoor Use: Yes
• Networking Interface: (1) 10/100 MbE RJ45 port
• Connectivity:
  • BLE 4.2
  • NFC
• Power Method: PoE
• Max. Power Consumption: 5W
• Supported Voltage Range: 48V DC
• ESD/EMP Protection: Air: ±8kV, Contact: ±4kV
• Sensors: Capacitive Fingerprint
• Speaker: ✔
• LEDs: R / G / B / W
• Button: (1) Factory Reset
• NFC Frequency: 13.56 MHz
• NFC Read Range: < 30 mm (1.18")
• NFC Technology:
  • ISO 14443A
  • ISO 14443B
  • ISO 15693
  • NFC Tag Type 1, 2, 3, 4, 5
  • MIFARE Classic
  • MIFARE Plus
  • MIFARE Ultralight
  • MIFARE DESFire
• Certifications: CE, FCC, IC
• Ambient Operating Temperature: -30 to 50° C (-22 to 122° F)
• Ambient Operating Humidity: 5 to 90% noncondensing

Software

• Management Application: Access
• Software Information: The software version can be checked at https://unifi.ui.com
