Specifications

• Overview

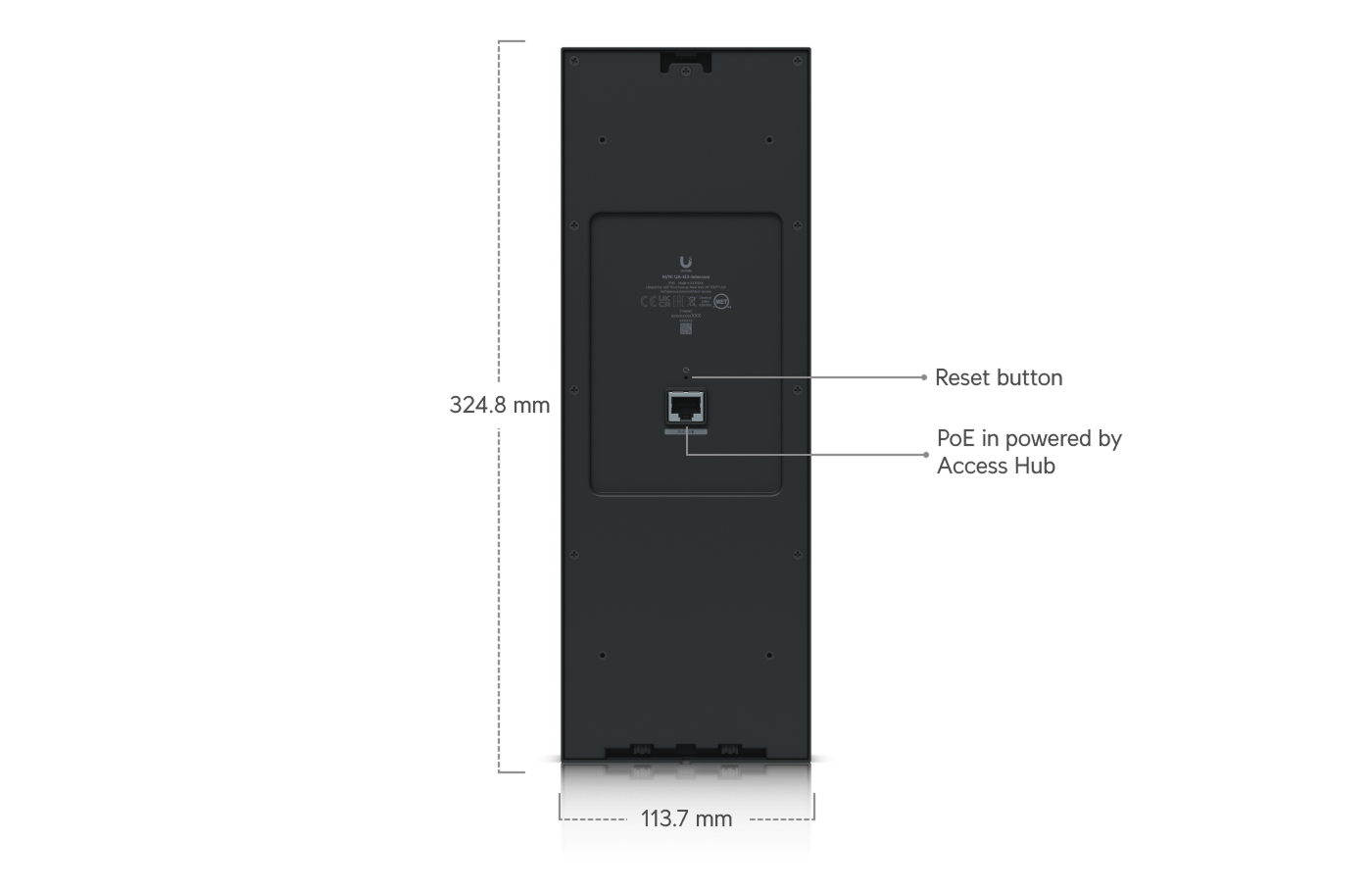

  • Dimensions: 324.8 × 113.7 × 28.3 mm (12.8 × 4.5 × 1.1")
  • Integrated Camera: ✔
  • NFC Card & Keyfob Access: ✔
  • PIN Access: ✔
  • QR Code Unlock: ✔
  • Apple/Google Wallet: ✔
  • Mobile Unlock: ✔
  • Face Unlock: ✔
  • UniFi Application Suite: Access
  • Two-Way Intercom & Doorbell Access: ✔
  • NDAA Compliant: ✔
  • UL 294 Level:
    Destructive attack: Level I
    Line security: Level I
    Endurance: Level I
    Standby power: Level I
  • Weatherproofing: IP65
• Mechanical
  • Weight: Device: 965 g (2.1 lb)
    Bracket: 445 g (1 lb)
  • Enclosure Material: Aluminum alloy, UV-stabilized polycarbonate, glass
  • Mount Material: Powder-coated stainless steel
  • Mounting: Wall mount, adapter to the gooseneck pedestal (Included)
    Surface angle, flush mount, sunshield kit (Optional)
• Hardware
  • Indoor and Outdoor Use: Yes
  • Networking Interface: (1) GbE RJ45 port
  • Connectivity: BLE 4.2, NFC
  • Power Method: PoE
    UL 294 Power-limited Class 2 PSU
    UL 60950-1/62368-1 LPS/PS2 PSU
  • Max. Power Consumption: 13W
  • Supported Voltage Range: 48V DC
• Video
  • Max. Frame Rate: 30 FPS
  • Resolution: 2MP 1200 × 1600 (3:4)
• Optics
  • Resolution: 8 MP (2448 × 3264)
  • Field of View: H: 79.4°, V: 97.5°, D: 118.2°
  • Sensors: Proximity sensor, ALS sensor
• Display
  • Size: 177 mm (7") diagonal
  • Screen Technology: Capacitive multi-touch
  • Luminance: Max. 1000 nits (Typical)
  • Screen Orientation: Portrait
  • Resolution: 1024 × 600 px
  • Microphone: ✔
  • Speaker: ✔
  • NFC Frequency: 13.56 MHz
  • NFC Read Range: < 30 mm (1.18'')
  • NFC Technology: ISO/IEC 14443A / 14443B / 15693 / 18092 (Ecma 340)
    MIFARE Classic / MIFARE DESFIRE
    Sony FeliCa™ (ID only)
    NFC Forum tags T1T, T2T, T3T, T4T and T5T
    ECP 2.0
  • LEDs: Amber
  • Buttons: (1) Factory reset
• PoE Cabling Requirements: Cat 5e minimum. Minimum conductor gauge: 26 AWG (0.13 mm²) patch cords; 24 AWG (0.21 mm²) horizontal/riser cable.
• UL 294 Statement: Compliance with IEEE 802.3 specifications was not verified as part of UL 294. Equipment intended to comply with ANSI/NFPA 70 Article 725.121.
• CAN/ULC-60839-11-1 Grade: Grade assignment: I
• Certifications: CE, FCC, IC, UL 294, CAN/ULC-60839-11-1
• Document: UA-G3-Intercom, V01
• Ambient Operating Temperature: Device: -30 to 60° C (-22 to 140° F)
  Display: -25 to 60° C (-13 to 140° F)
• Ambient Operating Humidity: 5 to 90% noncondensing
• Software
  • Management Application: Access
  • Software Information: https://unifi.ui.com
