Overview

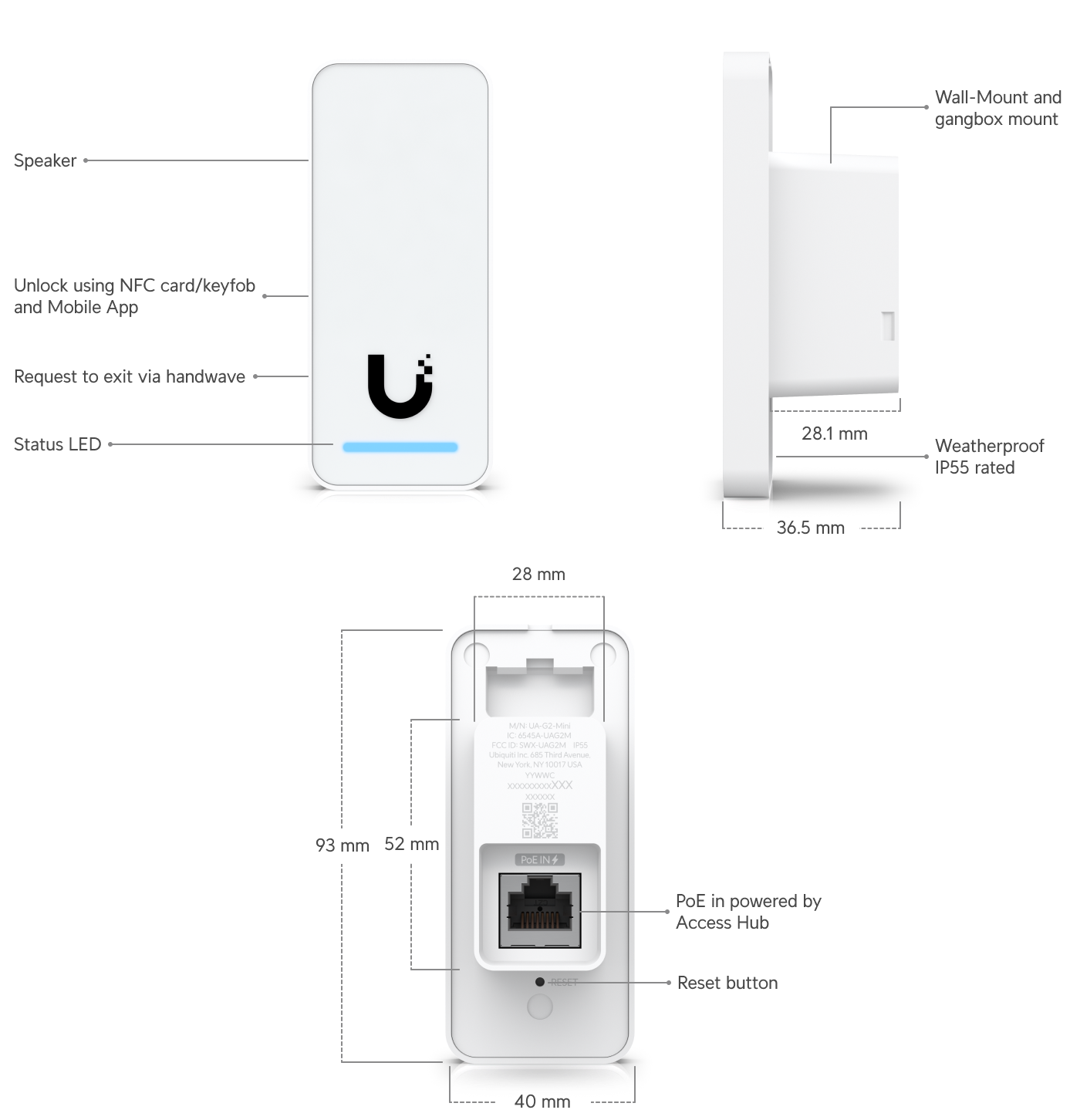

• Dimensions 93 x 40 x 36.5 mm (3.7 x 1.6 x 1.4")
• UniFi Application Suite Access
• NFC Card & Keyfob Access ✔
• Mobile Unlock ✔
• Handwave Request to Exit ✔
• Weatherproofing IP55
• UL 294 Level Destructive attack: Level I
  Line security: Level I
  Endurance: Level I
  Standby power: Level I
• NDAA Compliant ✔

Mechanical

• Weight 82 g (2.9 oz)
• Enclosure Material Polycarbonate, glass
• Mount Material Aluminum alloy
• Mounting In-wall, gang box (Included)
  Junction box (Optional)

Hardware

• Indoor and Outdoor Use Yes
• Networking Interface (1) 10/100 MbE RJ45 port
• Connectivity BLE 4.1
  NFC
• Power Method PoE
  UL 294 Power-limited Class 2 PSU
  UL 60950-1/62368-1 LPS/PS2 PSU
• Max. Power Consumption 5W
• Supported Voltage Range 48V DC
• ESD/EMP Protection Air: ± 15kV, Contact: ± 8kV
• Sensors Proximity sensor
• Speaker ✔
• LEDs R/G/B/W
• Button (1) Factory reset

NFC

• NFC Frequency 13.56 MHz
• NFC Read Range < 30 mm (1.18")
• NFC Technology ISO/IEC 14443A / 14443B / 15693 / 18092 (Ecma 340)
  MIFARE Classic / MIFARE DESFire
  Sony FeliCa™ (ID only)
  NFC Forum tags T1T, T2T, T3T, T4T and T5T

PoE Cabling Requirements

Cat 5e cabling is the minimum performance category recommended. The performance category utilized should match the transmission speed required at the installation site.

The minimal conductor gauge permitted to connect between the PSE or power injector and the PD shall be 26 AWG (0.13 mm²) for patch cords and 24 AWG (0.21 mm²) for horizontal or riser cable.

UL 294 Statement

Compliance with IEEE 802.3 specifications was not verified as part of UL 294. The equipment is intended to comply with the National Electrical Code, ANSI/NFPA 70, Article 725.121, Power Sources for Class 2 and Class 3 Circuits.

Environmental

• CAN/ULC-60839-11-1 Grade Grade assignment: I
• Certifications CE, FCC, IC, SRRC, UL 294, CAN/ULC-60839-11-1
• Document Number / Revision UA-G2/UA-G2-Black, V02
• Ambient Operating Temperature -30 to 45° C (-22 to 113° F)
• Ambient Operating Humidity 5 to 90% noncondensing

Software

• Management Application Access
• Software Information The software version can be checked at https://unifi.ui.com
