Overview

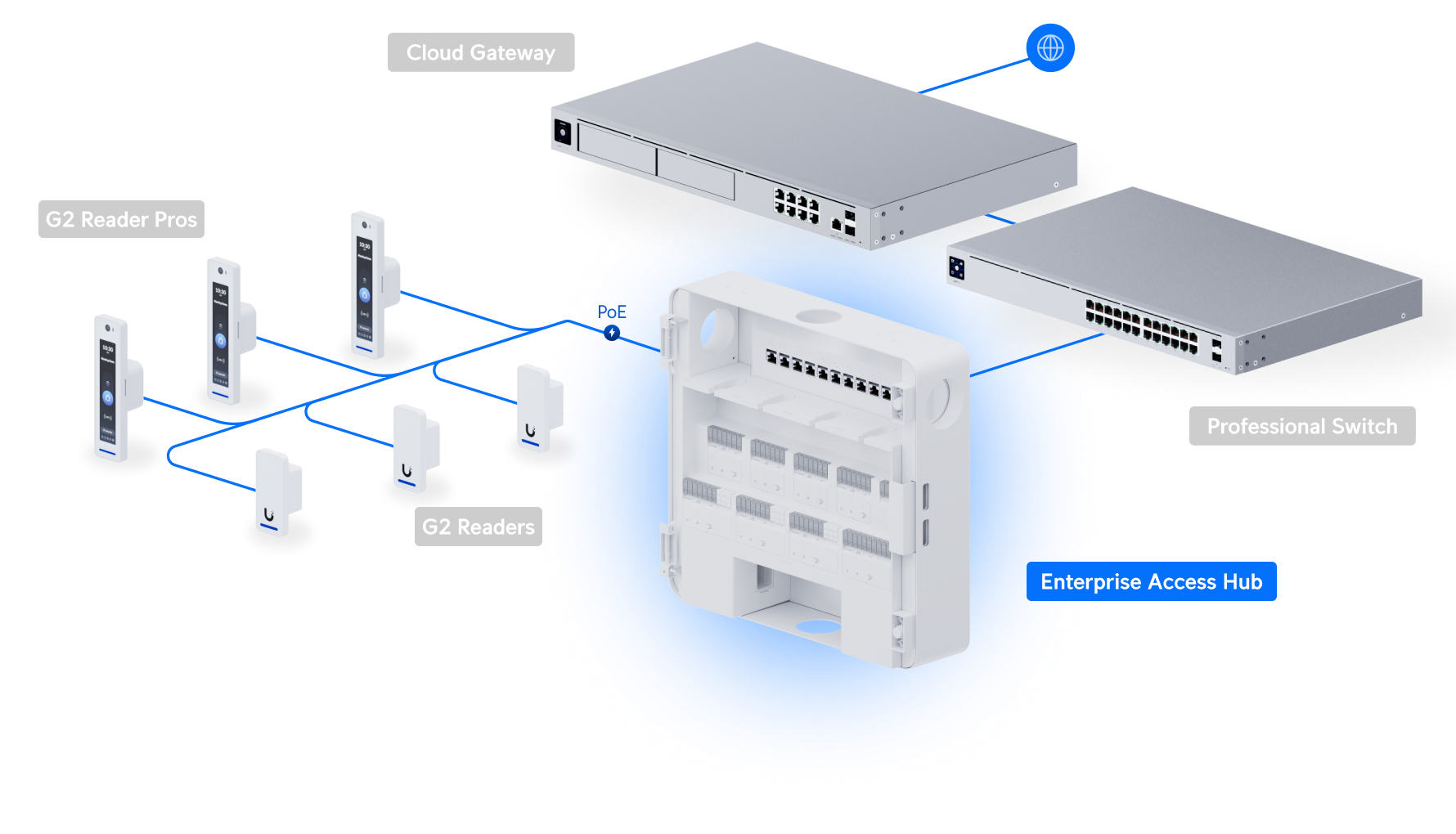

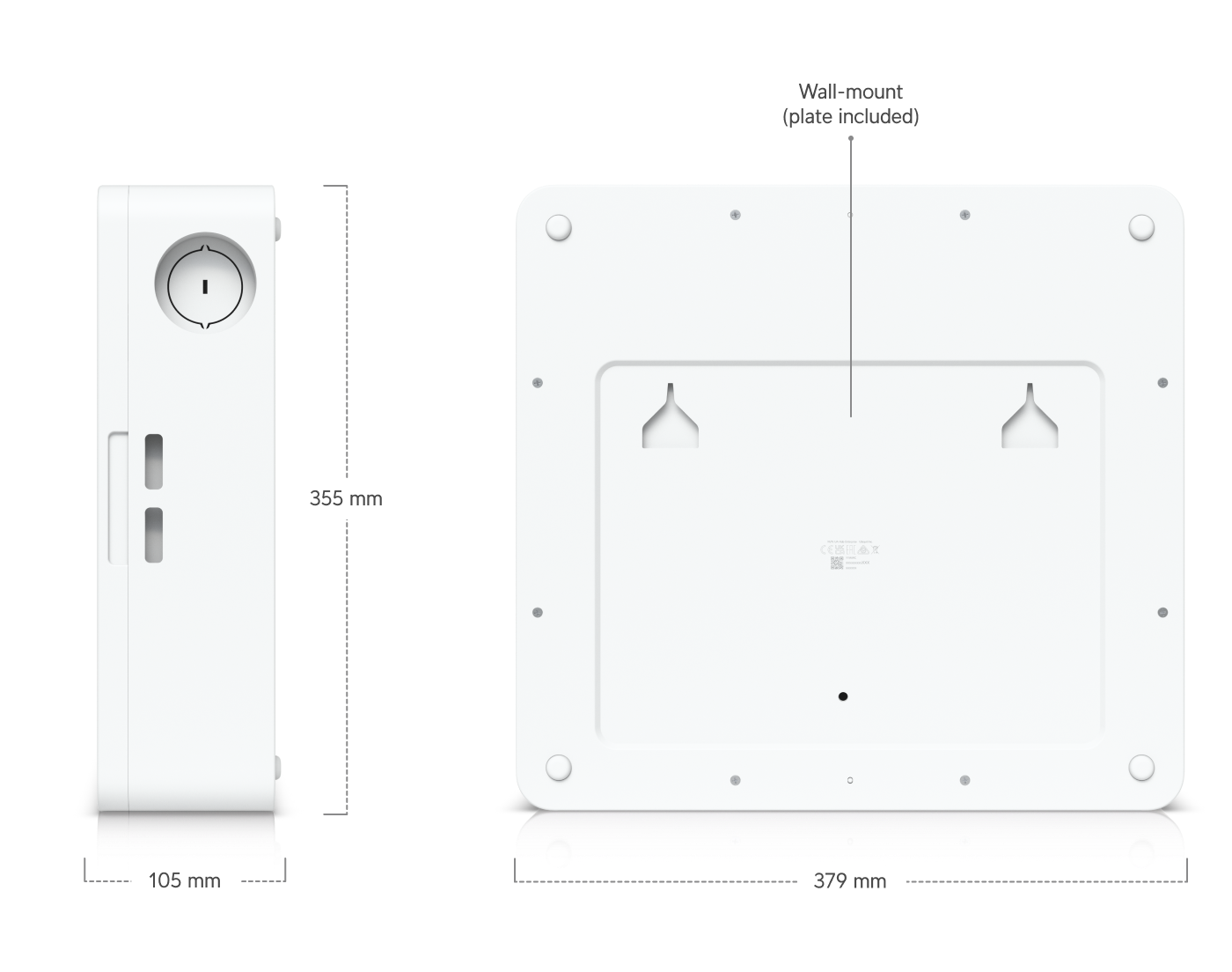

• Dimensions: 379 × 355 × 105 mm (15 × 14 × 4.1")
• Supported Doors: 8
• Maximum User Count: 10,000
• Input Terminals:
  • (8) Door Exit Request
  • (8) Door Position
  • (1) Emergency
• Power Method:
  • Universal Input: 100–240V AC, Max. 4.4A, 50/60 Hz
  • 32–48V DC Lead Acid Battery, Max. 7.5A @ 32V
• NDAA Compliant: ?
• UL 294 Level:
  • Destructive Attack: Level I
  • Line Security: Level I
  • Endurance: Level I
  • Standby Power: Level I

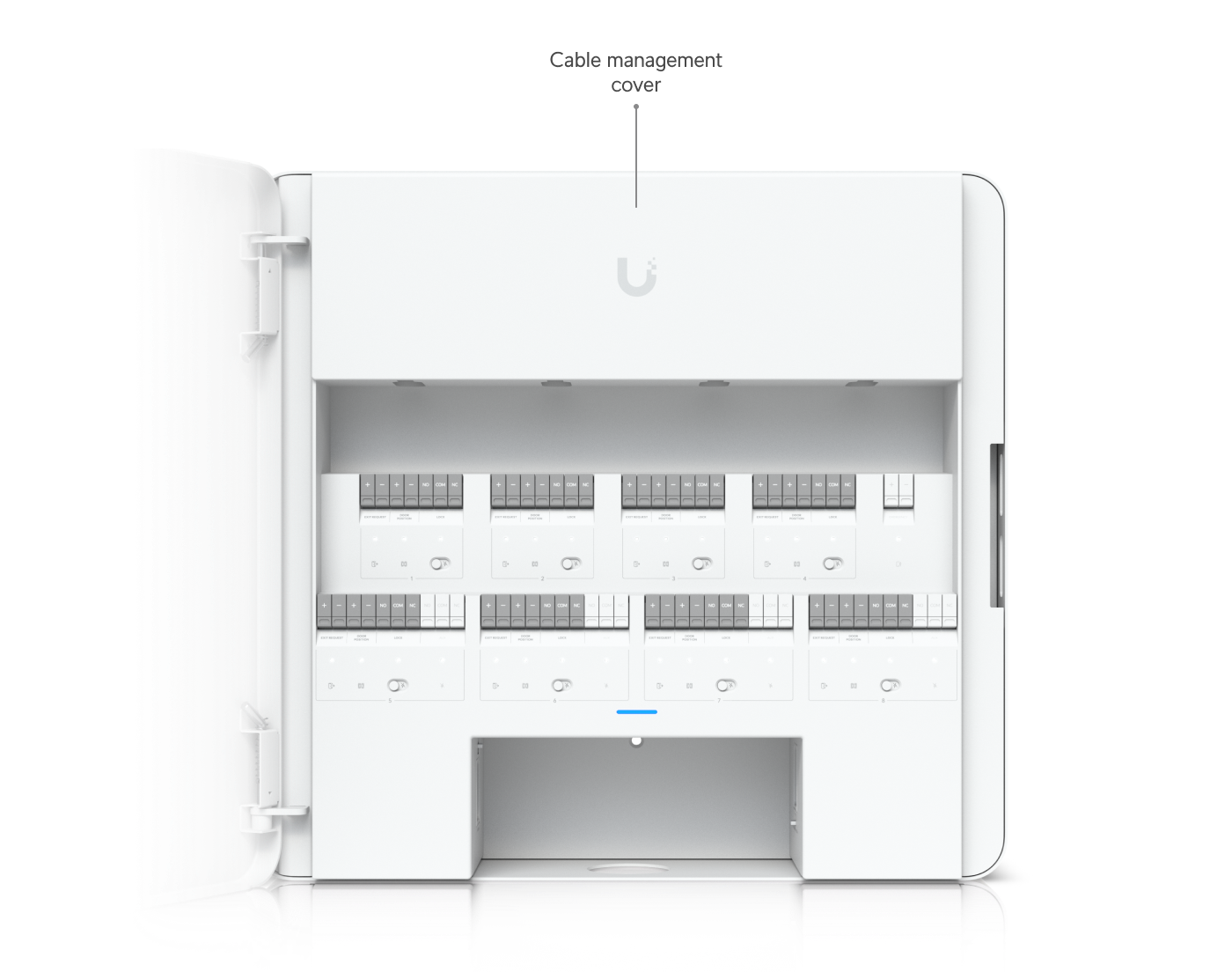

Mechanical

• Weight:
  • Device: 9.1 kg (20 lb)
  • Mount: 624 g (1.4 lb)
• Enclosure Material: SGCC Steel Housing with Polycarbonate Cover
• Mount Material: SGCC Steel
• Mounting: Wall Mount

Hardware

• Digital Input:
  • (8) Inputs for Request-to-Exit Devices
  • (8) Inputs for Door Position Sensors
  • (1) Emergency
• Dry Output Relay:
  • (8) Lock Terminals (12V or Dry)
  • (4) AUX Terminals for Advanced Setup (Chime / Siren / Door Opener)
• Powered Output Relay:
  • Lock: 12V DC, 1A / Dry
  • Aux: Dry Only
• Indoor / Outdoor Use: Indoor Only
• Operating Temperature: 0 to 40°C (32 to 104°F)
• Operating Humidity: 5–95% Non-Condensing
• Networking Interface: (10) 10/100/1000 Base-T
• PoE Interface: (8) PoE+ Outputs, 50V DC, 30W Per Port (Max. 190W Aggregated)
• Power Supply: Internal AC/DC
• Maximum Power Consumption: 240W
• Maximum PoE Wattage Per Port: 30W
• LEDs: White / Blue
• Buttons: (1) Factory Reset

Recommended Maximum Cable Length

• UA-Lock-Electric (400mA)
  • 24 AWG: 25 m (82 ft)
  • 22 AWG: 42 m (138 ft)
  • 20 AWG: 66 m (217 ft)
  • 18 AWG UACC-Cable-DoorLockRelay: 100 m (328 ft)
• UA-Lock-Magnetic-540kg (500mA)
  • 24 AWG: 20 m (66 ft)
  • 22 AWG: 32 m (105 ft)
  • 20 AWG: 51 m (167 ft)
  • 18 AWG UACC-Cable-DoorLockRelay: 80 m (262 ft)
• UA-Lock-Magnetic-270kg (800mA)
  • 24 AWG: 12 m (39 ft)
  • 22 AWG: 20 m (66 ft)
  • 20 AWG: 30 m (98 ft)
  • 18 AWG UACC-Cable-DoorLockRelay: 46 m (151 ft)
• Other Locks (1A)
  • 24 AWG: 9 m (30 ft)
  • 22 AWG: 15 m (49 ft)
  • 20 AWG: 24 m (79 ft)
  • 18 AWG UACC-Cable-DoorLockRelay: 36 m (118 ft)

PoE Cabling Requirements

• Category 5e cabling is the minimum recommended performance category.
• The cable category should match the required transmission speed at the installation site.
• Minimum conductor gauge:
  • 26 AWG (0.13 mm²) for Patch Cords
  • 24 AWG (0.21 mm²) for Horizontal or Riser Cable

UL 294 Statement

• Compliance with IEEE 802.3 specifications was not verified as part of UL 294.
• The equipment is intended to comply with ANSI/NFPA 70, Article 725.121 (Power Sources for Class 2 and Class 3 Circuits).

CAN/ULC-60839-11-1 Grade

• Grade Assignment: I

Certifications

• CE
• FCC
• IC
• UL 294
• CAN/ULC-60839-11-1

Document Information

• Document Number: EAH-8
• Version: Ver 01

Software

• Management Application: UniFi Access
• Software Information: Software version can be checked at https://unifi.ui.com
