Overview

In the Box

• (1) Elevator Hub
• (1) G2 Reader
• (2) 2-wire PoE Extenders
• (10) Access Cards

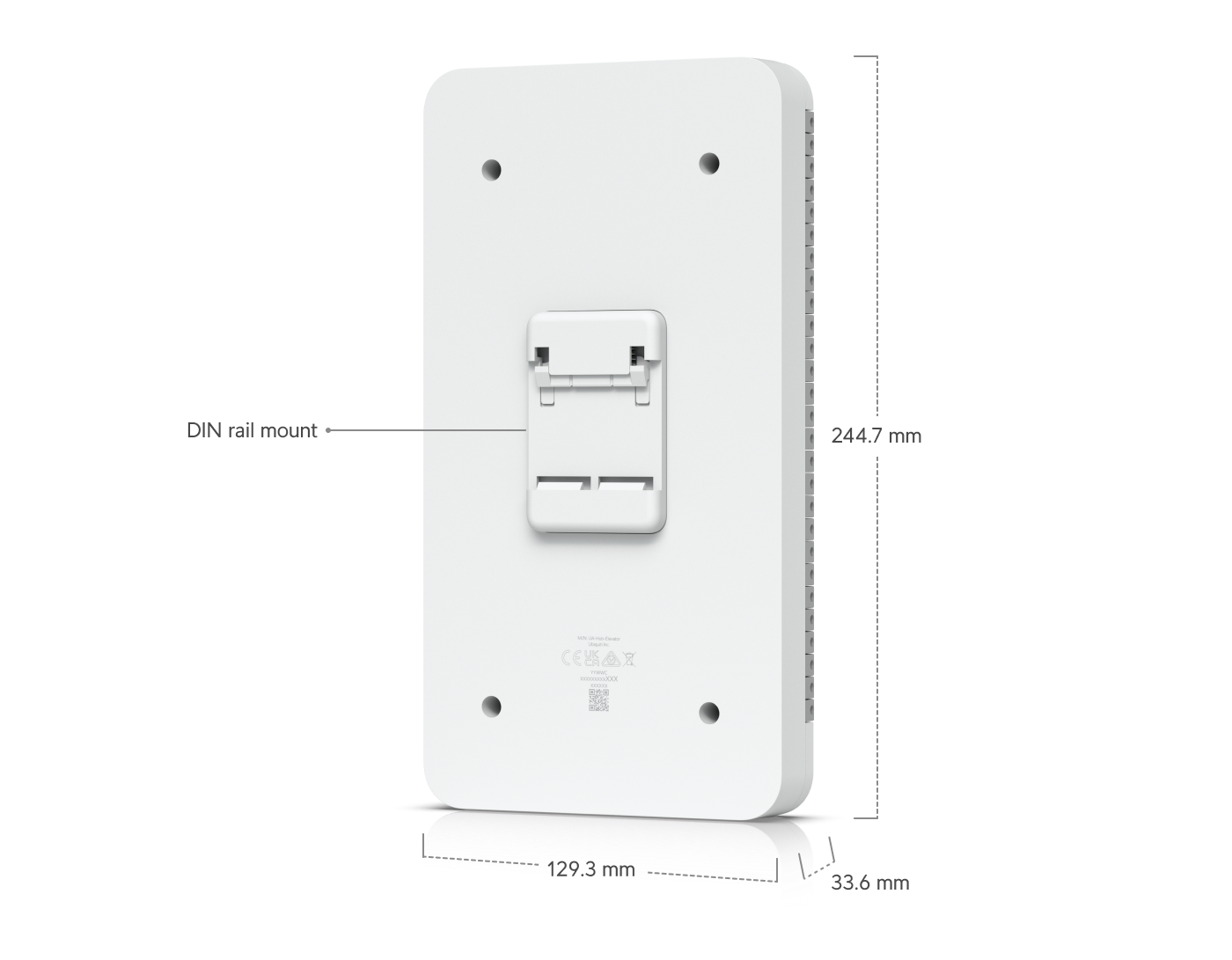

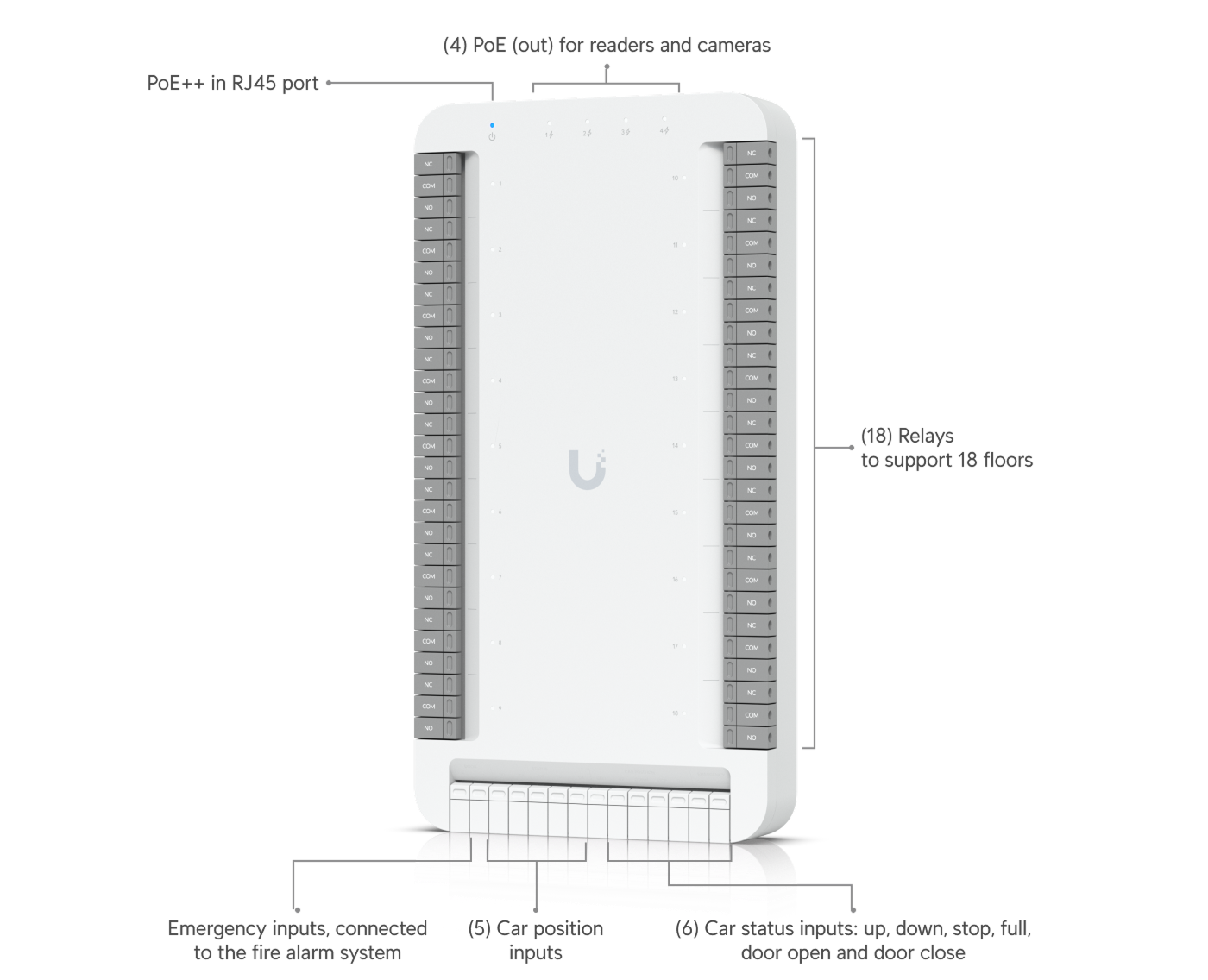

Elevator Hub

• Dimensions: 129.3 x 244.7 x 33.6 mm (5.1 x 9.6 x 1.3")
• Maximum User Count: 6,000
• Power Method:
  • PoE++
  • UL 294 Power-limited Class 2 PSU
  • UL 60950-1/62368-1 LPS/PS2 PSU
• Weight: 537 g (1.2 lb)
• Enclosure Material: Polycarbonate
• Mounting Material: Polycarbonate
• Networking Interface: (4) 10/100/1000 Base-T
• PoE Interface:
  • (1) PoE++ input, 50V DC, 1.2A
  • (4) PoE+ outputs, 50V DC, 30W per port
  • Maximum 45W aggregated
• Management: (1) 10/100/1000 Base-T
• Max. Power Consumption: 7W (Without PoE output)
• Digital Input:
  • (1) Emergency
  • (1) Car position (5-bit)
  • (1) Car status: Up / Down / Stop / Full
  • (1) Door status: Open / Close
• Outputs: (18) Relays, Rated 30V DC / 2A
• ESD / EMP Protection: Air: ±8kV, Contact: ±4kV
• LEDs: B/W
• Buttons:
  • (1) Factory Reset
• Terminal Blocks
• Ambient Operating Temperature: -10 to 40° C (14 to 104° F)
• Ambient Operating Humidity: 5 to 95% noncondensing
• NDAA Compliant: ✔
• Certifications: CE, FCC, IC, UL 62368-1, CSA C22.2 No. 62368-1
• Management Application: UniFi Access
• Software Information: Software version can be checked at https://unifi.ui.com

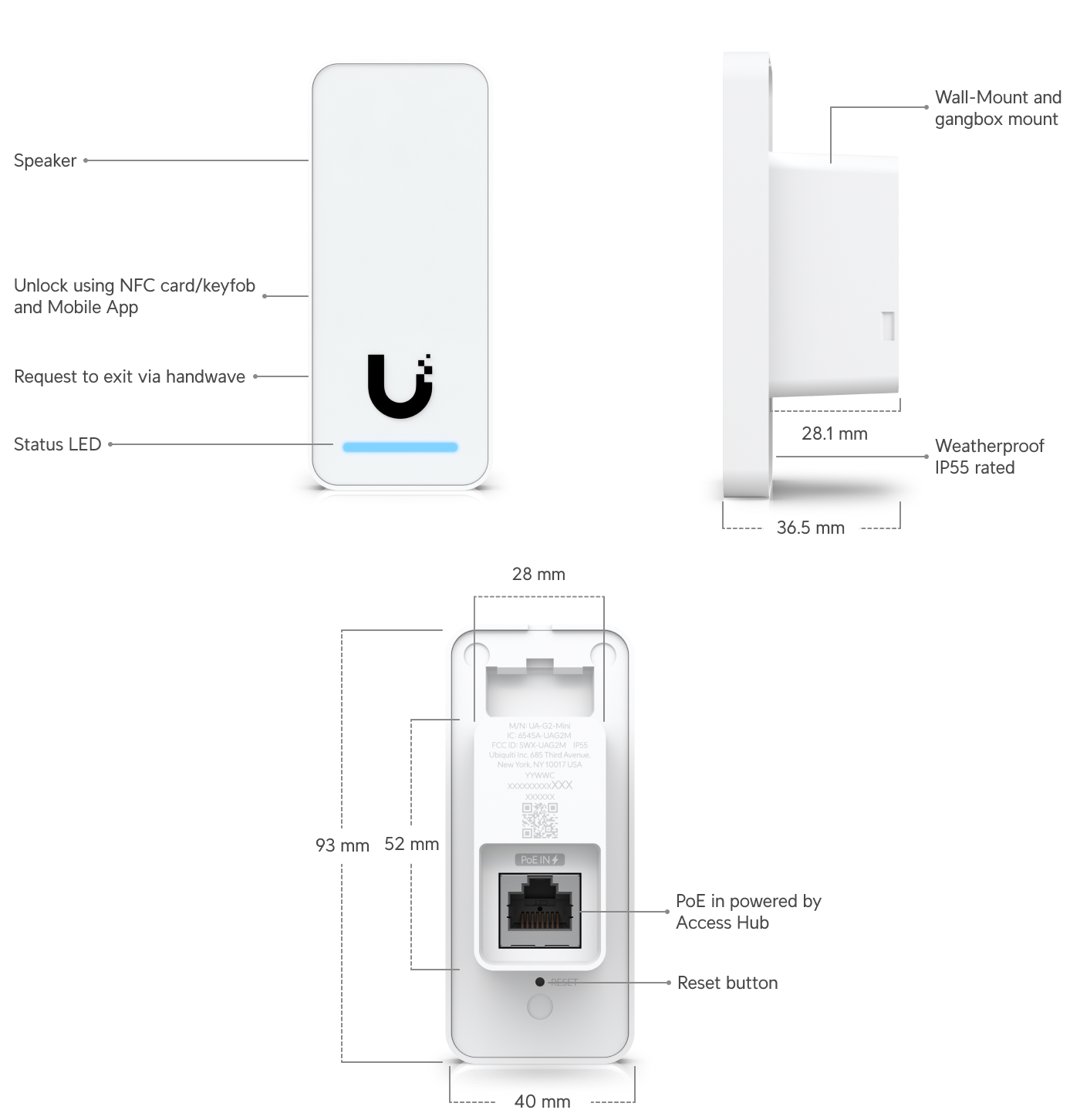

G2 Reader

• Dimensions: 93 x 40 x 36.5 mm (3.7 x 1.6 x 1.4")
• NFC Card & Keyfob Access: ✔
• Mobile Unlock: ✔
• Handwave Request to Exit: ✔
• Weatherproofing: IP55
• Weight: 82 g (2.9 oz)
• Enclosure Material: Polycarbonate, Glass
• Mount Material: Aluminum Alloy
• Mounting:
  • In-wall, Gang Box (Included)
  • Junction Box (Optional)
• Indoor & Outdoor Use: ✔
• Networking Interface: (1) 10/100 MbE RJ45 Port
• Connectivity:
  • BLE 4.1
  • NFC
• Power Method:
  • PoE
  • UL 294 Power-limited Class 2 PSU
  • UL 60950-1/62368-1 LPS/PS2 PSU
• Max. Power Consumption: 5W
• Supported Voltage Range: 48V DC
• ESD / EMP Protection: Air: ±15kV, Contact: ±8kV
• Sensors: Proximity Sensor
• Speaker: (1) Yes, 0.7W
• LEDs: R/G/B/W
• Button: (1) Factory Reset
• NFC Read Range: <30 mm (1.18")
• NFC Frequency: 13.56 MHz
• NFC Technology:
  • ISO/IEC 14443A / 14443B / 15693 / 18092 (Ecma 340)
  • MIFARE Classic
  • MIFARE DESFire
  • Sony FeliCa™ (ID Only)
  • NFC Forum Tags T1T, T2T, T3T, T4T & T5T
• PoE Cabling Requirements:
  • Cat 5e is the minimum recommended cable category.
  • 26 AWG (0.13 mm²) for patch cords.
  • 24 AWG (0.21 mm²) for horizontal/riser cable.
• UL 294 Level:
  • Destructive Attack: Level I
  • Line Security: Level I
  • Endurance: Level I
  • Standby Power: Level I
• UL 294 Statement: Compliance with IEEE 802.3 specifications was not verified as part of UL 294. Equipment complies with ANSI/NFPA 70 Article 725.121.
• CAN/ULC-60839-11-1 Grade: Grade I
• Ambient Operating Temperature: -30 to 45° C (-22 to 113° F)
• Ambient Operating Humidity: 5 to 90% noncondensing
• NDAA Compliant: ✔
• Certifications: CE, FCC, IC, UL 294, CAN/ULC-60839-11-1
• Document Number: UA-G2 / UA-G2-Black, V02
• Management Application: UniFi Access
• Software Information: Software version available at https://unifi.ui.com

Access Card

• Dimensions: 85.6 x 53.98 x 0.84 mm (3.37 x 2.13 x 0.03")
• Weight: 5 g (0.18 oz)
• Format: ISO 7810 ID-1
• NFC Frequency: 13.56 MHz
• NFC Technology:
  • ISO/IEC 14443 Type A
  • MIFARE DESFire
  • UniFi Access Proprietary Security Protocol
• NDAA Compliant: ✔

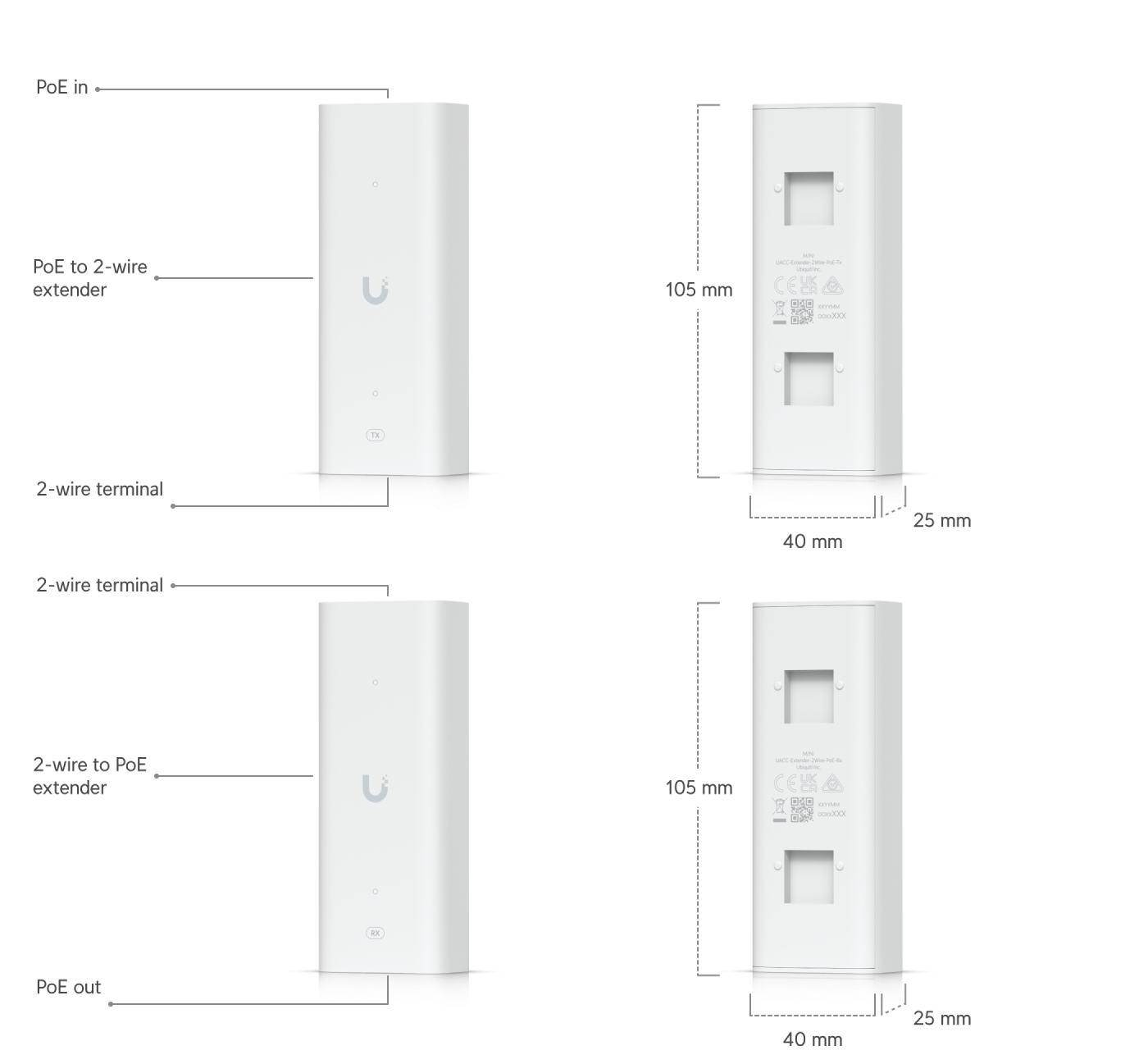

2-Wire PoE Extenders

• Model: UACC-Extender-2Wire-PoE-Tx/Rx
• Dimensions: 40 x 105 x 25 mm (1.6 x 4.1 x 1")
• Weight:
  • PoE In: 77 g (2.7 oz)
  • PoE Out: 79 g (2.8 oz)
• Enclosure Material: Polycarbonate
• Mounting Material: Polycarbonate
• Networking Interface:
  • (1) 10/100 MbE
  • (1) HomePlug AV
• PoE Interface:
  • PoE Input: (1) PoE++, 50V DC, Max. 1.2A
  • PoE Output: (1) PoE+, 48V DC, 0.72A
• Management: (1) 10/100 MbE
• Power Method: PoE++
• Max. Power Consumption: 3W (Without PoE Output)
• ESD / EMP Protection: Air: ±8kV, Contact: ±4kV
• LEDs: White
• Ambient Operating Temperature: -10 to 40° C (14 to 104° F)
• Ambient Operating Humidity: 5 to 95% noncondensing
• NDAA Compliant: ✔
• Certifications: CE, FCC, IC
