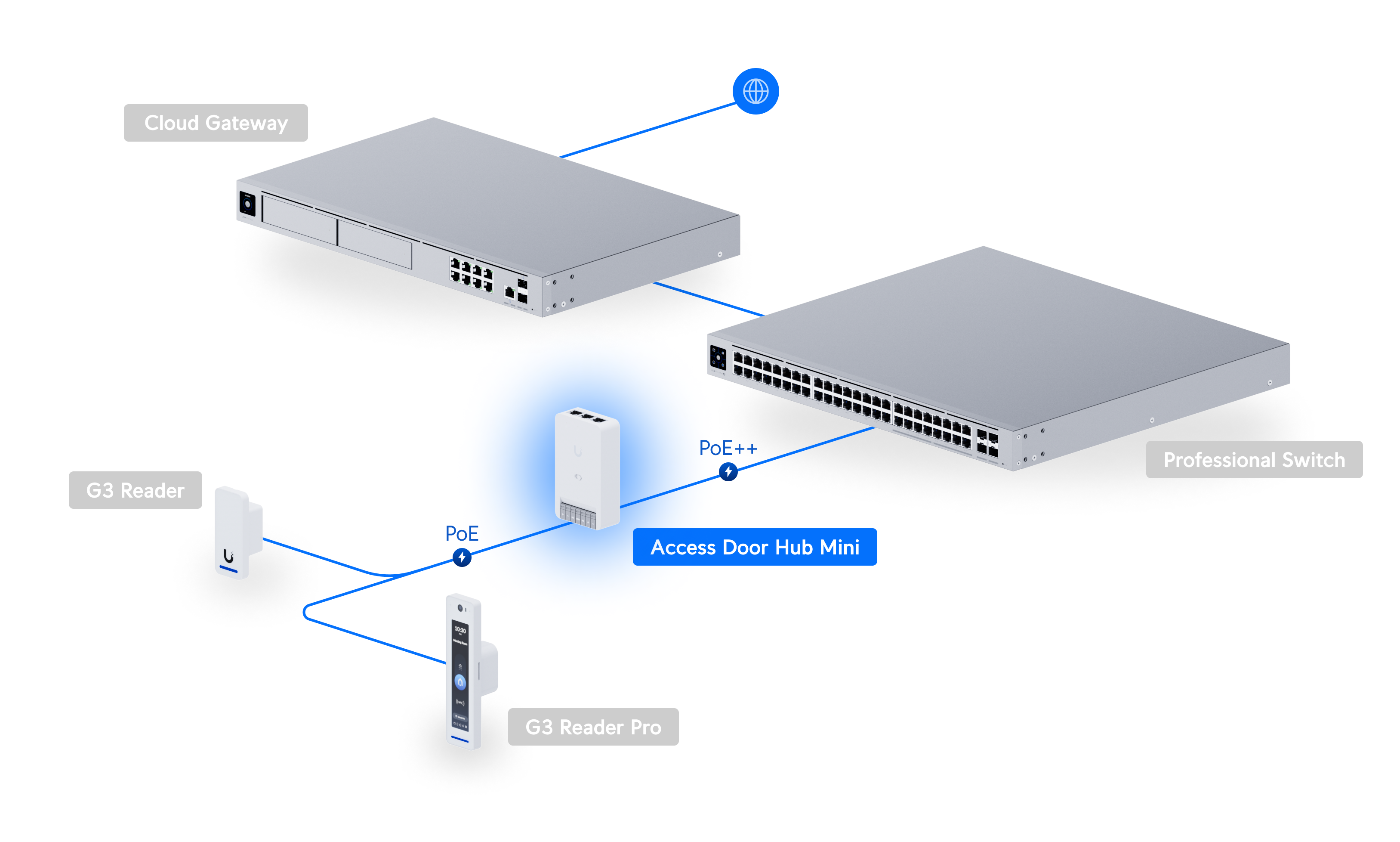

Overview

• Dimensions: 113 × 66 × 27.6 mm (4.4 × 2.6 × 1.1")
• Supported Doors: 1
• Maximum User Count: 3,000
• Input Terminals:
  • (1) Door Exit Request
  • (1) Door Position
• Power Method:
  • PoE++
  • UL 294 Power-limited Class 2 PSU
  • UL 60950-1/62368-1 LPS/PS2 PSU
• NDAA Compliant: ✓
• UL 294 Level:
  • Destructive Attack: Level I
  • Line Security: Level I
  • Endurance: Level I
  • Standby Power: Level I

Mechanical

• Weight: 190 g (6.7 oz)
• Enclosure Material: Polycarbonate, Metal
• Mounting: DIN-Rail (Included)

Hardware

• Dry Output Relay: 30V DC, 1A
• Wet Output Relay: 12V DC, 1A
• Indoor / Outdoor Use: Indoor Only
• Ambient Operating Temperature: 0 to 40° C (32 to 104° F)
• Ambient Operating Humidity: 5 to 90% Noncondensing
• Networking Interface: (3) GbE RJ45 Ports
• PoE Interface:
  • (1) PoE++ Input, 50V DC, 1A
  • (2) PoE+ Outputs, 50V DC, 30W Per Port
  • Maximum 45W Aggregated
• Maximum Power Consumption:
  • 19W (Without PoE Output)
  • 50W (With PoE Output)
• LEDs: White / Blue
• Buttons:
  • (1) Factory Reset
  • (1) Dry/Wet Switch

Recommended Maximum Cable Length

• UA-Lock-Electric (400mA)
  • 24 AWG: 25 m (82 ft)
  • 22 AWG: 42 m (138 ft)
  • 20 AWG: 66 m (217 ft)
  • 18 AWG UACC-Cable-DoorLockRelay: 100 m (328 ft)
• UA-Lock-Magnetic-540kg (500mA)
  • 24 AWG: 12 m (39 ft)
  • 22 AWG: 20 m (66 ft)
  • 20 AWG: 30 m (98 ft)
  • 18 AWG UACC-Cable-DoorLockRelay: 46 m (151 ft)
• UA-Lock-Magnetic-270kg (800mA)
  • 24 AWG: 12 m (39 ft)
  • 22 AWG: 20 m (66 ft)
  • 20 AWG: 30 m (98 ft)
  • 18 AWG UACC-Cable-DoorLockRelay: 46 m (151 ft)
• Other Locks (1A)
  • 24 AWG: 9 m (30 ft)
  • 22 AWG: 15 m (49 ft)
  • 20 AWG: 24 m (79 ft)
  • 18 AWG UACC-Cable-DoorLockRelay: 36 m (118 ft)

PoE Cabling Requirements

• Category 5e (Cat 5e) cabling is the minimum recommended performance category.
• The cable category should match the transmission speed required at the installation site.
• Minimum conductor gauge requirements:
  • 26 AWG (0.13 mm²) for Patch Cords
  • 24 AWG (0.21 mm²) for Horizontal or Riser Cable

UL 294 Statement

• Compliance with IEEE 802.3 specifications was not verified as part of UL 294.
• The equipment is intended to comply with ANSI/NFPA 70, Article 725.121 (Power Sources for Class 2 and Class 3 Circuits).

CAN/ULC-60839-11-1 Grade

• Grade Assignment: I

Certifications

• CE
• FCC
• IC
• UL 294
• CAN/ULC-60839-11-1

Document Information

• Document Number: UA-Hub-Door-Mini
• Version: V01

Software

• Management Application: UniFi Access
• Software Information: Software version can be checked at https://unifi.ui.com
