Overview

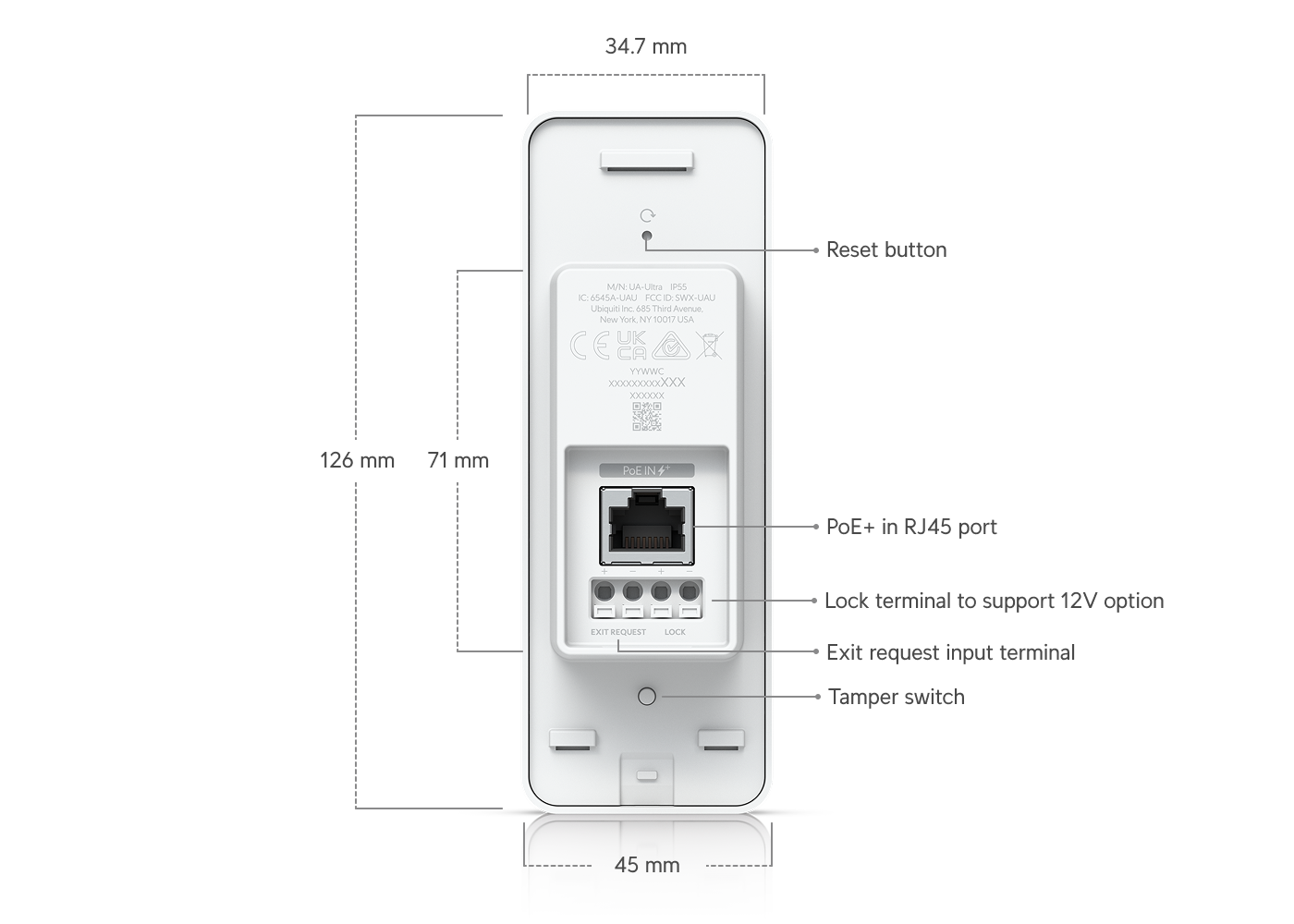

• Dimensions 126 x 45 x 37.45 mm (4.9 x 1.8 x 1.5")
• NFC Card & Keyfob Access ✔
• Mobile Unlock ✔
• Weatherproofing IP55
• Maximum User Count 3,000
• Tamper Switch ✔
• UL 294 Level Destructive attack: Level I
  Line security: Level I
  Endurance: Level I
  Standby power: Level I
• NDAA Compliant ✔

Mechanical

• Weight 140 g (4.9 oz)
• Enclosure Material Polycarbonate, aluminum alloy
• Mount Material Stainless steel
• Mounting Wall mount, gang box mount (Included)
  Junction box (Optional)

Hardware

• Indoor and Outdoor Use Yes
• Networking Interface (1) 10/100 MbE RJ45 port
• Connectivity BLE 4.2
  Ethernet
• Power Method PoE+
  UL 294 Power-limited Class 2 PSU
  UL 60950-1/62368-1 LPS/PS2 PSU
• Max. Power Consumption 18W
• Supported Voltage Range 44–57V DC
• ESD/EMP Protection Air: ± 8kV, Contact: ± 4kV
• Powered Output Relay Lock: 12V DC, 1A
• Speaker ✔
• LEDs R/G/B/W
• Button (1) Factory reset

NFC

• NFC Frequency 13.56 MHz
• NFC Read Range < 50 mm (1.95")
• NFC Technology ISO 14443A, 14443B, 15693
  NFC Tag 1, 2, 3, 4, 5
  MIFARE Classic
  MIFARE Plus
  MIFARE Ultralight
  MIFARE DESFire

PoE Cabling Requirements

Cat 5e cabling is the minimum performance category recommended. The performance category utilized should match the transmission speed required at the installation site.

The minimal conductor gauge permitted to connect between the PSE or power injector and the PD shall be 26 AWG (0.13 mm²) for patch cords and 24 AWG (0.21 mm²) for horizontal or riser cable.

UL 294 Statement

Compliance with IEEE 802.3 specifications was not verified as part of UL 294. The equipment is intended to comply with the National Electrical Code, ANSI/NFPA 70, Article 725.121, Power Sources for Class 2 and Class 3 Circuits.

Environmental

• CAN/ULC-60839-11-1 Grade Grade assignment: I
• Certifications CE, FCC, IC, Anatel: 06371-24-08356, SRRC, UL 294, CAN/ULC-60839-11-1
• Document Number / Revision UA-Ultra, V01
• Ambient Operating Temperature -30 to 40° C (-22 to 104° F)
• Ambient Operating Humidity 5 to 90% noncondensing

Software

• Management Application Access
• Software Information The software version can be checked at https://unifi.ui.com
