Overview

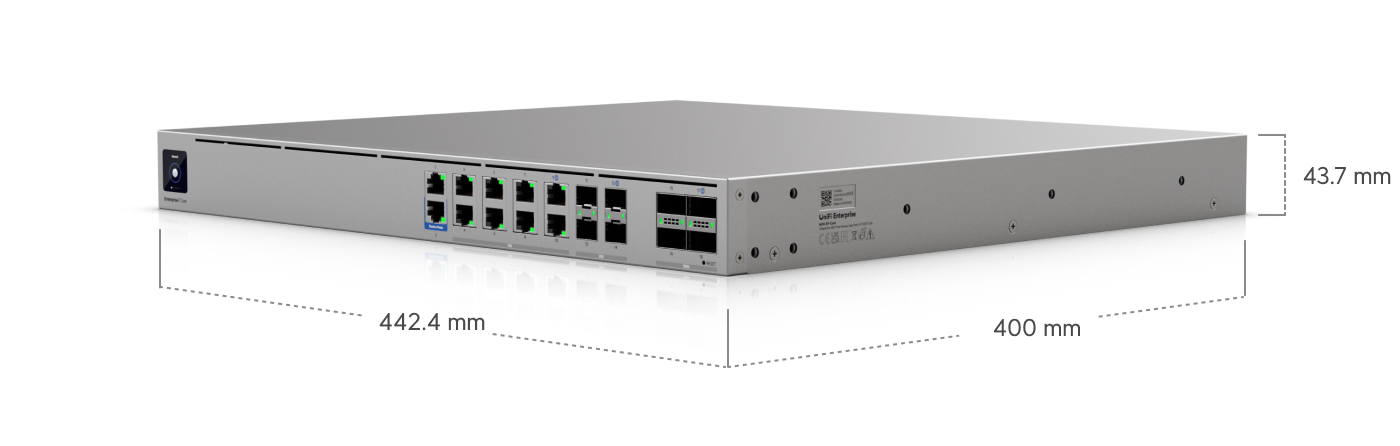

- Dimensions: 442.4 × 43.7 × 400 mm (17.4 × 1.7 × 15.8")
- UniFi Application Suite:
  - ✔ Network
- Managed UniFi Devices: 2,250+
- Simultaneous Users Connected: 22,500+
- Max. WAN Port Count: 8
- Default WAN Ports:
  - (1) 100G QSFP28
  - (1) 25G SFP28
  - (1) 10 GbE RJ45
- Port Layout:
  - 2 × 1 GbE RJ45 (1G / 100M / 10M)
  - 8 × 10 GbE RJ45 (10G / 5G / 2.5G / 1G / 100M)
  - 4 × 25G SFP28 (25G / 10G / 1G)
  - 4 × 100G QSFP28 (100G / 40G)
  - 1 × MGMT (1G / 100M / 10M)
  - 1 × Console
- IDS/IPS Throughput: 79 Gbps
- Capacity:
  - SSL/TLS Inspection Concurrent Sessions: 10,000
  - Concurrent Sessions: 10 Million
  - New Sessions / Second: 120,000
- Form Factor: Rack Mount (1U)
- Redundancy:
  - Shadow Mode (VRRP) Gateway Failover
  - (2) Hot-Swappable PSUs
Security
- ✔ Stateful Firewall
- ✔ Application-Aware Layer 7 Firewall
- ✔ SSL Inspection & URL Filtering
- ✔ DPI & Traffic Identification
- ✔ Zone-Based Firewall Advanced Filtering (Regions, Domains, Apps)
- ✔ Content Filtering
- ✔ Intrusion Prevention (IPS/IDS)
- ✔ Ad Blocking
- IDS/IPS Signatures: 95,000+ with CyberSecure Enterprise
VPN & SD-WAN
- License-Free SD-WAN: ✔
- Site-to-Site VPN:
  - ✔ Site Magic
  - ✔ IPsec
  - ✔ OpenVPN
- VPN Server:
  - ✔ Identity Endpoint One-Click VPN
  - ✔ Teleport Zero-Configuration VPN
  - ✔ WireGuard
  - ✔ OpenVPN
  - ✔ L2TP
- VPN Client:
  - ✔ OpenVPN
  - ✔ WireGuard
Networking
- ✔ Multi-WAN Load Balancing
- ✔ Shadow Mode (VRRP) High Availability
- ✔ LACP Port Aggregation
- Dynamic Routing:
  - ✔ OSPF
  - ✔ BGP
- ✔ Advanced QoS
- ✔ Multicast DNS (mDNS)
- ✔ Advanced NAT (SNAT / DNAT / Masquerade / NAT Pooling / 1-to-1 NAT)
- ✔ Integrated RADIUS Server
- ✔ RADIUS over TLS (RadSec)
- ✔ Additional Internet Failover with UniFi LTE Backup
- ✔ Internet Quality and Outage Reporting
- MAC Address Table Size: 130,000
- ✔ Policy-based WAN and VPN Routing
- ✔ Customizable DHCP Server
- ✔ IPv6 ISP Support
- ✔ IGMP Proxy
- ✔ All Traffic Flows
Hardware
- Max. Power Consumption: 171W
- Power Method: Universal AC Input, 100–240V AC, 7.5A Max., 50/60 Hz
- Power Supply: (2) Hot-Swappable AC/DC 550W PSUs
- Supported Voltage Range: 100–240V AC
- Heat Dissipation: 585 BTU/hr
- Processor: 24-Core ARM® v9 @ 2.5 GHz
- System Memory: 32 GB
- On-board Storage: Integrated 128 GB SSD
- Weight: 7.85 kg (17.31 lb)
- Enclosure Material: Aluminium CNC, SGCC Steel
- LCM Display: 1.3" Touchscreen
- Management:
  - Ethernet
  - Bluetooth
- LED Indicators:
  - ✔ Ethernet
  - ✔ SFP28
  - ✔ QSFP28
  - ✔ Swappable Fan
  - ✔ CRPS
- Button: (1) Factory Reset
- ESD/EMP Protection: Air ±8kV, Contact ±4kV
- Ambient Operating Temperature: 0°C to 40°C (32°F to 104°F)
- Ambient Operating Humidity: 5–95% Noncondensing
Compliance & Certifications
- NDAA Compliant: ✔
- Certifications: CE, FCC, IC
Software
- Application Requirements:
  - Mobile App:
    - UniFi iOS™: Version 10.35.0 and Later
    - UniFi Android™: Version 10.38.1 and Later
