Dream Machine Beast

Professional-grade 25G Cloud Gateway

🔒 100% Secure & Encrypted Payments

⚡ Instant Service Activation

🚚 Fast & Reliable Delivery

💬 24/7 Expert Technical Support

✅ Trusted by Businesses Worldwide

🔄 Easy Returns

Overview

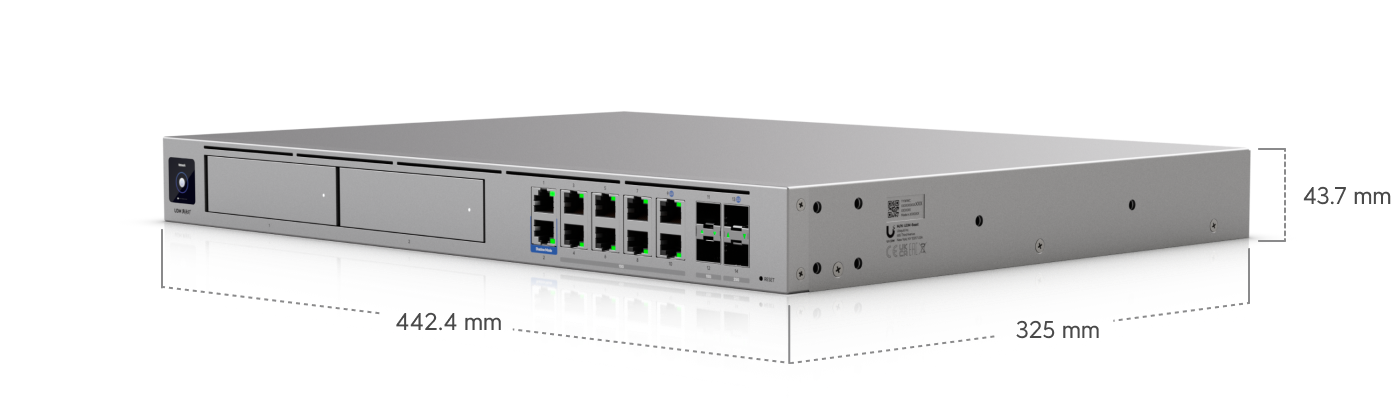

- Dimensions: 442.4 × 43.7 × 325 mm (17.4 × 1.7 × 12.8")
- UniFi Application Suite:
  - ✔ Network
  - ✔ Protect
  - ✔ Access
  - ✔ Talk
  - ✔ Connect
- Managed UniFi Devices: 750+
- Managed Cameras:
  - 100 × HD
  - 60 × 2K
  - 40 × 4K
- Managed Access Hubs: 200
- Simultaneous Users Connected: 7,500+
- Max. WAN Port Count: 8
- Default WAN Ports:
  - (1) 25G SFP28
  - (1) 10 GbE RJ45
- Port Layout:
  - 2 × 1 GbE RJ45 (1G / 100M / 10M)
  - 8 × 10 GbE RJ45 (10G / 5G / 2.5G / 1G / 100M)
  - 2 × 10G SFP+ (10G / 1G)
  - 2 × 25G SFP28 (25G / 10G / 1G)
  - 1 × Console Port
- IDS/IPS Throughput: 25 Gbps
- Form Factor: Rack Mount (1U)
- Redundancy:
  - Shadow Mode (VRRP) Gateway Failover
  - DC Power Backup
Security
- ✔ Stateful Firewall
- ✔ Application-Aware Layer 7 Firewall
- ✔ DPI & Traffic Identification
- ✔ Zone-Based Firewall Advanced Filtering (Regions, Domains, Apps)
- ✔ Content Filtering
- ✔ Intrusion Prevention (IPS/IDS)
- ✔ Ad Blocking
- IDS/IPS Signatures: 55,000+ with CyberSecure
VPN & SD-WAN
- License-Free SD-WAN: ✔
- Site-to-Site VPN:
  - ✔ Site Magic
  - ✔ IPsec
  - ✔ OpenVPN
- VPN Server:
  - ✔ Identity Endpoint One-Click VPN
  - ✔ Teleport Zero-Configuration VPN
  - ✔ WireGuard
  - ✔ OpenVPN
  - ✔ L2TP
- VPN Client:
  - ✔ OpenVPN
  - ✔ WireGuard
Networking
- ✔ Multi-WAN Load Balancing
- ✔ Shadow Mode (VRRP) High Availability
- ✔ LACP Port Aggregation
- Dynamic Routing:
  - ✔ OSPF
  - ✔ BGP
- ✔ Advanced QoS
- ✔ Multicast DNS (mDNS)
- ✔ Advanced NAT (SNAT / DNAT / Masquerade / NAT Pooling / 1-to-1 NAT)
- ✔ Integrated RADIUS Server
- ✔ RADIUS over TLS (RadSec)
- ✔ Additional Internet Failover with UniFi LTE Backup
- ✔ Internet Quality and Outage Reporting
- MAC Address Table Size: 32,000
- ✔ Policy-based WAN and VPN Routing
- ✔ Customizable DHCP Server
- ✔ IPv6 ISP Support
- ✔ IGMP Proxy
- ✔ All Traffic Flows
Hardware
- NVR Storage:
  - (2) 3.5" NVR HDD Bays
  - Built-in 128 GB SSD for Faster Experience
- Max. Power Consumption: 100W
- Power Method:
  - (1) Universal AC Input, 100–240V AC, 3A Max., 50/60 Hz
  - (1) USP-RPS DC Input, 11.5V DC, 13.05A
- Power Supply: AC/DC, Internal, 150W
- Supported Voltage Range: 100–240V AC
- Heat Dissipation: 342 BTU/hr
- Processor: Octa-Core ARM® v9 @ 2.1 GHz
- System Memory: 16 GB
- On-board Storage: Integrated 128 GB SSD
- Weight: 5.5 kg (12.13 lb)
- Enclosure Material: Aluminium CNC, SGCC Steel
- Mount Material: SGCC Steel
- LCM Display: 1.3" Touchscreen
- Management:
  - Ethernet
  - Bluetooth
- LED Indicators:
  - ✔ Ethernet
  - ✔ SFP+
  - ✔ SFP28
  - ✔ RPS
  - ✔ HDD
- Button: (1) Factory Reset
- ESD/EMP Protection: Air ±8kV, Contact ±4kV
- Ambient Operating Temperature: 0°C to 40°C (32°F to 104°F)
- Ambient Operating Humidity: 5–95% Noncondensing
Compliance & Certifications
- NDAA Compliant: ✔
- Certifications: CE, FCC, IC
Software
- Application Requirements:
  - Mobile App:
    - UniFi iOS™: Version 10.34.0 and Later
    - UniFi Android™: Version 10.37.1 and Later

Q: Is setup instant?
A: Yes.
