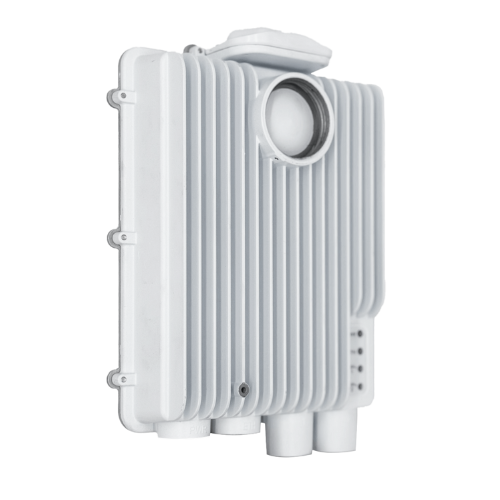

The Mimosa B6x is one of the industry’s fastest unlicensed backhaul solutions. It’s ideal for short to medium range relay and tower links, custom-engineered collocation, and unlicensed 5.15-6.425 GHz spectrum. It’s modular, with the ability to connect N5-X compatible twist on antennas (dish—not included).

Exceptional Speed and Flexibility - Flexibility

Deliver industry-leading unlicensed point-to-point connectivity together with the N5-X antenna, offering up to 3.0 Gbps (IP) across various models (12 to 30+ dBi). Benefit from 320 MHz aggregate channel capacity and GPS Sync mode for peak performance flexibility.

Fast and Reliable - Reliability

With the latest in Wi-Fi 6 technologies, and access to new 6 GHz bands, the B6x achieves extremely low latency with speeds of up to 3.0 Gbps and high reliability with noise fighting features.

Robust Design and Ease of Monitoring - Design

Monitor link health effortlessly with the Mimosa Management Platform, which provides instant assessments and problem identification. The ultra-rugged, carrier-grade IP67 design ensures the B6x withstands the harshest environmental conditions.

Going the Distance - Link Planning

The Mimosa Design Tool streamlines planning and validating PTP and PTMP deployments with a few clicks on a map. This intuitive tool simplifies connectivity evaluation by using visual aids like terrain elevation to estimate performance and reliability, automatically accounting for factors such as weather and tree clutter.

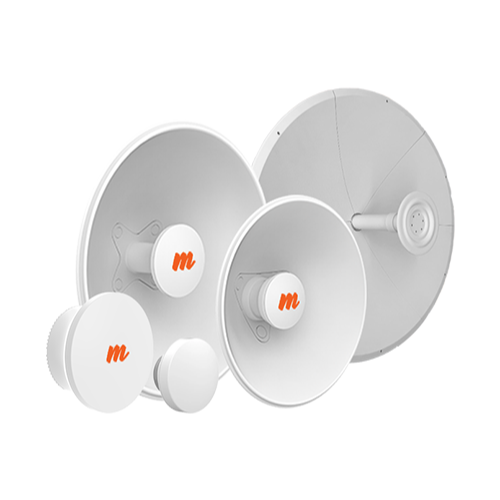

Flexible Antenna Options - Twist-on Antennas

The Mimosa's X-Series of products are the industry’s most versatile, modular, radio solutions with six gain options (8, 12, 16, 20, 25, or 30 dBi). The ultra-rugged solution provides extended frequency operation from 4.9–6.4 GHz, with best-in-class noise immunity.

• Dimensions :- 290 mm h x 167 mm w x 89 mm d 1.7 kg (3.7lbs)
• Max Power Output :- 24 dBm
• Gain :- 8 dBi (native) 12–30 dBi (with antennas)
• IP Rating :- IP67
