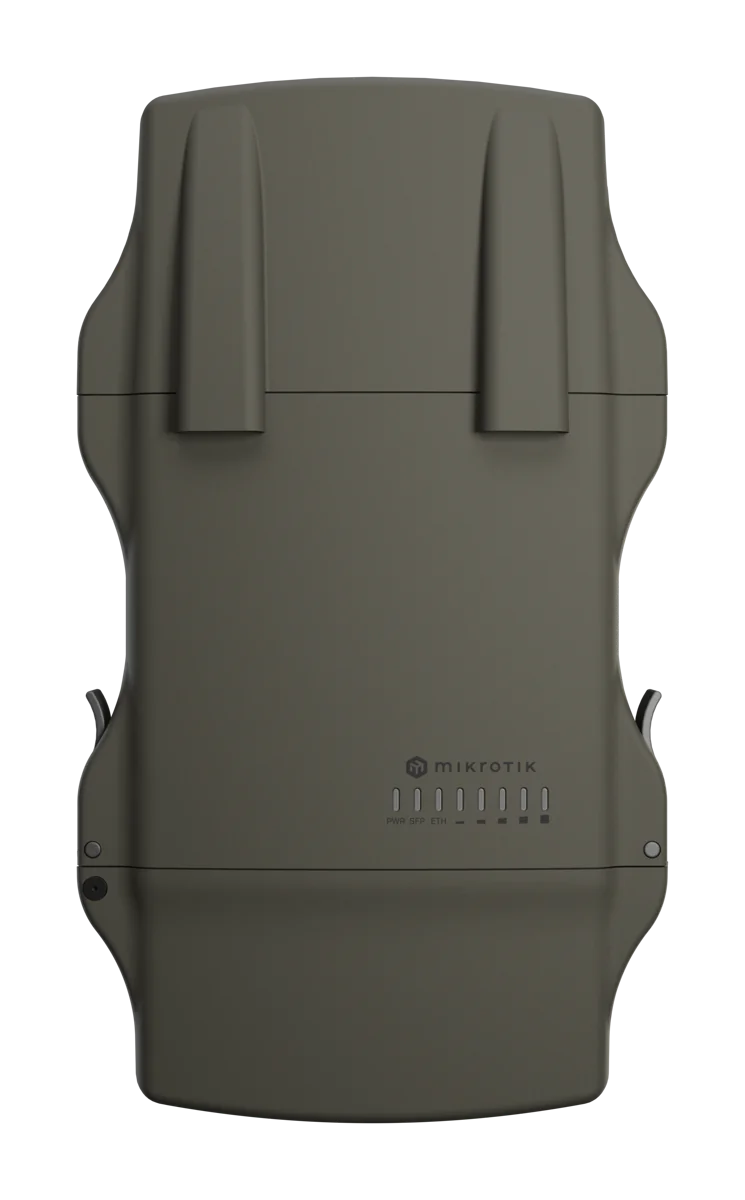

NetMetal ax (L23UGSR-5HaxD2HaxD-NM)

NetMetal ax (L23UGSR-5HaxD2HaxD-NM)

The Mars rover of networking. Our toughest long-range outdoor access point – now with Wi-Fi 6!

Product Specifications:

  • ✔️ WiFi 6
  • ✔️ Dual-band
  • ✔️ SFP/SFP+
  • ✔️ POE

🔒 100% Secure & Encrypted Payments

⚡ Instant Service Activation

🚚 Fast & Reliable Delivery

💬 24/7 Expert Technical Support

✅ Trusted by Businesses Worldwide

🔄 Easy Returns

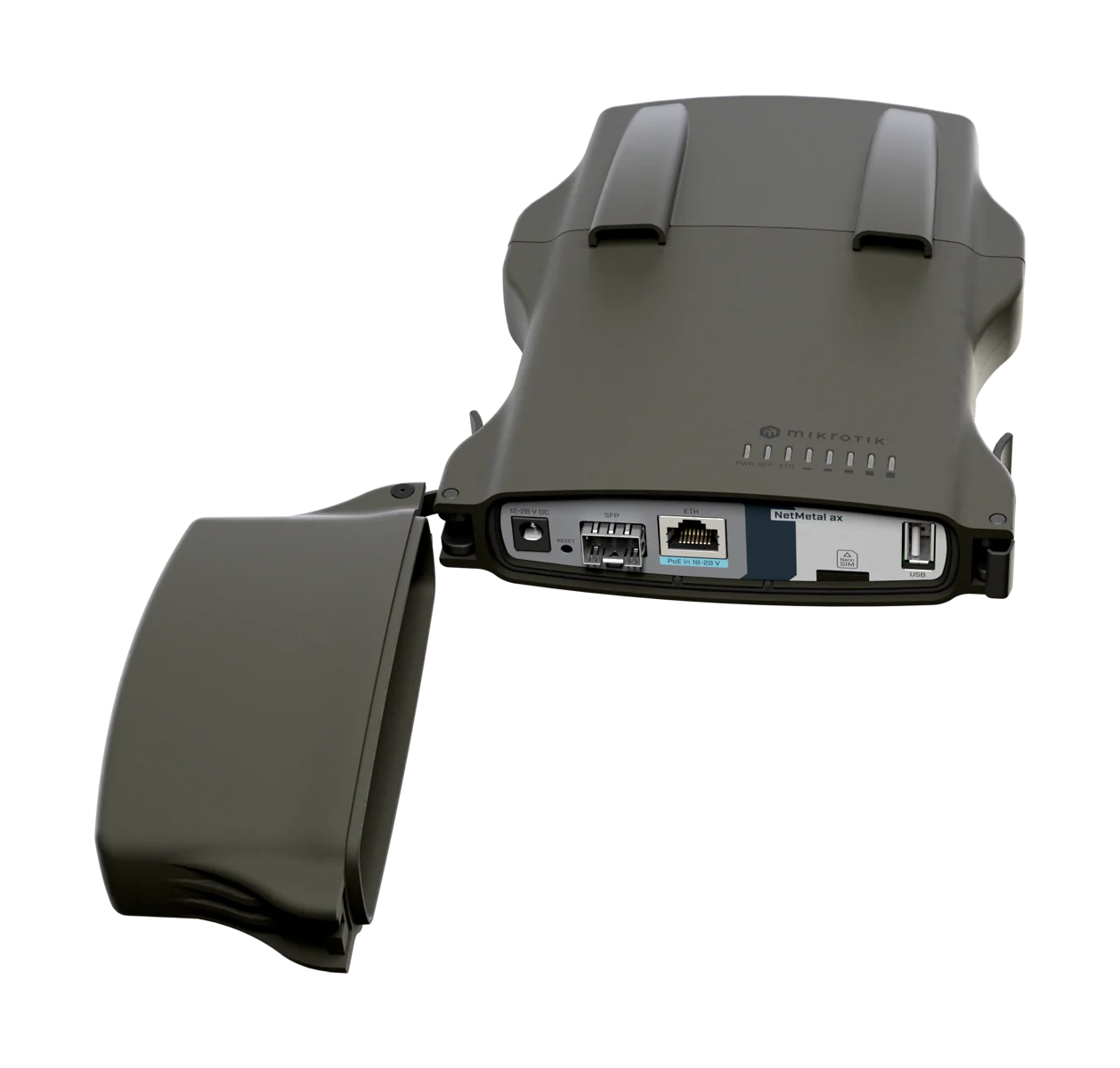

Meet one of your most versatile companions: the NetMetal ax – a powerful long-range outdoor access point that thrives in any environment. Designed for extra durability, it can be installed almost anywhere with ease – you can open and close the case with one hand. The rated IP66 protection will keep the device safe from dust and powerful water jets - in damp attics and elevator shafts, bustling docks, or coastal tower structures. No terrain is too rough for the NetMetal ax – the Mars rover of networking!

It features a modern dual-core ARM CPU, Gigabit Ethernet and 2.5 Gigabit SFP for fiber connectivity, a USB port, and a free miniPCIe slot that allows further customization. You could, for example, add an LTE modem for a mobile internet backup – we’ve added a NanoSIM slot on the NetMetal! But there are other options, like adding a gateway for LoRa IoT setups, such as our R11e-LR8!

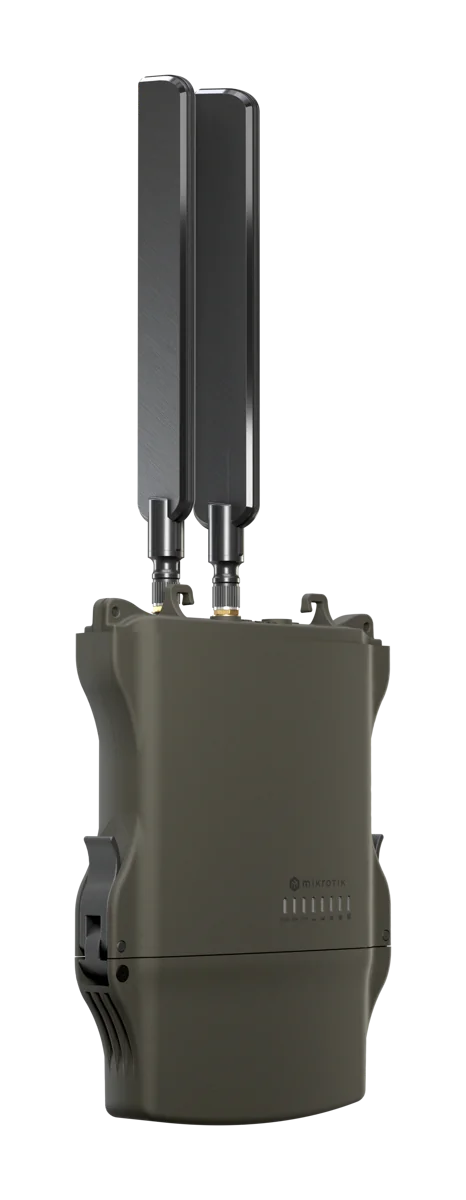

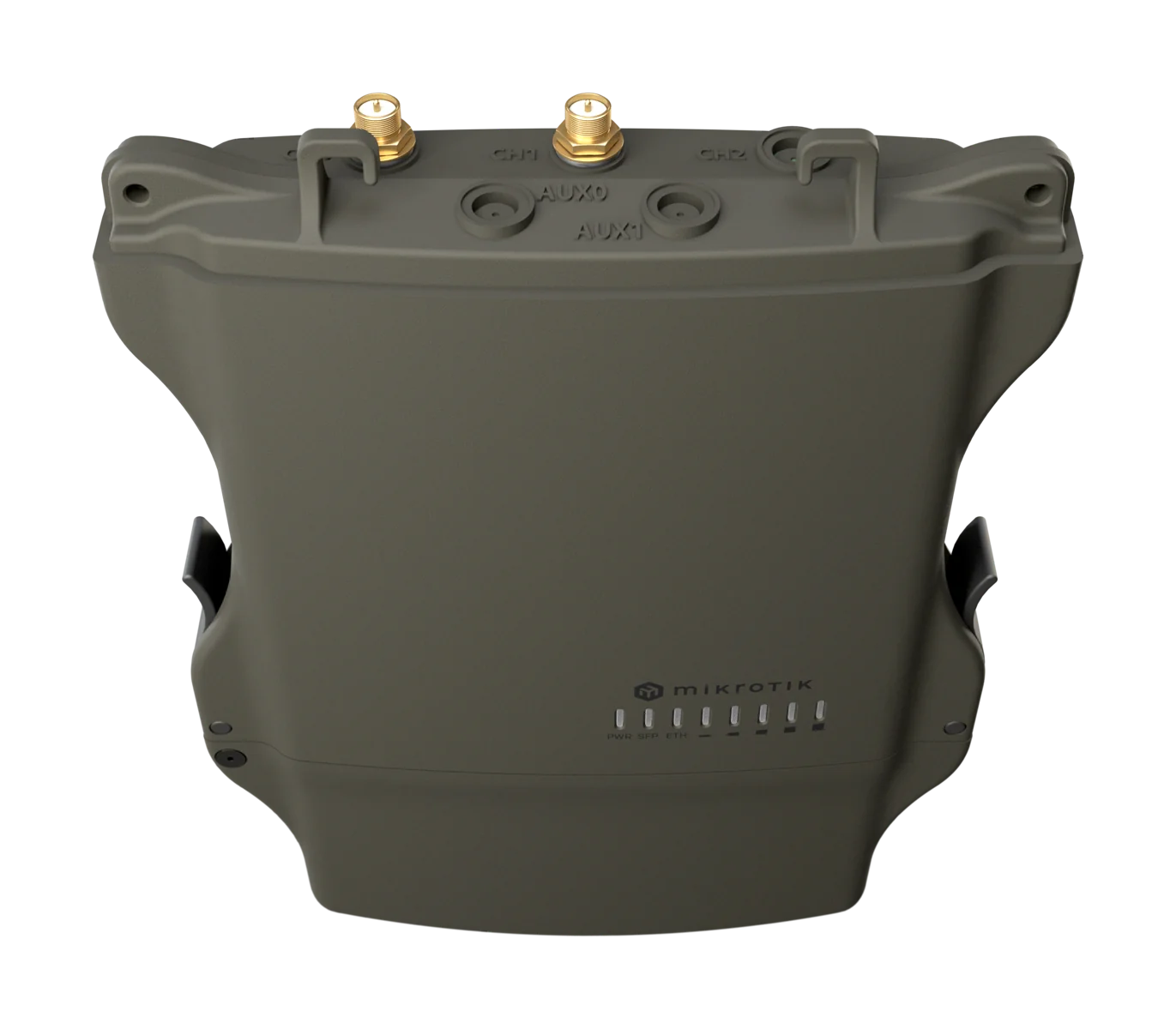

A powerful dual-band, dual-chain Wi-Fi 6 radio offers increased speed, stability, security, roaming, power management, and other features, compared to the previous wireless protocols. Two RP-SMA female connectors allow adding an antenna of your choice for distances up to 30 kilometers.*. If necessary, you can adapt the NetMetal ax for lower range use with such antennas as our HGO-antenna-OUT screw-on omni antenna unit. It provides 3.3 dBi gain for the 2.4 GHz band and 5.5-7.1 dBi gain for the 5 GHz band. If you’ve read this far, here’s a little bonus feature: we’ve kept the good old beeper for various alarms or creative outputs.

Specification
  • Product code: L23UGSR-5HaxD2HaxD-NM
  • Architecture: ARM 32bit
  • CPU: IPQ-5010

  • CPU core count: 2
  • CPU nominal frequency: 800 MHz
  • CPU Threads count: 2
  • RouterOS license: 4

  • Operating System: RouterOS v7
  • Size of RAM: 256 MB
  • Storage size: 128 MB
  • Storage type: NAND

  • MTBF: Approximately 200'000 hours at 25°C
  • Tested ambient temperature: -40°C to 70°C

Q: Is setup instant?
A: Yes.
