wAP ax LTE7 kit

wAP ax LTE7 kit
Thumbnail Thumbnail Thumbnail
New

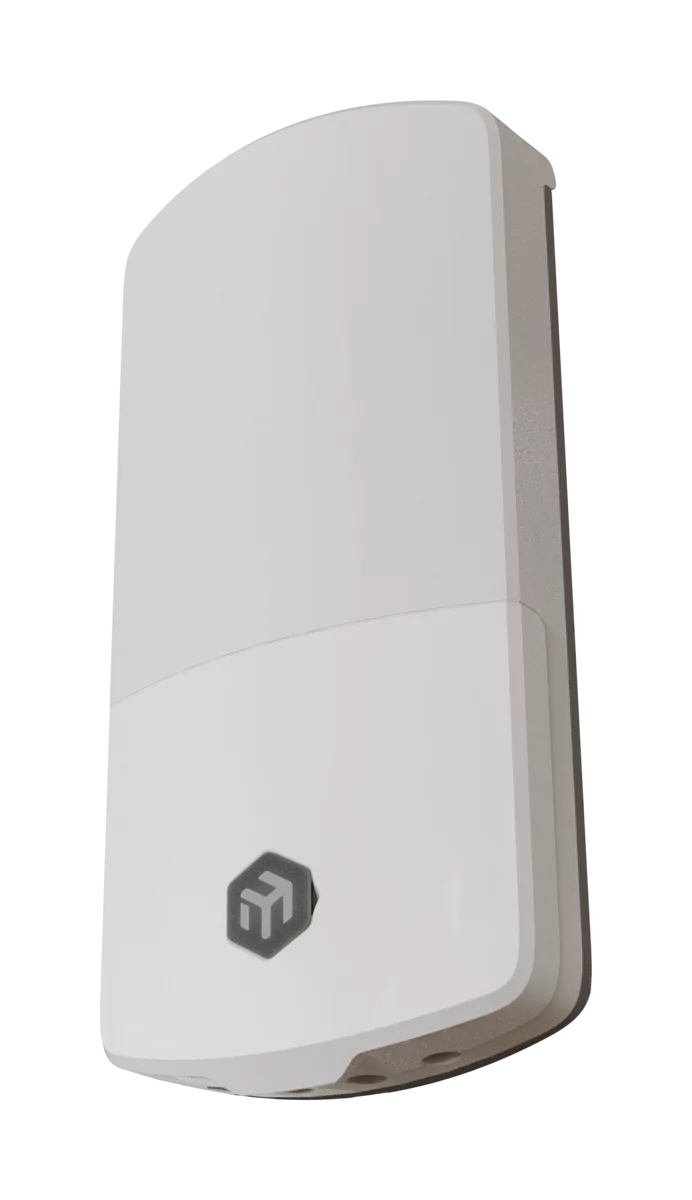

wAP ax LTE7 kit

The new wAP LTE7 kit is an evolution of the popular wAP ac LTE6. Now – with Wi-Fi 6, CAT7 LTE, a stronger ARM platform, and improved antenna gain. The unit comes in our improved next-gen IP66 weatherproof enclosure.

Download Datasheet

🔒 100% Secure & Encrypted Payments

⚡ Instant Service Activation

🚚 Fast & Reliable Delivery

💬 24/7 Expert Technical Support

✅ Trusted by Businesses Worldwide

🔄 Easy Returns

  • Product Code: wAPGR-5HaxD2HaxD&R11e-LTE7
  • Architecture: ARM 32bit
  • CPU: IPQ-5010
  • CPU Core Count: 2
  • CPU Nominal Frequency: 800 MHz
  • CPU Threads Count: 2
  • RouterOS License: Level 4
  • Operating System: RouterOS v7
  • RAM: 256 MB
  • Storage Size: 128 MB
  • Storage Type: NAND
  • MTBF: Approximately 200,000 hours at 25°C
  • Tested Ambient Temperature: -30°C to 70°C
  • Number of DC Inputs: 2 (DC Jack, PoE-IN)
  • DC Jack Input Voltage: 12–57 V
  • Maximum Power Consumption: 13 W
  • PoE In: 802.3af/at
  • PoE In Input Voltage: 18–57 V
  • Cooling Type: Passive
  • 3G Category: R8 (DL: 42.2 Mbps; UL: 5.76 Mbps)
  • 3G Bands: 1 (2100 MHz), 3 (1800 MHz), 5 (850 MHz), 8 (900 MHz)
  • LTE Category: 7 (DL: 300 Mbps; UL: 100 Mbps)
  • MIMO DL: 2×2
  • MIMO UL: 1×1
  • LTE FDD Bands: 1 (2100 MHz), 3 (1800 MHz), 5 (850 MHz), 7 (2600 MHz), 8 (900 MHz), 20 (800 MHz), 28 (700 MHz), 32 (1500 MHz)
  • LTE TDD Bands: 38 (2600 MHz), 40 (2300 MHz), 41 (2500 MHz)
  • TAC: 35312597
  • Wireless 2.4 GHz Max Data Rate: 574 Mbit/s
  • Wireless 2.4 GHz Number of Chains: 2
  • Wireless 2.4 GHz Standards: 802.11b/g/n/ax
  • 2.4 GHz Antenna Gain: 6.9 dBi
  • Wireless 2.4 GHz Chip Model: IPQ-5010
  • Wireless 2.4 GHz Generation: Wi-Fi 6
  • Wireless 5 GHz Max Data Rate: 1200 Mbit/s
  • Wireless 5 GHz Number of Chains: 2
  • Wireless 5 GHz Standards: 802.11a/n/ac/ax
  • 5 GHz Antenna Gain: 7 dBi
  • Wireless 5 GHz Chip Model: QCN-6102
  • Wireless 5 GHz Generation: Wi-Fi 6
  • 10/100/1000 Ethernet Ports: 2
  • SIM Slots: 1 Modem (Micro SIM)
  • MiniPCI-e Slots: 1
  • CPU Temperature Monitor: Yes
  • PCB Temperature Monitor: Yes
  • Voltage Monitor: Yes
  • Certification: CE, EAC, RoHS
  • IP Rating: IP66
