SXTsq Embedded LTE4

SXTsq Embedded LTE4
Thumbnail Thumbnail Thumbnail
New

SXTsq Embedded LTE4

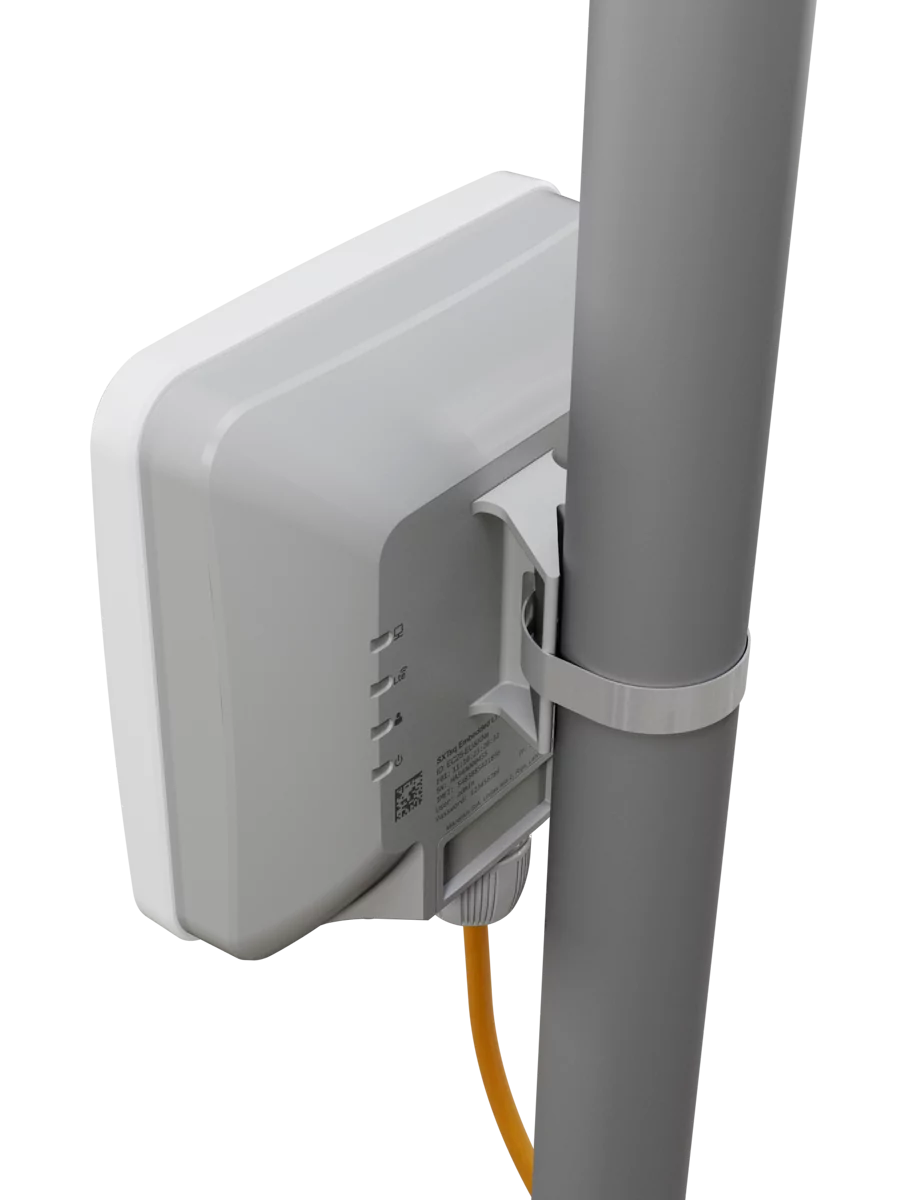

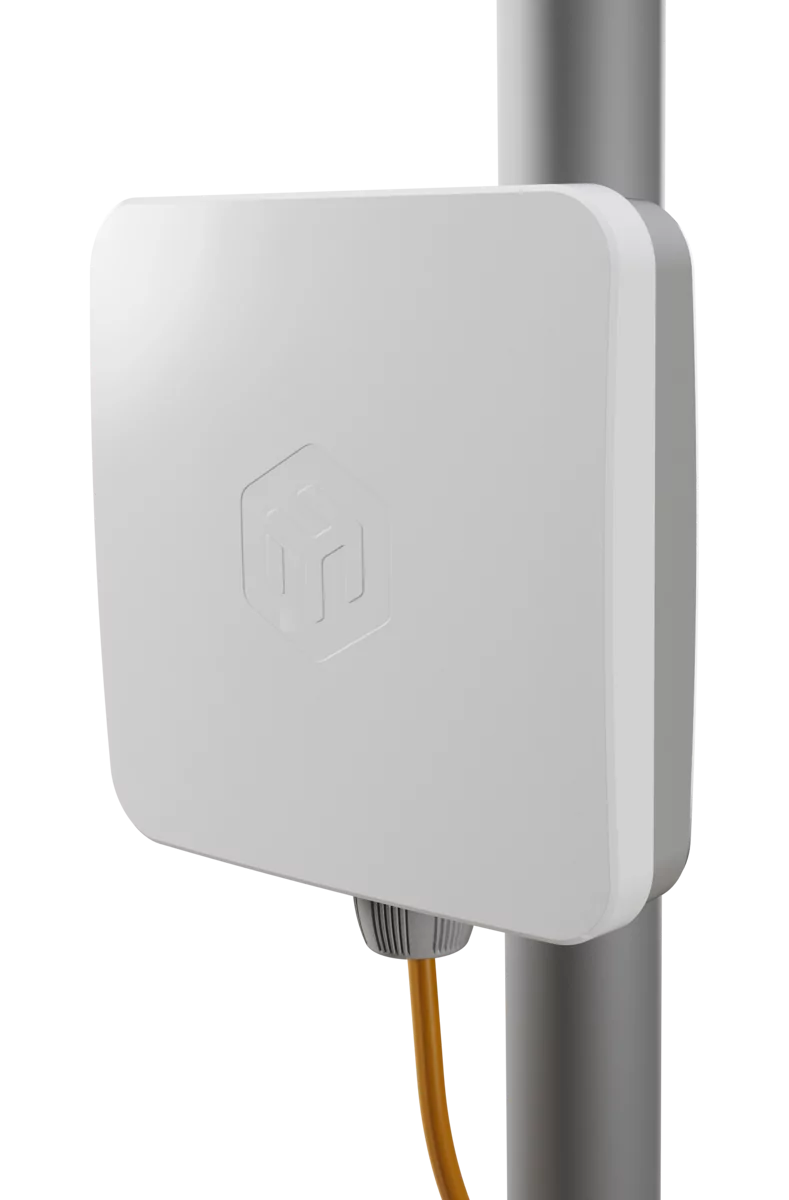

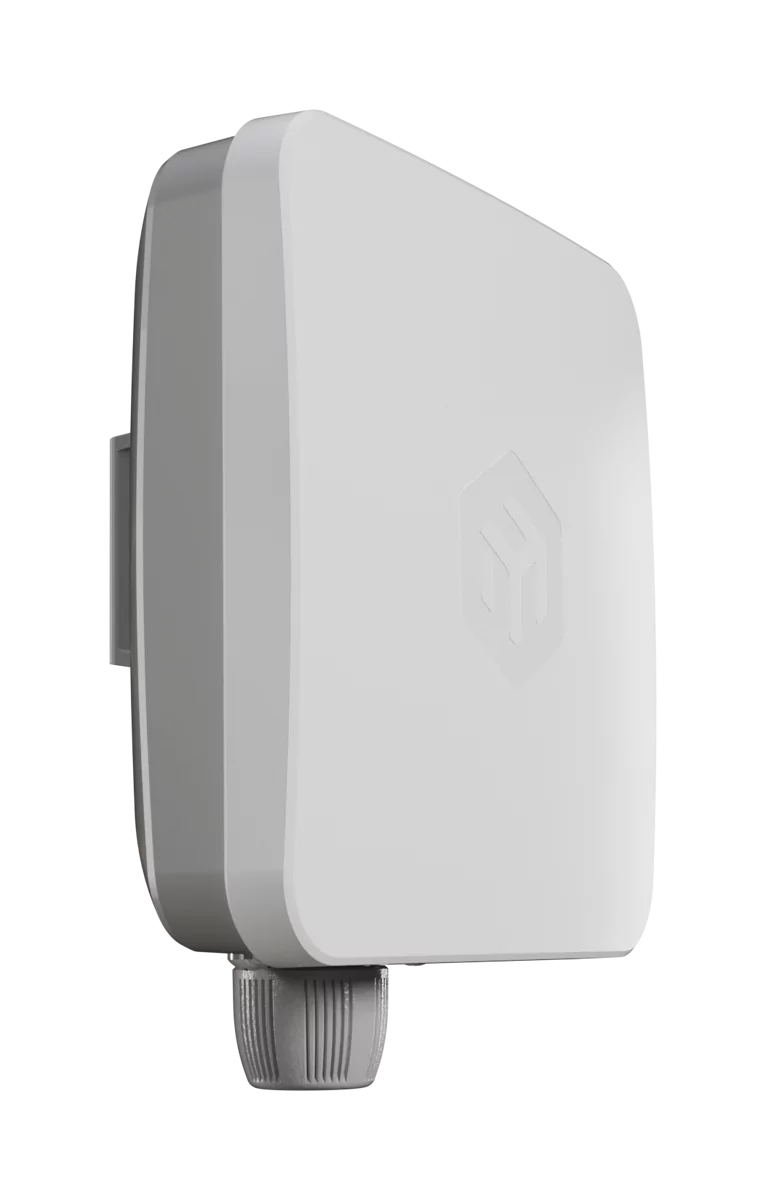

A cost-effective outdoor LTE device with an integrated 2×2 MIMO directional antenna, Cat4 LTE modem and RouterOS v7, designed for reliable remote connectivity. Available in EU (EC25-EU) and Global (EG25-G) versions with eSIM support, PoE-in, and a rugged IP-rated SXTsq outdoor enclosure, it delivers stable LTE connectivity with only 5 W max power consumption. This is the regular or EU version.

Download Datasheet

🔒 100% Secure & Encrypted Payments

⚡ Instant Service Activation

🚚 Fast & Reliable Delivery

💬 24/7 Expert Technical Support

✅ Trusted by Businesses Worldwide

🔄 Easy Returns

  • Product Code: EC25-EU&SXTsq
  • Architecture: ARM 32bit
  • CPU: Cortex A7
  • CPU Core Count: 1
  • CPU Nominal Frequency: 800 MHz
  • RouterOS License: Level 3
  • Operating System: RouterOS v7
  • RAM: 256 MB
  • Storage Size: 512 MB
  • Storage Type: NAND
  • MTBF: Approximately 100,000 hours at 25°C
  • Tested Ambient Temperature: -40°C to 70°C
  • Number of DC Inputs: 1 (PoE-IN)
  • Maximum Power Consumption: 5 W
  • PoE In: Passive
  • PoE In Input Voltage: 12–28 V
  • Cooling Type: Passive
  • 2G Category: Class 33
  • 2G Bands: 3 (1800 MHz), 8 (900 MHz)
  • 3G Category: R8 (42.2 Mbps Downlink, 5.76 Mbps Uplink)
  • 3G Bands: 1 (2100 MHz), 8 (900 MHz)
  • LTE Category: 4 (150 Mbps Downlink, 50 Mbps Uplink)
  • MIMO DL: 2×2
  • LTE FDD Bands: 1 (2100 MHz), 3 (1800 MHz), 7 (2600 MHz), 8 (900 MHz), 20 (800 MHz), 28A (700 MHz)
  • LTE TDD Bands: 38 (2600 MHz), 40 (2300 MHz), 41 (2500 MHz)
  • TAC: 86554604
  • 10/100/1000 Ethernet Ports: 1
  • SIM Slots: 2 Modem (Nano SIM)
  • CPU Temperature Monitor: Yes
  • eSIM: Yes
  • Certification: CE, EAC, RoHS
  • IP Rating: IP67
