LHGG LTE7 kit

LHGG LTE7 kit
Thumbnail Thumbnail Thumbnail Thumbnail
New

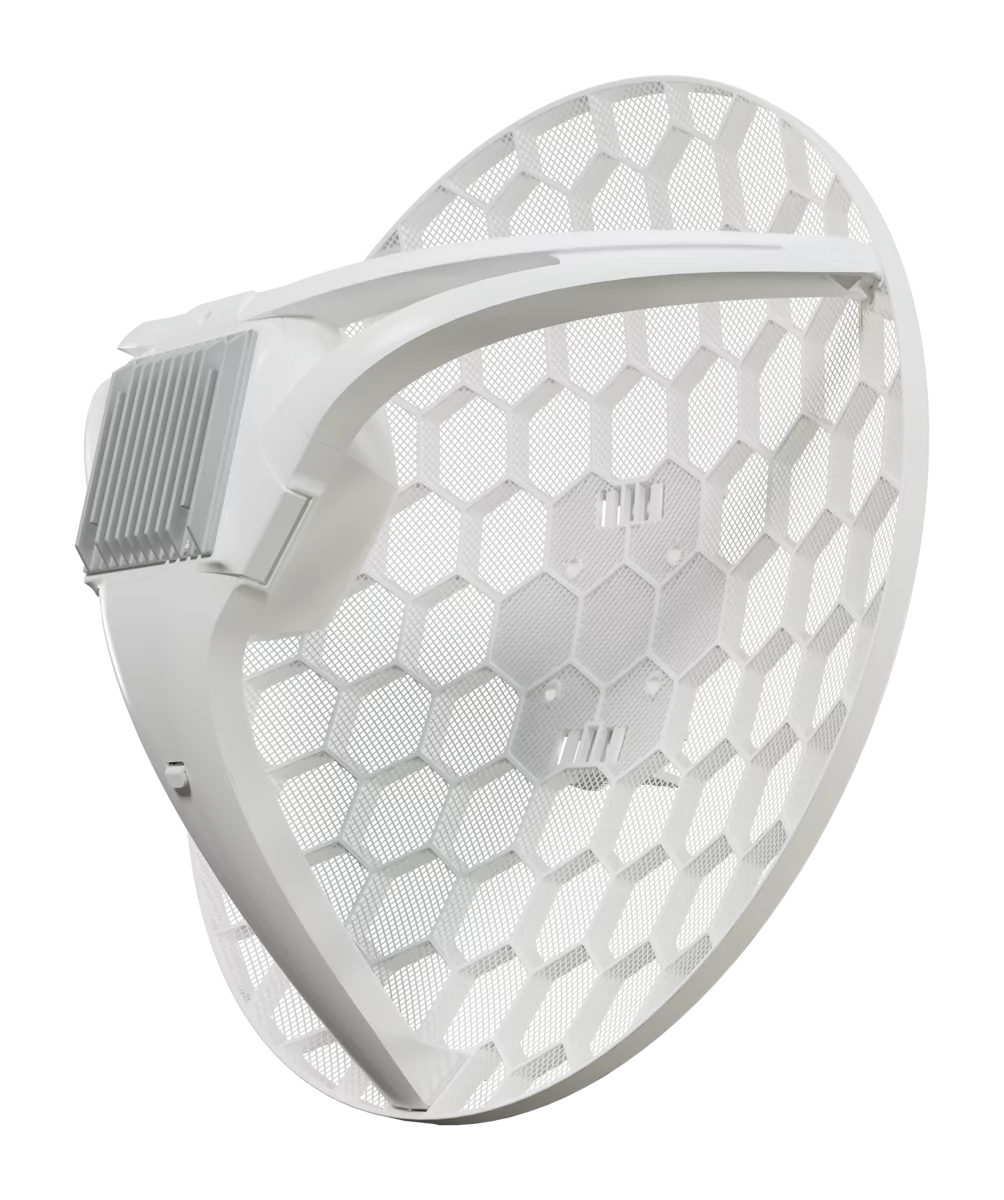

LHGG LTE7 kit

The new LHGG LTE7 kit upgrades the popular LTE6 model with a CAT7 modem and doubled upload speed, while keeping the proven 17 dBi long-range antenna and rugged grid design – now at a significantly better price.

Download Datasheet

🔒 100% Secure & Encrypted Payments

⚡ Instant Service Activation

🚚 Fast & Reliable Delivery

💬 24/7 Expert Technical Support

✅ Trusted by Businesses Worldwide

🔄 Easy Returns

  • Product Code: LHGGR&R11e-LTE7
  • Architecture: ARM 64bit
  • CPU: 88F3720
  • CPU Core Count: 2
  • CPU Nominal Frequency: 800 MHz
  • CPU Threads Count: 2
  • RouterOS License: Level 3
  • Operating System: RouterOS v7
  • RAM: 256 MB
  • Storage Size: 16 MB
  • Storage Type: FLASH
  • MTBF: Approximately 200,000 hours at 25°C
  • Tested Ambient Temperature: -40°C to 70°C
  • Number of DC Inputs: 1 (PoE-IN)
  • Maximum Power Consumption: 8 W
  • Maximum Power Consumption (Without Attachments): 8 W
  • PoE In: 802.3af/at
  • PoE In Input Voltage: 12–57 V
  • Cooling Type: Passive
  • 3G Category: R8 (DL: 42.2 Mbps; UL: 5.76 Mbps)
  • 3G Bands: 1 (2100 MHz), 3 (1800 MHz), 5 (850 MHz), 8 (900 MHz)
  • LTE Category: 7 (DL: 300 Mbps; UL: 100 Mbps)
  • MIMO DL: 2×2
  • MIMO UL: 1×1
  • LTE FDD Bands: 1 (2100 MHz), 3 (1800 MHz), 5 (850 MHz), 7 (2600 MHz), 8 (900 MHz), 20 (800 MHz), 28 (700 MHz)
  • LTE TDD Bands: 38 (2600 MHz), 40 (2300 MHz), 41 (2500 MHz)
  • TAC: 35312597
  • 10/100/1000 Ethernet Ports: 1
  • SIM Slots: 1 Modem (Micro SIM)
  • MiniPCI-e Slots: 1
  • Mode Button: Yes
  • Certification: CE, EAC, RoHS
  • IP Rating: IP54
Q: Is setup instant?
A: Yes.
