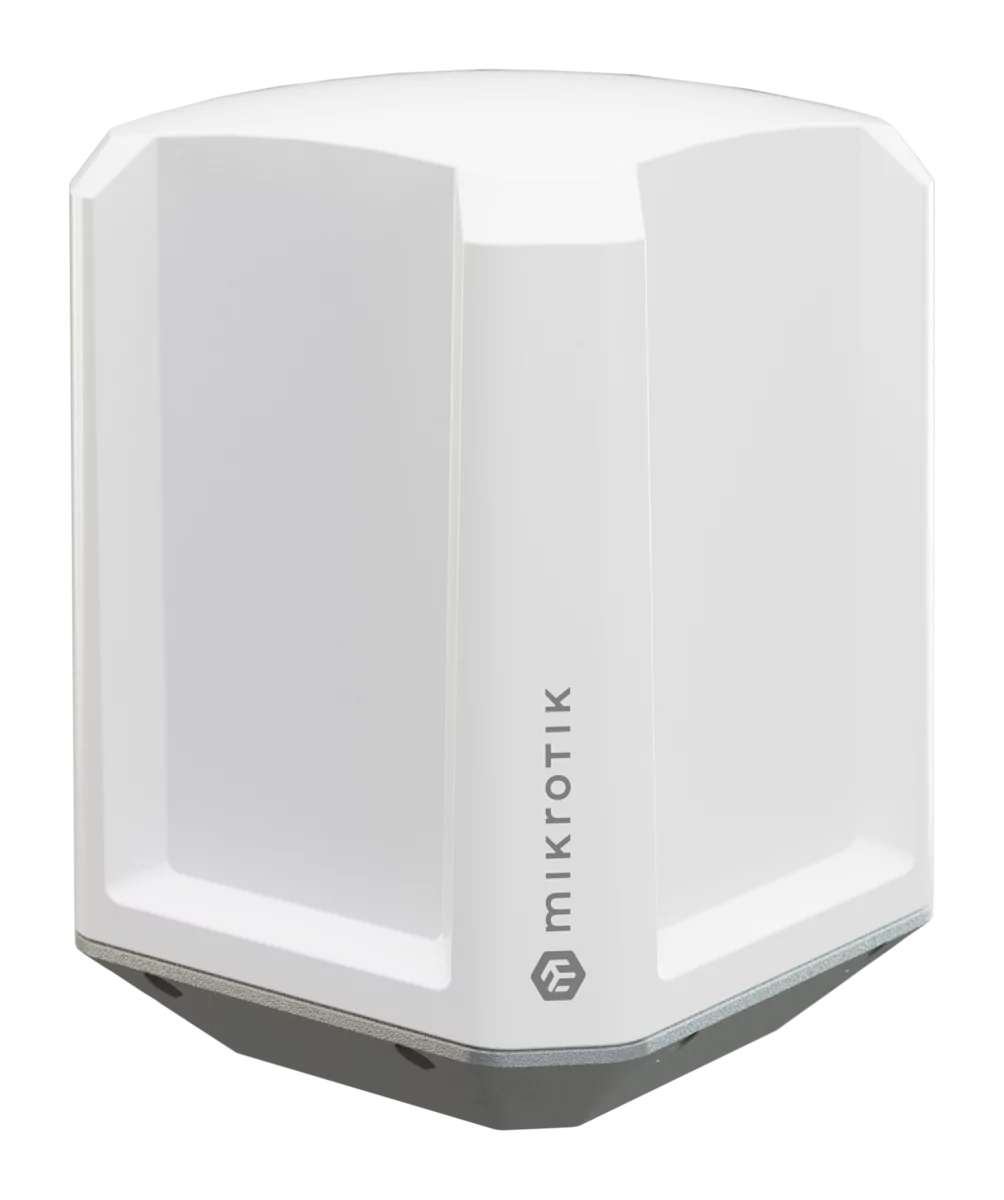

LAMP 5G R16

A rugged outdoor 5G device that uses omnidirectional antennas and built-in eSIM support to automatically connect to the best available tower – no antenna alignment or physical SIM swaps required. IP67, maritime durability, GNSS, PoE-in.

Download Datasheet

🔒 100% Secure & Encrypted Payments

⚡ Instant Service Activation

🚚 Fast & Reliable Delivery

💬 24/7 Expert Technical Support

✅ Trusted by Businesses Worldwide

🔄 Easy Returns

  • Product Code: LAMPGM&RG520F-EU
  • Suggested Price: $349.00
  • Architecture: ARM 64bit
  • CPU: 88F3720
  • CPU Core Count: 2
  • CPU Nominal Frequency: 800 MHz
  • CPU Threads Count: 2
  • RouterOS License: Level 3
  • Operating System: RouterOS v7
  • RAM: 512 MB
  • Storage Size: 32 MB
  • Storage Type: FLASH
  • MTBF: Approximately 200,000 hours at 25°C
  • Tested Ambient Temperature: -40°C to 70°C
  • Number of DC Inputs: 1 (PoE-IN)
  • Maximum Power Consumption: 10 W
  • Maximum Power Consumption (Without Attachments): 10 W
  • PoE In: 802.3af/at
  • PoE In Input Voltage: 12–56 V
  • Cooling Type: Passive
  • 3G Category: R8 (DL: 42.2 Mbps; UL: 5.76 Mbps)
  • 3G Bands: 1 (2100 MHz), 5 (850 MHz), 8 (900 MHz)
  • LTE Category: 20 (DL: 2.0 Gbps; UL: 200 Mbps)
  • MIMO DL: 4×4
  • MIMO UL: 2×2
  • LTE FDD Bands: 1 (2100 MHz), 3 (1800 MHz), 5 (850 MHz), 7 (2600 MHz), 8 (900 MHz), 20 (800 MHz), 28 (700 MHz), 32 (1500 MHz)
  • LTE TDD Bands: 38 (2600 MHz), 40 (2300 MHz), 41 (2500 MHz), 42 (3500 MHz), 43 (3700 MHz)
  • 5G NSA FDD Bands: 1 (2100 MHz), 3 (1800 MHz), 5 (850 MHz), 7 (2600 MHz), 8 (900 MHz), 20 (800 MHz), 28 (700 MHz)
  • 5G NSA TDD Bands: 38 (2600 MHz), 40 (2300 MHz), 41 (2500 MHz), 75 (1500 MHz), 76 (1500 MHz), 77 (3700 MHz), 78 (3500 MHz)
  • 5G SA FDD Bands: 1 (2100 MHz), 3 (1800 MHz), 5 (850 MHz), 7 (2600 MHz), 8 (900 MHz), 20 (800 MHz), 28 (700 MHz)
  • 5G SA TDD Bands: 38 (2600 MHz), 40 (2300 MHz), 41 (2500 MHz), 75 (1500 MHz), 76 (1500 MHz), 77 (3700 MHz), 78 (3500 MHz)
  • TAC: 86945405
  • 10/100/1000 Ethernet Ports: 1
  • 1G Ethernet Port with Reverse PoE (PoE-In): 1
  • SIM Slots: 1 Modem (Micro SIM)
  • M.2 Slots: 1
  • eSIM: Yes
  • Certification: CE, EAC, RoHS
  • IP Rating: IP67
Q: Is setup instant?
A: Yes.
