hAP be³ Media

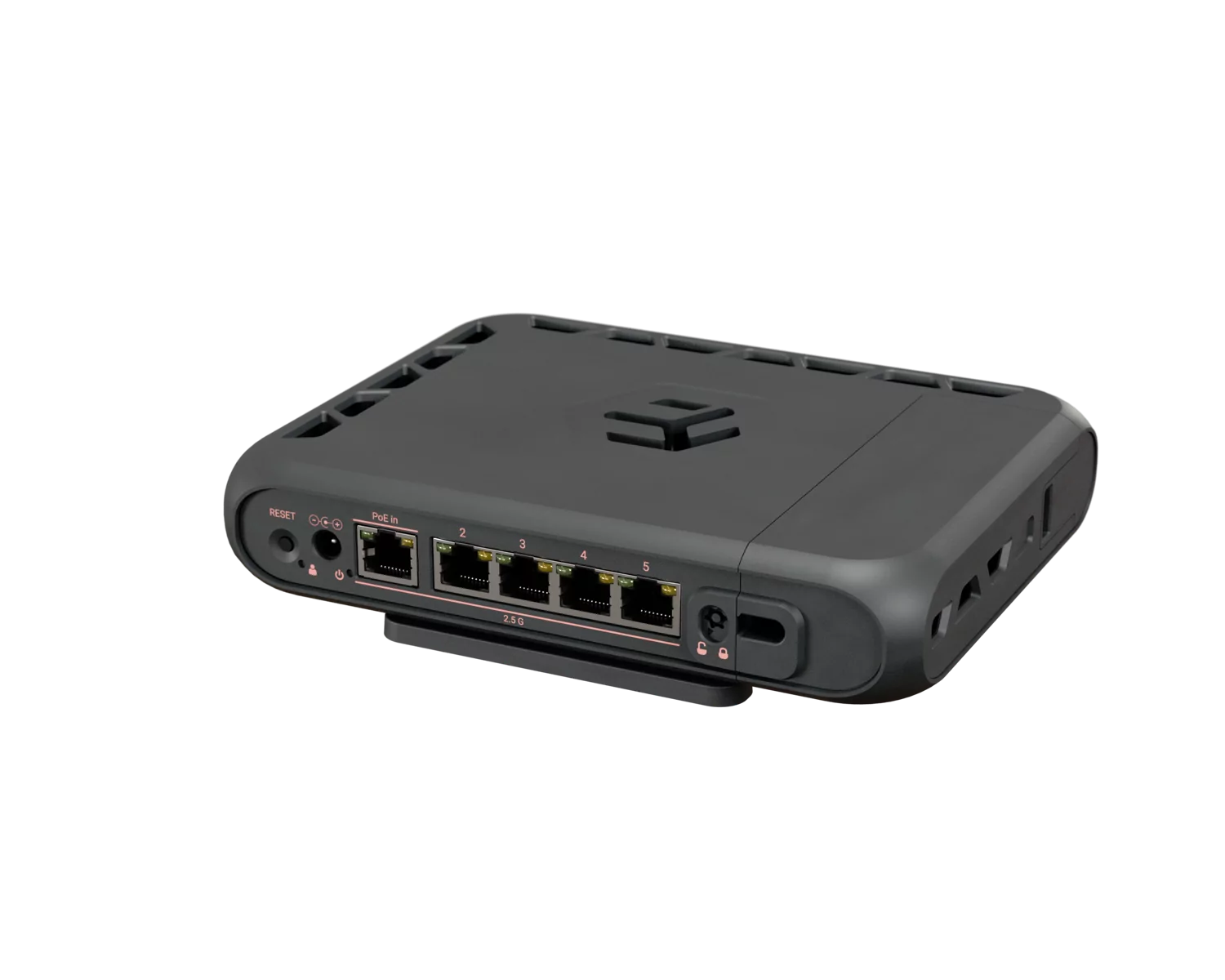

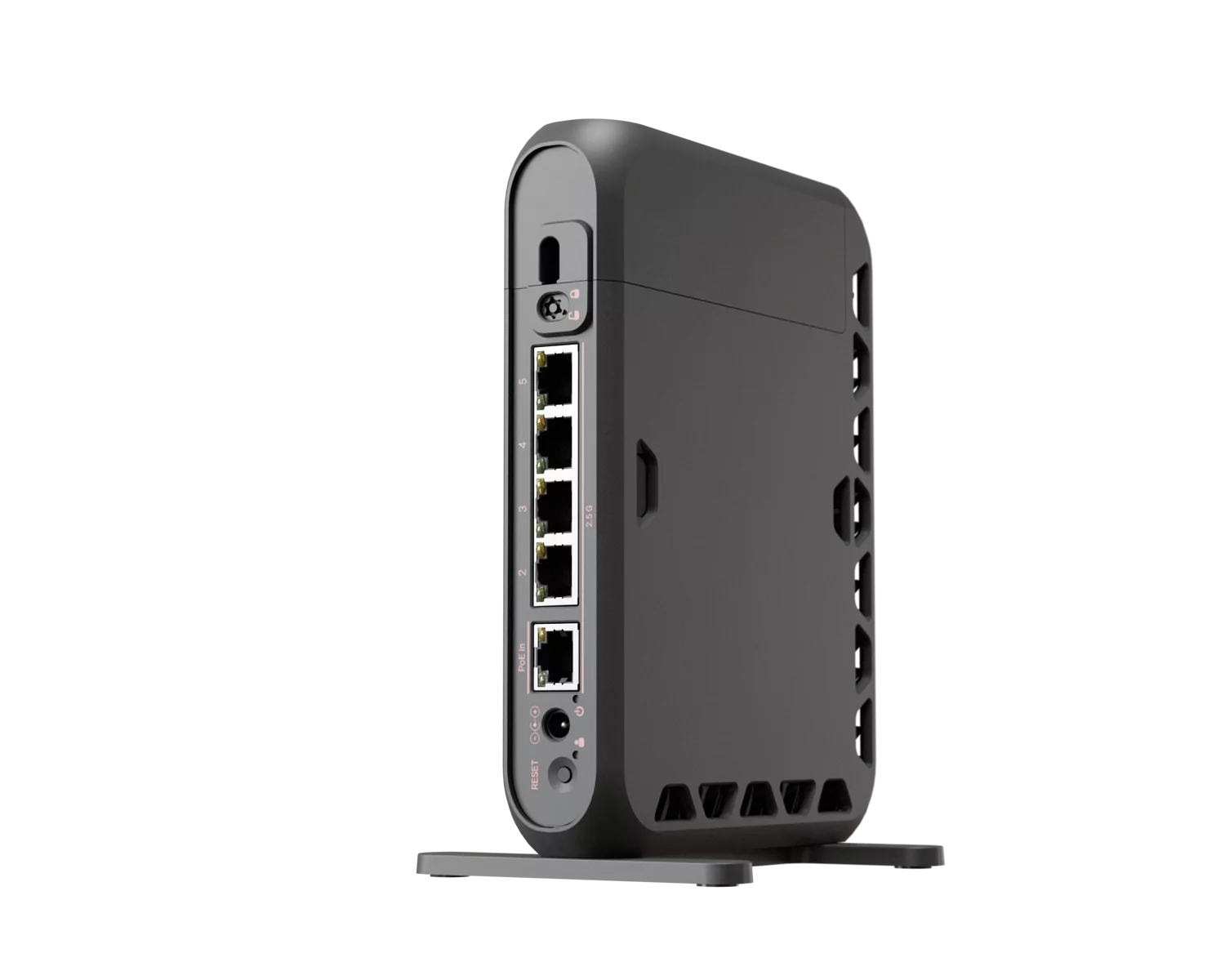

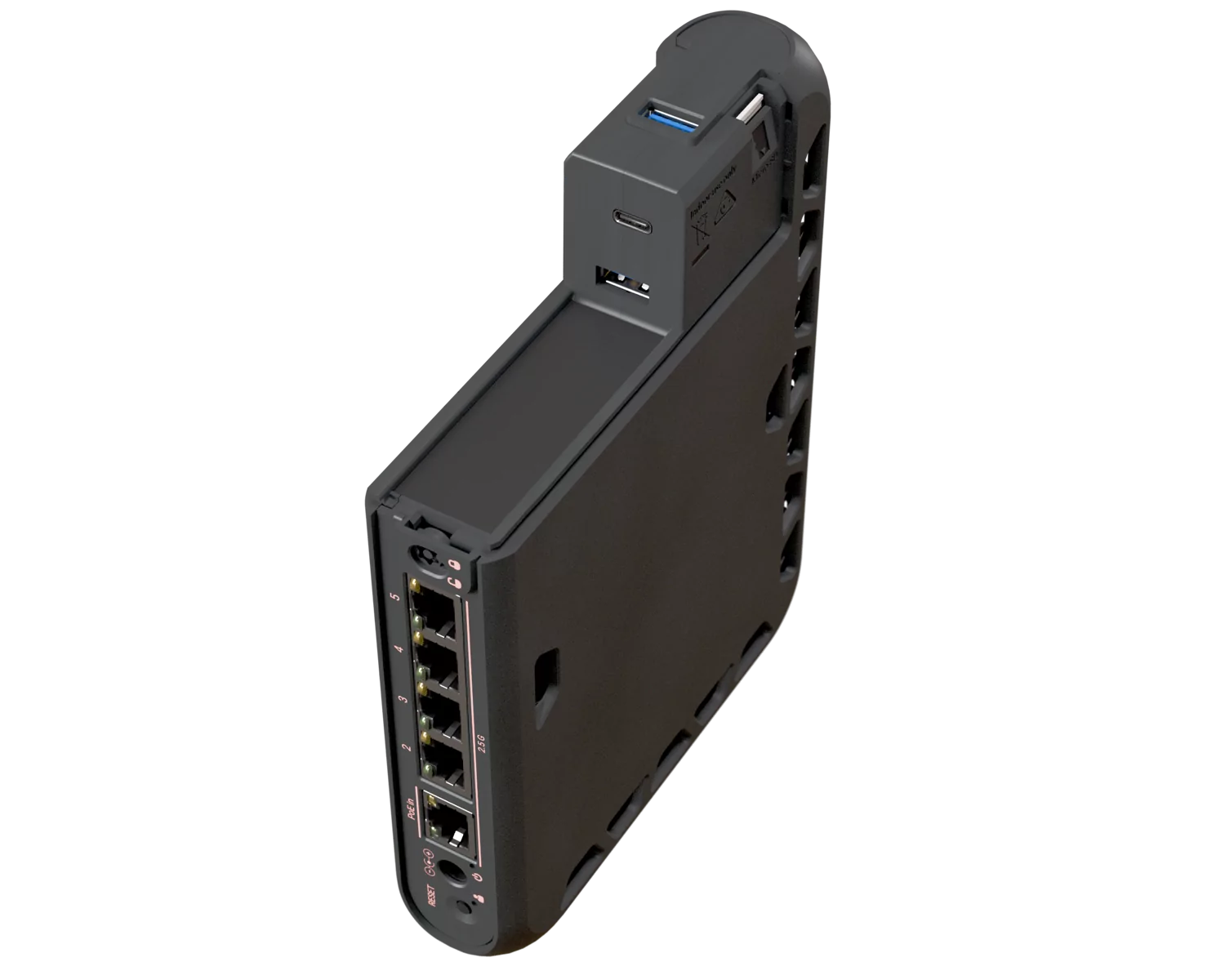

hAP be³ Media – the professional all-in-one platform for routing, services, containers, and modern network workloads. This is a powerful Wi-Fi 7 hybrid router and media hub combining triple-band wireless, five 2.5G Ethernet ports, built-in Matter/Thread smart automation/IoT support, and a quad-core ARM CPU for containers, storage, and advanced networking. Coming soon!

Download Datasheet

🔒 100% Secure & Encrypted Payments

⚡ Instant Service Activation

🚚 Fast & Reliable Delivery

💬 24/7 Expert Technical Support

✅ Trusted by Businesses Worldwide

🔄 Easy Returns

  • Product Code: MA53UG+HbeH
  • Architecture: ARM 64bit
  • CPU: IPQ-5322
  • CPU Core Count: 4
  • CPU Nominal Frequency: Up to 1.5 GHz (Auto)
  • CPU Threads Count: 4
  • Switch Chip Model: QCA8386
  • RouterOS License: Level 6
  • Operating System: RouterOS v7
  • RAM: 2 GB
  • Storage Size: 512 MB
  • Storage Type: NAND
  • MTBF: Approximately 200,000 hours at 25°C
  • Tested Ambient Temperature: -30°C to 50°C
  • Wireless 2.4 GHz Max Data Rate: 688 Mbit/s
  • Wireless 2.4 GHz Number of Chains: 2
  • Wireless 2.4 GHz Standards: 802.11b/g/n/ax/be
  • 2.4 GHz Antenna Gain: 4 dBi
  • Wireless 2.4 GHz Chip Model: IPQ-5322
  • Wireless 2.4 GHz Generation: Wi-Fi 7
  • Wireless 5 GHz Max Data Rate: 2882 Mbit/s
  • Wireless 5 GHz Number of Chains: 2
  • Wireless 5 GHz Standards: 802.11a/n/ac/ax/be
  • 5 GHz Antenna Gain: 7.5 dBi
  • Wireless 5 GHz Chip Model: QCM-8083
  • Wireless 5 GHz Generation: Wi-Fi 7
  • WiFi Speed: BE9300
  • Wireless 6 GHz Max Data Rate: 5764 Mbit/s
  • Wireless 6 GHz Number of Chains: 2
  • Wireless 6 GHz Standards: 802.11ax/be
  • 6 GHz Antenna Gain: 8 dBi
  • Wireless 6 GHz Chip Model: QXM-8086
  • Wireless 6 GHz Generation: Wi-Fi 7
  • 2.5G Ethernet Ports: 5
  • USB Ports: 3
  • USB Slot Type: USB 3.0 Type-A
  • Maximum USB Current: 1.5 A
  • Number of DC Inputs: 2 (DC Jack, PoE-IN)
  • DC Jack Input Voltage: 24–57 V
  • Maximum Power Consumption: 29 W
  • Maximum Power Consumption (Without Attachments): 20 W
  • PoE In: 802.3af/at
  • PoE In Input Voltage: 24–57 V
  • Cooling Type: Passive
  • Certification: CE, FCC, IC, EAC, RoHS
  • IP Rating: IP20
  • CPU Temperature Monitor: Yes
  • Bluetooth Version: 5.4
Q: Is setup instant?
A: Yes.
