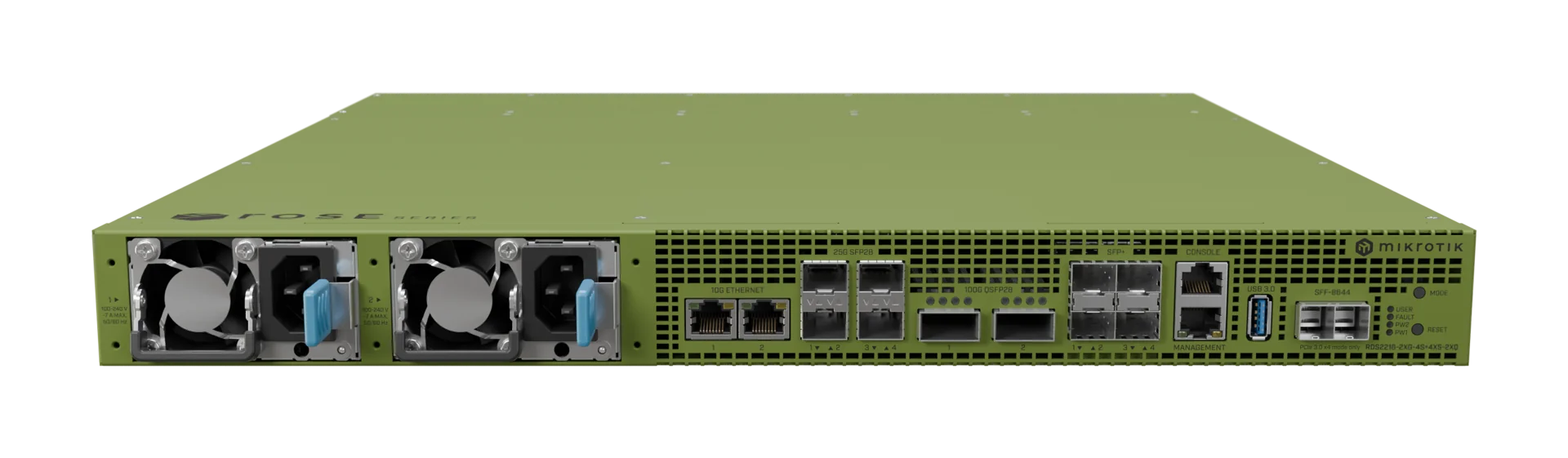

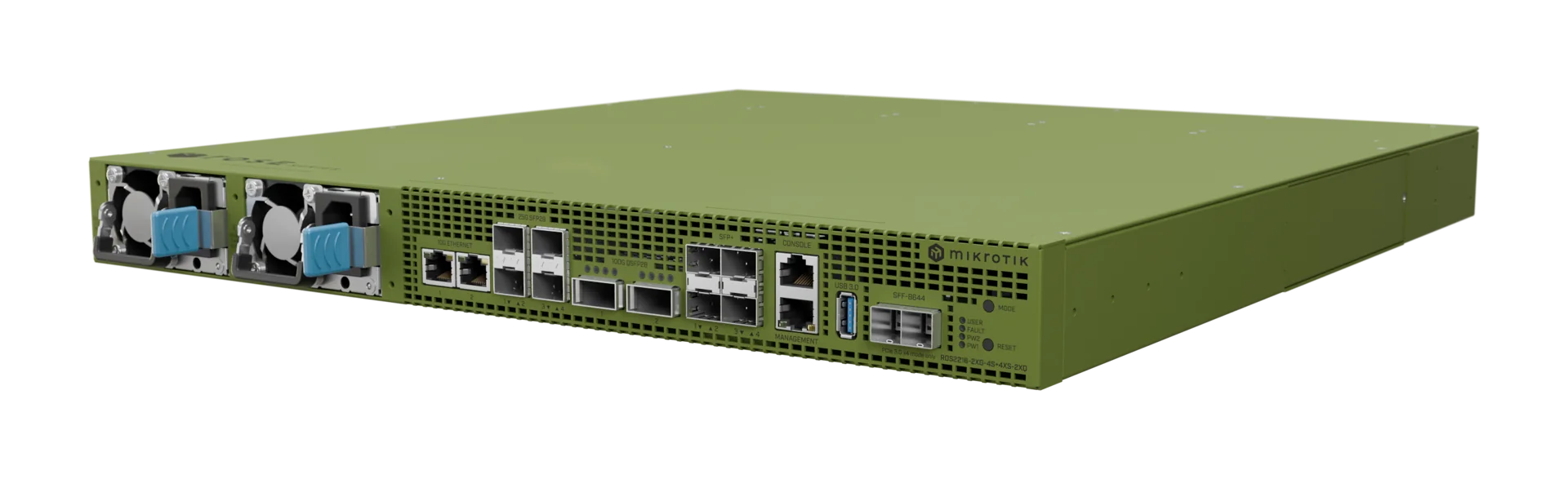

RDS is a high-performance, all-in-one storage, 100G networking, and container
platform designed for enterprise environments. Featuring 20 U.2 NVMe storage slots and a special RouterOS Edition for Storage & Compute (ROSE).

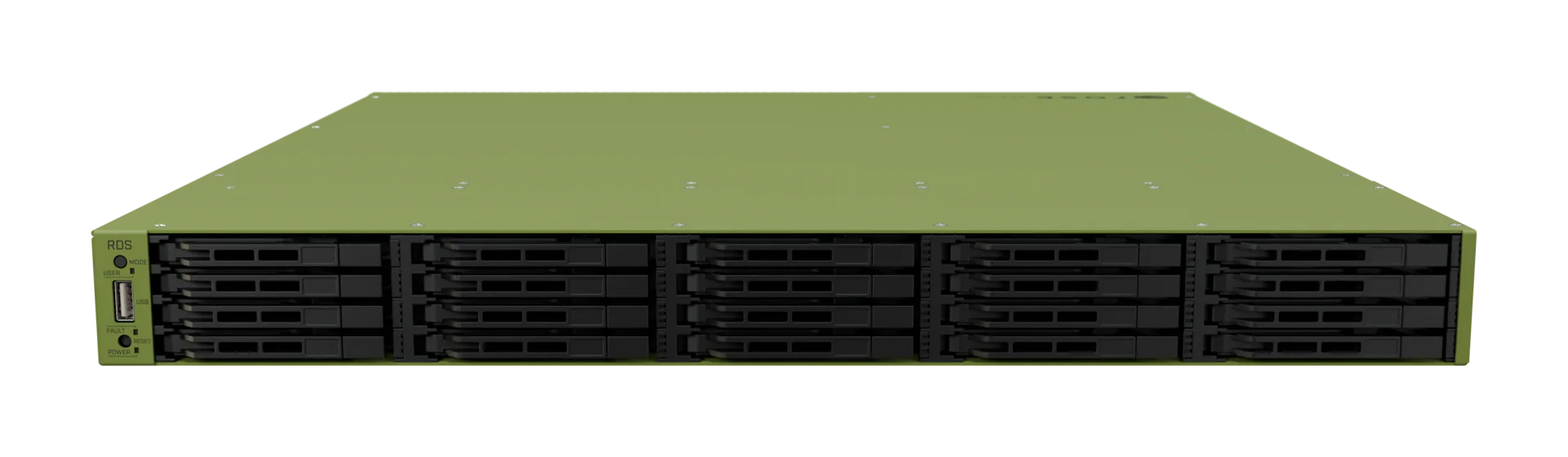

20 x U.2 NVMe's -Ultra-fast, high-density storage for demanding workloads.
100G high-speed networking -2× 100G QSFP28 ports, 4× 25G SFP28 ports, 4× 10G SFP+ ports, 2× 10G Ethernet ports, and an extra SFF-8644 interface for flexible connectivity.
16-core 2 GHz ARM CPU + 32GB DDR4 RAM -High-performance processing for networking, storage, and virtualization.
Massive energy savings -Cut power consumption and heat output while maintaining high performance – an ecofriendly solution for data-heavy environments.
Runs Router OS -The most flexible, modular networking OS. Supports advanced storage capabilities, including exporting block devices over NVMe-TCP, encryption layers, and modular storage configurations for scalable infrastructure. No subscriptions. No paywalls.
Container-ready -Run MinIO, Nextcloud, Shinobi, Frigate, and other OCI compliant containers with ease. We’ve added two USB ports for additional devices and further adaptability.
Includes dual hot-swappable power supplies -Ensuring uninterrupted operation and quick replacement without unnecessary downtime.
Physical
Dimensions: 476 × 443 × 44 mm
MTBF: Approximately 200,000 hours at 25°C
Tested Ambient Temperature: -20°C to 50°C
Hardware
Architecture: ARM 64bit
CPU: AL73400
CPU Core Count: 16
CPU Threads Count: 16
Certification & Approvals
Certification: CE, EAC, ROHS
IP Rating: IP20
Monitoring & Controls
CPU Temperature Monitor: Yes
PCB Temperature Monitor: Yes
Voltage Monitor: Yes
Mode Button: Yes
Networking – Fiber
SFP+ Ports: 4
25G SFP28 Ports: 4
100G QSFP28 Ports: 2
Specifications
Product Code: RDS2216-2XG-4S+4XS-2XQ
Memory & Storage
RAM Size: 32 GB
Storage Size: 128 MB
Storage Type: NAND
Software
Operating System: RouterOS v7 (Special ROSE edition)
