WiFi BaseStation XG
WiFi BaseStation XG
1500+ client devices for high-density environments like stadiums and arenas
🔒 100% Secure & Encrypted Payments
⚡ Instant Service Activation
🚚 Fast & Reliable Delivery
💬 24/7 Expert Technical Support
✅ Trusted by Businesses Worldwide
🔄 Easy Returns
- Overview

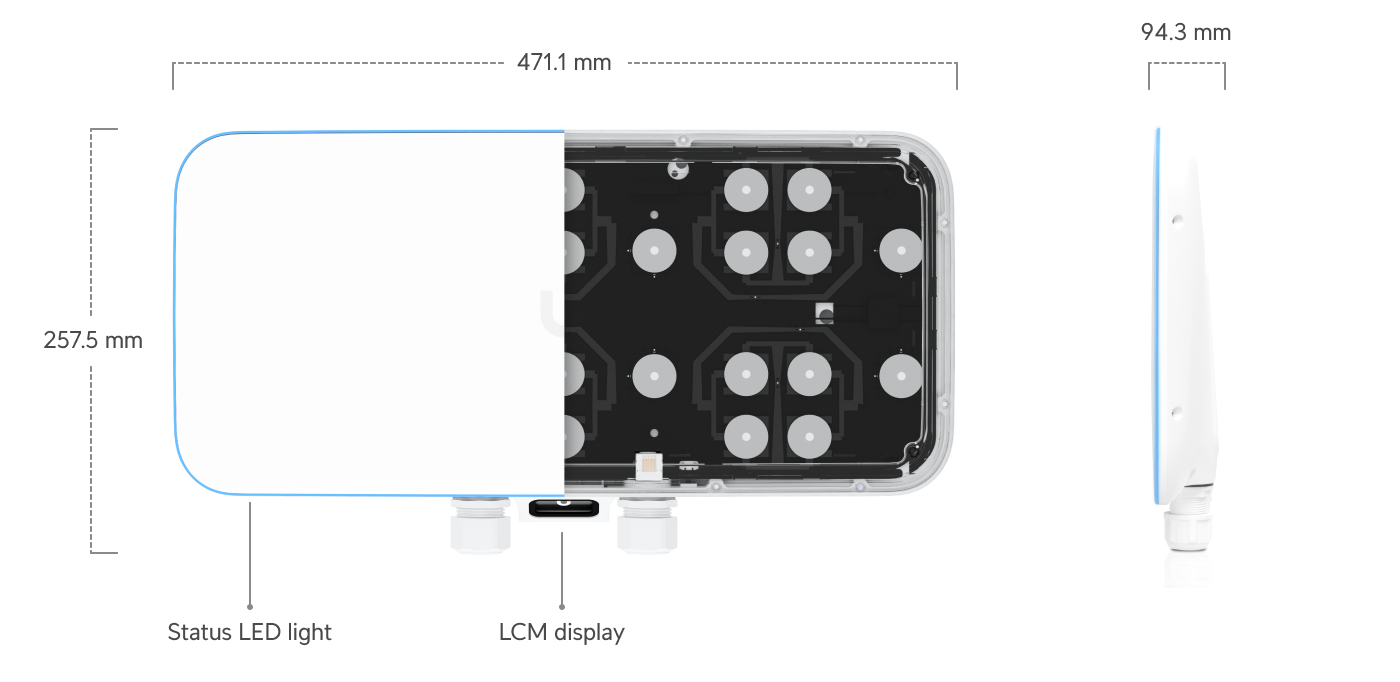

- Dimensions: 471.1 x 257.5 x 94.3 mm (18.6 x 10.1 x 3.7")
- WiFi Standard: WiFi 5
- Spatial Streams: 12
- Coverage Area: 465 m² (5,000 ft²)
- Max. Client Count: 1500+
- Uplink: 10 GbE
- Mounting: Wall, Pole (Mounts Included), VESA (Optional)
- Weatherproofing: IP67
- Power Method: PoE++
- Performance
- MIMO
- 5 GHz Low Band: 4 x 4 (DL MU-MIMO)
- 5 GHz Vertical Band: 4 x 4 (DL MU-MIMO)
- 5 GHz High Band: 4 x 4 (DL MU-MIMO)
- Max. Data Rate
- 5 GHz Low Band: 1.7 Gbps (BW80)
- 5 GHz Vertical Band: 1.7 Gbps (BW80)
- 5 GHz High Band: 1.7 Gbps (BW80)
- Antenna Gain
- Directional internal: 15 dBi (50° x 50°)
- Directional internal: 10 dBi (90° x 90°)
- Max. TX Power
- Max. BSSIDs: 8 per Radio
- Supported Data Rates
- 802.11ac (WiFi 5): 6.5 Mbps to 1.7 Gbps
- 802.11n: 6.5 Mbps to 600 Mbps
- Features
- Wireless Meshing: Yes
- Band Steering: Yes
- 802.11v BSS Transition Management: Yes
- 802.11r Fast Roaming: Yes
- 802.11k Radio Resource Management (RRM): Yes
- Advanced Radio Management: Yes
- Passpoint (Hotspot 2.0): Yes
- Captive Hotspot Portal
- Custom Branding Landing Page: Yes
- Voucher Authentication: Yes
- Payment-Based Authentication: Yes
- External Portal Server Support: Yes
- Password Authentication: Yes
- Guest Network Isolation: Yes
- Client Device Isolation: Yes
- WiFi Schedules: Yes
- RADIUS over TLS (RadSec): Yes
- Dynamic RADIUS-assigned VLAN: Yes
- Hardware
- Max. Power Consumption: 31W
- Includes PoE Adapter: Yes
- Supported Voltage Range: 44–57V DC

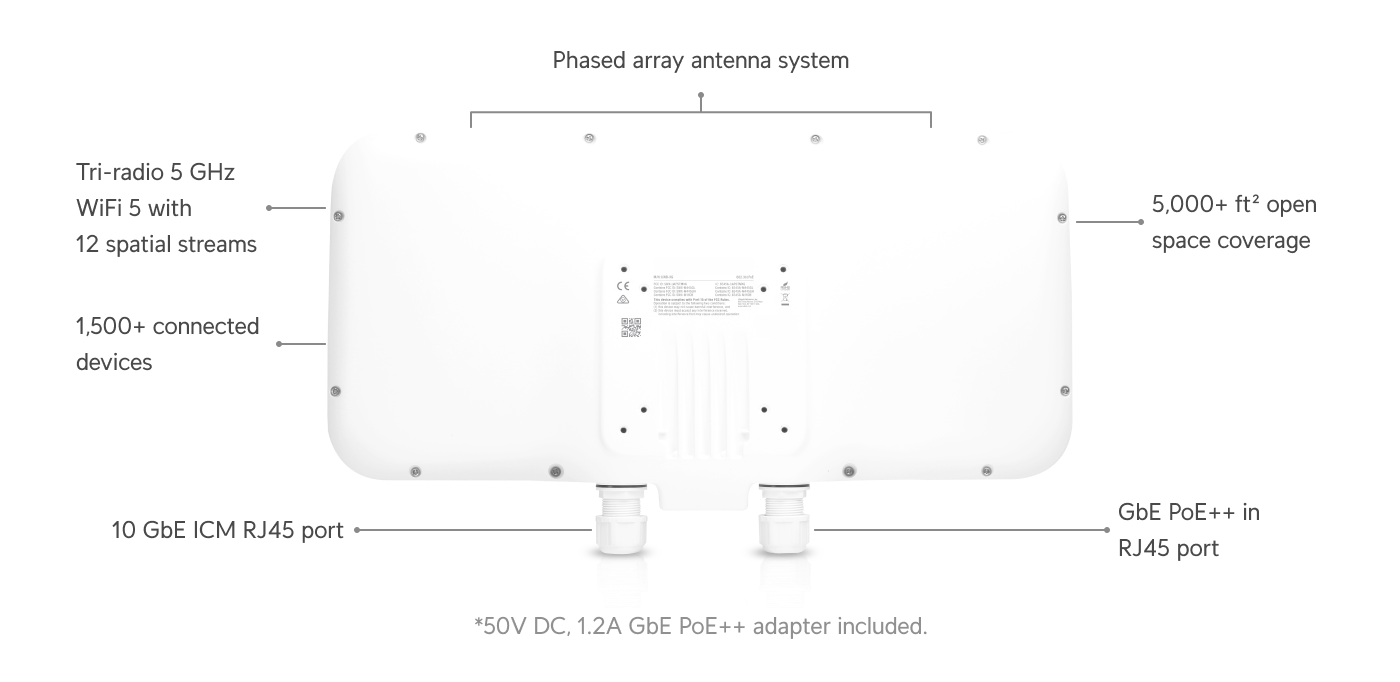

- Networking Interface
- (1) GbE RJ45 port
- (1) 1/10 GbE ICM Ethernet port
- Weight: 3.2 kg (7.1 lb)
- Pole Mount Diameter: 1–3" (25–76 mm)
- Antennas
- (1) Integrated dual-mode antenna array
- Management: Ethernet, Bluetooth
- Enclosure Material: Polycarbonate, aluminum alloy
- LEDs
- Channel Bandwidth: HT 20/40, VHT 20/40/80, HE 20/40/80
- NDAA Compliant: Yes
- Certifications: CE, FCC, IC, Anatel
- Operating Frequency
- US/CA: 5150 - 5250 MHz
- U-NII-2A: 5250 - 5350 MHz
- U-NII-2C: 5470 - 5670 MHz
- U-NII-3: 5725 - 5850 MHz
- Worldwide: 5150 - 5670 MHz
- Ambient Operating Temperature: -40 to 70° C
- Ambient Operating Humidity: 5 to 95% noncondensing
- Software
- Application Requirements: UniFi Network (Version 6.0.45 and later)
Q: Is setup instant?
A: Yes.
