Swiss Army Knife
Swiss Army Knife
Ultra-compact with external antenna support and incredible value
🔒 100% Secure & Encrypted Payments
⚡ Instant Service Activation
🚚 Fast & Reliable Delivery
💬 24/7 Expert Technical Support
✅ Trusted by Businesses Worldwide
🔄 Easy Returns
- Overview
- Dimensions: 137 x 84 x 34 mm (5.4 x 3.3 x 1.3")
- WiFi Standard: WiFi 5
- Spatial Streams: 4
- Coverage Area: 115 m² (1,250 ft²)
- Max. Client Count: 200+
- Uplink: GbE
- Mounting: Ceiling, Wall, Pole, Table (With Accessory), Desktop Stand (Optional)
- Weatherproofing: IPX6
- Power Method: PoE
- Performance
- MIMO
- 5 GHz: 2 x 2 (DL MU-MIMO)
- 2.4 GHz: 2 x 2 (DL MU-MIMO)
- Max. Data Rate
- 5 GHz: 866.7 Mbps (BW80)
- 2.4 GHz: 300 Mbps (BW40)
- Antenna Gain
- 5 GHz: 6.1 dBi
- 2.4 GHz: 4.7 dBi
- Max. TX Power
- 5 GHz: 20 dBm
- 2.4 GHz: 20 dBm
- Max. BSSIDs: 8 per Radio
- Supported Data Rates
- 802.11ac (WiFi 5): 6.5 Mbps to 866.7 Mbps
- 802.11n: 6.5 Mbps to 300 Mbps
- Features
- Wireless Meshing: Yes
- Band Steering: Yes
- 802.11v BSS Transition Management: Yes
- 802.11r Fast Roaming: Yes
- 802.11k Radio Resource Management (RRM): Yes
- Advanced Radio Management: Yes
- Passpoint (Hotspot 2.0): Yes
- Captive Hotspot Portal
- Custom Branding Landing Page: Yes
- Voucher Authentication: Yes
- Payment-Based Authentication: Yes
- External Portal Server Support: Yes
- Password Authentication: Yes
- Guest Network Isolation: Yes
- Private Pre-Shared Key (PPSK): Yes
- WiFi Speed Limiting: Yes
- Client Device Isolation: Yes
- WiFi Schedules: Yes
- RADIUS over TLS (RadSec): Yes
- Dynamic RADIUS-assigned VLAN: Yes
- Hardware
- Max. Power Consumption: 8W
- Supported Voltage Range: 44–57V DC

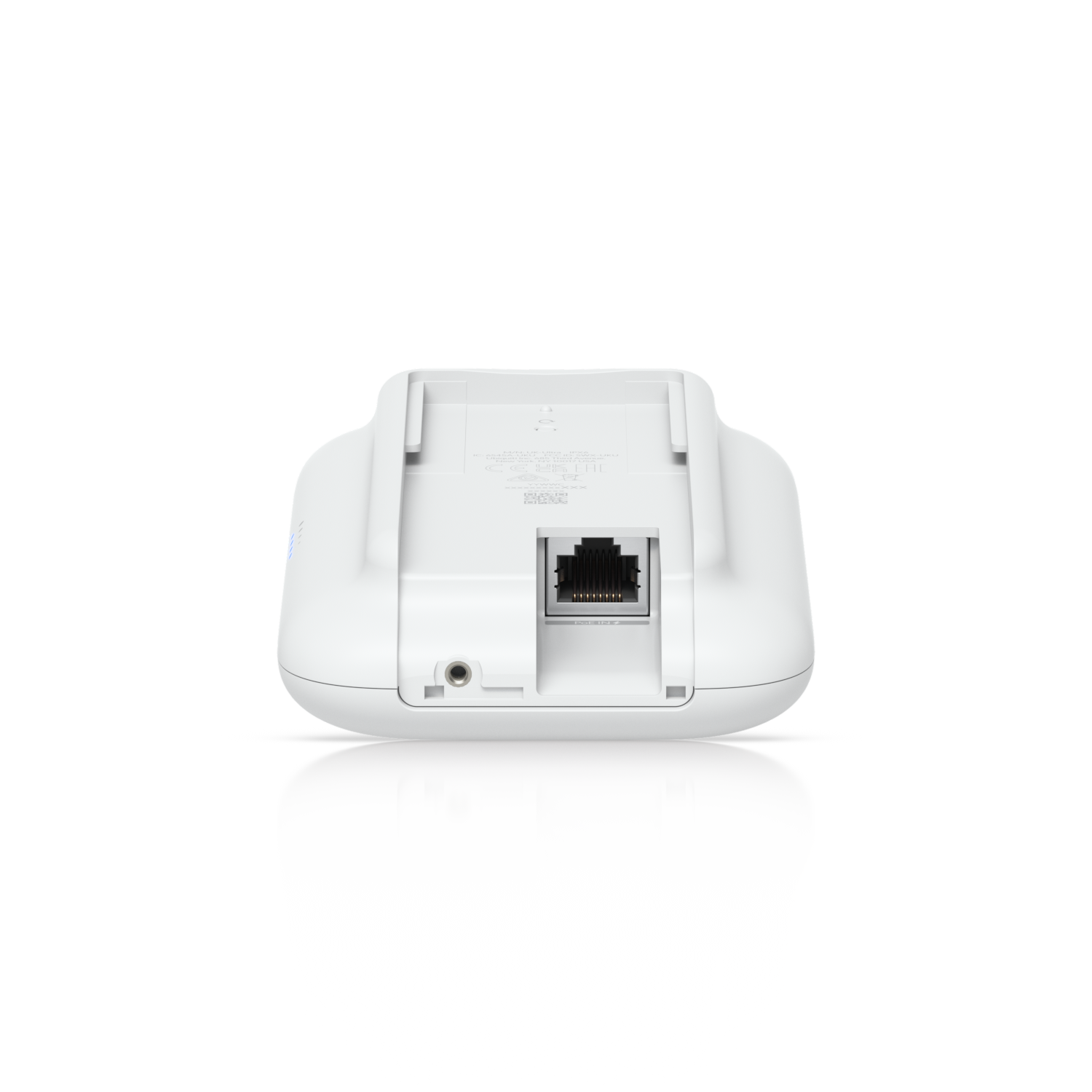

- Networking Interface: (1) GbE RJ45 port
- Weight: 173 g (6.1 oz)
- Wind Loading: 33.2 N at 200 km/h (7.5 lbf at 125 mph)
- Pole Mount Diameter: 1–2" (25–50 mm)

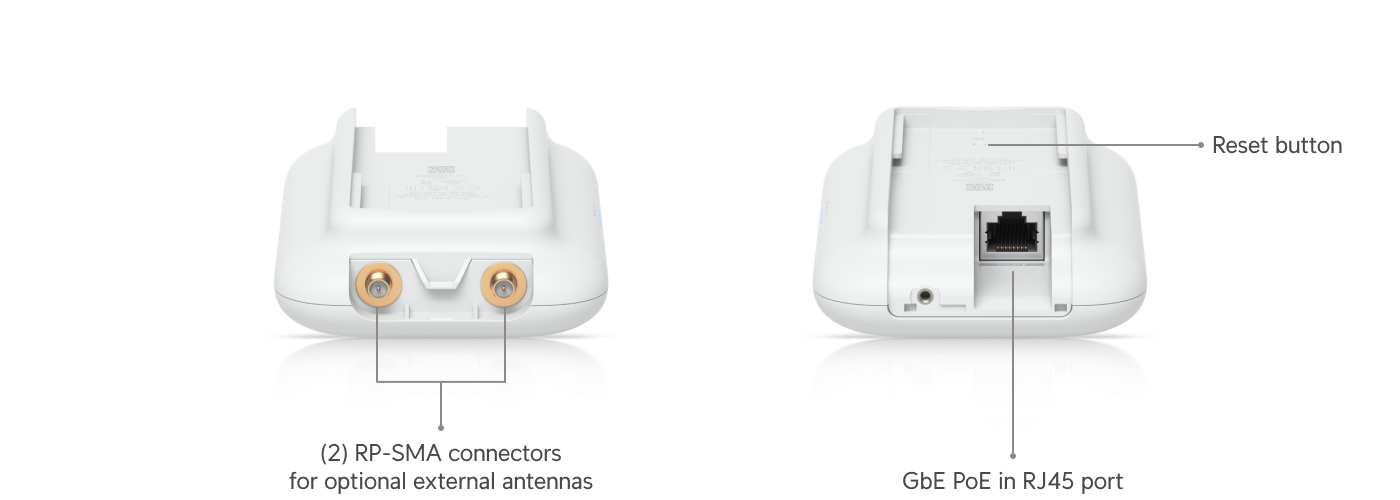

- Antennas
- (1) Internal antenna
- (2) RP-SMA connectors
- Management: Ethernet
- Enclosure Material: UV-stabilized polycarbonate
- Mount Material: Polycarbonate, SGCC steel, plastic
- LEDs
- System: (1) Power (White/Blue)
- Mesh Signal: (4) Blue
- Channel Bandwidth: HT 20/40, VHT 20/40/80, HE 20/40/80
- NDAA Compliant: Yes
- Certifications: CE, FCC, IC, Anatel
- Operating Frequency
- US/CA: 2400 - 2472 MHz
- U-NII-1: 5150 - 5250 MHz
- U-NII-2A: 5250 - 5350 MHz
- U-NII-2C: 5470 - 5725 MHz
- U-NII-3: 5725 - 5850 MHz
- Worldwide: 2400 - 2483.5 MHz, 5150 - 5850 MHz
- Ambient Operating Temperature: -40 to 60° C
- Ambient Operating Humidity: 5 to 95% noncondensing
- Software
- Application Requirements: UniFi Network (Version 7.5.187 and later)
Q: Is setup instant?
A: Yes.
